| Manufacturer: | MMD-MONITORS & DISPLAYS |
| Manufacturer Part No: | 24BDL3751T/00 |
| General |

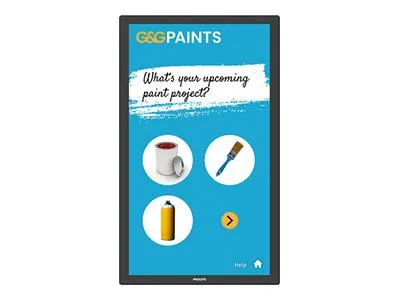

| Product Type: | LED-backlit LCD flat panel display |
| Energy Label QR Code URL: | Https://eprel.ec.europa.eu/qr/2168729 |
| Energy Class: | Class F |
| Power Consumption (Max): | 83 Watt |
| Power Consumption Operational: | 25 Watt |
| Power Consumption SDR (On mode): | 21 kWh/1000h |
| Diagonal Class: | 24" |
| Commercial Use: | Yes - digital signage |
| Combined With: | Touchscreen (multi touch) |
| Series: | Interactive 3000 Series |
| Platform: | Android |
| Operating System: | Android OS 13 |
| TV Tuner: | No tuner |
| TV Tuner Presence: | No |
| Video Interface: | HDMI |
| HDMI Ports Qty: | 2 ports |
| PC Interface: | DisplayPort, USB-C |
| Modes: | Portrait mode, landscape mode |
| Picture Enhancements: | Pixel Shift, 3D Digital Comb Filter, 3/2 - 2/2 motion pull down, motion compensation deinterlacing, progressive scan |
| Design: | Flush Design |
| Width: | 57.08 cm |
| Depth: | 3.84 cm |
| Height: | 34.03 cm |
| Weight: | 4.78 kg |
| Enclosure Colour: | Black |
| Display |
| LCD Display Technology: | ADS |
| Pixel Pitch: | 0.2745 mm |
| Colour Support: | 16700000 colours |
| Resolution: | 1920 x 1080 |
| Display Format: | 1080p |
| Image Aspect Ratio: | 16:9 |
| Frame Rate & Enhancement Technology: | 60 Hz Refresh Rate |
| LCD Backlight Technology: | LED backlight |
| Coating: | Anti-glare, anti-fingerprint |
| Image Contrast Ratio: | 1000:1 |
| Brightness: | 275 cd/m² |
| Viewing Angle: | 178 degrees |
| Viewing Angle (Vertical): | 178 degrees |
| Touchpoints Qty: | 10 |
| Response Time: | 8 ms |
| Display Menu Language: | Multilingual |
| Backlight Life: | 50,000 hour(s) |
| Commercial Features: | FailOver, 30-degrees tilting installation, PPDS Wave |
| Operation Hours / Days: | 24 / 7 |
| Features: | 3D MA deinterlacing, HID support, Projected Capacitive Technology (PCAP) |
| Stands & Mounts |
| Stand: | Optional |
| Stand Design: | Tabletop |
| Flat Panel Mount Interface: | 200 x 200 mm |
| VESA Compatibility: | Yes |
| Media Player |
| Supported Video Formats: | MPEG-1, MPEG-2, MPEG-4, H.264, H.263, H.265, VP9, VP8 |
| Supported Audio Formats: | MP3, AAC, HE-AAC |
| Supported Pictures Formats: | BMP, PNG, JPEG, WebP |
| USB Port: | Yes |
| USB Ports Qty: | 5 |
| Configuration: | ARM Cortex-A55 Quad-Core - 4 GB - 32 GB eMMC - ARM Mali-G52 |
| Remote Control |
| Type: | Remote control |
| Battery Form Factor: | AAA type |
| Battery Included: | Yes |
| Audio System |
| Speaker System: | 2 speakers |
| Output Power / Total: | 20 Watt |
| Speakers: | 2 x speaker - 10 Watt |
| Network & Internet Multimedia |
| Connectivity: | Wi-Fi, LAN, Bluetooth |
| LAN Protocol: | Gigabit Ethernet |
| Wi-Fi Protocol: | 802.11ax |
| Bluetooth Version: | Bluetooth 5.2 |
| Connections |
| Connector Type: | 2 x HDMI DisplayPort USB-C with 15W Power Delivery Audio line-out USB OTG 2 x USB 3.0 USB 3.0 LAN Infrared input RS-232 |
| Miscellaneous |
| Included Accessories: | Logo badge, 2x mounting bolts |
| Cables Included: | RS232 cable - 3 m USB-A to USB-B cable - 3 m |
| Compliant Standards: | Plug and Play, FCC Class A certified, BSMI, CB, PSB, RoHS, ETL, CU, IMDA |
| Power |
| Power Device: | Power supply |
| Input Voltage: | AC 100-240 V (50/60 Hz) |
| Power Consumption Stand by: | 0.5 Watt |
| Manufacturer Warranty |
| Service & Support: | Limited warranty - 3 years |
| Dimensions & Weight (Shipping) |
| Weight (Shipping): | 6.7 kg |
| Environmental Parameters |
| Min Operating Temperature: | 0 °C |
| Max Operating Temperature: | 40 °C |
| Humidity Range Operating: | 20 - 80% RH (non-condensing) |
