| Manufacturer: | MMD-MONITORS & DISPLAYS |
| Manufacturer Part No: | 55BDL2105X/00 |
| General |

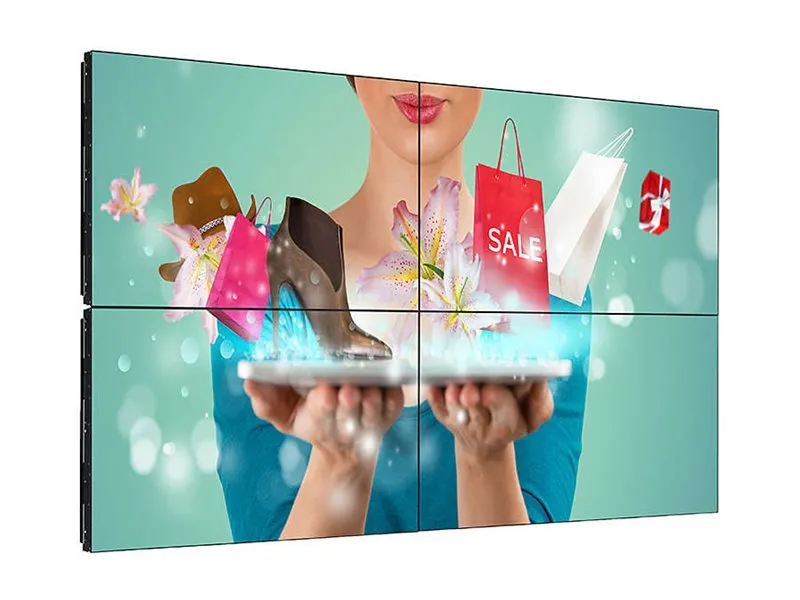

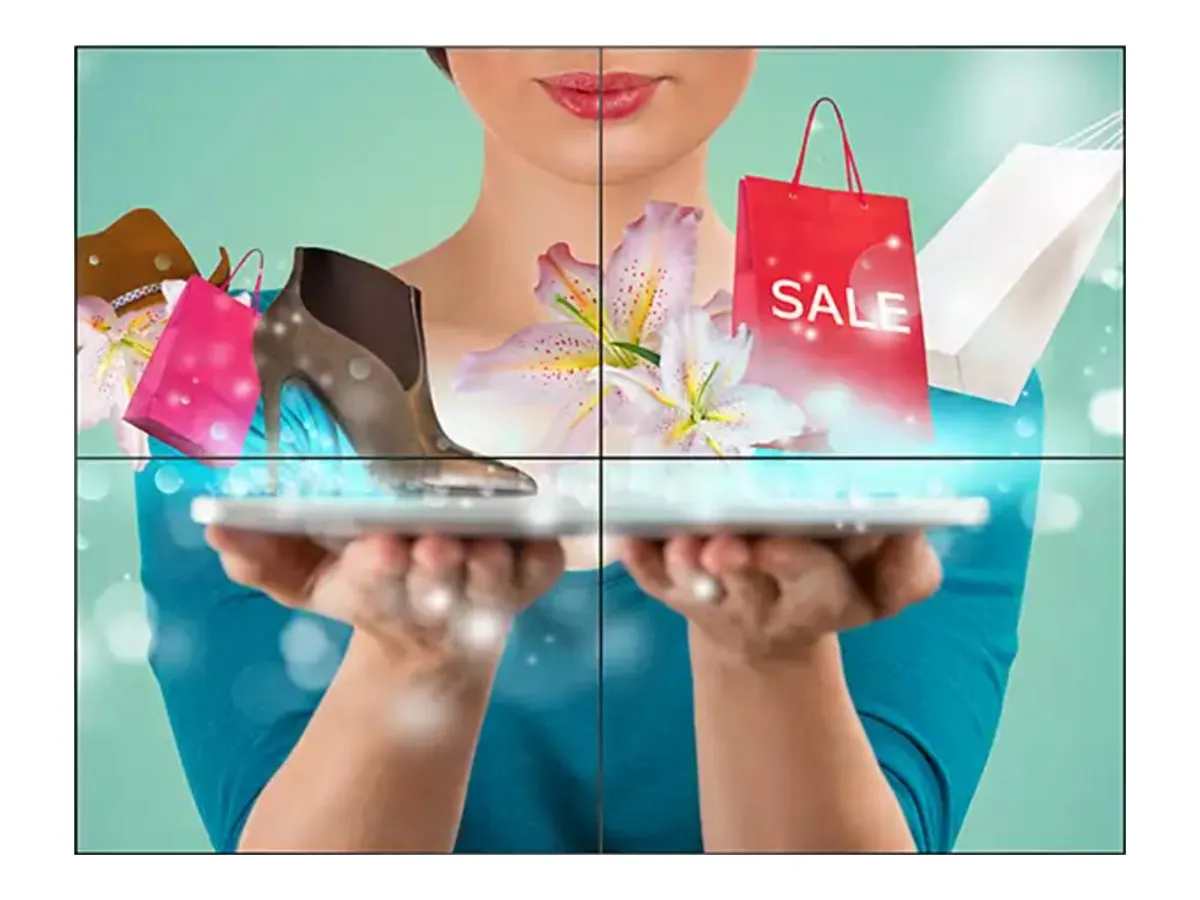

| Product Type: | LED-backlit LCD video wall |
| Energy Label QR Code URL: | Https://eprel.ec.europa.eu/qr/1226971 |
| Energy Class: | Class G |
| Power Consumption (Max): | 340 Watt |
| Power Consumption Operational: | 180 Watt |
| Power Consumption (On mode): | 140 W |
| Power Consumption SDR (On mode): | 140 kWh/1000h |
| Diagonal Class: | 55" |
| Diagonal Size: | 55" |
| Commercial Use: | Yes - digital signage |
| Series: | X-Line |
| TV Tuner: | No tuner |
| TV Tuner Presence: | No |
| Sensors: | Temperature sensor |
| Video Interface: | HDMI |
| HDMI Ports Qty: | 2 ports |
| PC Interface: | DVI, VGA (HD-15), DisplayPort |
| Modes: | Portrait mode, landscape mode, Tiling Mode (15 x 15) |
| Picture Enhancements: | Pixel Shift, Low Bright, Pure Colour Pro |
| Width: | 121.35 cm |
| Depth: | 9.78 cm |
| Height: | 68.43 cm |
| Weight: | 28.8 kg |
| Display |
| LCD Display Technology: | IPS |
| Colour Support: | 16700000 colours |
| Video Wall |
| Resolution: | 1920 x 1080 |
| Display Format: | 1080p |
| Image Aspect Ratio: | 16:9 |
| Frame Rate & Enhancement Technology: | 60 Hz Refresh Rate |
| LCD Backlight Technology: | Direct LED |
| Coating: | 25% haze |
| Image Contrast Ratio: | 1200:1 |
| Dynamic Contrast Ratio: | 500000:1 |
| Brightness: | 500 cd/m² |
| Viewing Angle: | 178 degrees |
| Viewing Angle (Vertical): | 178 degrees |
| Response Time: | 8 ms |
| Display Menu Language: | Chinese (traditional), Chinese (simplified), English, German, French, Italian, Polish, Russian, Spanish, Turkish, Arabic, Japanese |
| Commercial Features: | CMND management, Open Pluggable Standard (OPS) support, FailOver |
| Operation Hours / Days: | 24 / 7 |
| Features: | Smart Insert, carrying handles |
| Video Wall |
| Resolution: | 1920 x 1080 |
| Diagonal Size: | 54.5" |
| Video Wall Display Unit |
| Pixel Pitch: | 0.63 mm |
| LED Lifetime: | 50000 hours |
| Stands & Mounts |
| Flat Panel Mount Interface: | 400 x 400 mm |
| VESA Compatibility: | Yes |
| Video Features |
| Input Video Formats: | 720/60p, 720/50p, 1080/50p, 1080/60p, 1080/30i, 1080/25i |
| Supported Computer Resolutions: | 640 x 480 (VGA), 800 x 600 (SVGA), 1280 x 768 (WXGA), 1280 x 1024 (SXGA), 1600 x 1200 (UXGA), 1280 x 960, 720 x 400, 1360 x 768, 1920 x 1080, 1280 x 800 |
| Media Player |
| USB Port: | Yes |
| USB Ports Qty: | 1 |
| Remote Control |
| Type: | Remote control |
| Battery Form Factor: | AAA type |
| Battery Included: | Yes |
| Audio System |
| Speaker System: | 2 speakers |
| Output Power / Total: | 20 Watt |
| Speakers: | 2 x speaker - 10 Watt |
| Connections |
| Connector Type: | 2 x HDMI DisplayPort input DVI-D input VGA input DisplayPort output Audio input Audio input LAN RS-232C input/output Infrared input/output USB 2.0 |
| Miscellaneous |
| Included Accessories: | Wire clips, edge alignment pins, edge alignment kit (1), 2x edge alignment kit (2), 3 x gap pads |
| Cables Included: | RJ-45 cable DisplayPort cable IR sensor cable - 1.8 m |
| Compliant Standards: | BSMI, CB, FCC, RoHS, ETL, Class A |
| Power |
| Power Device: | Power supply |
| Power Consumption Stand by: | 0.5 Watt |
| Manufacturer Warranty |
| Service & Support: | Limited warranty - 3 years |
| Environmental Parameters |
| Min Operating Temperature: | 0 °C |
| Max Operating Temperature: | 40 °C |
| Humidity Range Operating: | 20 - 80% RH (non-condensing) |
