| Manufacturer: | MMD-MONITORS & DISPLAYS |
| Manufacturer Part No: | 55BDL3305X/00 |
| General |

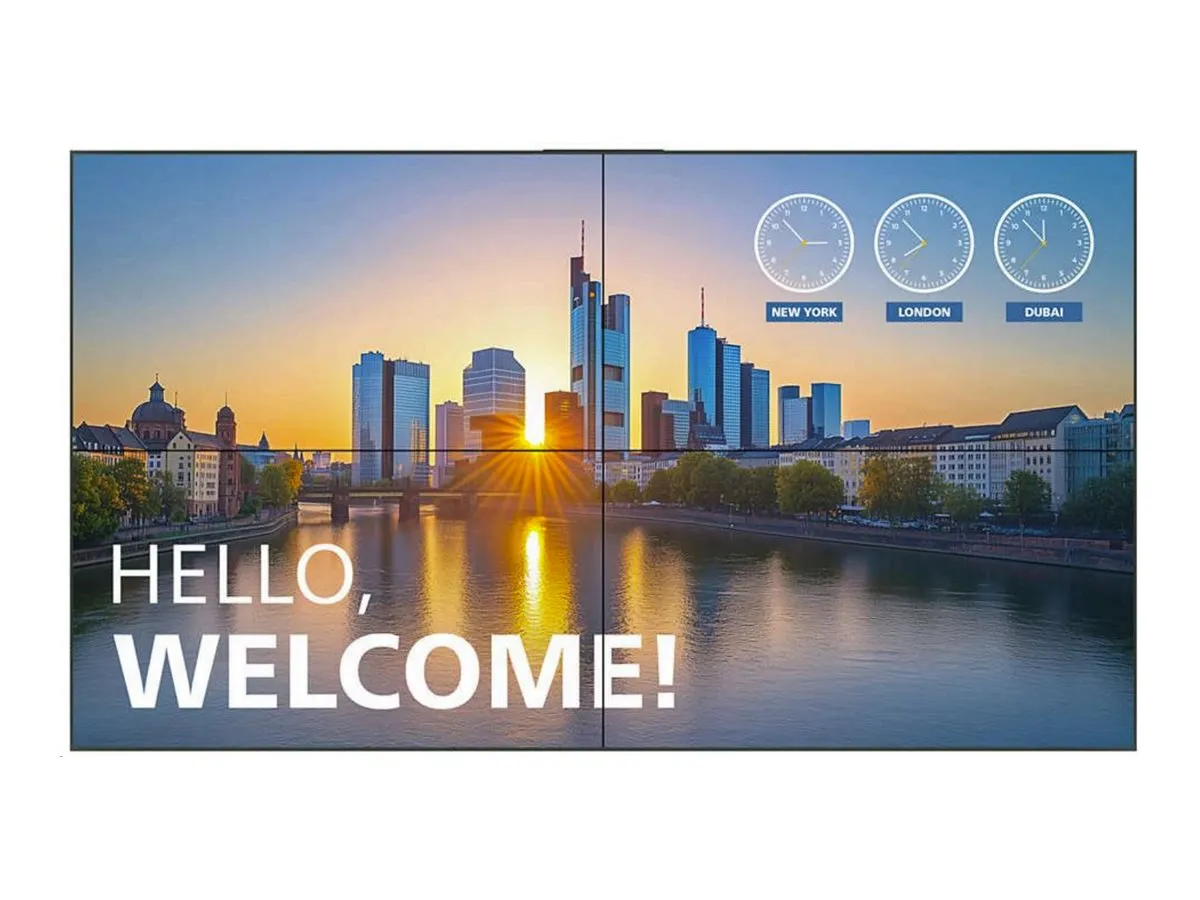

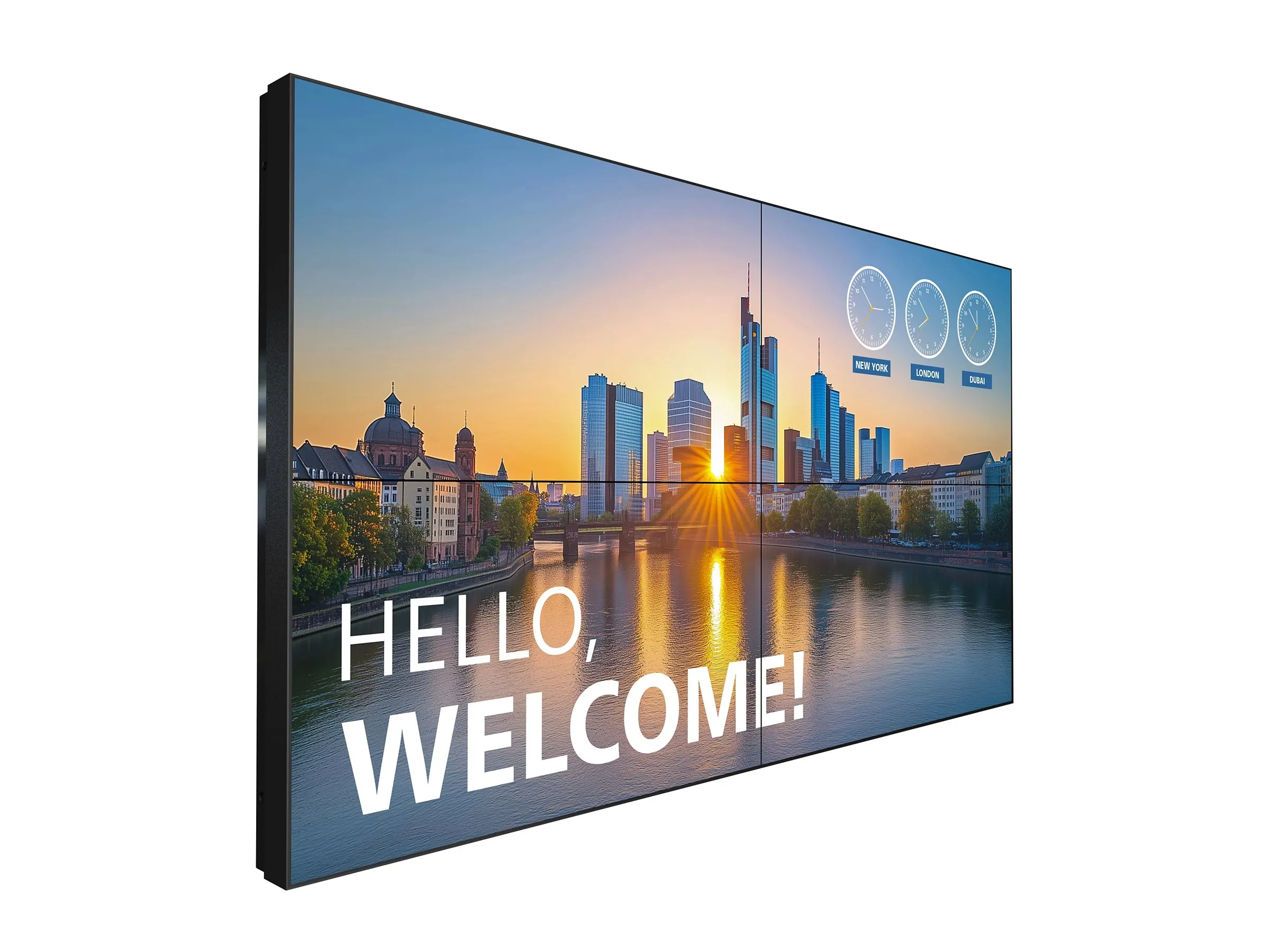

| Product Type: | LED-backlit LCD flat panel display |
| Energy Label QR Code URL: | Https://eprel.ec.europa.eu/qr/2232581 |
| Energy Class: | Class G |
| Power Consumption (Max): | 340 Watt |
| Power Consumption Operational: | 180 Watt |
| Power Consumption (On mode): | 140 W |
| Power Consumption SDR (On mode): | 163 kWh/1000h |
| Diagonal Class: | 55" |
| Diagonal Size: | 54.5" |
| Commercial Use: | Yes - digital signage |
| Series: | Videowall 3000 Series |
| TV Tuner: | No tuner |
| TV Tuner Presence: | No |
| Video Interface: | HDMI |
| HDMI Ports Qty: | 2 ports |
| PC Interface: | DisplayPort, DVI, VGA (HD-15) |
| Modes: | Portrait mode, landscape mode, Tiling Mode (15 x 15) |
| Picture Enhancements: | Pure Colour Pro |
| Width: | 121.13 cm |
| Depth: | 9.78 cm |
| Height: | 68.21 cm |
| Weight: | 28.8 kg |
| Display |
| LCD Display Technology: | IPS |
| Pixel Pitch: | 0.63 mm |
| Colour Support: | 16700000 colours |
| Resolution: | 1920 x 1080 |
| Display Format: | 1080p |
| Image Aspect Ratio: | 16:9 |
| Frame Rate & Enhancement Technology: | 60 Hz Refresh Rate |
| LCD Backlight Technology: | Direct LED |
| Coating: | 25% haze |
| Image Contrast Ratio: | 1200:1 |
| Brightness: | 500 cd/m² |
| Viewing Angle: | 178 degrees |
| Viewing Angle (Vertical): | 178 degrees |
| Response Time: | 8 ms |
| Display Menu Language: | Chinese (traditional), Chinese (simplified), English, German, French, Italian, Polish, Russian, Spanish, Turkish, Arabic, Japanese |
| Backlight Life: | 50,000 hour(s) |
| Commercial Features: | CMND management, FailOver, Open Pluggable Standard (OPS) support |
| Operation Hours / Days: | 24 / 7 |
| Features: | Smart Insert |
| Stands & Mounts |
| Flat Panel Mount Interface: | 400 x 400 mm |
| VESA Compatibility: | Yes |
| Media Player |
| USB Port: | Yes |
| USB Ports Qty: | 1 |
| Remote Control |
| Type: | Remote control |
| Battery Form Factor: | AAA type |
| Battery Included: | Yes |
| Audio System |
| Speaker System: | 2 speakers |
| Output Power / Total: | 20 Watt |
| Speakers: | 2 x speaker - 10 Watt |
| Network & Internet Multimedia |
| Connectivity: | LAN |
| LAN Protocol: | Ethernet |
| Connections |
| Connector Type: | Audio line-out DisplayPort input DVI-D input VGA input 2 x HDMI input Audio line-in USB 2.0 Sensor DisplayPort output Infrared input 2 x LAN |
| Miscellaneous |
| Included Accessories: | 3 x gap pads, 3 cable clampers, edge alignment pins |
| Cables Included: | IR sensor cable - 1.8 m DisplayPort cable RJ-45 cable |
| Compliant Standards: | FCC Class A certified, CB, RoHS, ETL, BSMI |
| Power |
| Power Device: | Power supply |
| Power Consumption Stand by: | 0.5 Watt |
| Manufacturer Warranty |
| Service & Support: | Limited warranty - 3 years |
| Environmental Parameters |
| Min Operating Temperature: | 0 °C |
| Max Operating Temperature: | 40 °C |
| Humidity Range Operating: | 20 - 80% (non-condensing) |
