| Manufacturer: | MMD-MONITORS & DISPLAYS |
| Manufacturer Part No: | 55BDL4002H/00 |
| General |

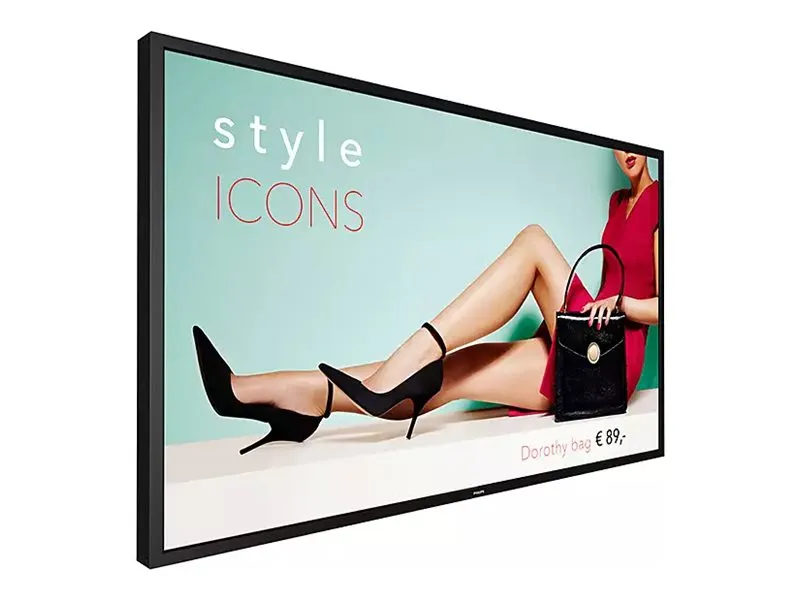

| Product Type: | LED-backlit LCD flat panel display |
| Power Consumption (Max): | 430 watt |
| Power Consumption Operational: | 245 watt |
| Diagonal Class: | 55" |
| Diagonal Size: | 54.6" |
| Commercial Use: | Yes - digital signage |
| Series: | H-Line |
| TV Tuner: | No tuner |
| TV Tuner Presence: | No |
| Sensors: | Light sensor |
| Video Interface: | HDMI |
| HDMI Ports Qty: | 2 ports |
| PC Interface: | DVI, DisplayPort |
| Modes: | Portrait mode, landscape mode |
| Picture Enhancements: | Pixel Shift, Low Bright |
| Width: | 124.86 cm |
| Depth: | 8.5 cm |
| Height: | 71.94 cm |
| Weight: | 30.37 kg |
| Display |
| Colour Support: | 1070000000 colours |
| Resolution: | 1920 x 1080 |
| Display Format: | 1080p |
| Image Aspect Ratio: | 16:9 |
| Frame Rate & Enhancement Technology: | 60 Hz Refresh Rate |
| LCD Backlight Technology: | LED backlight |
| Image Contrast Ratio: | 4000:1 |
| Dynamic Contrast Ratio: | 500000:1 |
| Brightness: | 2500 cd/m² |
| Viewing Angle: | 178 degrees |
| Viewing Angle (Vertical): | 178 degrees |
| Response Time: | 8 ms |
| Display Menu Language: | Multilingual |
| Backlight Life: | 50,000 hour(s) |
| Commercial Features: | CMND management, FailOver |
| Operation Hours / Days: | 24 / 7 |
| Features: | OPS Slot, Smart Insert |
| Stands & Mounts |
| Stand: | Optional |
| Flat Panel Mount Interface: | 400 x 400 mm |
| VESA Compatibility: | Yes |
| Video Features |
| Input Video Formats: | 1080/50p, 1080/60p, 1080/30i, 1080/25i, 720/60p, 720/50p |
| Supported Computer Resolutions: | 1920 x 1080, 1600 x 1200 (UXGA), 1366 x 768, 1280 x 1024 (SXGA), 1280 x 960, 1280 x 800, 1280 x 768 (WXGA), 800 x 600 (SVGA), 720 x 400, 640 x 480 (VGA) |
| Media Player |
| Supported Video Formats: | H.264, H.263, MPEG, H.265 |
| Supported Audio Formats: | AAC, HE-AAC |
| Supported Pictures Formats: | BMP, PNG, JPEG |
| USB Port: | Yes |
| USB Ports Qty: | 2 |
| Remote Control |
| Type: | Remote control |
| Battery Form Factor: | AAA type |
| Battery Included: | Yes |
| Audio System |
| Speaker System: | 2 speakers |
| Output Power / Total: | 20 watt |
| Speakers: | 2 x speaker - 10 watt |
| Connections |
| Connector Type: | DisplayPort input 2 x HDMI input DVI-I input Audio line-in DisplayPort output HDMI output Audio line-out Infrared output LAN RS-232C input/output 2 x USB 2.0 Infrared input |
| Miscellaneous |
| Included Accessories: | AC switch cover, Philips logo, usb cover, screw, 3 wire clampers, edge alignment kit, open frame kit |
| Cables Included: | IR sensor cable - 1.8 m |
| Compliant Standards: | FCC Class A certified, UL/cUL, CB |
| Power |
| Input Voltage: | AC 100-240 V (50/60 Hz) |
| Power Consumption Stand by: | 0.5 watt |
| Manufacturer Warranty |
| Service & Support: | Limited warranty - 3 years |
| Environmental Parameters |
| Min Operating Temperature: | 0 °C |
| Max Operating Temperature: | 40 °C |
| Humidity Range Operating: | 20 - 80% (non-condensing) |
