Парт.№: 90MB1IY0-M0EAY0
Кат.№: 146824
Кат.№: 146824
Цена с ДДС:
514 лв.
Цена с ДДС:
262.80 €
изчерпан
| Подд. процесори: | AMD Socket AM5 for AMD Ryzen™ 9000&8000&7000 Series Desktop Processors |
| Чипсет: | AMD B850 Chipset |
| Памет/тип/: | 4 x DIMM slots, max. 256GB, DDR5, Supports up to 8000+MT/s (OC) with Ryzen™ 9000&8000&7000 Series Processors, ECC and Non-ECC Un-buffered DIMM, Dual channel memory architecture, Supports AMD Extended Profiles for Overclocking (EXPO™), ASUS Enhanced Memory Profile (AEMP) |
| Разш. слотове: | AMD Ryzen™ 9000&7000 Series Desktop Processors, 1 x PCIe 5.0 x16 slot (supports x16 mode), AMD Ryzen™ 8000 Series Desktop Processors, 1 x PCIe 4.0 x16 slot (supports x8/x4 mode), AMD B850 Chipset, 1 x PCIe 4.0 x1 slot |
| Сторидж: | Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports, AMD Ryzen™ 9000&7000 Series Desktop Processors, M.2 1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode), M.2 2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode), AMD Ryzen™ 8000 Series Desktop Processors, M.2 1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode), M.2 2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)*, AMD B850 Chipset, M.2 3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode), 4 x SATA 6Gb/s ports, * Specifications vary by CPU types., AMDRAIDXpert2 Technology, Ryzen™ 9000 Series Processors: RAID 0/1/5/10, Ryzen™ 8000 Series Processors: RAID 0/1, Ryzen™ 7000 Series Processors: RAID 0/1/10 |
| Графична карта: | 1 x DisplayPort, 1 x HDMI™ port |
| Звук: | Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC, - Impedance sense for front and rear headphone outputs, - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers, - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking, - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in), - Supports up to 32-Bit/192 kHz playback*, Audio Features, - Audio Shielding, - Premium audio capacitors, - Dedicated audio PCB layers, - Audio cover, - Unique de-pop circuit, * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio |

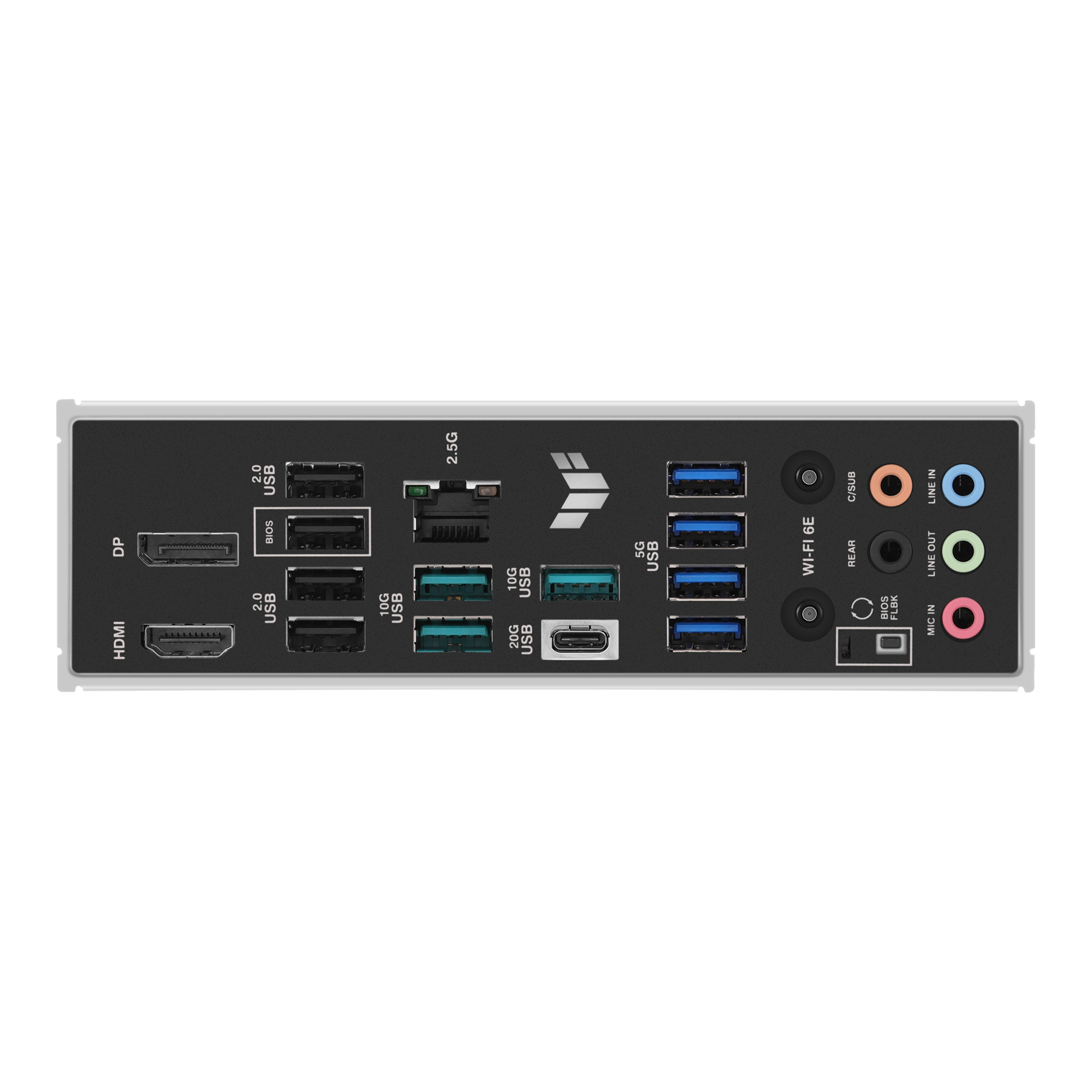

| I/O: | 1 x USB 20Gbps port (1 x USB Type-C®), 3 x USB 10Gbps ports (3 x Type-A), 4 x USB 5Gbps ports (4 x Type-A), 4 x USB 2.0 ports (4 x Type-A), 1 x DisplayPort, 1 x HDMI™ port, 1 x Wi-Fi module, 1 x Realtek 2.5Gb Ethernet port, 5 x Audio jacks, 1 x BIOS FlashBack™ button |
| Мрежа: | 1 x Realtek 2.5Gb Ethernet, TUF LANGuard |
| Конектори: | Fan and Cooling Related, 1 x 4-pin CPU Fan header, 1 x 4-pin CPU OPT Fan header, 1 x 4-pin AIO Pump header, 3 x 4-pin Chassis Fan headers, Power Related, 1 x 24-pin Main Power connector, 2 x 8-pin +12V CPU Power connectors, Storage Related, 3 x M.2 slots (Key M), 4 x SATA 6Gb/s ports, USB, 1 x USB 10Gbps connector (supports USB Type-C® ), 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports, 2 x USB 2.0 headers support 3 additional USB 2.0 ports, Miscellaneous, 3 x Addressable Gen 2 headers, 1 x Clear CMOS header, 1 x Chassis Intrusion header, 1 x COM Port header, 1 x Front Panel Audio header (F AUDIO), 1 x 10-1 pin Front Panel System header |
| Форм фактор: | micro-ATX Form Factor, 24.4 cm x 24.4 cm |
| Оперционни с-ми: | Windows 11, Windows 10 64-bit |
| BIOS: | 256 Mb Flash ROM, UEFI AMI BIOS |
| USB: | Rear USB (Total 12 ports), 1 x USB 20Gbps port (1 x USB Type-C®), 3 x USB 10Gbps ports (3 x Type-A), 4 x USB 5Gbps ports (4 x Type-A), 4 x USB 2.0 ports (4 x Type-A), Front USB (Total 6 ports), 1 x USB 10Gbps connector (supports USB Type-C®), 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports, 2 x USB 2.0 headers support 3 additional USB 2.0 ports, * USB Type-C® power delivery output: max. 5V/3A |
| Wireless: | Wi-Fi 6E, 2x2 Wi-Fi 6E (802.11ax), Supports 2.4/5/6GHz frequency band, Bluetooth® v5.3 |
| Features: | ASUS TUF PROTECTION, - DIGI+ VRM (- Digital power design with DrMOS), - ESD Guards, - TUF LANGuard, - Overvoltage protection, - SafeSlot, - Stainless-steel back I/O, ASUS Q-Design, - M.2 Q-Latch, - PCIe Slot Q-Release, - Q-Antenna, - Q-Dashboard, - Q-DIMM, - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]), ASUS Thermal Solution, - M.2 heatsink, - VRM heatsink design, ASUS EZ DIY, - BIOS FlashBack™ button, - BIOS FlashBack™ LED, - ProCool, - Pre-mounted I/O shield, - SafeDIMM, Aura Sync, - Addressable Gen2 headers |
| Bluetooth: | 5.3 |
