Подд. процесори: | Socket AM5, Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors |
Памет/тип/: | 2x DDR5, Maximum Memory Capacity 128GB, Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MT/s, Max. overclocking frequency:, 1DPC 1R Max speed up to 6800+ MHz, 1DPC 2R Max speed up to 6000+ MHz, Supports Dual-Channel mode, Supports non-ECC, un-buffered memory, Supports AMD EXPO |
Разш. слотове: | 1x PCI-E x16 slot, Supports x16 (For Ryzen™ 9000 and 7000 Series processors), Supports x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors), Supports x4 (For Ryzen™ 8500/ 8300 Series processors), 1x PCI-E x1 slot, PCI E1 Gen PCIe 4.0 supports up to x16 (From CPU), PCI E2 Gen PCIe 3.0 supports up to x1 (From Chipset) |
Сторидж: | 1x M.2, M.2 1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices, 4x SATA 6G, лSupports RAID 0, RAID 1 and RAID 10 for SATA storage devices |
Графична карта: | 1x HDMI™, Support HDMITM 2.1, maximum resolution of 4K 60Hz, 1x VGA, Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz |
Звук: | Realtek® ALC897 Codec, 7.1-Channel High Definition Audio |

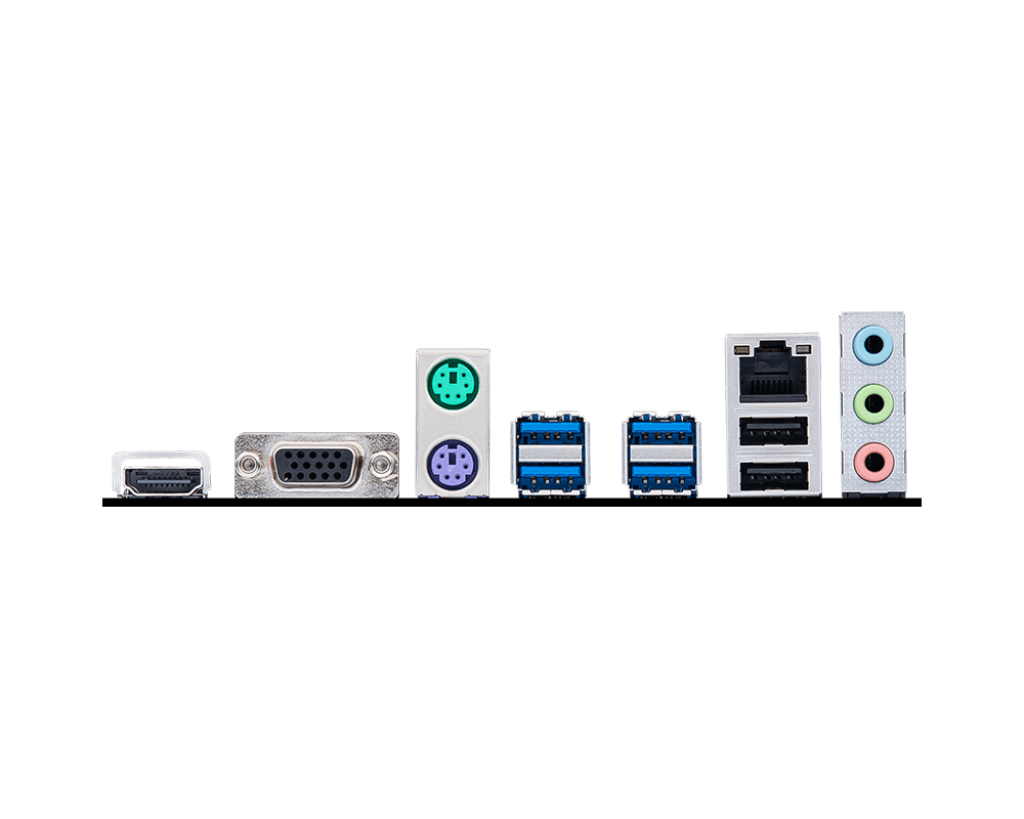

I/O: | HDMI™, VGA, Keyboard/Mouse, USB 3.2 Gen 1 5Gbps (Type-A), LAN port, Audio connectors, USB 2.0 |
Мрежа: | Realtek® RTL8125BG 2.5G LAN |
Конектори: | 1x Power Connector(ATX PWR), 1x Power Connector(CPU PWR), 1x CPU Fan2x System Fan, 2x Front Panel (JFP), 1x Chassis Intrusion (JCI), 1x Front Audio (JAUD), 1x Com Port (JCOM), 1x Addressable V2 RGB LED connector (JARGB V2), 1x RGB LED connector(JRGB), 1x TPM pin header(Support TPM 2.0), 4x USB 2.0 ports, 2x USB 5Gbps Type A ports |
Форм фактор: | mATX, 215mmx243.84mm |
Оперционни с-ми: | Support for Windows® 11 64-bit, Windows® 10 64-bit |
USB: | 2x USB 2.0 (Rear), 4x USB 2.0 (Front), 4x USB 5Gbps Type A (Rear), 2x USB 5Gbps Type A (Front) |
Features: | 4x EZ Debug LED |
