Парт.№: 911-7E49-022
Кат.№: 159257
Кат.№: 159257
Цена с ДДС:
622.00 €
на склад
БЪРЗА ПОРЪЧКА (без регистрация)
Въведете Вашите данни, натиснете бутон "ПОРЪЧАЙ" и ние ще Ви се обадим!
| Производител: | MSI |
| Цокъл: | Socket AM5 |
| Подд. процесори: | Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors |
| Чипсет: | AMD X870E |
| Памет/тип/: | 4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support DDR5 9000 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen™ 9000 Series Processors max. overclocking: • 1DPC 1R Max speed up to 8400+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 6400+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPOTM Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only* * CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility. • The DIMM slots on this motherboard only have single-sided latches. • Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/. |
| Разш. слотове: | 3x PCI-E x16 slot PCI E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI E2 Gen PCIe 5.0 supports up to x8 (From CPU) PCI E3 Gen PCIe 4.0 supports up to x4 PCI E1 & PCI E2 slots • Supports PCIe 5.0 x16/x0 or x8/x8 (For Ryzen™ 9000/ 7000 Series processors) • Supports PCIe 4.0 x8/x0 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4/x0 (For Ryzen™ 8500/ 8300 Series processor) PCI E3 slot • Supports up to PCIe 4.0 x4 |
| Сторидж: | 4x M.2 M.2 1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2 2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2 3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2 4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G M.2 1 slot • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) M.2 2*/** slot • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • The M2 2 slot will be unavailable when using Ryzen™ 8000 Series processors M.2 3 slot • Supports up to PCIe 4.0 x4 M.2 4 slot • Supports up to PCIe 4.0 x4 *The M2 2 slot will be unavailable when using Ryzen™ 8500/ 8300 Series. ** USB 40Gbps Type-C ports & M2 2 share the bandwidth. USB 40Gbps Type-C ports will run at x2 speed when installing device in the M2 2 slot. You can switch M2 2 to x4 in the BIOS, but this will disable the USB 40Gbps Type-C ports. |
| Графична карта: | 1x HDMI™ Support HDMITM 2.1 with FRL port, maximum resolution of 8K 60Hz* 2x Type-C DisplayPort USB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K@60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| Звук: | Realtek® ALC4080 Codec 7.1-Channel USB High-Performance Audio Supports up to 32-Bit/384 kHz playback on front panel Supports S/PDIF output |

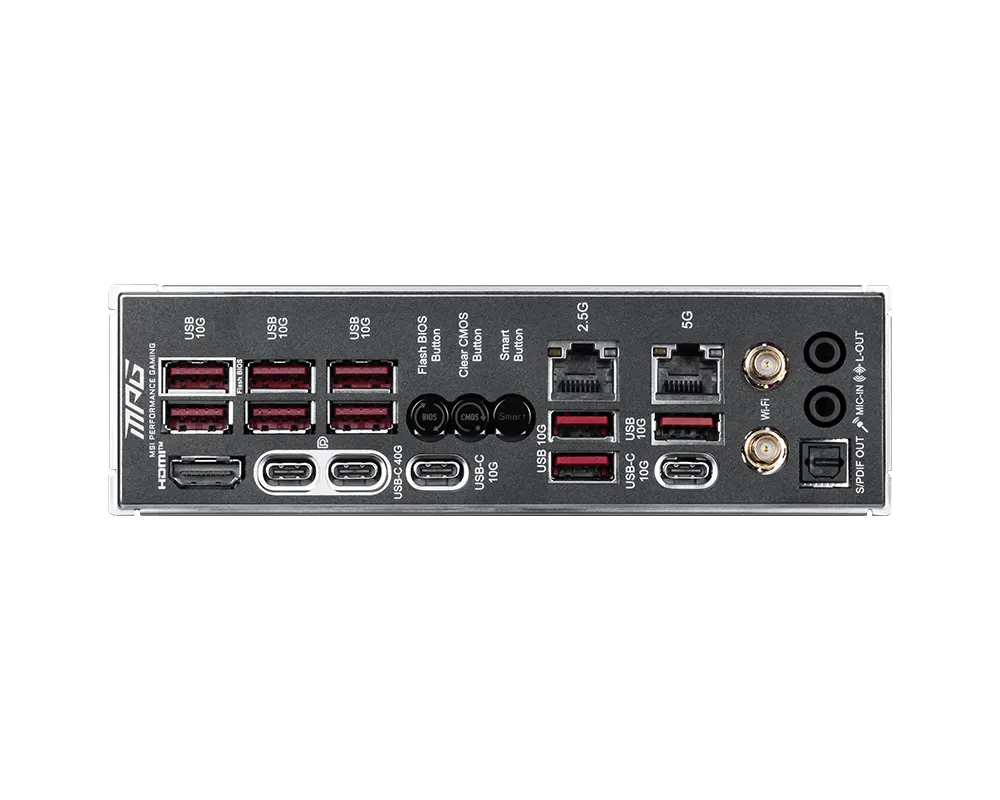

| I/O: | USB 10Gbps Type-A Flash BIOS Button Clear CMOS Button Smart Button 2.5G LAN 5G LAN Audio Connectors HDMI™ USB 40Gbps Type-C USB 10Gbps Type-C USB 10Gbps Type-A USB 10Gbps Type-C Wi-Fi / Bluetooth Optical S/PDIF Out |
| Мрежа: | 1x Realtek® 8126 5G LAN 1x Realtek® 8125 2.5G LAN |
| Конектори: | 1x Power Connector(ATX PWR) 2x Power Connector(CPU PWR) 1x Power Connector(PCIE PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump Sys Fan) 5x System Fan 1x EZ Conn-header (JAF 2) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Thermal Sensor connectors(T SEN) 3x Addressable V2 RGB LED connector (JARGB V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports |
| Форм фактор: | ATX, 243.84mmx304.8mm |
| Оперционни с-ми: | Support for Windows® 11 64-bit |
| RAID: | •Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices •Supports RAID 0, RAID 1, RAID 5* and RAID 10** for M.2 NVMe storage devices *RAID 5 configuration is only supported by Ryzen™ 9000 series processors. ** RAID 10 configuration is only supported by Ryzen™ 9000/7000 series processors. |
| USB: | 4x USB 2.0 (Front) 4x USB 5Gbps Type A (Front) 9x USB 10Gbps Type A (Rear) 2x USB 10Gbps Type C (Rear) 1x USB 20Gbps Type C (Front) 2x USB 40Gbps Type C (Rear) |
| Wireless: | Wi-Fi 7 Solution The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be * 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2. ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2. |
| Bluetooth: | Supports Bluetooth® 5.4**, MLO, 4KQAM ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2 |
| Доп. информация: | Информация от производител |
