Парт.№: 911-7F01-004
Кат.№: 159771
Кат.№: 159771
Цена с ДДС:
156.40 €
на склад
БЪРЗА ПОРЪЧКА (без регистрация)
Въведете Вашите данни, натиснете бутон "ПОРЪЧАЙ" и ние ще Ви се обадим!
| Производител: | MSI |

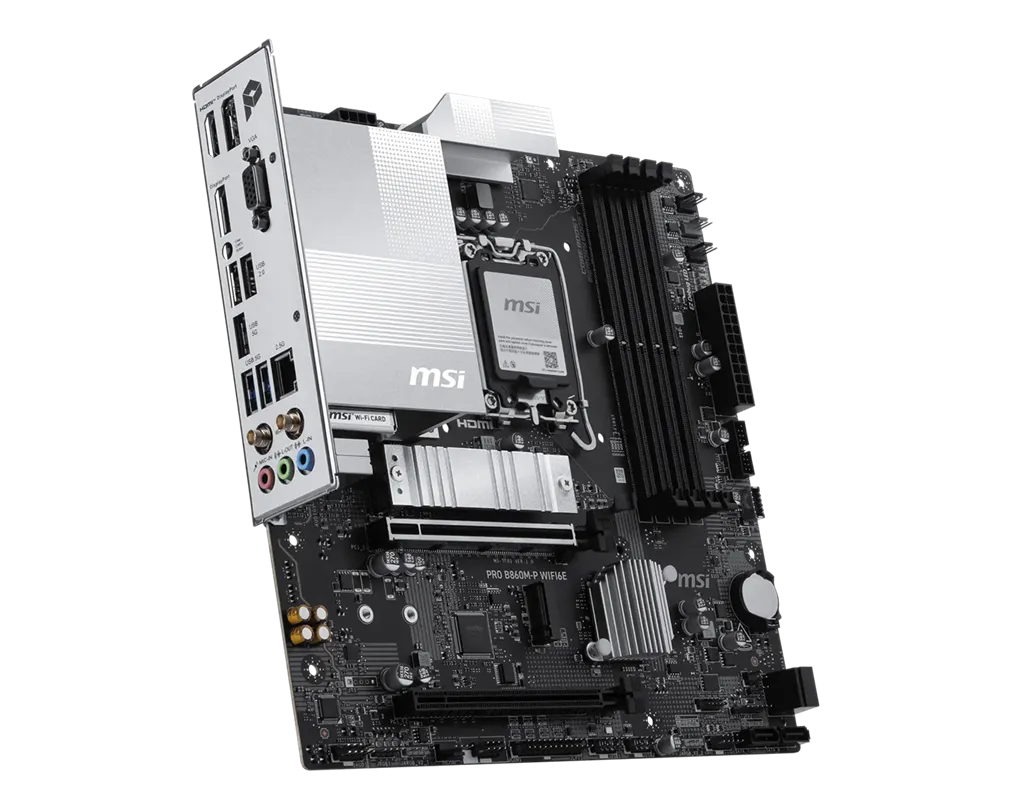

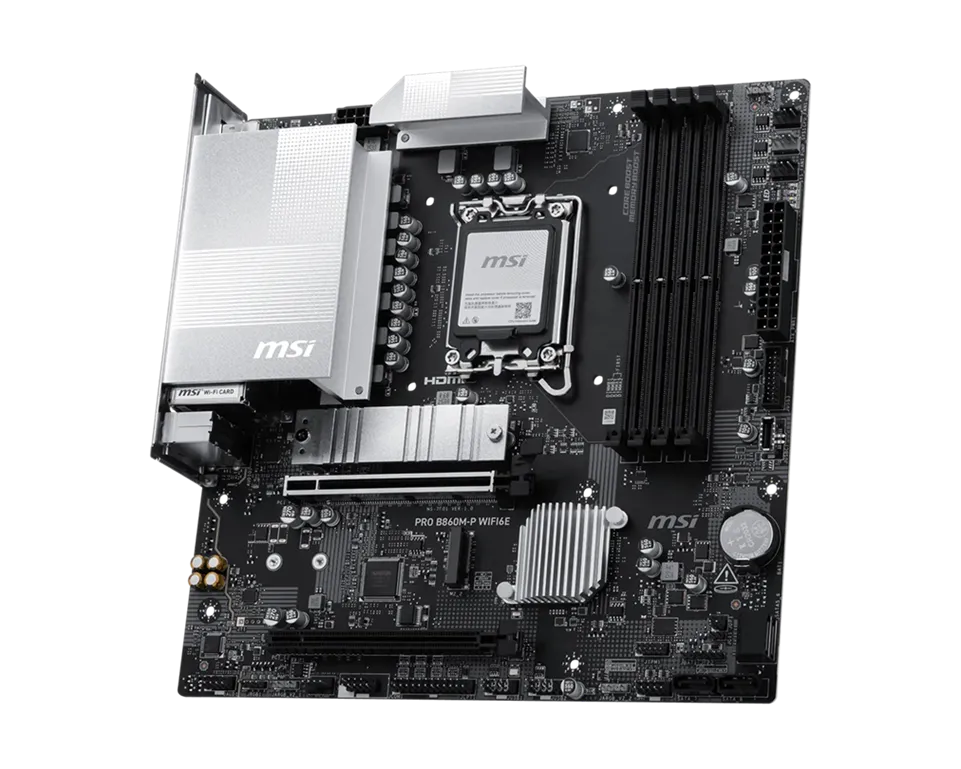

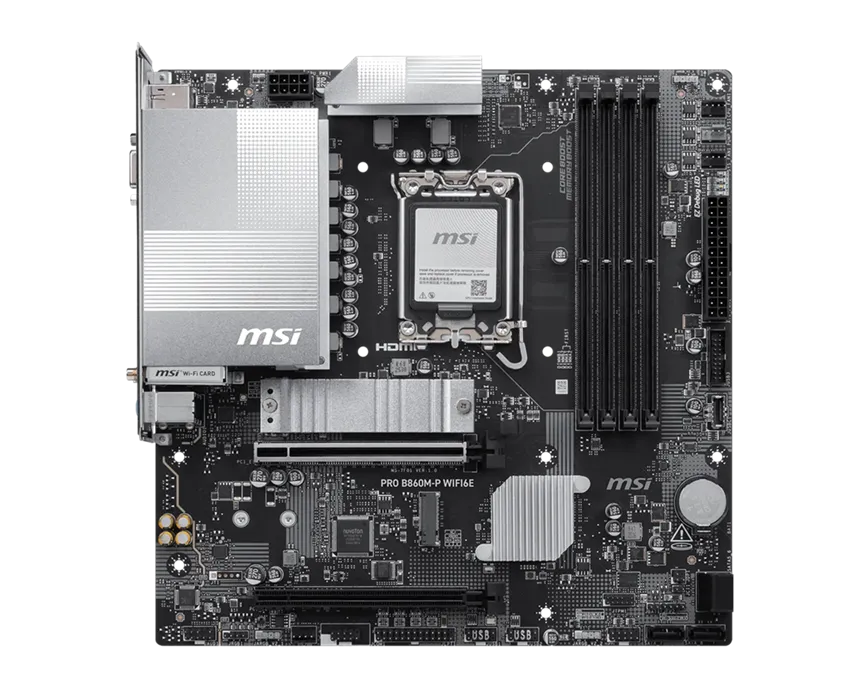

| Модел: | PRO B860M-P WIFI6E |
| Цокъл: | LGA 1851 |
| Подд. процесори: | Supports Intel® Core™ Ultra Processors (Series 2) |
| Чипсет: | INTEL B860 |
| Памет/тип/: | 4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support DDR5 8800 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s Max. overclocking: • 1DPC 1R Max speed up to 8800+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 5600+ MT/s Supports Intel® POR Speed and JEDEC Speed Supports Memory Overclocking and Intel® XMP 3.0 Supports Dual-Controller Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM |
| Разш. слотове: | 2x PCI-E x16 slot PCI E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI E2 Gen PCIe 4.0 supports up to x4 (From Chipset) |
| Сторидж: | 2x M.2 M.2 1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2 2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G *Please refer to the manual for M.2 SSD heatsink restrictions. |
| Графична карта: | 1x HDMI™ Support HDMI™ 2.1 port with TMDS, maximum resolution of 4K 60Hz* 2x DisplayPort Support DisplayPort 1.4 port with HBR2, maximum resolution of 4K 60Hz* 1x VGA Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz |
| Звук: | Realtek® ALC897 Codec 7.1-Channel High Definition Audio |

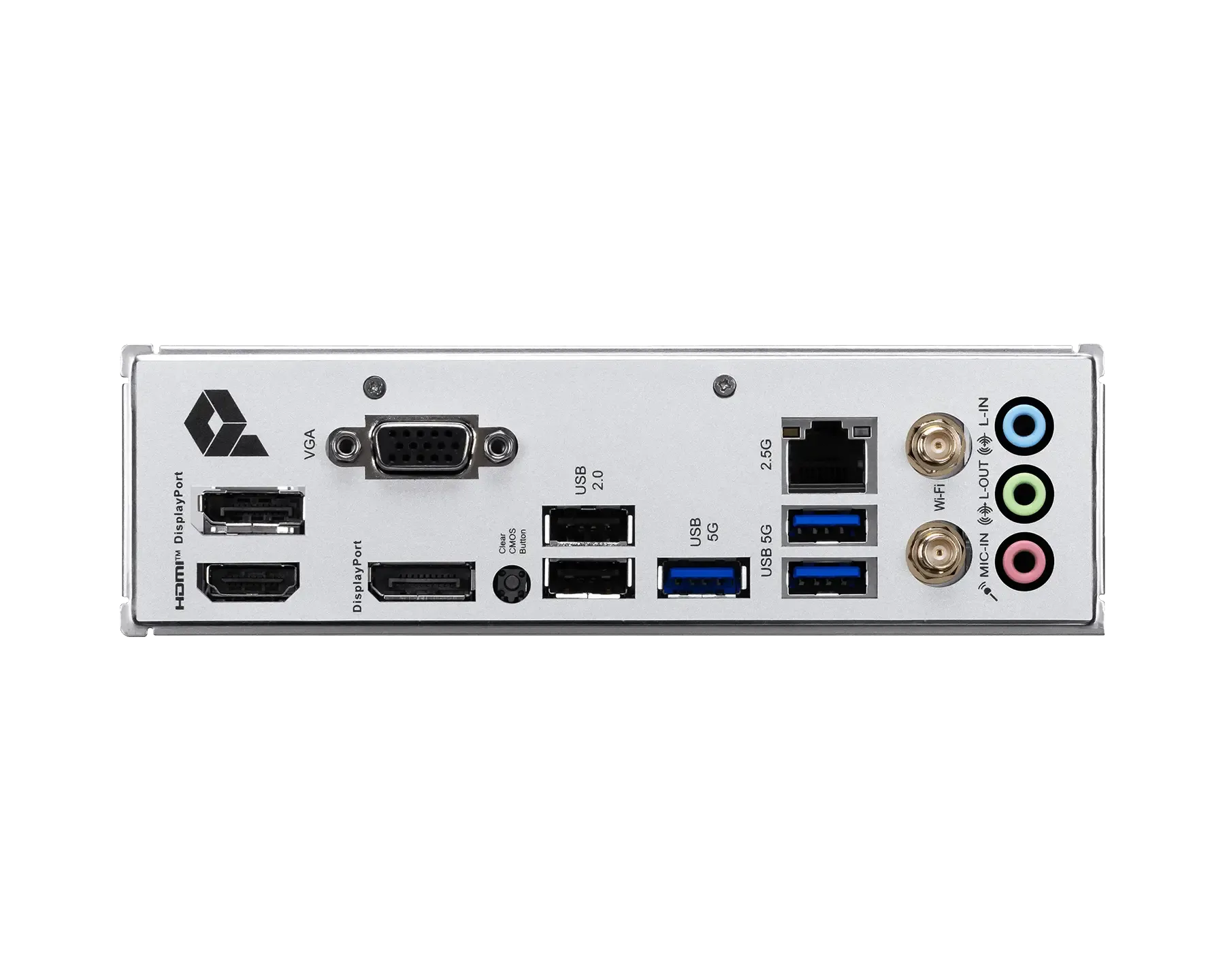

| I/O: | DisplayPort VGA USB 2.0 USB 5Gbps Type-A 2.5G LAN Wi-Fi / Bluetooth Audio Connectors HDMI™ DisplayPort Clear CMOS Button USB 5Gbps Type-A |
| Мрежа: | Realtek® 8125 2.5Gbps LAN |
| Конектори: | 1x Power Connector(ATX PWR) 1x Power Connector(CPU PWR) 1x CPU Fan 1x Combo Fan (Pump Sys Fan) 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Printer Port (JLPT) 1x Com Port (JCOM) 3x Addressable V2 RGB LED connector (JARGB V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 5Gbps Type C ports |
| Форм фактор: | mATX, 243.84mmx243.84mm |
| Оперционни с-ми: | Support for Windows® 11 64-bit |
| Други: | 4x EZ Debug LED 1x EZ Memory Detection LED |
| RAID: | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| USB: | 2x USB 2.0 (Rear) 4x USB 2.0 (Front) 3x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 1x USB 5Gbps Type C (Front) |
| Wireless: | Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax |
| Bluetooth: | Supports Bluetooth® 5.3**, FIPS, FISMA |
| Доп. информация: | Информация от производител |
