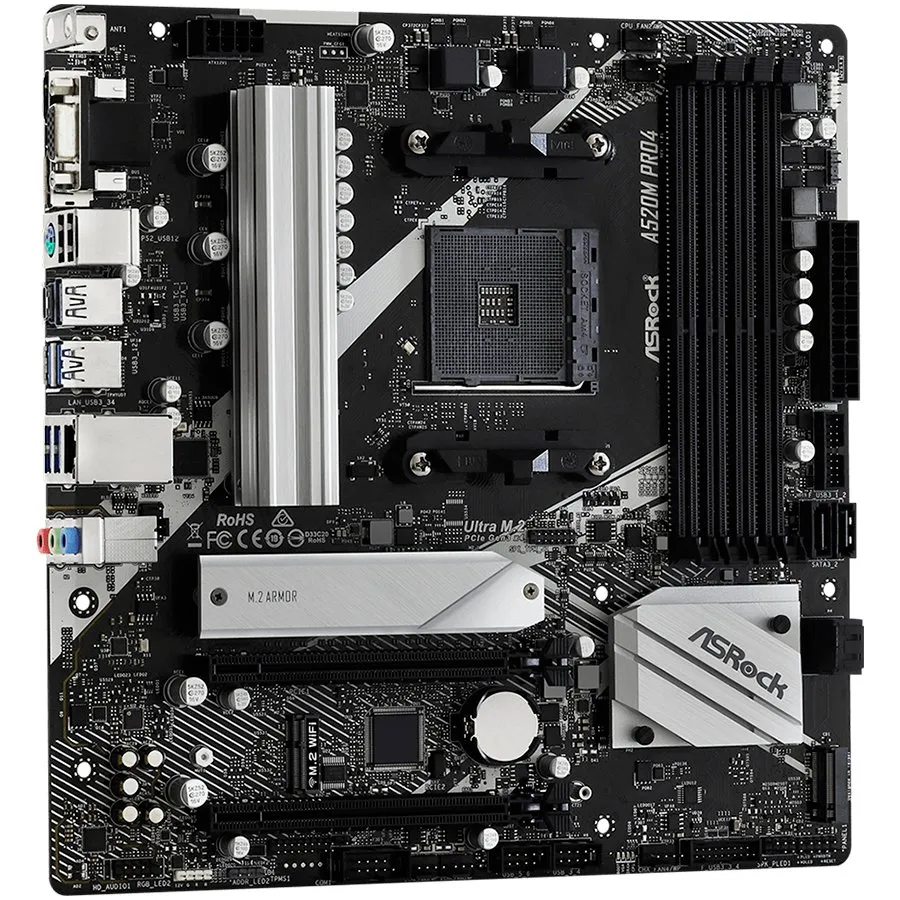

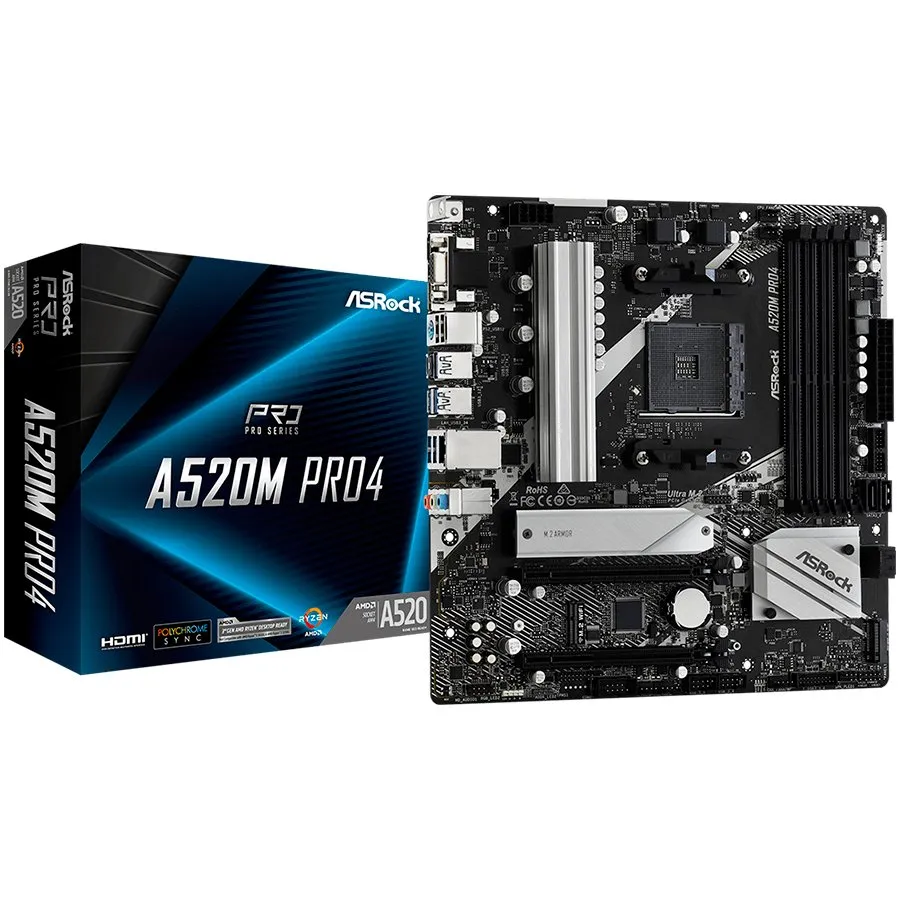

A520M PRO4/AM4/4xDDR4/128GB MAX/GbLAN/2xPCIE 3.0x16/PCIE3x2/2xM2/4xSATA/1xPS/2, HDMI/DP/VGA/mATX/ - A520M_PRO4
Парт.№: A520M_PRO4
Кат.№: 148896
Кат.№: 148896
Цена с ДДС:
166 лв.
Цена с ДДС:
84.87 €
с поръчка
БЪРЗА ПОРЪЧКА (без регистрация)
Въведете Вашите данни, натиснете бутон "ПОРЪЧАЙ" и ние ще Ви се обадим!
Гаранция: 36 месеца
| Main Board Desktop - Processor | |
| Chipset: | AMD A520 |
| Supports Central Processor Unit: | AMD Ryzen Series |
| CPU Socket Standard: | Socket AM4 |
| CPU Maximum Quantity Supports: | 1 |
| Main Board Desktop - Memory | |
| Memory Type: | DDR4 SDRAM |
| Memory Form Factor: | DIMM 288-pin |
| Memory Speed: | 2133MHz(PC4-17000) 2400MHz(PC4-19200) 2666MHz(PC4-21300) 2800MHz(PC4-22400) 3000MHz(PC4-24000) 3200MHz(PC4-25600) 3300MHz(PC4-26400) |
| Maximum Installable System Memory Storage Capacity: | 128 GB |
| Memory Slot Total Quantity: | 4 |
| Provides Error Checking Method: | ECC/Non-ECC |
| Memory Features: | Two DDR Channels Unbuffered XMP |
| Controller | |
| Integrated: | Storage Controller: PCIe/SATA (2 x M.2 (Key M)) Storage Controller: Supports: Level 0, Level 1, Level 10 SATA III-600 (4) |
| Support: | Wi-Fi Controller: 1 x M.2 (Key E) |
| Main Board Desktop - Audio Output | |
| Audio Integrated: | yes |
| Device Location: | Integrated |
| Audio Chipset: | Realtek ALC1200 |
| Audio Output Mode: | 7.1 Channel Surround |
| Compliant Audio Standards: | High Definition Audio |
| Main Board Desktop - Networking Specifications | |
| LAN Integrated: | yes |
| LAN Chipset: | Realtek RTL8111H |
| Data Link Protocol Supports: | Gigabit Ethernet/Fast Ethernet/Ethernet |
| Slot Provided | |
| PCI Express 3.0 x16: | 2 |
| Interface Provided | |
| PS/2: | 1 |
| VGA: | 1 (15-pin D-sub) |
| HDMI: | 1 (HDMI (Type A)) |
| LAN: | 1 (RJ-45) |
| USB 3.2 Gen 1: | 5 (USB 3.2 (type A)) |
| USB 2.0: | 2 (USB 2.0 (type A)) |
| Audio Interface: | 3 (3.5-mm minijack) |
| DisplayPort: | 1 |
| USB 3.1 Gen 1: | 1 (USB 3.2 (type A)) |
| Main Board Desktop - Mainboard Features | |
| BIOS Type: | AMI |
| BIOS Features: | PnP Support UEFI ACPI 5.0 Support Jumperfree Support 256 Mb Flash ROM |
| Wake up/Sleep: | Wake on LAN |
| Power Connectors Type: | 24+8 pin |
| Miscellaneous | |
| Cable Included: | 2 x SATA 6Gb/s Cables |
| Included Accessories: | I/O Shield User Guide Screws |
| Main Board Desktop - Dimensions&Weight | |
| Form Factor: | Micro ATX |
| Height (mm): | 244 mm |
| Width (mm): | 244 mm |
| Warranty | |
| Warranty Products Returnable: | Yes |
| Warranty Term (month): | 36 month(s) |
| Warranty Validation Criteria: | Serial Number |
| Logistic | |
| Pack Weight Brutto (kg): | 0.1 kg |
| Pack Weight Netto (kg): | 0.1 kg |
| Pieces in pack: | 1 |
| Box Weight Brutto (kg): | 0.1 kg |
| Retail Packaging Net Weight Carton: | 0.1 kg |
| Retail Packaging Net Weight Plastic: | 0.1 kg |
| Packs in Box: | 1 |
| Package Type: | Retail |
