Парт.№: B550 PG RIPTIDE
Кат.№: 144129
Кат.№: 144129
Цена с ДДС:
219 лв.
Цена с ДДС:
111.97 €
с поръчка
БЪРЗА ПОРЪЧКА (без регистрация)
Въведете Вашите данни, натиснете бутон "ПОРЪЧАЙ" и ние ще Ви се обадим!
Гаранция: 24 месеца

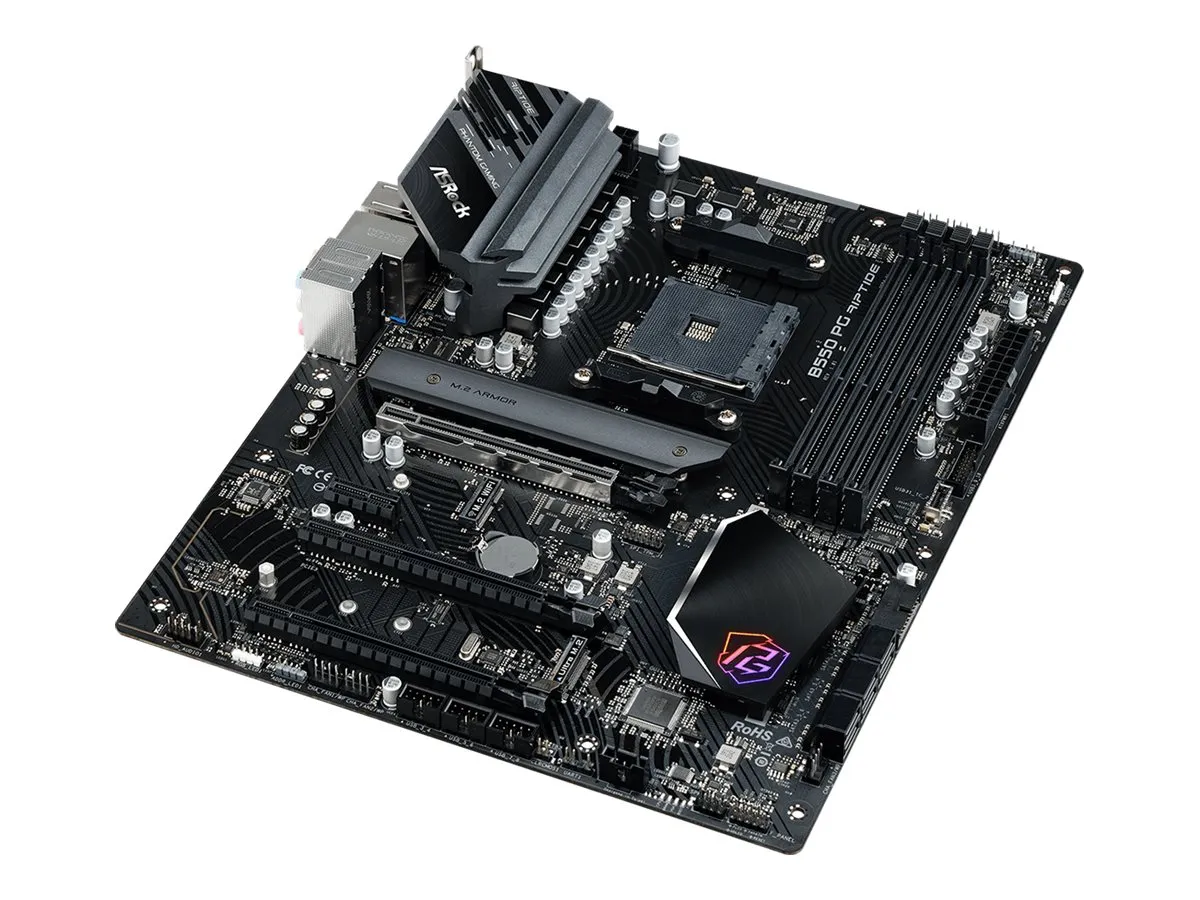

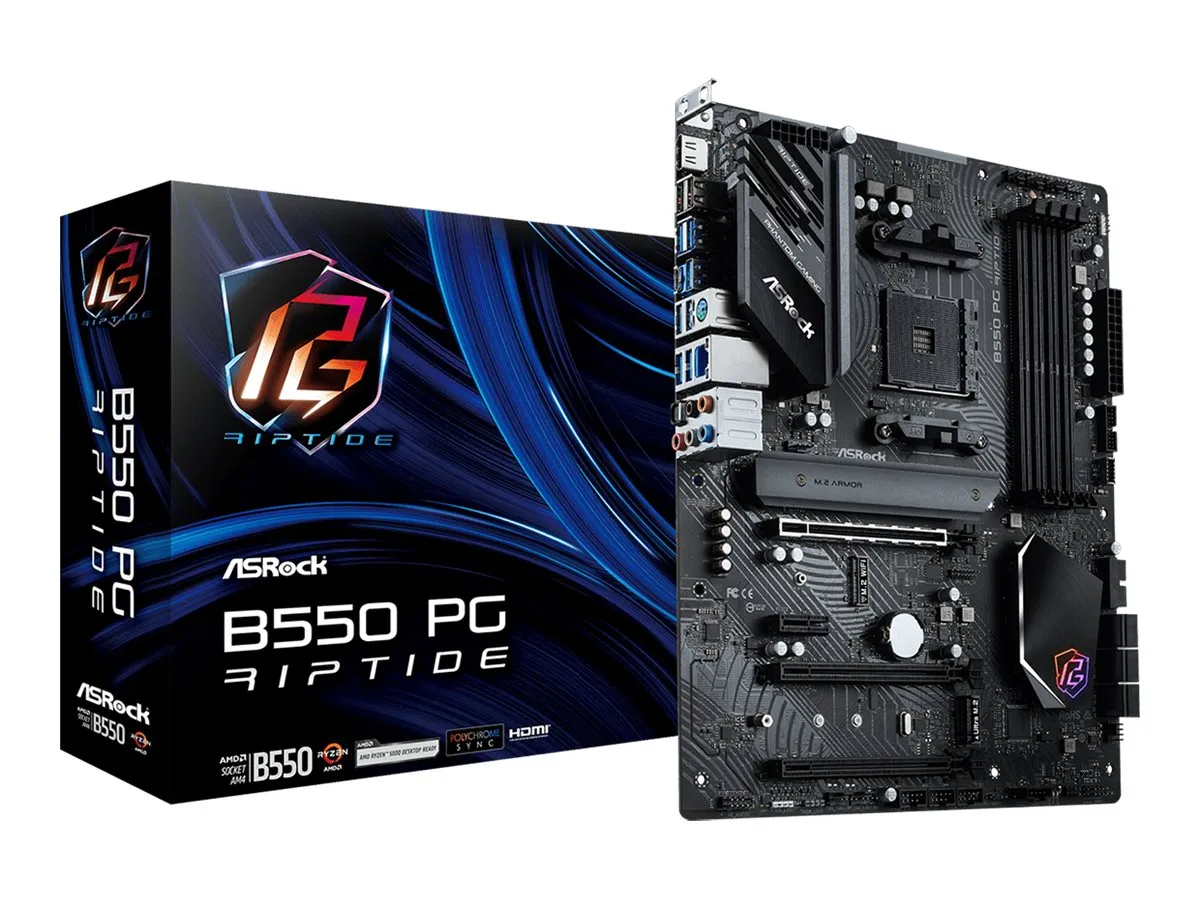

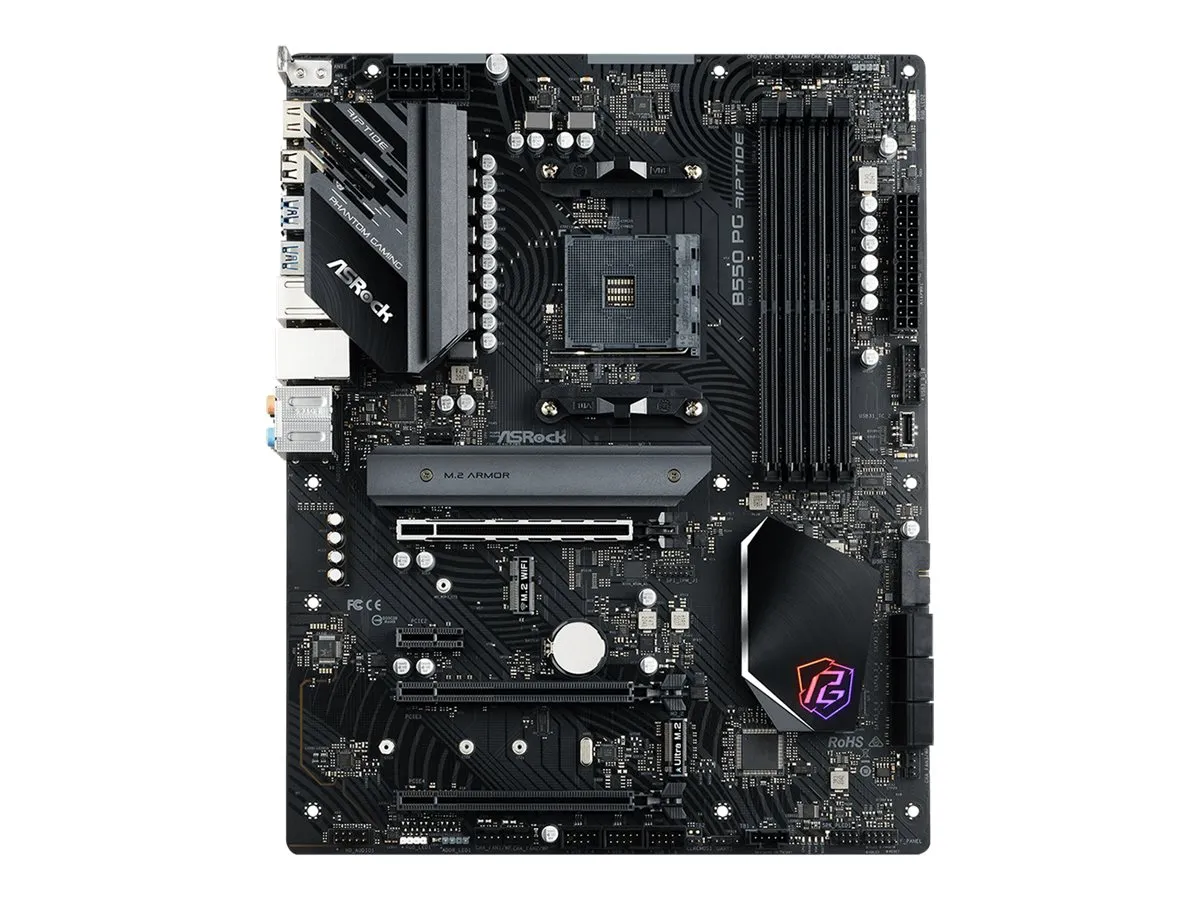

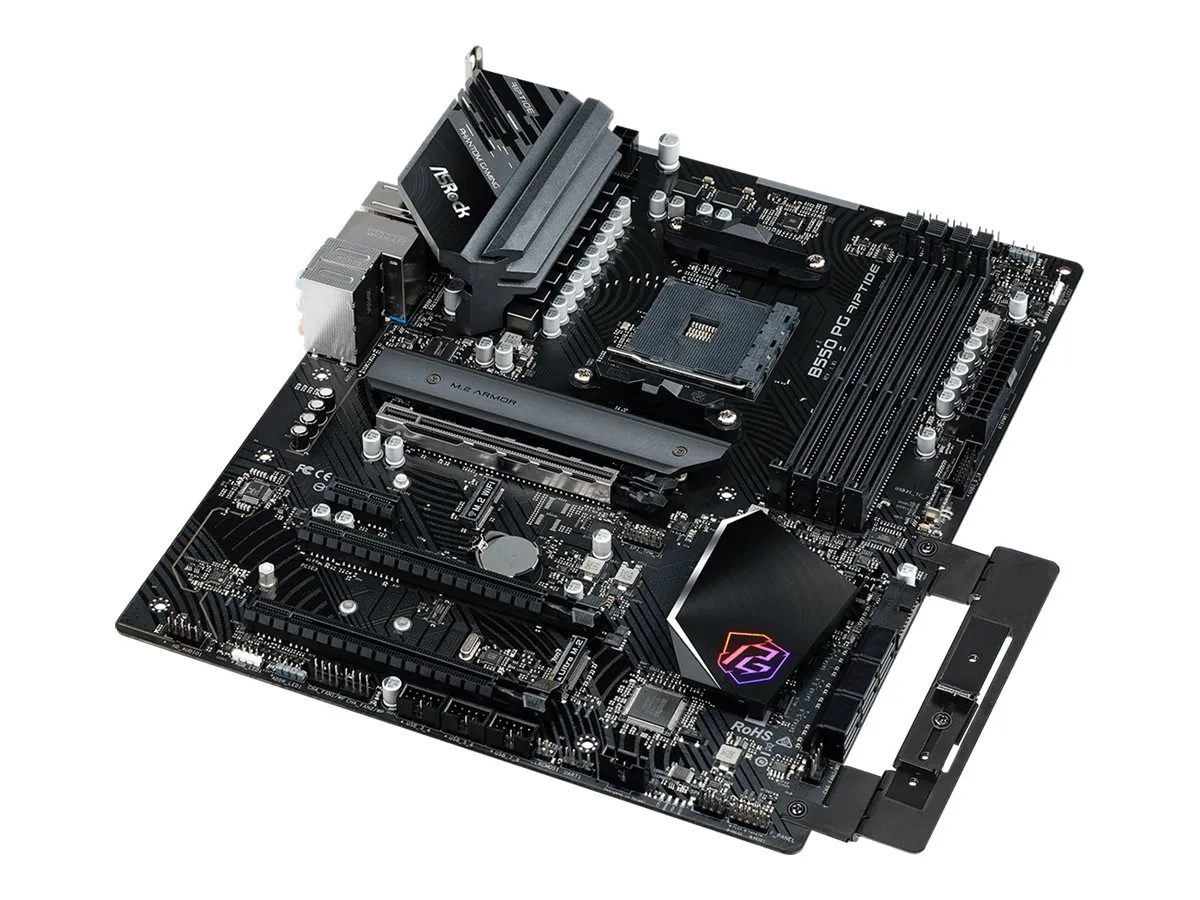

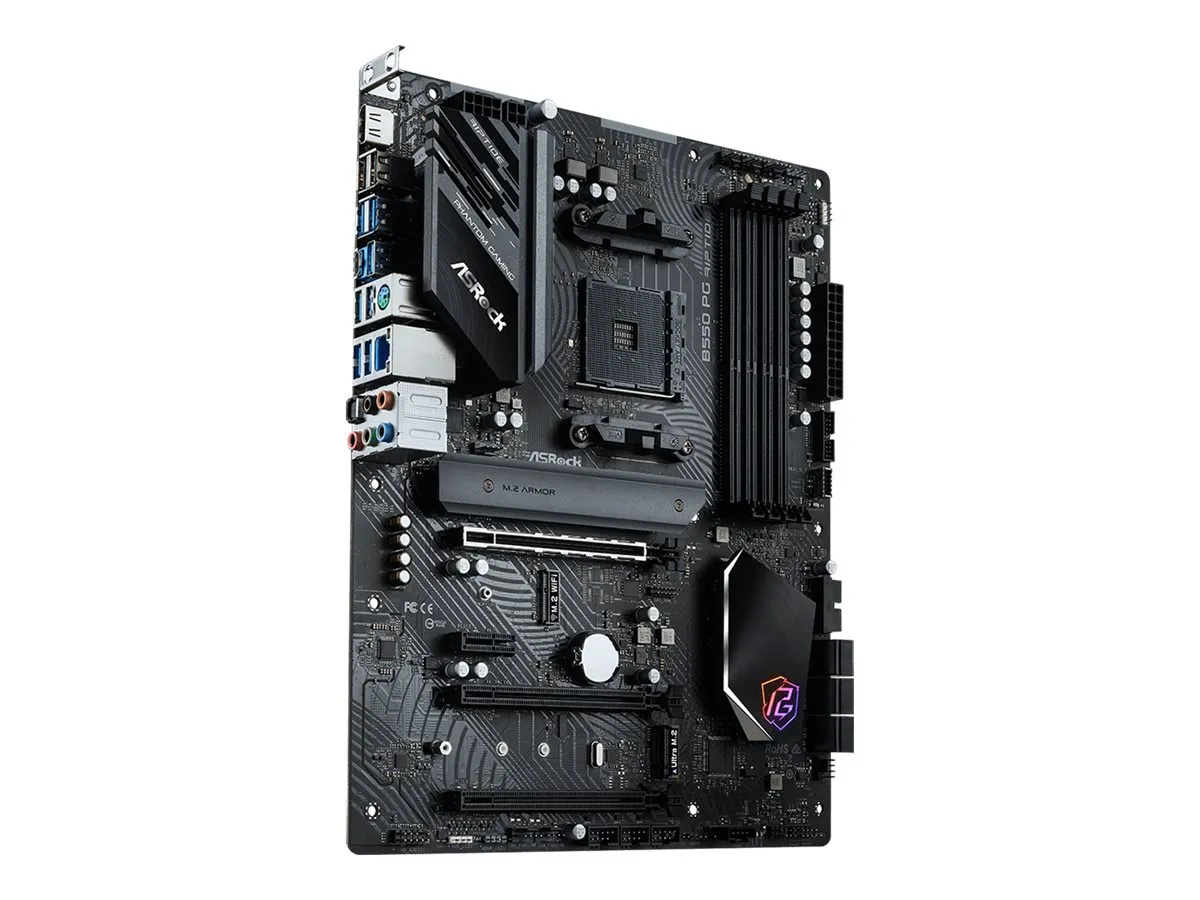

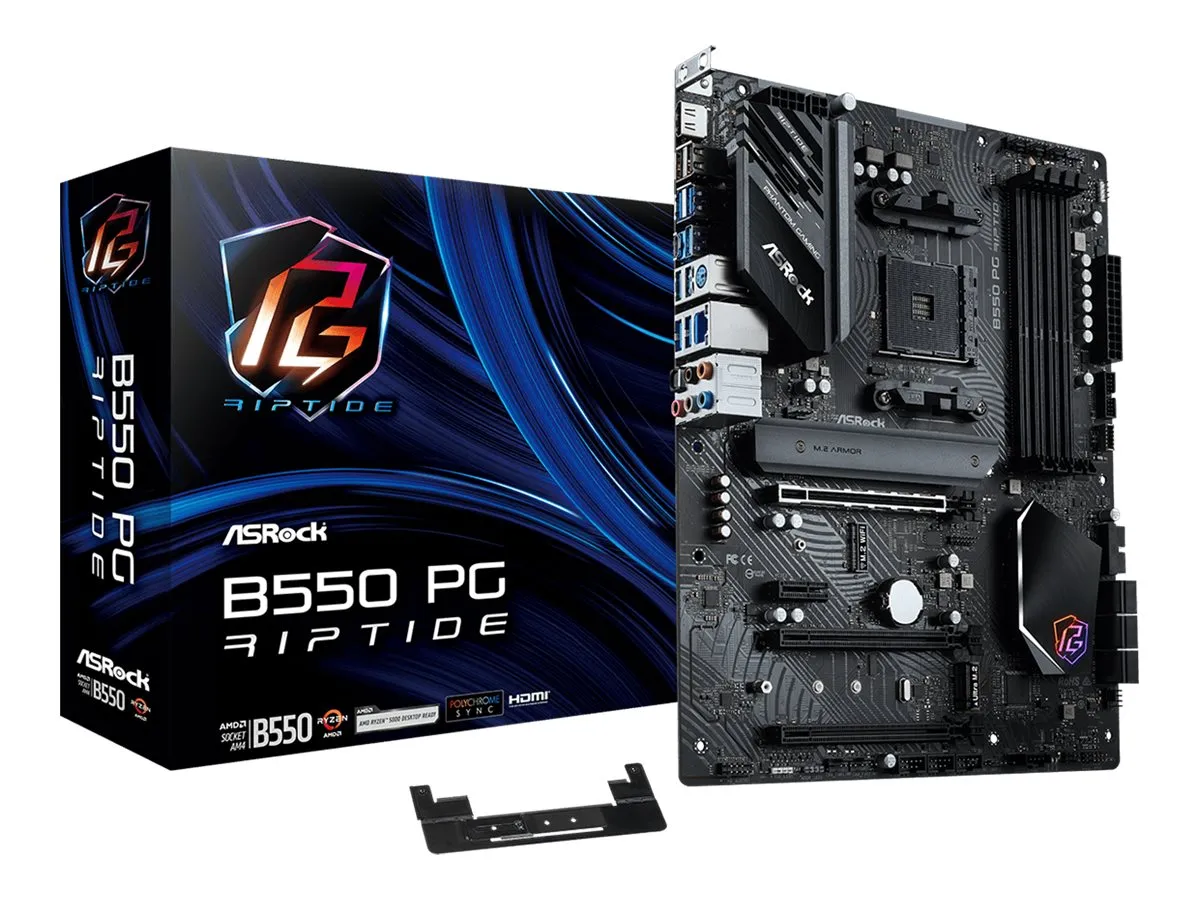

| Manufacturer: | ASROCK |
| Manufacturer Part No: | B550 PG RIPTIDE |
| General | |
| Product Type: | Motherboard - ATX |
| Chipset Type: | AMD B550 |
| Processor Socket: | Socket AM4 |
| Max Processors Qty: | 1 |
| Compatible Processors: | Ryzen (supports Ryzen 3000 Series/ 4000 G-Series/ 5000 Series) |
| Supported RAM | |
| Max Size: | 128 GB |
| Technology: | DDR4 |
| Bus Clock: | 2400 MHz, 2133 MHz, 2667 MHz, 2933 MHz, 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3800 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 4200 MHz (O.C.), 4333 MHz (O.C.), 4600 MHz (O.C.), 4533 MHz (O.C.), 3200 MHz, 4666 MHz (O.C.), 4733 MHz (O.C.), 4466 MHz (O.C.), 4933 MHz (O.C.) |
| Supported RAM Integrity Check: | Non-ECC, ECC (operate in non-ECC mode) |
| Registered or Buffered: | Unbuffered |
| Features: | Dual channel memory architecture, AMD Memory Profile (AMP), supported ECC modules operate in non-ECC mode |
| Graphics | |
| Max Allocated RAM Size: | 2 GB |
| Audio | |
| Type: | HD Audio (8-channel) |
| Audio Codec: | Realtek ALC897 |
| Compliant Standards: | High Definition Audio, Premium Blu-ray audio support |
| LAN | |
| Network Controller: | Killer E3100G |
| Network Interfaces: | 2.5 Gigabit Ethernet |
| Expansion / Connectivity | |
| Expansion Slots: | 1 x CPU 4 x DIMM 288-pin 1 x PCIe 4.0 x16 (PCIe 4.0 x16 mode (Ryzen series CPUs Matisse); PCIe 3.0 x16 mode (Ryzen series APUs)) 1 x PCIe 3.0 x16 (x4 mode) 1 x PCIe 3.0 x16 (x1 mode) 1 x PCIe 3.0 x1 1 x M.2 socket (2230 M.2 Key E slot) |
| Storage Interfaces: | SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 SATA-600 / PCIe 3.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 |

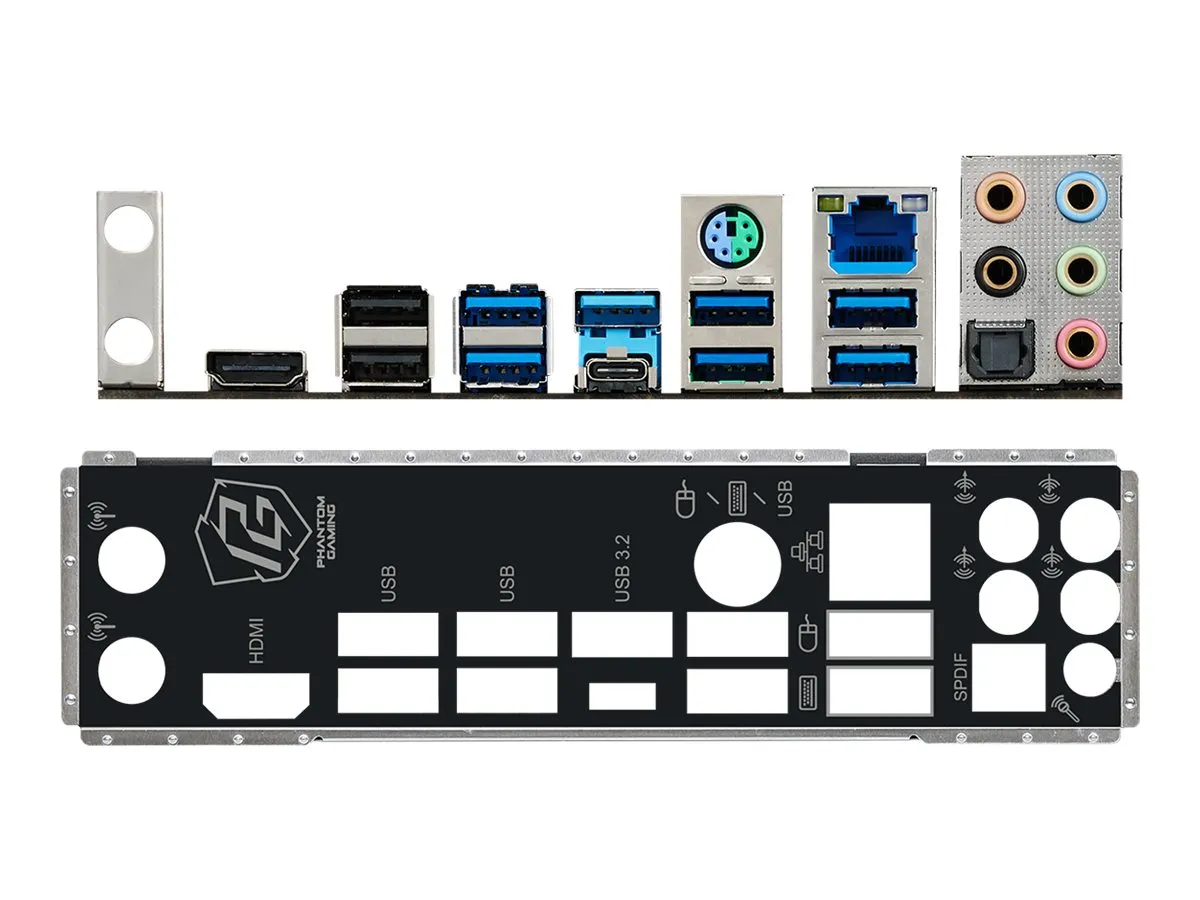

| Interfaces: | 1 x PS/2 keyboard / mouse 1 x LAN (2.5Gigabit Ethernet) 1 x HDMI 1 x TOSLINK 2 x USB 2.0 6 x USB 3.2 Gen 1 1 x audio line-in - mini-jack 1 x audio line-out - mini-jack 1 x microphone - mini-jack 1 x USB 3.2 Gen 2 1 x USB-C Gen2 1 x audio line-out (center/subwoofer) - mini-jack 1 x audio line-out (rear) - mini-jack |
| Internal Interfaces: | 6 x USB 2.0 - header 4 x USB 3.2 Gen 1 - header 1 x audio - header 1 x USB-C Gen2 - header 1 x Thunderbolt - header |
| Power Connectors: | 4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector |
| Features | |
| BIOS Type: | AMI |
| BIOS Features: | UEFI BIOS, ACPI 5.1 support, SMBIOS 2.3 support, JumperFree |
| Hardware Monitoring: | CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU core voltage |
| Sleep / Wake Up: | Wake on LAN (WOL) |
| Hardware Features: | ASRock Super Alloy, XXL Aluminum Alloy Heatsink, Premium 60A Power Choke, Dr.MOS MOSFET, Premium Memory Alloy Choke, Matte Black PCB, High Density Glass Fabric PCB, 2oz Copper PCB, ASRock Steel Slot Gen4, ASRock Full Coverage M.2 Heatsink, ASRock Hyper M.2, ASRock APP Shop, ASRock Full Spike Protection, ASRock Live Update, ASRock POST Status Checker (PSC), Digi Power Design, 10 Phase Power Design, 15µ Gold Contact, Nahimic Audio Enhacer, Preboot eXecution Environment (PXE), Energy Efficient Ethernet 802.3az, ESD Protection, AMD CrossFireX technology support, AMD Quad CrossFireX technology support, ASRock Full HD UEFI, ASRock Instant Flash |
| Miscellaneous | |
| Included Accessories: | 3 x M.2 screws, standoff for M.2 socket, graphics card holder |
| Cables Included: | 2 x Serial ATA cable |
| Software Included: | Drivers & Utilities, ASRock Phantom Gaming LAN Software, ASRock Polychrome SYNC, Antivirus (Trial version), Google Chrome Browser, Google ChromeToolbar |
| Compliant Standards: | HDCP 2.3, EuP Ready, ErP Ready, CEC Tier II |
| Width: | 30.5 cm |
| Depth: | 24.4 cm |
