| Серия: | AMD AM4 |
| Подд. процесори: | - Supports AMD AM4 Socket Ryzen™ 3000, 4000 G-Series and 5000 Series Desktop Processors*,
- Digi Power design,
- 8 Power Phase design |
| Чипсет: | - AMD B550 |
| Памет/тип/: | - Dual Channel DDR4 Memory Technology,
- 2 x DDR4 DIMM Slots,
- AMD Ryzen series CPUs (Matisse) support DDR4 4600+(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC&non-ECC, un-buffered memory*,
- AMD Ryzen series APUs (Renoir) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC&non-ECC, un-buffered memory*,
- Max. capacity of system memory: 64GB**,
- Supports Extreme Memory Profile (XMP) memory modules,
- 15 Gold Contact in DIMM Slots |
| Разш. слотове: | AMD Ryzen series CPUs (Matisse),
- 1 x PCI Express 4.0 x16 Slot (PCIE1: x16 mode)*,
AMD Ryzen series APUs (Renoir),
- 1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode)*,
- 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ac PCIe WiFi module (on the rear I/O) |
| Сторидж: | - 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug,
- 1 x Hyper M.2 Socket (M2 1), supports M Key type 2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Matisse) or Gen3x4 (32 Gb/s) (with Renoir)** |
| Графична карта: | - Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU*,
- DirectX 12, Pixel Shader 5.0,
- Shared memory default 2GB. Max Shared memory supports up to 16GB.**,
- Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers,
- Supports HDMI 2.1 with max. resolution up to 4K x2K (4096x2160) @ 60Hz,
- Supports DisplayPort 1.4 Input with max. resolution up to 5K (5120x2880)@120Hz,
- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required),
- Supports HDR (High Dynamic Range) with HDMI 2.1,
- Supports HDCP 2.3 with HDMI 2.1 and DisplayPort 1.4 Ports,
- Supports 4K Ultra HD (UHD) playback with HDMI 2.1 and DisplayPort 1.4 Ports,
- Supports Microsoft® PlayReady |
| Звук: | - 7.1 CH HD Audio (Realtek ALC887 Audio Codec),
- Supports Surge Protection |

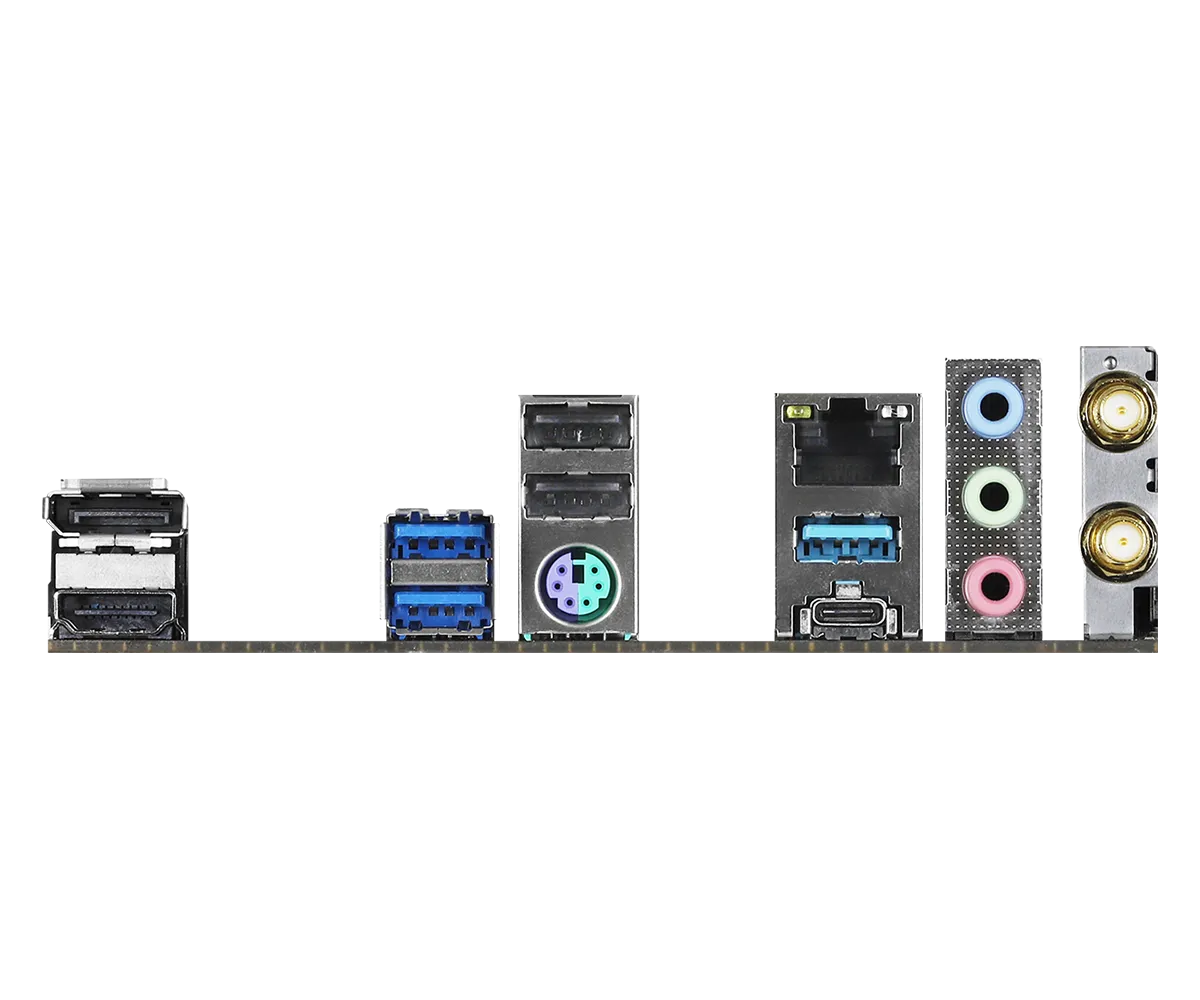

| I/O: | - 2 x Antenna Ports,
- 1 x PS/2 Mouse/Keyboard Port,
- 1 x HDMI Port,
- 1 x DisplayPort 1.4,
- 2 x USB 2.0 Ports (Supports ESD Protection),
- 3 x USB 3.2 Gen1 Type-A Ports (Supports ESD Protection),
- 1 x USB 3.2 Gen1 Type-C Port (Supports ESD Protection),
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED),
- HD Audio Jacks: Line in / Front Speaker / Microphone |
| Мрежа: | - PCIE x1 Gigabit LAN 10/100/1000 Mb/s,
- Realtek RTL8111H,
- Supports Wake-On-LAN,
- Supports Lightning/ESD Protection,
- Supports Energy Efficient Ethernet 802.3az,
- Supports PXE |
| Конектори: | - 1 x RGB LED Header*,
- 1 x Addressable LED Header**,
- 1 x CPU Fan Connector (4-pin)***,
- 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)****,
- 1 x 24 pin ATX Power Connector,
- 1 x 8 pin 12V Power Connector,
- 1 x Front Panel Audio Connector,
- 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection),
- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) |
| Форм фактор: | - Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm,
- Solid Capacitor design |
| Оперционни с-ми: | - Microsoft® Windows® 10 64-bit |
| BIOS: | - 256Mb AMI UEFI Legal BIOS with GUI support,
- Supports"Plug and Play",
- ACPI 5.1 compliance wake up events,
- Supports jumperfree,
- SMBIOS 2.3 support,
- CPU, CPU VDDCR SOC, DRAM, VPPM, +1.8VSB, VDDP Voltage Multi-adjustment |
| Други: | - Intel® 802.11ac WiFi Module,
- Supports IEEE 802.11a/b/g/n/ac,
- Supports Dual-Band (2.4/5 GHz),
- Supports high speed wireless connections up to 433Mbps,
- Supports Bluetooth 4.2 + High speed class II |
| Гаранция: | 36 Months |
