Парт.№: B550M_TSM
Кат.№: 146623
Кат.№: 146623
Цена с ДДС:
215 лв.
Цена с ДДС:
109.93 €
на склад
БЪРЗА ПОРЪЧКА (без регистрация)
Въведете Вашите данни, натиснете бутон "ПОРЪЧАЙ" и ние ще Ви се обадим!
Вземи от магазина на Дейтаком >>> Виж адреса
| Подд. процесори: | AMD Socket AM4, support for:, AMD Ryzen™ 5000 G-Series Processors/, AMD Ryzen™ 5000 Series Processors/, AMD Ryzen™ 4000 G-Series Processors/, AMD Ryzen™ 3000 G-Series Processors/, AMD Ryzen™ 3000 Series Processors, (Go to GIGABYTE's website for the latest CPU support list.) |
| Чипсет: | AMD B550 |
| Памет/тип/: | 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity)of system memory, Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MT/s memory modules, Dual channel memory architecture, Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules, Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules, Support for Extreme Memory Profile (XMP) memory modules |
| Разш. слотове: | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:, - AMD Ryzen™ 5000/3000 Series Processors support PCIe 4.0 x16 mode, - AMD Ryzen™ 5000 G/4000 G/3000 G Series Processors support PCIe 3.0x16 mode, * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot., Chipset:, - 1 x PCI Express x16 slot (PCIEX4), supporting PCIe 3.0 and running at x4, - 1 x PCI Express x1 slot (PCIEX1), supporting PCIe 3.0 and running at x1 |
| Сторидж: | 1 x M.2 connector (M2A CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs:, - AMD Ryzen™ 5000/ 3000 Series Processors support SATA and PCIe 4.0x4/x2 SSDs, - AMD Ryzen™ 5000 G/ 4000 G/ 3000 G Series Processors support SATA and PCIe 3.0 x4/x2 SSDs, 1 x M.2 connector (M2B SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 SATA and PCIe 3.0 x2 SSDs, 4 x SATA 6Gb/s connectors, RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices, RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| Графична карта: | Integrated Graphics Processor with AMD Radeon™ Graphics support:, - 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz, * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR., - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz, * Support for HDMI 2.1 version, HDCP 2.3, and HDR., ** Support for native HDMI 2.1TMDS compatible ports. |
| Звук: | Realtek® ALC1220 CODEC, * The back panel line out jack supports DSD audio., High Definition Audio, 2/4/5.1/7.1-channel, * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. |
| I/O: | iTE® I/O Controller Chip |
| Мрежа: | Realtek® GbE LAN chip (1 Gbps/100 Gbps/10 Mbps) |

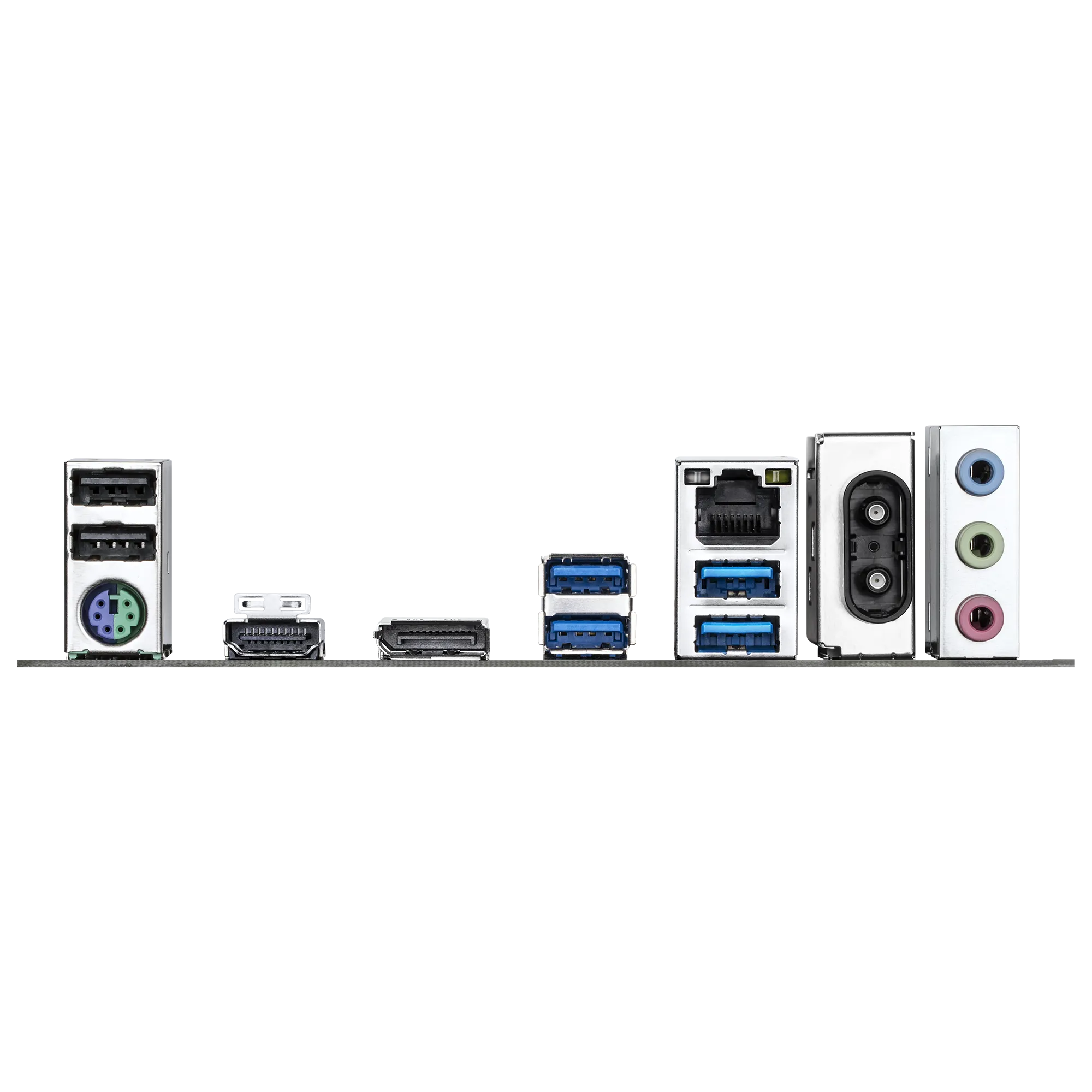

| Конектори: | 1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 1 x CPU fan header, 2 x system fan headers, 2 x addressable LED strip headers, 2 x RGB LED strip headers, 1 x CPU cooler LED strip/RGB LED strip header, 2 x M.2 Socket 3 connectors, 4 x SATA 6Gb/s connectors, 1 x front panel header, 1 x front panel audio header, 1 x USB Type-C® header, with USB 3.2 Gen 1 support, 1 x USB 3.2 Gen 1 header, 1 x USB 2.0/1.1 header, 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0 S module only), 1 x serial port header, 1 x Clear CMOS jumper, 1 x Q-Flash Plus button, Back Panel Connectors, 2 x USB 2.0/1.1 ports, 1 x PS/2 keyboard/mouse port, 1 x HDMI port (Note), 1 x DisplayPort (Note), 4 x USB 3.2 Gen 1 ports, 1 x RJ-45 port, 2 x antenna connectors, 3 x audio jacks |
| Форм фактор: | Micro ATX Form Factor, 24.4cm x 24.4cm |
| Оперционни с-ми: | Support for Windows 11 64-bit, Support for Windows 10 64-bit |
| BIOS: | 1 x 128 Mbit flash, Use of licensed AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| USB: | CPU:, - 4 x USB 3.2 Gen 1 ports on the back panel, Chipset:, - 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header, - 2 x USB 3.2 Gen 1 ports available through the internal USB header, - 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header) |
| Wireless: | Realtek® Wi-Fi RTL8821CE, - WIFI 802.11 a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band, - BLUETOOTH 5.0, - Support for 11ac wireless standard |
| Features: | Support for APP Center, * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications., - @BIOS, - EasyTune, - RGB Fusion, - Smart Backup, - System Information Viewer, Support for Q-Flash Plus, Support for Q-Flash |
| Bluetooth: | 5.0 |
