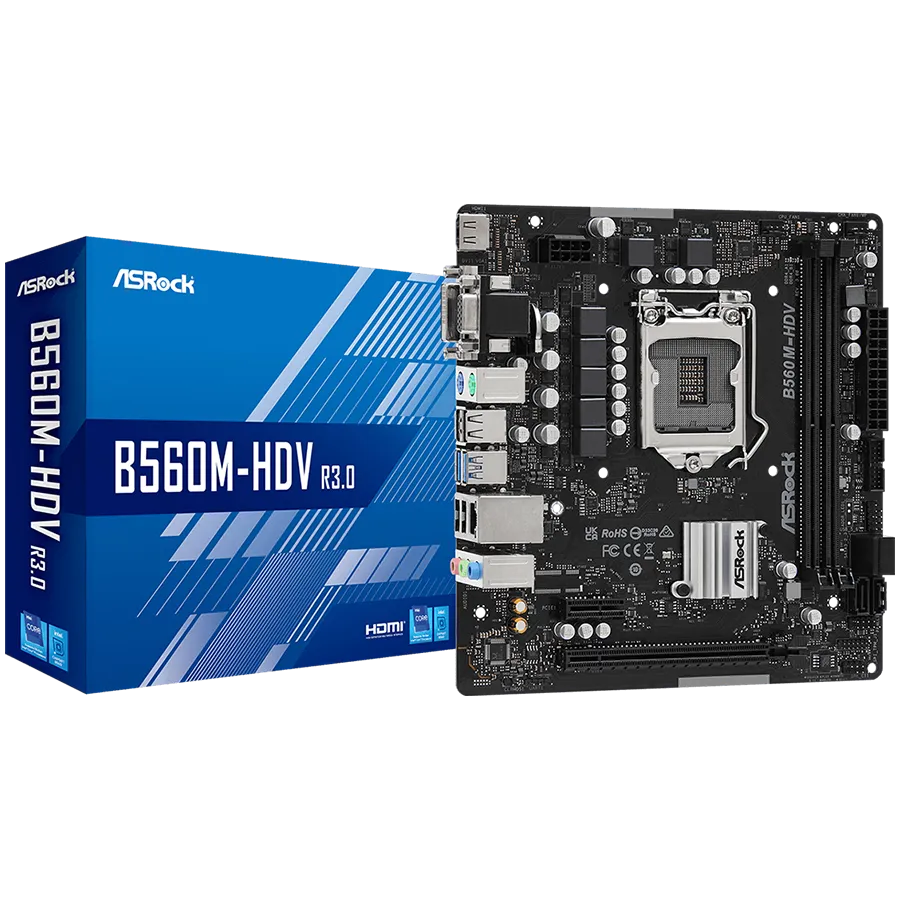

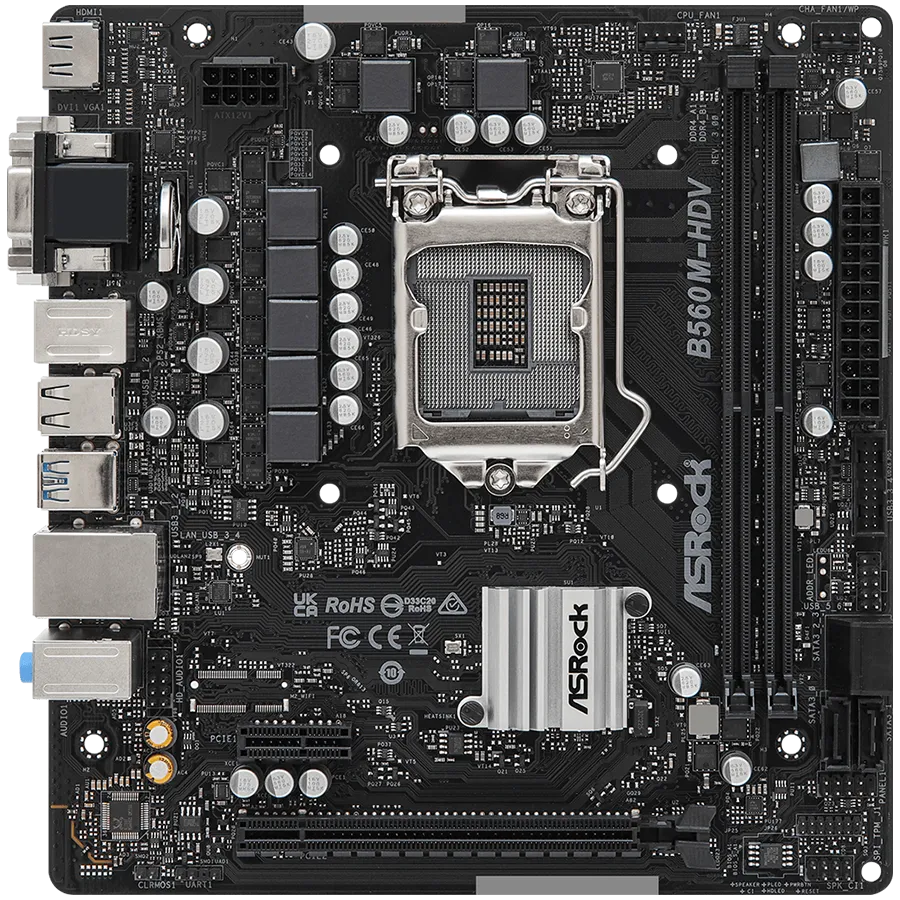

ASROCK Main Board Desktop B560M-HDV (S1200, 2x DDR4, 1x PCIe 4.0 x16, 1x PCIe 3.0 x1, 4x SATA3, GLAN, 1x VGA, 1x DVI, 1x HDMI, 4x USB 3.2, 6x USB 2.0) mATX - B560M-HDV R3.0
Парт.№: B560M-HDV R3.0
Кат.№: 148869
Кат.№: 148869
Цена с ДДС:
149 лв.
Цена с ДДС:
76.18€
с поръчка
БЪРЗА ПОРЪЧКА (без регистрация)
Въведете Вашите данни, натиснете бутон "ПОРЪЧАЙ" и ние ще Ви се обадим!
Гаранция: 36 месеца
| Main Board Desktop - Processor | |
| Chipset: | Intel B560 |
| Supports Central Processor Unit: | Intel 10th Gen Processors Intel 11th Gen Processors |
| CPU Socket Standard: | Socket 1200 |
| Architecture Features: | Intel® Rapid Storage Technology enterprise Intel Turbo Boost Technology 3.0 |
| CPU Maximum Quantity Supports: | 1 |
| Main Board Desktop - Memory | |
| Memory Type: | DDR4 SDRAM |
| Memory Form Factor: | DIMM 288-pin |
| Memory Speed: | 2666MHz(PC4-21300) 2933MHz(PC4-23400) 3200MHz(PC4-25600) |
| Maximum Installable System Memory Storage Capacity: | 64 GB |
| Memory Slot Total Quantity: | 2 |
| Provides Error Checking Method: | Non-ECC |
| Memory Features: | Two DDR Channels Unbuffered XMP 2.0 |
| Controller | |
| Integrated: | Storage Controller: SATA III-600 (4) |
| Main Board Desktop - Audio Output | |
| Audio Integrated: | yes |
| Device Location: | Integrated |
| Audio Chipset: | Realtek ALC897 |
| Audio Output Mode: | 7.1 Channel Surround |
| Compliant Audio Standards: | High Definition Audio |
| Main Board Desktop - Networking Specifications | |
| LAN Integrated: | yes |
| LAN Chipset: | Realtek RTL8111H |
| Data Link Protocol Supports: | Gigabit Ethernet/Fast Ethernet/Ethernet |
| Slot Provided | |
| PCI Express 4.0 x16: | 1 |
| PCI Express 3.0 x1: | 1 |

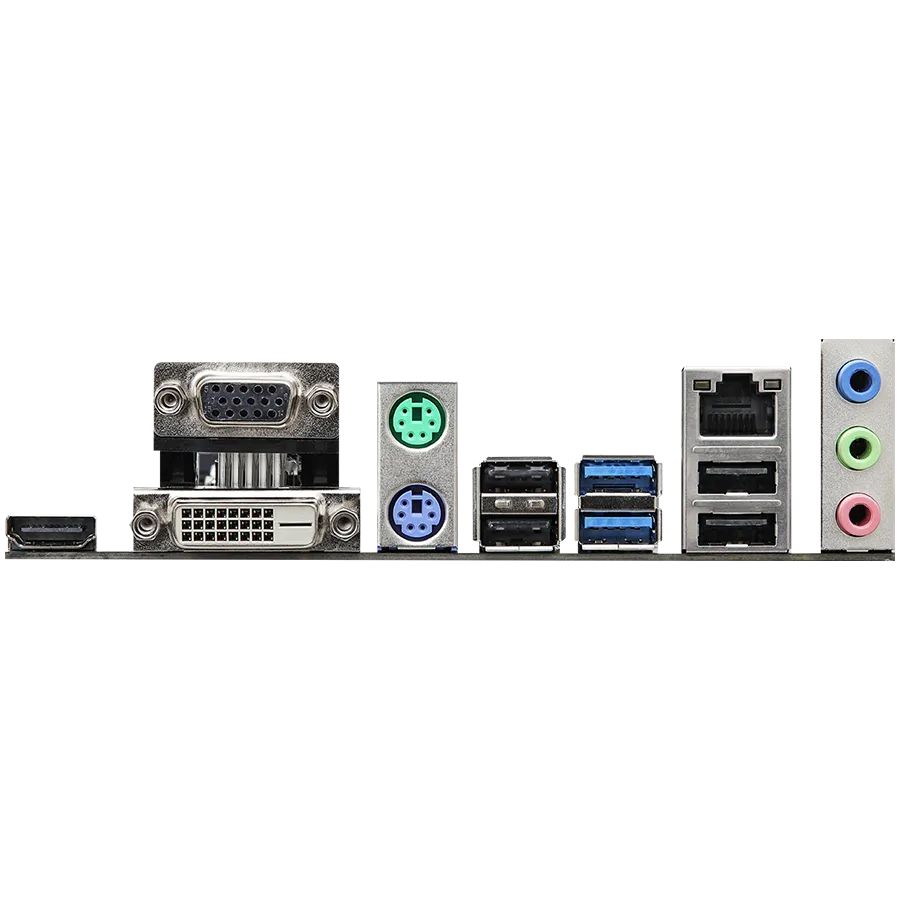

| Interface Provided | |
| PS/2: | 2 |
| HDMI: | 1 (HDMI (Type A)) |
| VGA: | 1 (15-pin D-sub) |
| DVI: | 1 (DVI-D) |
| USB 2.0: | 4 (USB 2.0 (type A)) |
| USB 3.2 Gen 1: | 2 (USB 3.2 (type A)) |
| LAN: | 1 (RJ-45) |
| Audio Interface: | 3 (3.5-mm minijack) |
| Main Board Desktop - Mainboard Features | |
| BIOS Type: | AMI |
| BIOS Features: | SMBIOS 2.7 Support PXE boot 128Mb AMI UEFI Legal BIOS with GUI Support ACPI 6.0 Support |
| Wake up/Sleep: | Wake on LAN |
| Hardware Monitoring: | Chassis Fan Tachometer CPU Fan Tachometer System Voltage CPU Fan multi-speed control Chassis Fan multi-speed control |
| Power Connectors Type: | 24+8 pin |
| Main Board Desktop - Software | |
| Supported Operating System: | Microsoft Windows 10 64-bit Microsoft Windows 11 64-bit |
| Miscellaneous | |
| Cable Included: | 2 x SATA Data Cables |
| Included Accessories: | I/O Shield User Guide Driver CD |
| Main Board Desktop - Dimensions&Weight | |
| Form Factor: | Micro ATX |
| Height (mm): | 188 mm |
| Width (mm): | 197 mm |
| Warranty | |
| Warranty Products Returnable: | Yes |
| Warranty Term (month): | 36 month(s) |
| Warranty Validation Criteria: | Serial Number |
| Logistic | |
| Pack Weight Brutto (kg): | 0.35 kg |
| Pack Weight Netto (kg): | 0.3 kg |
| Pieces in pack: | 1 |
| Box Weight Brutto (kg): | 0.35 kg |
| Retail Packaging Net Weight Carton: | 0.3 kg |
| Retail Packaging Net Weight Plastic: | 0.3 kg |
| Packs in Box: | 1 |
| Package Type: | Retail |
