Парт.№: B650M_TSM
Кат.№: 149143
Кат.№: 149143
Цена с ДДС:
355 лв.
Цена с ДДС:
181.51 €
изчерпан
| Подд. процесори: | AMD Socket AM5, support for: AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors |
| Чипсет: | AMD B650 |
| Памет/тип/: | Support for DDR5 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6666(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400 MT/s memory modules, 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory, Dual channel memory architecture, Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules, Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules |
| Разш. слотове: | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:, AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 4.0 x16 mode, AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode, AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode, * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot., Chipset:, - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) |
| Сторидж: | 1 x M.2 connector (M2A CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/ 22110/ 2580/ 2280 SSDs:, AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 5.0 x4/x2 SSDs, AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs, AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs, 1 x M.2 connector (M2B CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/ 22110/ 2580/ 2280 SSDs:, AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 4.0 x4/x2 SSDs, AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs, AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs, 4 x SATA 6Gb/s connectors, RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices, RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| Графична карта: | Integrated Graphics Processor with AMD Radeon™ Graphics support:, - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz, * Support for DisplayPort 1.4 version and HDR., - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz, * Support for HDMI 2.1 version and HDCP 2.3., ** Support for native HDMI 2.1 TMDS compatibleports. |
| Звук: | Realtek® Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel, * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings., Support for S/PDIF Out |
| I/O: | iTE® I/O Controller Chip |
| Мрежа: | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |

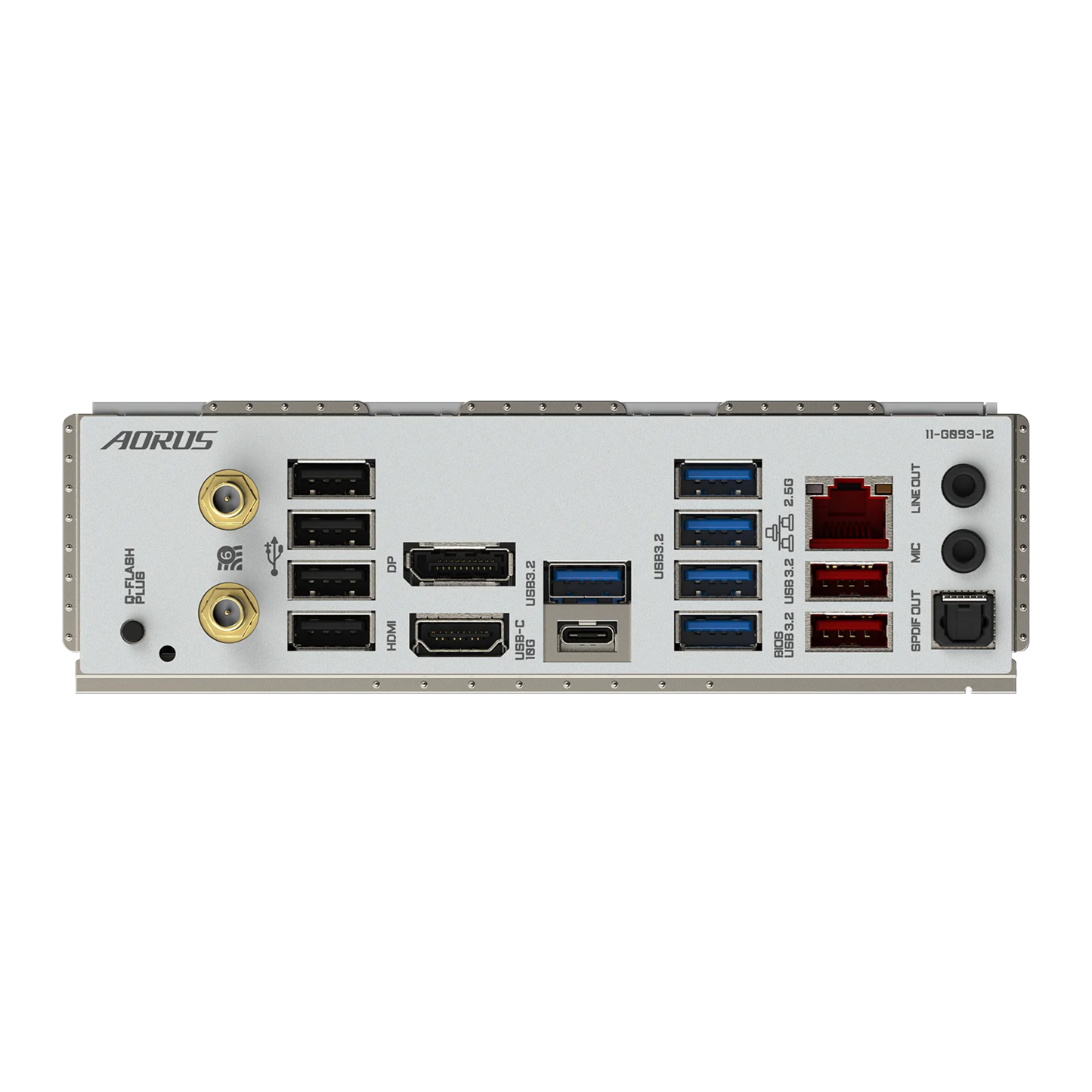

| Конектори: | Internal I/O Connectors: 1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 1 x CPU fan header, 1 x CPU fan/water cooling pump header, 3 x system fan headers, 1 x system fan/water cooling pump header, 2 x addressable LED strip headers, 2 x RGB LED strip headers, 1 x CPU cooler LED strip/RGB LED strip header, 2 x M.2 Socket 3 connectors, 4 x SATA 6Gb/s connectors, 1 x front panel header, 1 x front panel audio header, 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support, 1 x USB 3.2 Gen 1 header, 2 x USB 2.0/1.1 headers, 1 x serial port header, 1 x THB U4 add-in card connector, 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only), 1 x reset button, 1 x reset jumper, 1 x Clear CMOSjumper, Back Panel Connectors: 1 x Q-Flash Plus button, 2 x SMA antenna connectors (2T2R)jk, 1 x DisplayPort, 1 x HDMI port, 1 x USB Type-C® port, with USB 3.2 Gen 2 support, 2 x USB 3.2 Gen 2 Type-A ports (red), 5 x USB 3.2 Gen 1 ports, 4 x USB 2.0/1.1 ports, 1 x RJ-45 port, 1 x optical S/ |
| Форм фактор: | Micro ATX Form Factor, 24.4cm x 24.4cm |
| Оперционни с-ми: | Support for Windows 11 64-bit, Support for Windows 10 64-bit |
| BIOS: | 1 x 256 Mbit flash, Use of licensed AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| USB: | CPU:, - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support, - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel, CPU + USB 2.0 Hub:, - 4 x USB 2.0/1.1 ports on the back panel, Chipset:, - 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header, - 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header), - 4 x USB 2.0/1.1 ports available through the internal USB headers, Chipset+USB 3.2 Gen 1 Hub:, - 4 x USB 3.2 Gen 1 ports on the back panel |
| Wireless: | Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.0), - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands, - BLUETOOTH 5.3, - Support for 11ax 160MHz wireless standard, Intel® Wi-Fi 6E AX210 (PCB rev. 1.1), - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands, - BLUETOOTH 5.3, -Support for 11ax 160MHz wireless standard |
| Features: | Support for GIGABYTE Control Center (GCC), * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications., Support for Q-Flash, Support for Q-Flash Plus |
