Парт.№: B650M_TSM
Кат.№: 151743
Кат.№: 151743
Цена с ДДС:
246 лв.
Цена с ДДС:
125.78€
на склад
БЪРЗА ПОРЪЧКА (без регистрация)
Въведете Вашите данни, натиснете бутон "ПОРЪЧАЙ" и ние ще Ви се обадим!
Вземи от магазина на Дейтаком >>> Виж адреса
| Подд. процесори: | AMD Socket AM5, support for:, AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors |
| Чипсет: | AMD B650 |
| Памет/тип/: | Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules, 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory, Dual channel memory architecture, Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules, Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme, Memory Profile (XMP) memory modules |
| Разш. слотове: | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:, -AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x16 mode, -AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode, -AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode, * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot., Chipset:, - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 |
| Сторидж: | 1 x M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs:, AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs, AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs, AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs, 4 x SATA 6Gb/s connectors, RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices, RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| Графична карта: | Integrated Graphics Processor with AMD Radeon™ Graphics support, - 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz, - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz |
| Звук: | Realtek® Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel |
| I/O: | iTE® I/O Controller Chip |
| Мрежа: | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |

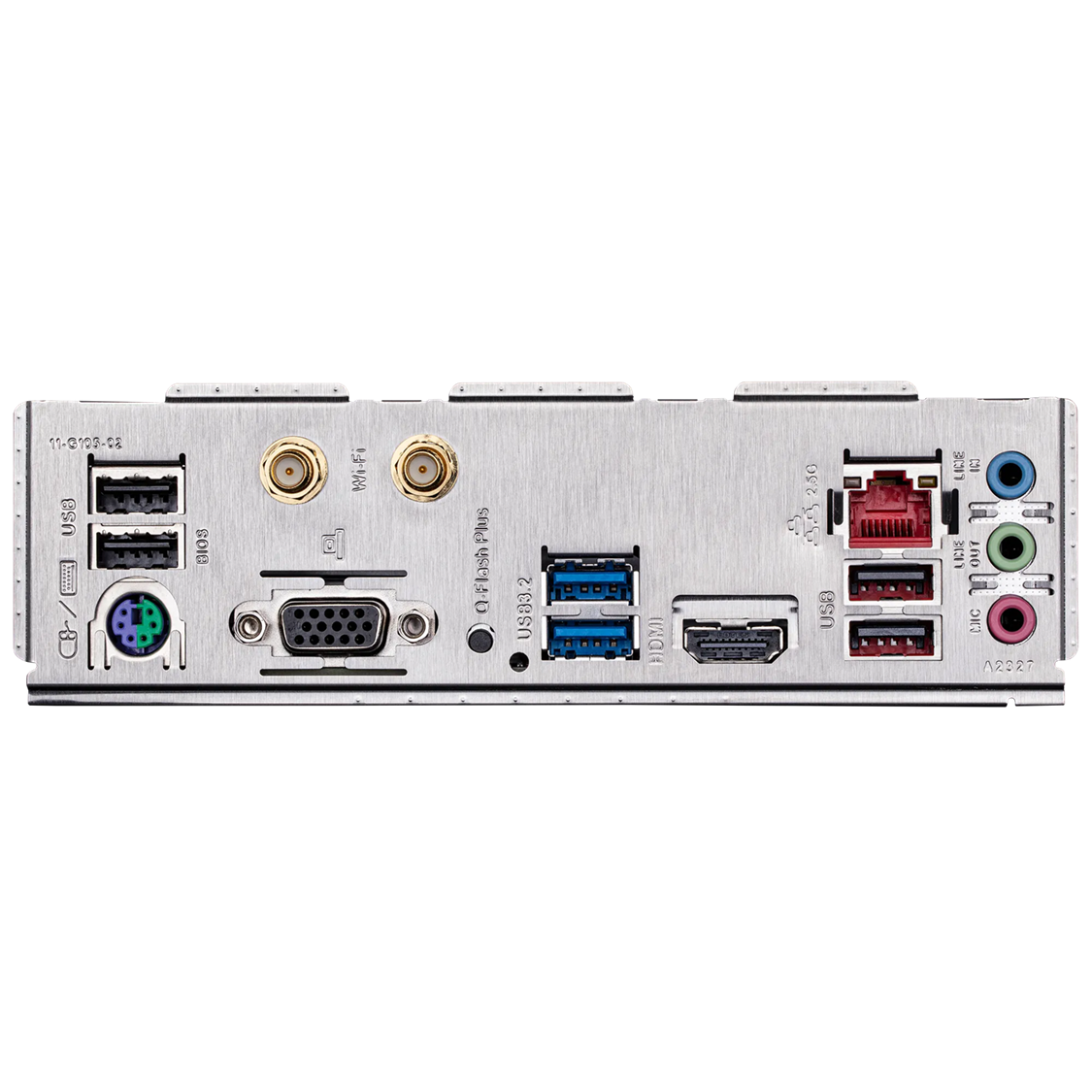

| Конектори: | 1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 1 x CPU fan header, 2 x system fan headers, 2 x addressable LED strip headers, 1 x RGB LED strip header, 1 x M.2 Socket 3 connector, 4 x SATA 6Gb/s connectors, 1 x front panel header, 1 x front panel audio header, 1 x USB 3.2 Gen 1 header, 2 x USB 2.0/1.1 headers, 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only), 1 x Clear CMOS jumper, Back Panel Connectors, 4 x USB 2.0/1.1 ports, 1 x PS/2 keyboard/mouse port, 1 x D-Sub port, 1 x Q-Flash Plus button, 2 x USB 3.2 Gen 1 ports, 1 x HDMI port, 1 x RJ-45 port, 3 x audio jacks |
| Форм фактор: | Micro ATX Form Factor, 24.0cm x 22.5cm |
| Оперционни с-ми: | Support for Windows 11 64-bit, Support for Windows 10 64-bit |
| BIOS: | 1 x 256 Mbit flash, Use of licensed AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| USB: | CPU:, - 2 x USB 3.2 Gen 1 ports on the back panel, - 1 x USB 2.0/1.1 port on the back panel, Chipset:, - 2 x USB 3.2 Gen 1 ports available through the internal USB header, - 5 x USB 2.0/1.1 ports (3 ports on the back panel, 2 ports available through the internal USB header), Chipset+USB 2.0 Hub:, - 2 x USB 2.0/1.1 ports available through the internal USB header |
| Wireless: | Realtek® Wi-Fi 6E RTL8852CE, - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands, - BLUETOOTH 5.3, - Support for 11ax 160MHz wireless |
| Features: | Support for GIGABYTE Control Center (GCC), Support for Q-Flash, Support for Q-Flash Plus |
| Bluetooth: | 5.3 |
