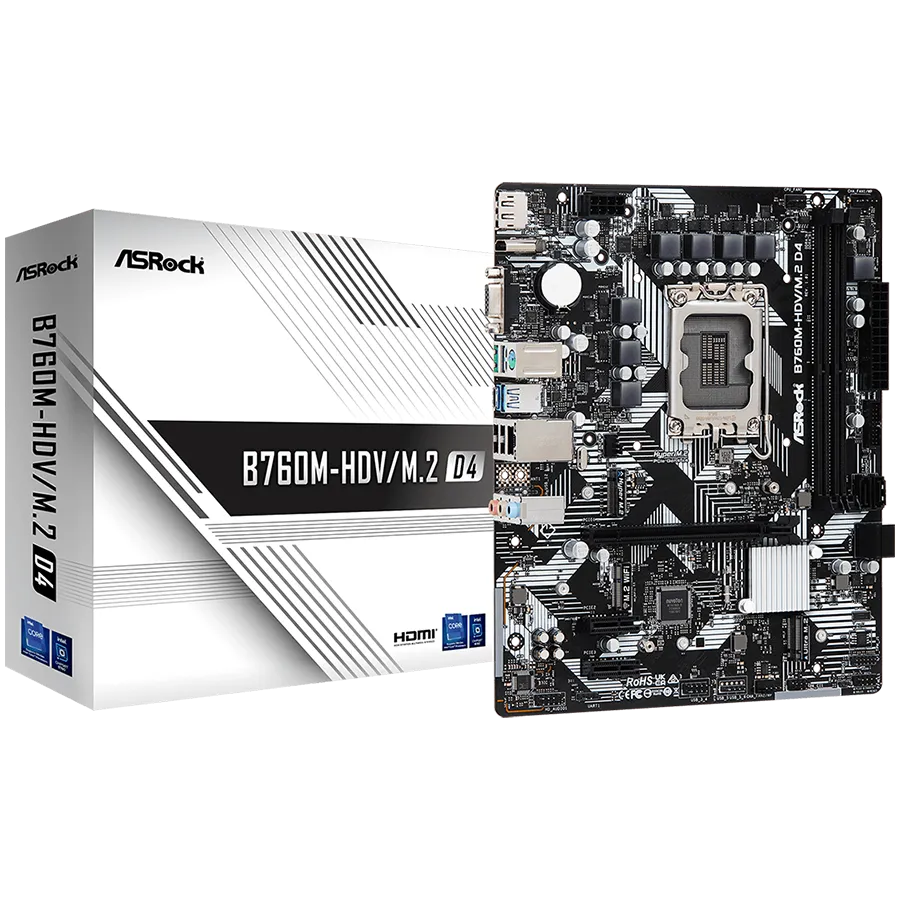

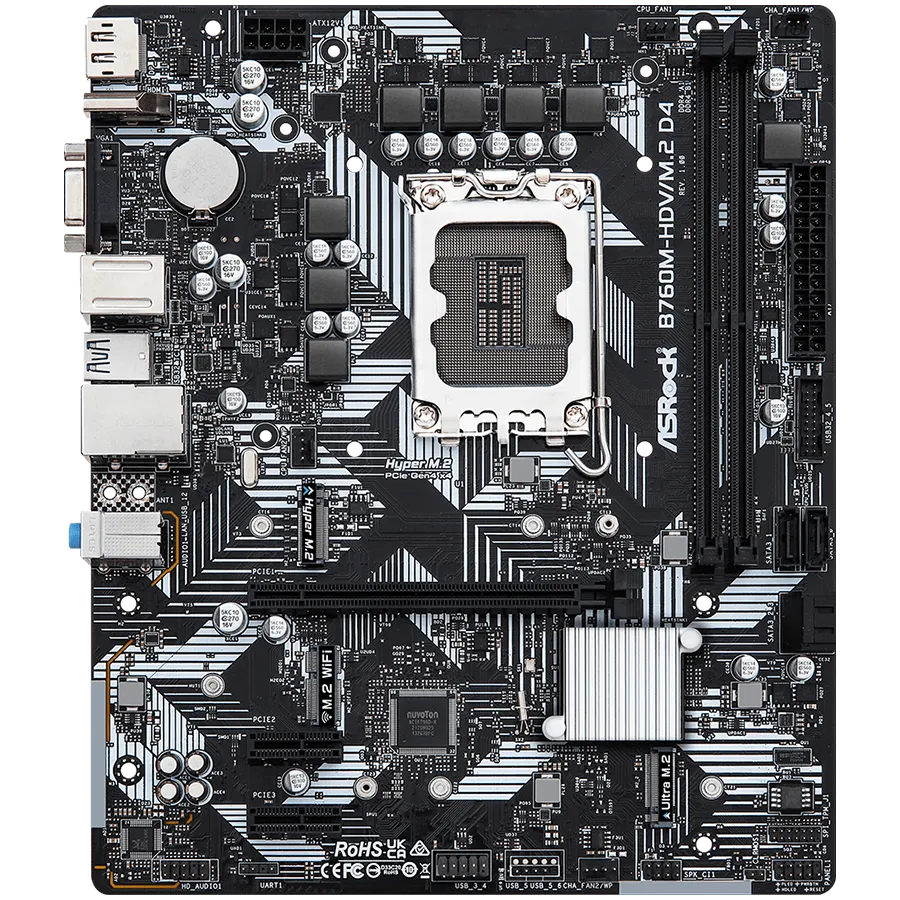

ASROCK MB Desktop B760M-HDV/M.2 D4 (S1700, 2x DDR4, 1x PCIe 4.0 x16, 2x PCIe 3.0 x1, 1x Hyper M.2 PCIe Gen4x4, 1x M.2 Ultra Gen3x4, 4x SATA3, 1x USB-C, 5x USB 3.2, 5x USB 2.0, 1xRJ-45 1Gbit, 1x VGA, 1x HDMI, 1x DP, mATX
Парт.№: B760M-HDV/M.2 D4
Кат.№: 143734
Кат.№: 143734
Цена с ДДС:
178 лв.
Цена с ДДС:
91.01 €
на склад
БЪРЗА ПОРЪЧКА (без регистрация)
Въведете Вашите данни, натиснете бутон "ПОРЪЧАЙ" и ние ще Ви се обадим!
| Main Board Desktop - Processor | |
| Chipset: | Intel B760 |
| Supports Central Processor Unit: | Intel 12th Gen Processors Intel 13th Gen Processors Intel 14th Gen Processors |
| CPU Socket Standard: | Socket 1700 |
| Architecture Features: | Intel Turbo Boost Technology 3.0 Intel Hybrid Technology Intel Thermal Velocity Boost Intel Adaptive Boost Technology |
| CPU Maximum Quantity Supports: | 1 |
| Main Board Desktop - Memory | |
| Memory Type: | DDR4 SDRAM |
| Memory Form Factor: | DIMM 288-pin |
| Memory Speed: | 5333MHz(PC4-42600) |
| Maximum Installable System Memory Storage Capacity: | 64 GB |
| Memory Slot Total Quantity: | 2 |
| Provides Error Checking Method: | non-ECC |
| Memory Features: | Unbuffered XMP 2.0 |
| Controller | |
| Support: | Wi-Fi Controller: 1 x M.2 (Key E) |
| Integrated: | Storage Controller: PCI Express 4.0 x4 (1 x M.2 (Key M)) Storage Controller: Supports: Level 0, Level 1, Level 10, Level 5 SATA III-600 (4) Storage Controller: PCIe 3.0 x4/SATA (1 x M.2 (Key M)) |
| Main Board Desktop - Video Output | |
| Video Controller Integrated: | yes |
| Video Chipset: | Intel Iris Xe Graphics |
| Main Board Desktop - Audio Output | |
| Audio Integrated: | yes |
| Device Location: | Integrated |
| Audio Chipset: | Realtek ALC887/ALC897 |
| Audio Output Mode: | 7.1 Channel Surround |
| Compliant Audio Standards: | High Definition Audio |
| Main Board Desktop - Networking Specifications | |
| LAN Integrated: | yes |
| LAN Chipset: | Realtek RTL8111H |
| Data Link Protocol Supports: | Gigabit Ethernet/Fast Ethernet/Ethernet |
| Slot Provided | |
| PCI Express 4.0 x16: | 1 |
| PCI Express 3.0 x1: | 2 |

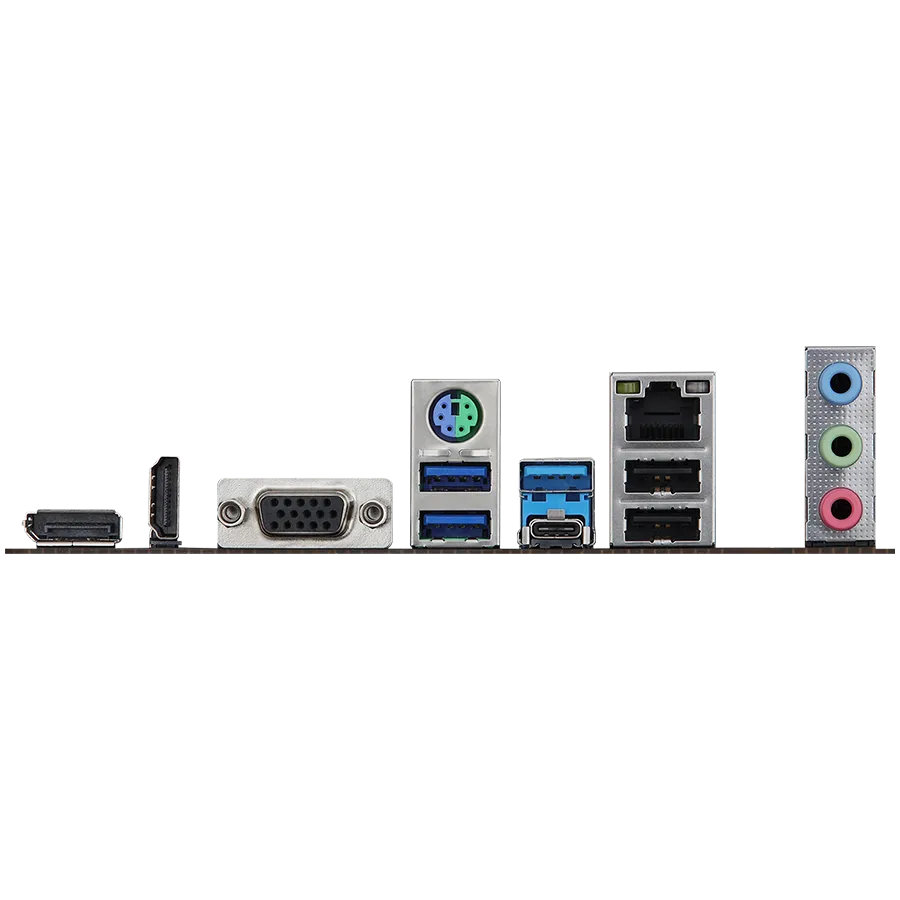

| Interface Provided | |
| USB 3.2 Gen 1: | 1 (USB 3.2 (type C)); 3 (USB 3.2 (type A)) |
| VGA: | 1 (15-pin D-sub) |
| DisplayPort: | 1 |
| HDMI: | 1 (HDMI (Type A)) |
| LAN: | 1 (RJ-45) |
| Audio Interface: | 3 (3.5-mm minijack) |
| USB 2.0: | 2 (USB 2.0 (type A)) |
| Antenna: | 2 |
| PS/2: | 1 |
| Main Board Desktop - Mainboard Features | |
| BIOS Type: | AMI |
| BIOS Features: | UEFI 128Mb AMI UEFI Legal BIOS with GUI Support ASRockRack Instant Flash |
| Main Board Desktop - Software | |
| Supported Operating System: | Microsoft Windows 10 64-bit Microsoft Windows 11 64-bit |
| Miscellaneous | |
| Cable Included: | 2 x SATA Data Cables |
| Included Accessories: | I/O Shield Quick Start Guide Screws |
| Main Board Desktop - Dimensions&Weight | |
| Form Factor: | Micro ATX |
| Height (mm): | 201 mm |
| Width (mm): | 244 mm |
| Warranty | |
| Warranty Products Returnable: | Yes |
| Warranty Term (month): | 36 month(s) |
| Warranty Validation Criteria: | Serial Number |
| Logistic | |
| Pack Length (mm): | 275 mm |
| Pack Width (mm): | 240 mm |
| Pack Height (mm): | 58 mm |
| Pack Weight Brutto (kg): | 0.795 kg |
| Pack Weight Netto (kg): | 0.465 kg |
| Pieces in pack: | 1 |
| Box Weight Brutto (kg): | 16.69 kg |
| Retail Packaging Net Weight Carton: | 0.3 kg |
| Retail Packaging Net Weight Plastic: | 0.3 kg |
| Packs in Box: | 20 |
| Package Type: | Retail |
| EAN Code: | 4710483942020 |
