Парт.№: B760M_TSM
Кат.№: 141342
Кат.№: 141342
Цена с ДДС:
295 лв.
Наличност:
на склад
БЪРЗА ПОРЪЧКА (без регистрация)
Въведете Вашите данни, натиснете бутон "ПОРЪЧАЙ" и ние ще Ви се обадим!
| Подд. процесори: | LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors, L3 cache varies with CPU |
| Чипсет: | Intel® B760 Express Chipset |
| Памет/тип/: | Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules, 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory, Dual channel memory architecture, Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode), Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules, Support for Extreme Memory Profile (XMP) memory modules |
| Разш. слотове: | CPU:, 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16, * The PCIEX16 slot can only support a graphics card or an NVMe SSD., Chipset:, 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 |
| Сторидж: | CPU:, 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A CPU), Chipset:, 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P SB), 4 x SATA 6Gb/s connectors, RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| Графична карта: | Integrated Graphics Processor-Intel® HD Graphics support:, 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz, * Support for HDMI 2.1 version and HDCP 2.3., ** Support native HDMI 2.1 TMDS compatible ports., 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz, * Support for DisplayPort 1.2 version and HDCP2.3, 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz, * Support for DisplayPort 1.2 version., (Graphics specifications may vary depending on CPU support.), Support for up to triple-display at the same time |
| Звук: | Realtek® Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel, * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings., Support for S/PDIF Out |
| I/O: | iTE® I/O Controller Chip |
| Мрежа: | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |

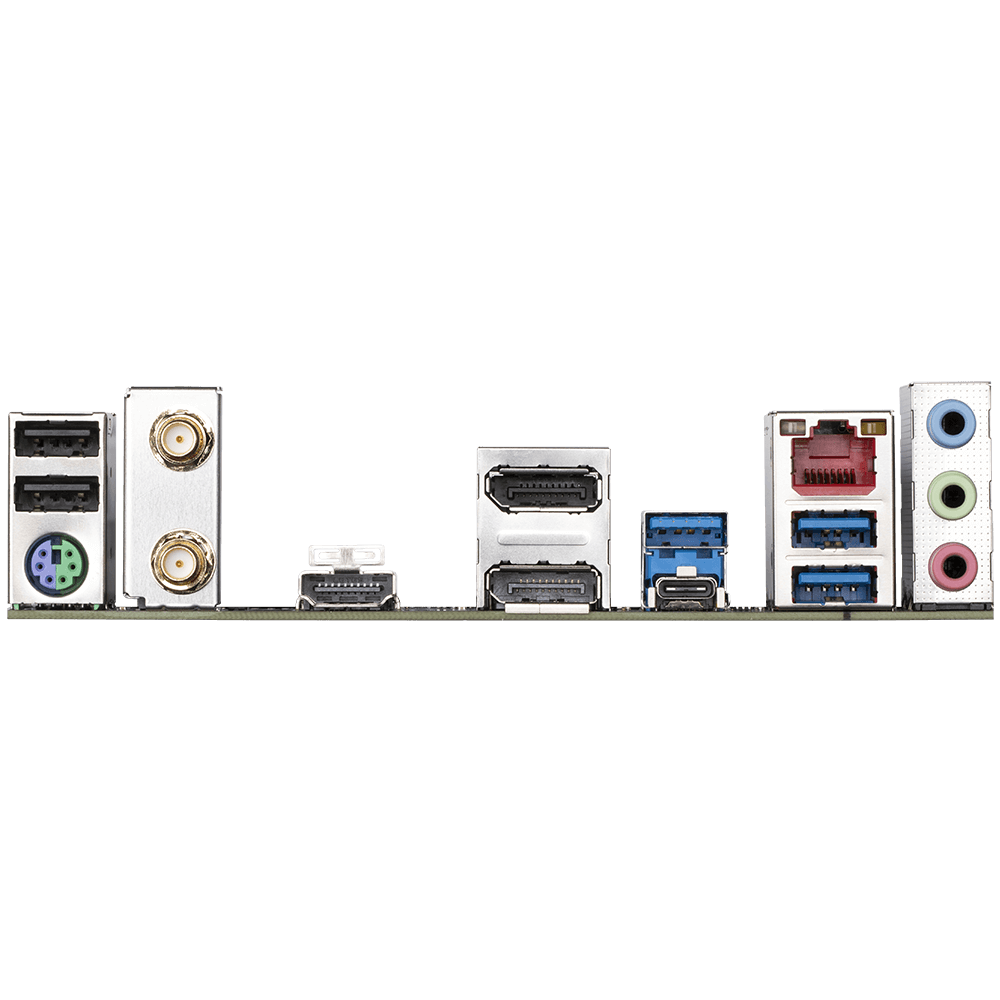

| Конектори: | 1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 1 x CPU fan header, 3 x system fan headers, 1 x addressable LED strip header, 1 x RGB LED strip header, 2 x M.2 Socket 3 connectors, 4 x SATA 6Gb/s connectors, 1 x front panel header, 1 x front panel audio header, 1 x USB 3.2 Gen 1 header, 2 x USB 2.0/1.1 headers, 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only), 1 x S/PDIF Out header, 1 x Q-Flash Plus button, 1 x reset button, 1 x reset jumper, 1 x Clear CMOS jumper, Back Panel Connectors:, 2 x USB 2.0/1.1 ports, 1 x PS/2 keyboard/mouse port, 2 x SMA antenna connectors (2T2R), 1 x HDMI port, 2 x DisplayPorts, 3 x USB 3.2 Gen 1 ports, 1 x USB Type-C® port, with USB 3.2 Gen 2 support, 1 x RJ-45 port, 3 x audio jacks |
| Форм фактор: | Micro ATX Form Factor, 24.4cm x 24.4cm |
| Оперционни с-ми: | Support for Windows 11 64-bit, Support for Windows 10 64-bit, Software: Norton® Internet Security (OEM version), LAN bandwidth management software |
| BIOS: | 1 x 128 Mbit flash, Use of licensed AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| USB: | Chipset:, 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support, 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header), 2 x USB 2.0/1.1 ports on the back panel, Chipset+2 USB 2.0 Hubs:, 4 x USB 2.0/1.1 ports available through the internal USB headers |
| Wireless: | AMD Wi-Fi 6E RZ608 (MT7921K) (For PCB rev. 1.0), WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands, BLUETOOTH 5.2, Support for 11ax 80MHz wireless standard and up to 1.2 Gbps data rate, Intel® Wi-Fi 6E AX210 (For PCB rev. 1.1), WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands, BLUETOOTH 5.3, Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate, Intel® Wi-Fi 6E AX211 (For PCB rev. 1.2), WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands, BLUETOOTH 5.3, Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate, Realtek® Wi-Fi 6E RTL8852CE (For PCB rev. 1.3), WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands, BLUETOOTH 5.3, Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate |
| Features: | Support for GIGABYTE Control Center (GCC), * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications., Support for Q-Flash, Support for Q-Flash Plus |
