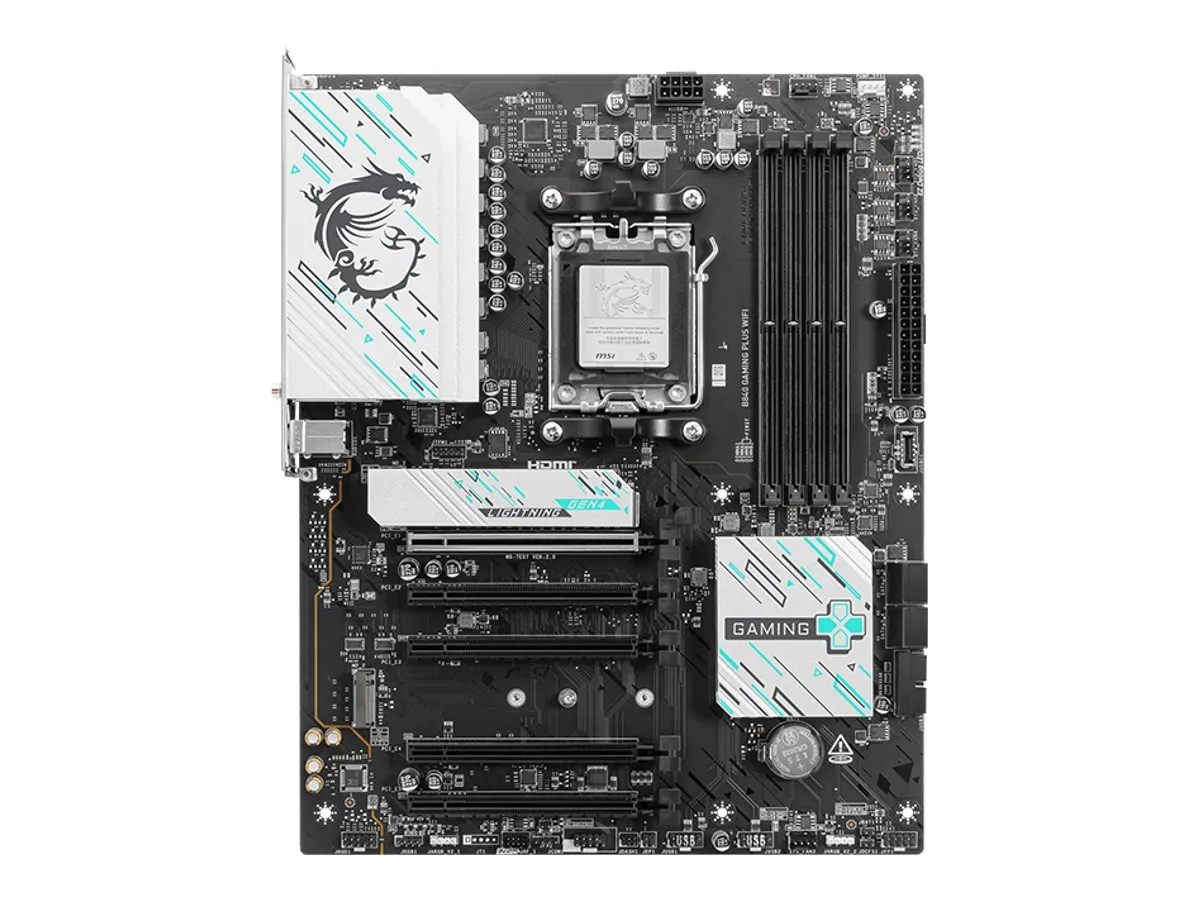

Парт.№: B840 GAMING PLUS WIFI
Кат.№: 153939
Кат.№: 153939
Цена с ДДС:
153.00 €
Цена с ДДС:
299.24лв.
на склад
БЪРЗА ПОРЪЧКА (без регистрация)
Въведете Вашите данни, натиснете бутон "ПОРЪЧАЙ" и ние ще Ви се обадим!
| Manufacturer: | MSI |
| Manufacturer Part No: | B840 GAMING PLUS WIFI |
| General | |
| Product Type: | Motherboard - ATX |
| Chipset Type: | AMD B840 |
| Processor Socket: | Socket AM5 |
| Max Processors Qty: | 1 |
| Compatible Processors: | Ryzen (supports Ryzen 7000/8000/9000 Series) |
| Supported RAM | |
| Max Size: | 256 GB |
| Technology: | DDR5 |
| Bus Clock: | 4000 MHz (O.C.), 2800 MHz (O.C.), 2400 MHz |
| Supported RAM Integrity Check: | Non-ECC, on-die ECC |
| Registered or Buffered: | Unbuffered |
| Features: | AMD EXPO technology, dual channel memory architecture |
| Audio | |
| Type: | HD Audio (8-channel) |
| Audio Codec: | Realtek ALC897 |
| Compliant Standards: | High Definition Audio |
| LAN | |
| Network Controller: | Realtek RTL8125BG |
| Network Interfaces: | 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7) |
| Expansion / Connectivity | |
| Expansion Slots: | 1 x CPU 4 x DIMM 288-pin 1 x PCIe 4.0 x16 1 x PCIe 3.0 x16 (x4 mode) 3 x PCIe 3.0 x16 (x1 mode) 1 x M.2 socket (2260/2280/22110 M.2 Key M slot) 1 x M.2 socket (2260/2280 M.2 Key M slot) |
| Storage Interfaces: | SATA-600 -connectors: 4 x 7pin Serial ATA PCIe 5.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 |
| Interfaces: | 1 x HDMI 1 x USB-C 3.2 Gen 2 2 x USB 3.2 Gen 1 1 x USB 3.2 Gen 2 4 x USB 2.0 1 x LAN (2.5Gigabit Ethernet) 1 x SPDIF out 1 x microphone - mini-jack 1 x audio line-out - mini-jack 2 x aerial |
| Internal Interfaces: | 4 x USB 2.0 - header 4 x USB 3.2 Gen 1 - header 1 x USB-C 3.2 Gen 1 - header 1 x audio - header 1 x serial - header 1 x SPI - header |
| Power Connectors: | 24-pin main power connector, 8-pin ATX12V connector |
| Features | |
| BIOS Type: | AMI |
| BIOS Features: | MSI ClickBIOS |
| Hardware Features: | Clear CMOS Button, EZ M.2 Sheild FROZR II, EZ PCie Clip II, Extended Heatsink Design, pre-mounted I/O shield, MSI Audio Boost, 12+2+1 Phase Power Design, MSI Steel Armor, 6 Layer PCB, EZ Debug LED, MSI Core Boost, 2oz Copper PCB |
| Miscellaneous | |
| Included Accessories: | EZ Wi-Fi antenna, 1 to 2 EZ Conn-Cable, EZ M.2 clip II, EZ M.2 clip II remover |
| Cables Included: | 1 x Serial ATA cable |
| Width: | 30.48 cm |
| Depth: | 24.384 cm |
