Парт.№: B850-A_TSM
Кат.№: 146673
Кат.№: 146673
Цена с ДДС:
406 лв.
Цена с ДДС:
207.58 €
изчерпан
| Подд. процесори: | AMD Socket AM5, support for:, AMD Ryzen™ 9000 Series Processors/, AMD Ryzen™ 8000 Series Processors/, AMD Ryzen™ 7000 Series Processors |
| Чипсет: | AMD B850 |
| Памет/тип/: | Support for DDR5 8200(O.C)/ 8000(O.C)/ 7950(O.C)/ 7900(O.C)/ 7800(O.C)/ 7600(O.C.)/ 7400(O.C.)/ 7200(O.C.)/ 7000(O.C.)/ 6800(O.C.)/ 6600(O.C.)/ 6400(O.C)/ 6200(O.C)/ 6000(O.C)/ 5800(O.C)/ 5600(O.C)/ 5200 / 4800 / 4400 MT/s memory modules., 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity)of system memory, Dual channel memory architecture, Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules, Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules |
| Разш. слотове: | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:, - AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode, - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode, - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode, * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card isto be installed, be sure to install it in the PCIEX16 slot., Chipset:, - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4), - 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1 1, PCIEX1 2) |
| Сторидж: | 1 x M.2 connector (M2A CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:, - AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs, - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs, - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs, 1 x M.2 connector (M2B CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:, - AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs, - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs, - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs, 1 x M.2 connector (M2C SB), integrated in the Chipset, supportingSocket 3, M key, type 22110/2280 PCIe 4.0 x2 SSDs, 4 x SATA 6Gb/s connectors, RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices, * RAID 5 is only available on AMD Ryzen™ 9000 Series Processors., RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| Графична карта: | Integrated Graphics Processor with AMD Radeon™ Graphics support:, - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz, * Support for DisplayPort 1.4 version and HDR., - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz, * Support for HDMI 2.1 version, HDCP 2.3, and HDR., ** Support for native HDMI 2.1 TMDS compatible ports. |
| Звук: | Realtek® Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel |
| I/O: | iTE® I/O Controller Chip |
| Мрежа: | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |

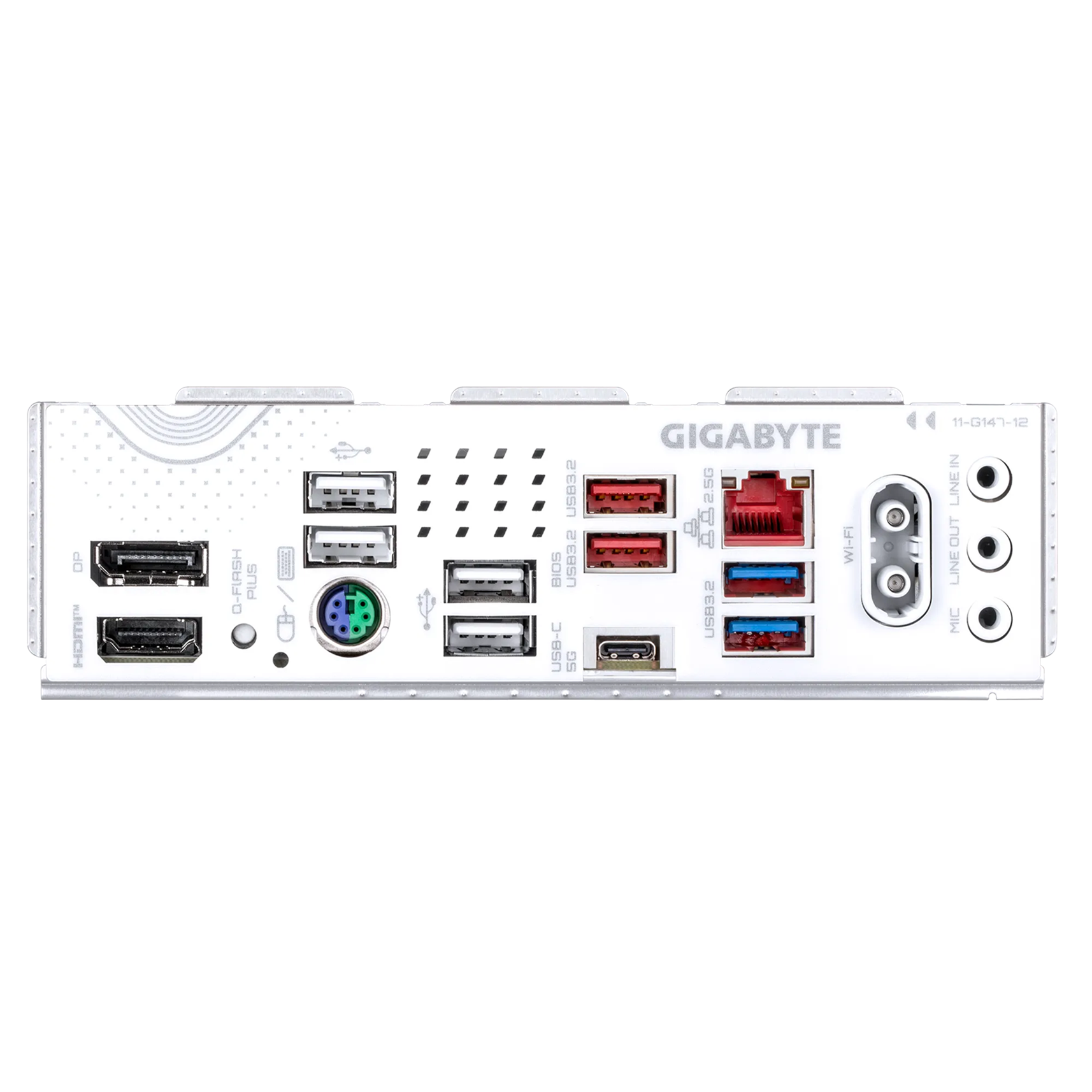

| Конектори: | Internal I/O Connectors:, 1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 1 x 4-pin ATX 12V power connector, 1 x CPU fan header, 1 x CPU fan/water cooling pump header, 3 x system fan headers, 1 x system fan/water cooling pump header, 3 x addressable RGB Gen2 LED strip headers, 1 x RGB LED strip header, 3 x M.2 Socket 3 connectors, 4 x SATA 6Gb/s connectors, 1 x front panel header, 1 x front panel audio header, 1 x USB Type-C® header, with USB 3.2 Gen 1 support, 1 x USB 3.2 Gen 1 header, 2 x USB 2.0/1.1 headers, 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only), 1 x reset button, 1 x reset jumper, 1 x Clear CMOS jumper, Back Panel Connectors, 1 x DisplayPort (Note), 1 x HDMI port (Note), 1 x Q-Flash Plus button, 4 x USB 2.0/1.1 ports, 1 x PS/2 keyboard/mouse port, 2 x USB 3.2 Gen 2 Type-A ports (red), 1 x USB Type-C® port, with USB 3.2 Gen 1 support, 1 x RJ-45 port, 2 x USB 3.2 Gen 1 ports, 2 x antenna connectors (2T2R), 3 x audio jacks |
| Форм фактор: | ATX Form Factor, 30.5cm x 24.4cm |
| Оперционни с-ми: | Support for Windows 11 64-bit |
| BIOS: | 1 x 256 Mbit flash, Use of licensed AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| USB: | CPU:, - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support, - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel, Chipset:, - 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header, - 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header), - 4 x USB 2.0/1.1 ports on the back panel, Chipset+USB 2.0 Hub:, - 4 x USB 2.0/1.1 ports available through the internal USB headers |
| Wireless: | Realtek® Wi-Fi 7 RTL8922AE, - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands, - BLUETOOTH 5.4, - Support for 11be 160MHz wireless standard, (Actual data rate may vary depending on environment and equipment.) |
| Features: | Support for GIGABYTE Control Center (GCC), * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications., Support for Q-Flash, Support for Q-Flash Plus, Support for Smart Backup |
| Bluetooth: | 5.4 |
