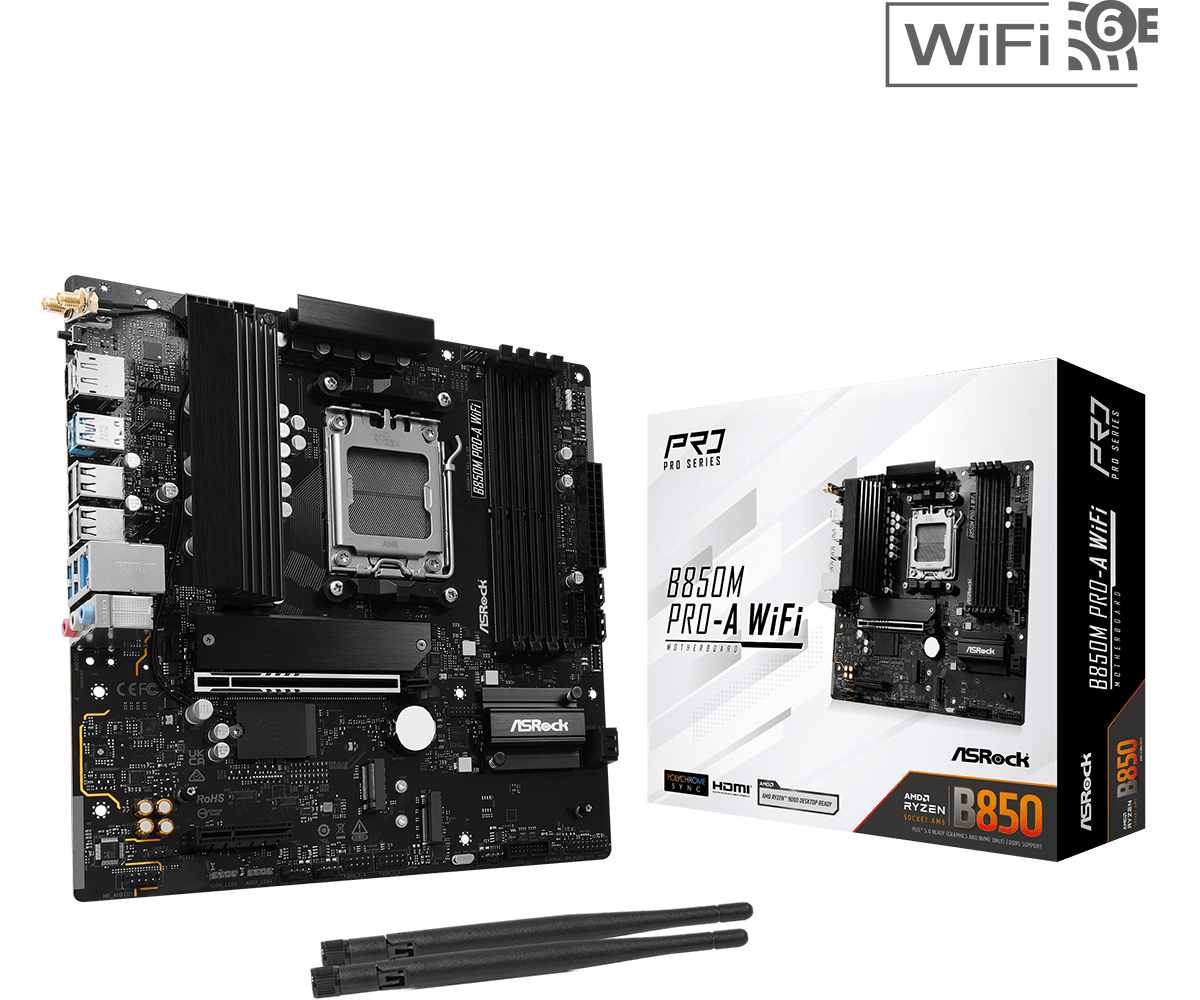

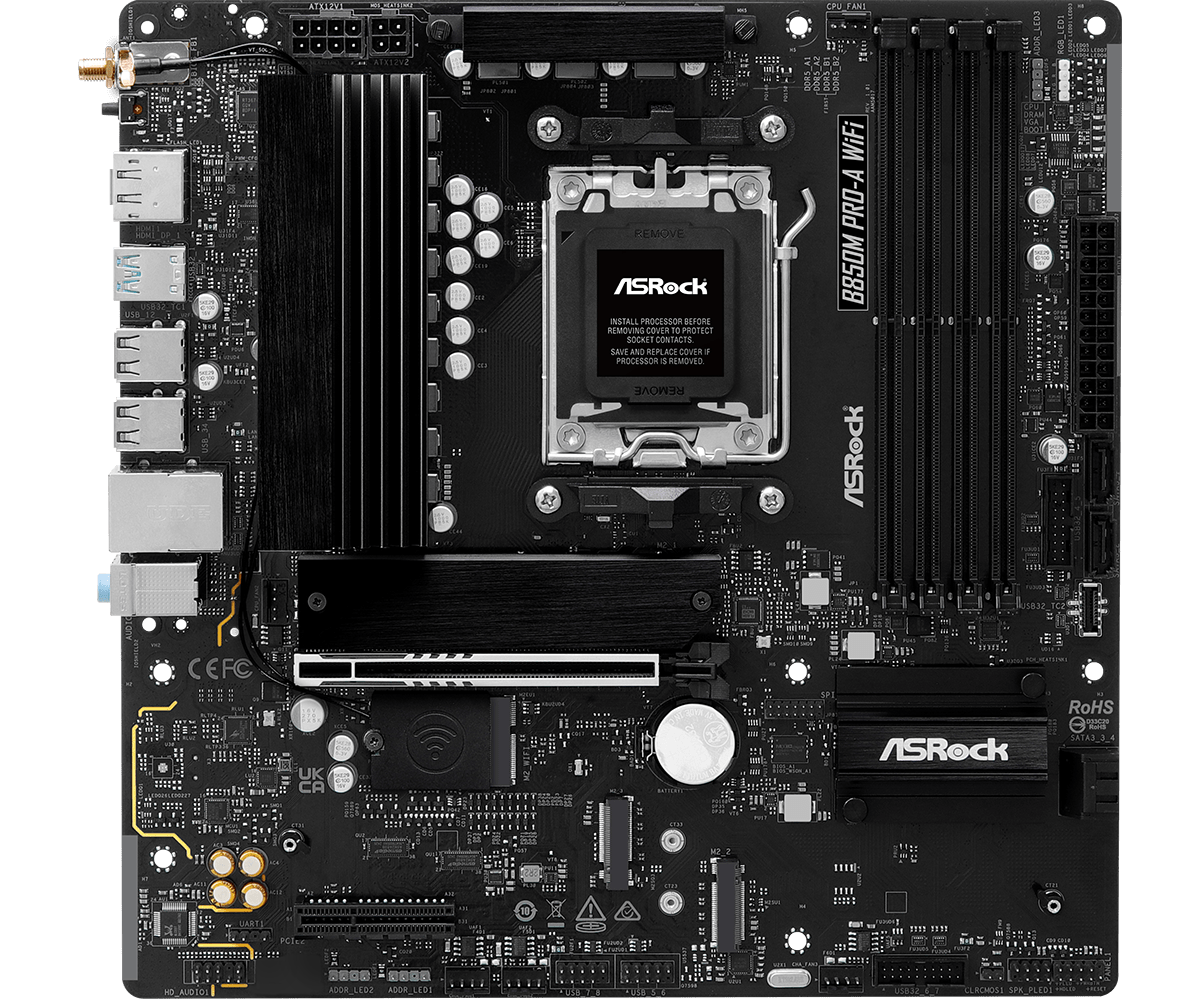

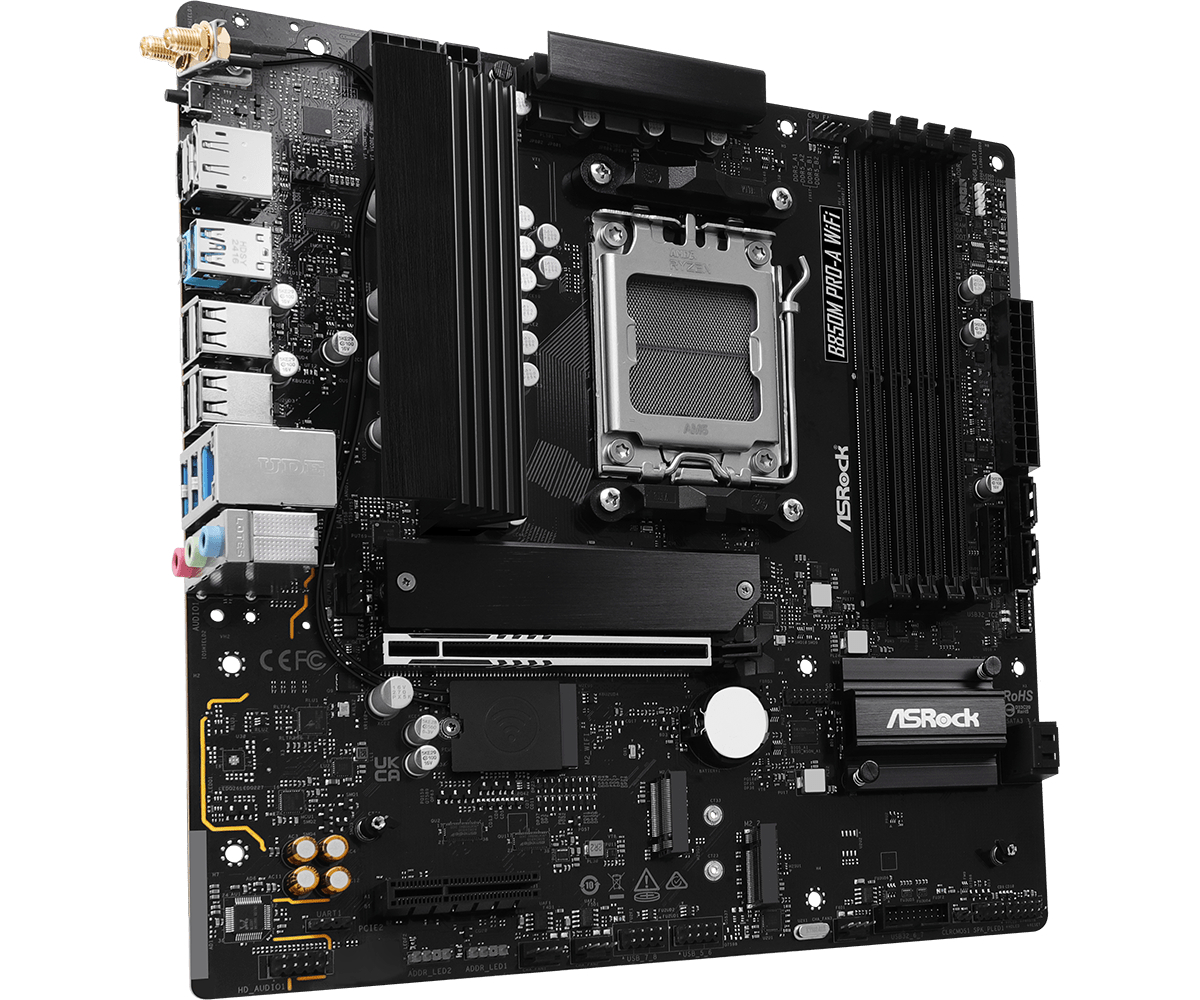

Парт.№: B850M_TSM
Кат.№: 144305
Кат.№: 144305
Цена с ДДС:
300 лв.
Наличност:
на склад
БЪРЗА ПОРЪЧКА (без регистрация)
Въведете Вашите данни, натиснете бутон "ПОРЪЧАЙ" и ние ще Ви се обадим!
| Подд. процесори: | Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors |
| Чипсет: | AMD B850 |
| Памет/тип/: | Dual Channel DDR5 Memory Technology, 4 x DDR5 DIMM Slots, Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC), Max. capacity of system memory: 256GB, Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules |
| Разш. слотове: | CPU:, - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode, - 1 x PCIe 4.0 x4 Slot (PCIE2), supports x4 mode, Chipset:, - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module, - 15 Gold Contact in VGA PCIe Slot (PCIE1) |
| Сторидж: | CPU:, - 1 x Blazing M.2 Socket (M2 1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode, - 1 x Hyper M.2 Socket (M2 3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode, Chipset:, - 1 x Hyper M.2 Socket (M2 2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode, - 4 x SATA3 6.0 Gb/s Connectors, Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices, Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices |
| Графична карта: | Integrated AMD RDNA™ graphics (Actual support may vary by CPU), - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz, - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz |
| Звук: | 7.1 CH HD Audio (Realtek ALC897 Audio Codec) |

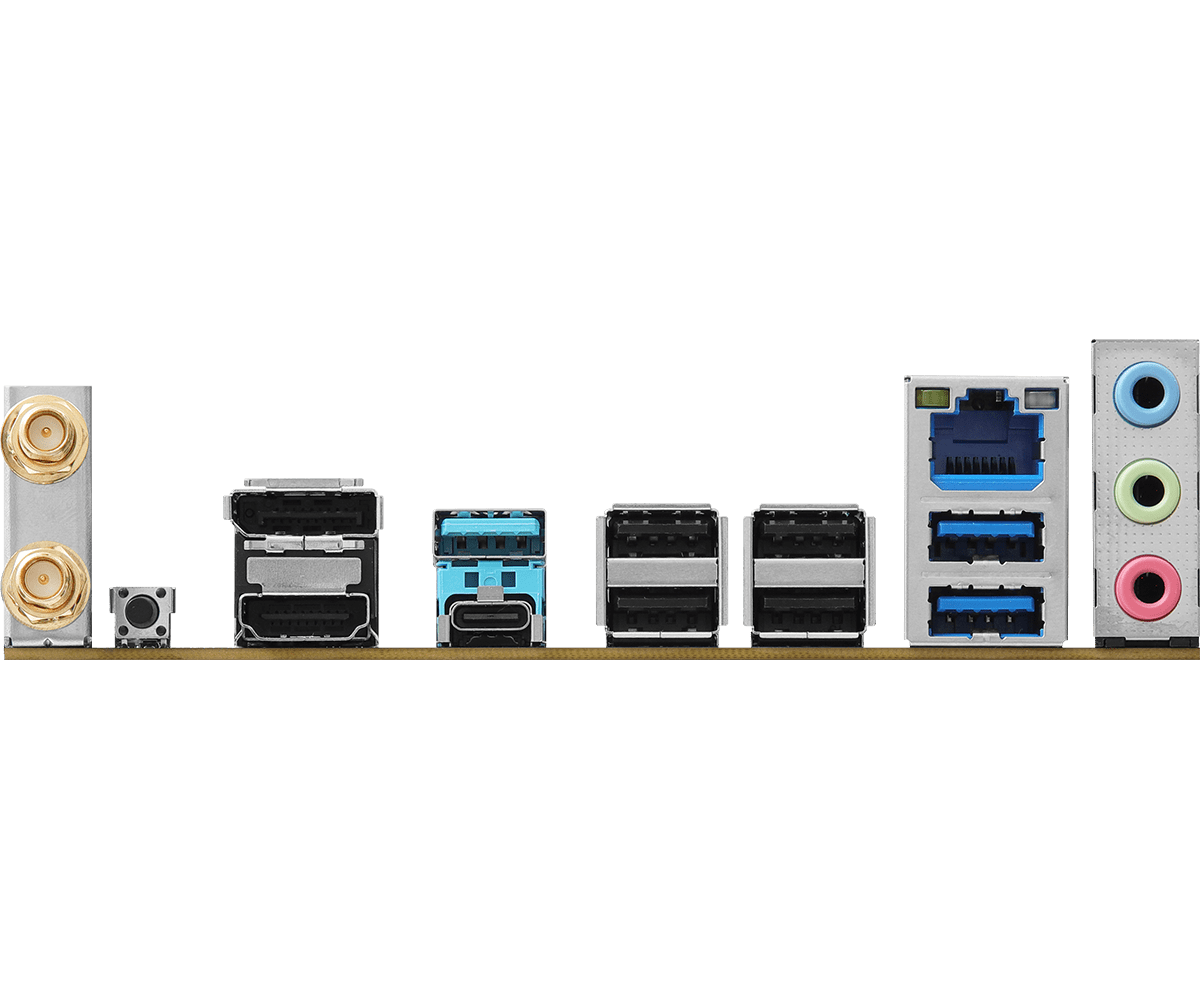

| I/O: | 2 x Antenna Ports, 1 x HDMI Port, 1 x DisplayPort 1.4, 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s), 1 x USB 3.2 Gen2 Type-C Port, 2 x USB 3.2 Gen1 Ports, 4 x USB 2.0 Ports, 1 x RJ-45 LAN Port, 1 x BIOS Flashback Button, HD Audio Jacks: Line in / Front Speaker / Microphone |
| Мрежа: | 2.5 Gigabit LAN 10/100/1000/2500 Mb/s, Dragon RTL8125BG, Supports Dragon 2.5G LAN Software, Smart Auto Adjust Bandwidth Control, Visual User Friendly UI, Visual Network Usage Statistics, Optimized Default Setting for Game, Browser, and Streaming Modes, User Customized Priority Control |
| Конектори: | 1 x SPI TPM Header, 1 x Power LED and Speaker Header, 1 x RGB LED Header, 3 x Addressable LED Headers, 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control), 3 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control), 1 x 24 pin ATX Power Connector, 1 x 8 pin 12V Power Connector (Hi-Density Power Connector), 1 x 4 pin 12V Power Connector (Hi-Density Power Connector), 1 x Front Panel Audio Connector, 2 x USB 2.0 Headers (Support 4 USB 2.0 ports), 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports), 1 x Front Panel Type C USB 3.2 Gen1 Header |
| Форм фактор: | Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm |
| Оперционни с-ми: | Microsoft Windows® 10 64-bit / 11 64-bit |
| BIOS: | 256Mb AMI UEFI Legal BIOS with GUI support |
| Други: | Software, - ASRock Motherboard Utility (A-Tuning), - ASRock Dragon 2.5G LAN Software, - ASRock Polychrome SYNC, UEFI, - ASRock EZ Mode, - ASRock Full HD UEFI, - ASRock Auto Driver Installer, - ASRock Instant Flash |
| USB: | CPU:, - 1 x USB 3.2 Gen2 Type-C (Rear), - 1 x USB 3.2 Gen2 Type-A (Rear), Chipset:, - 1 x USB 3.2 Gen1 Type-C (Front), - 6 x USB 3.2 Gen1 Type-A (2 Rear, 4 Front), - 8 x USB 2.0 (4 Rear, 4 Front) |
| Wireless: | 802.11axe Wi-Fi 6E Module, Supports IEEE 802.11a/b/g/n/ac/ax/axe, Supports Dual-Band 2x2 with extended 6GHz band* support, 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technolog, Supports Bluetooth 5.2, Supports MU-MIMO |
| Features: | Superb Productivity, - PCIe Gen5 (Graphics, M.2), - Dual Channel DDR5, Rock-Solid Durability, - 8+2+1 Power Phase, Dr.MOS for VCore+SOC+MISC, Ultrafast Connectivity, - 2.5G LAN, 802.11axe Wi-Fi 6E Module, EZ Update- BIOS Flashback Button, - ASRock Auto Driver Installer, EZ Troubleshooter, - ASRock Post Status Checker |
