Парт.№: B850M_TSM
Кат.№: 142232
Кат.№: 142232
Цена с ДДС:
397 лв.
Наличност:
на склад
БЪРЗА ПОРЪЧКА (без регистрация)
Въведете Вашите данни, натиснете бутон "ПОРЪЧАЙ" и ние ще Ви се обадим!
| Подд. процесори: | AMD Socket AM5, support for:, AMD Ryzen™ 9000 Series Processors/, AMD Ryzen™ 8000 Series Processors/, AMD Ryzen™ 7000 Series Processors |
| Чипсет: | AMD B850 |
| Памет/тип/: | Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules., 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory, Dual channel memory architecture, Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules, Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules |
| Разш. слотове: | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:, AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode, AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode, AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode, * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is tobe installed, be sure to install it in the PCIEX16 slot., Chipset:, - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4) |
| Сторидж: | 1 x M.2 connector (M2A CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:, AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs, AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs, AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs, 1 x M.2 connector (M2B CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:, AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs, AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs, AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs, 4 x SATA 6Gb/s connectors, RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices, * RAID 5 is only available on AMD Ryzen™ 9000 Series Processors., RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| Графична карта: | Integrated Graphics Processor with AMD Radeon™ Graphics support:, - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz, * Support for HDMI 2.1 version and HDCP 2.3, and HDR., ** Support for native HDMI 2.1 TMDS compatible ports., - 2 x DisplayPorts, supporting a maximum resolution of 3840x2160@144 Hz, * Support for DisplayPort 1.4version., (Graphics specifications may vary depending on CPU support.), Support for up to triple-display at the same time |
| Звук: | Realtek® Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel |
| I/O: | iTE® I/O Controller Chip |
| Мрежа: | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |

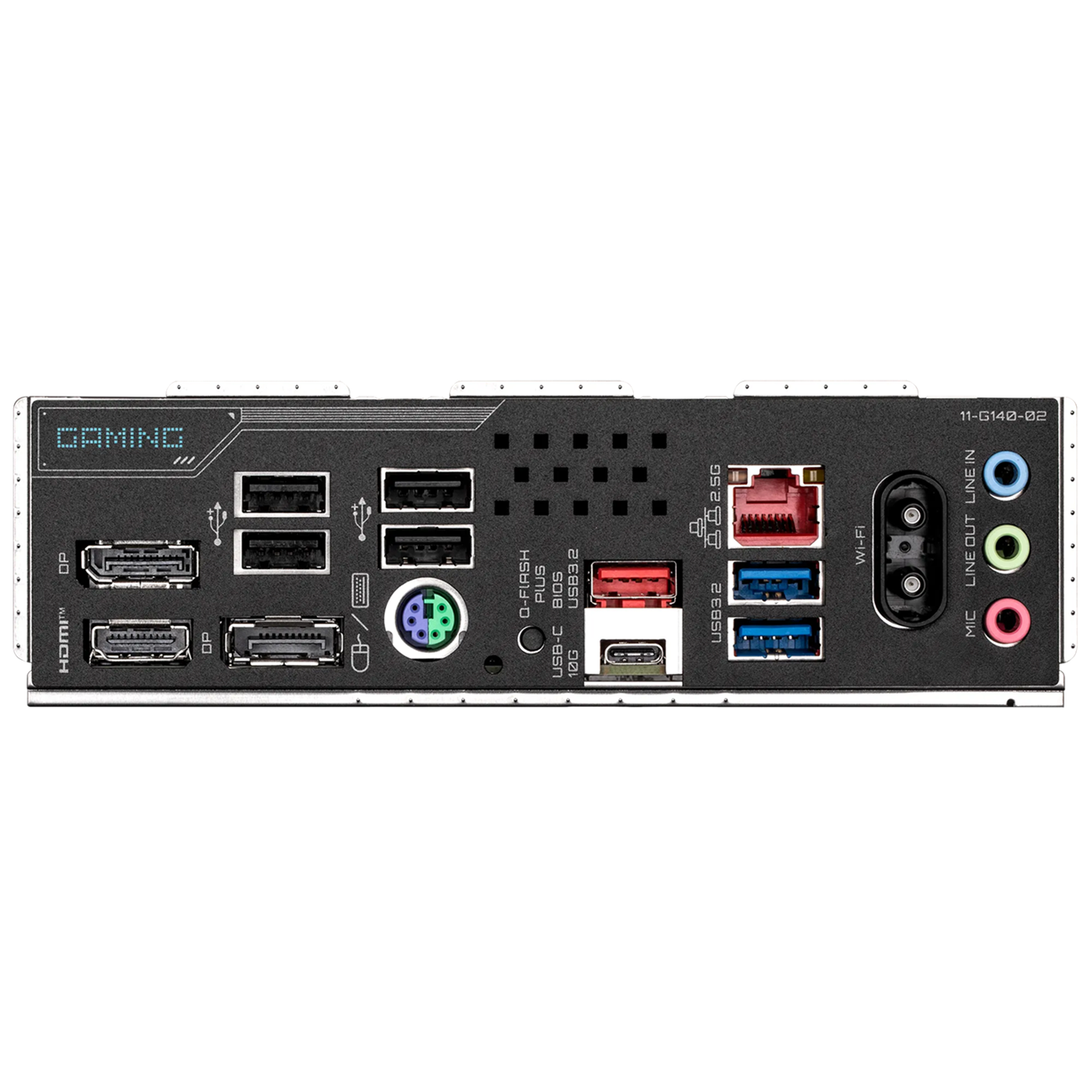

| Конектори: | 1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 1 x CPU fan header, 1 x CPU fan/water cooling pump header, 1 x system fan header, 1 x system fan/water cooling pump header, 3 x addressable RGB Gen2 LED strip headers, 1 x RGB LED strip header, 4 x SATA 6Gb/s connectors, 2 x M.2 Socket 3 connectors, 1 x front panel header, 1 x front panel audio header, 1 x USB Type-C® header, with USB 3.2 Gen 2 support, 1 x USB 3.2 Gen 1 header, 2 x USB 2.0/1.1 headers, 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only), 1 x reset button, 1 x reset jumper, 1 x Clear CMOS jumper, Back Panel Connectors, 1 x HDMI port (Note), 2 x DisplayPorts (Note), 1 x Q-Flash Plus button, 1 x PS/2 keyboard/mouse port, 1 x USB 3.2 Gen 2 Type-A ports (red), 1 x USB Type-C® port, with USB 3.2 Gen 2 support, 2 x USB 3.2 Gen 1 ports, 4 x USB 2.0/1.1 ports, 1 x RJ-45 port, 2 x antenna connectors (2T2R), 3 x audio jacks |
| Форм фактор: | Micro ATX Form Factor, 24.4cm x 24.4cm |
| Оперционни с-ми: | Support for Windows 11 64-bit, Support for Windows 10 64-bit, Norton® Internet Security (OEM version), LAN bandwidth management software |
| BIOS: | 1 x 256 Mbit flash, Use of licensed AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| USB: | CPU:, - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support, - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel, CPU+USB 2.0 Hub:, - 4 x USB 2.0/1.1 ports on the back panel, Chipset:, - 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header, - 4 x USB 3.2 Gen 1 ports (2ports on the back panel, 2 ports available through the internal USB header), - 4 x USB 2.0/1.1 ports available through the internal USB headers |
| Wireless: | Realtek® Wi-Fi 6E RTL8852CE, - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands, - BLUETOOTH 5.3, - Support for 11ax 160MHz wireless standard |
| Features: | Support for GIGABYTE Control Center (GCC), Support for Q-Flash, Support for Q-Flash Plus, Support for Smart Backup |
| Bluetooth: | 5.3 |
