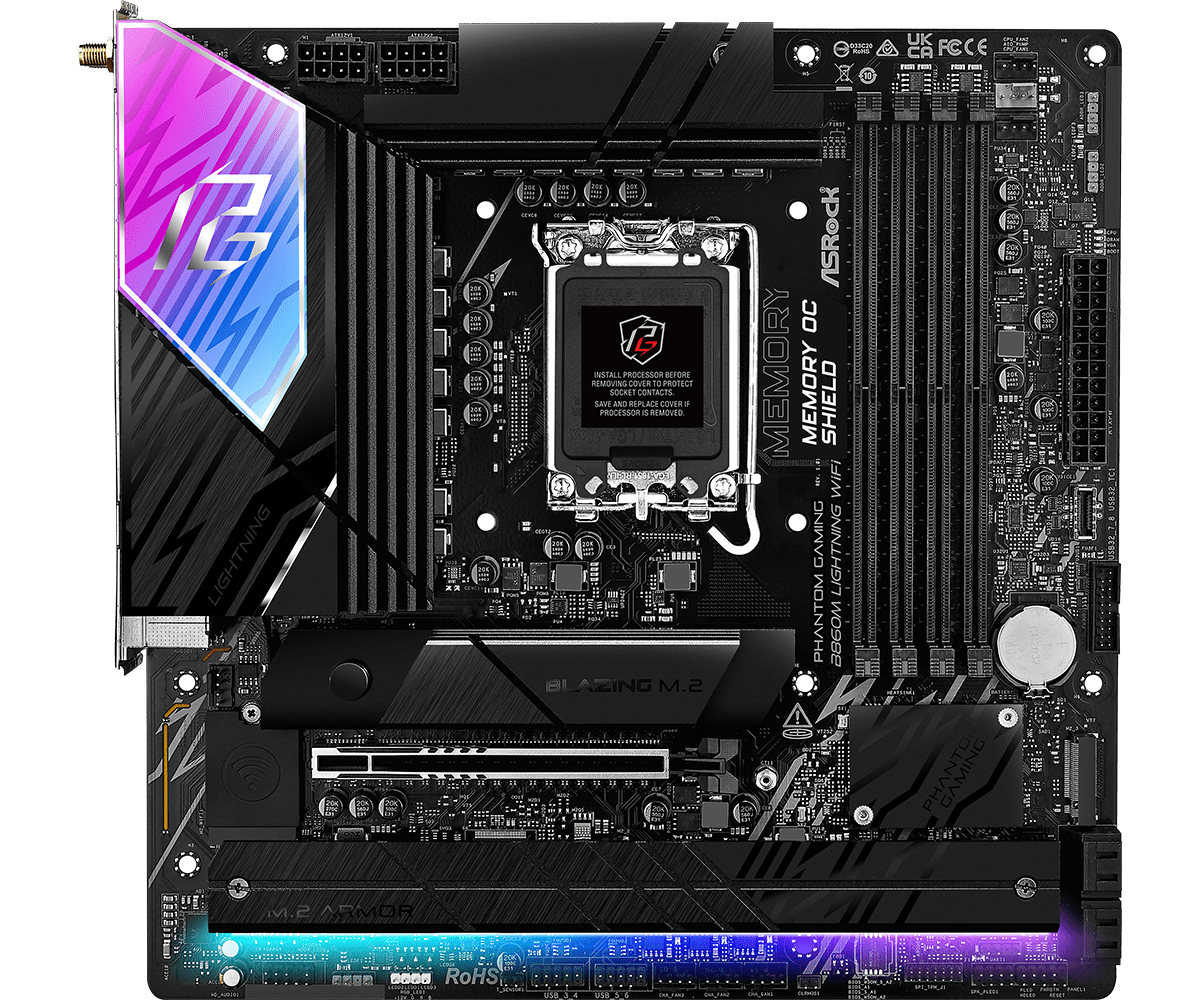

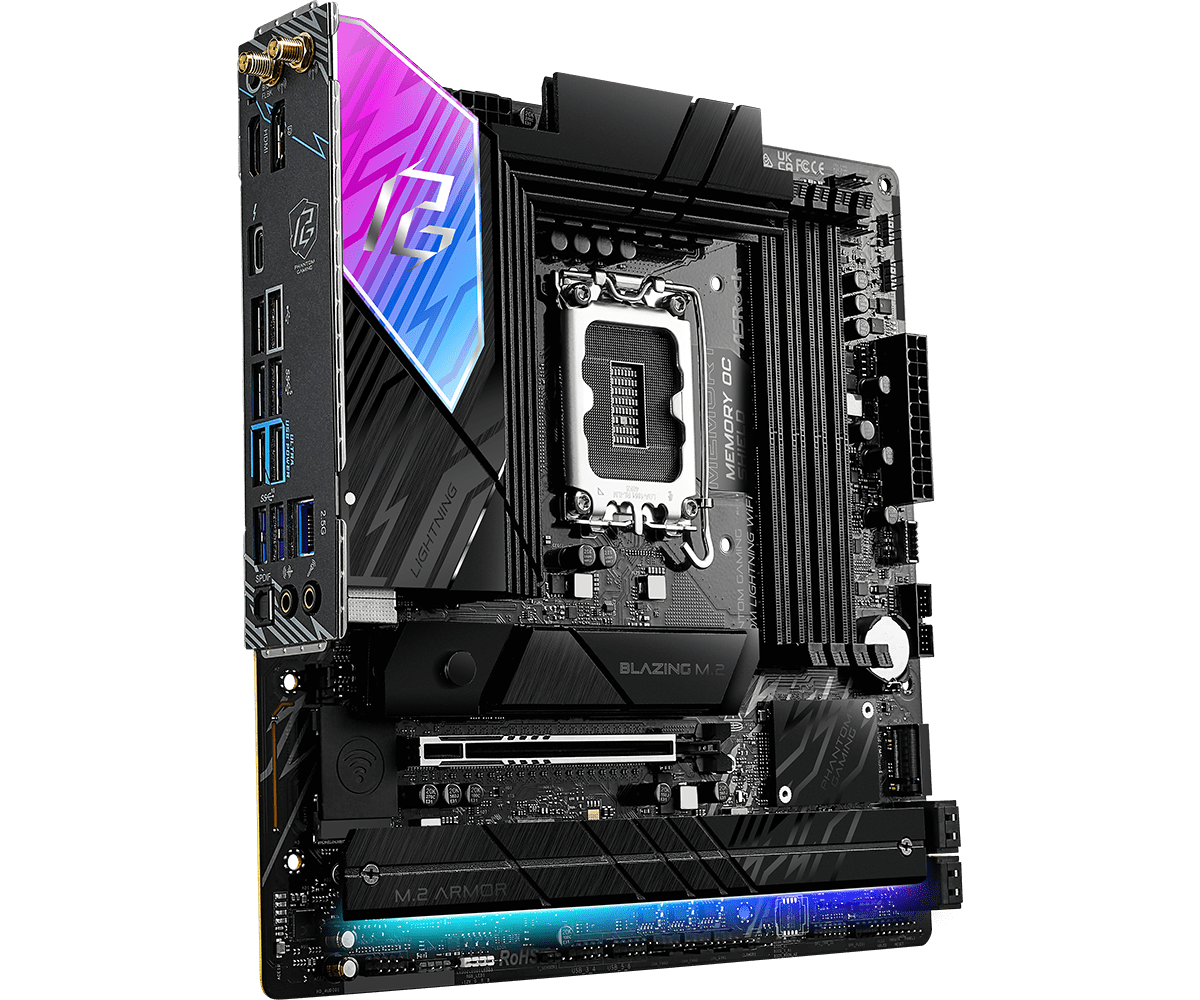

ASROCK B860M LIGHTING WIFI ASROCK B860 4xDDR5 4xSATA3 RAID HDMI DP 4xM2 GLAN 1xPCIEx16 WiFi - B860M_TSM
Парт.№: B860M_TSM
Кат.№: 150173
Кат.№: 150173
Цена с ДДС:
375 лв.
Цена с ДДС:
191.73 €
на склад
БЪРЗА ПОРЪЧКА (без регистрация)
Въведете Вашите данни, натиснете бутон "ПОРЪЧАЙ" и ние ще Ви се обадим!
| Подд. процесори: | Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851), Supports Intel® Hybrid Technology, Supports Intel® Turbo Boost Max 3.0 Technology, Supports Intel® Thermal Velocity Boost (TVB), Supports Intel® Adaptive Boost Technology (ABT), Integrated NPU for dedicated AI acceleration |
| Чипсет: | Intel® B860 |
| Памет/тип/: | Dual Channel DDR5 Memory Technology, 4 x DDR5 DIMM Slots, Supports DDR5 non-ECC, un-buffered memory up to 8666+(OC), Supports Clocked Unbuffered DIMM (CUDIMM), Max. capacity of system memory: 256GB, Supports Intel® Extreme Memory Profile (XMP) 3.0x |
| Разш. слотове: | CPU:, - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*, Chipset:, - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT) |
| Сторидж: | CPU:, - 1 x Blazing M.2 Socket (M2 1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode, Chipset:, - 1 x Hyper M.2 Socket (M2 2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode, - 1 x Hyper M.2 Socket (M2 3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode, - 1 x Hyper M.2 Socket (M2 4, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode, - 4 x SATA3 6.0 Gb/s Connectors, Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| Графична карта: | Intel® Xe LPG Graphics Architecture, 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz, 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz, 1 x Intel® Thunderbolt™ 4, supports HDCP 2.3 and max. resolutionup to 8K 60Hz / 5K 120Hz |
| Звук: | 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec), Impedance Sensing on Rear Out port, Individual PCB Layers for R/L Audio Channel, Nahimic Audio |

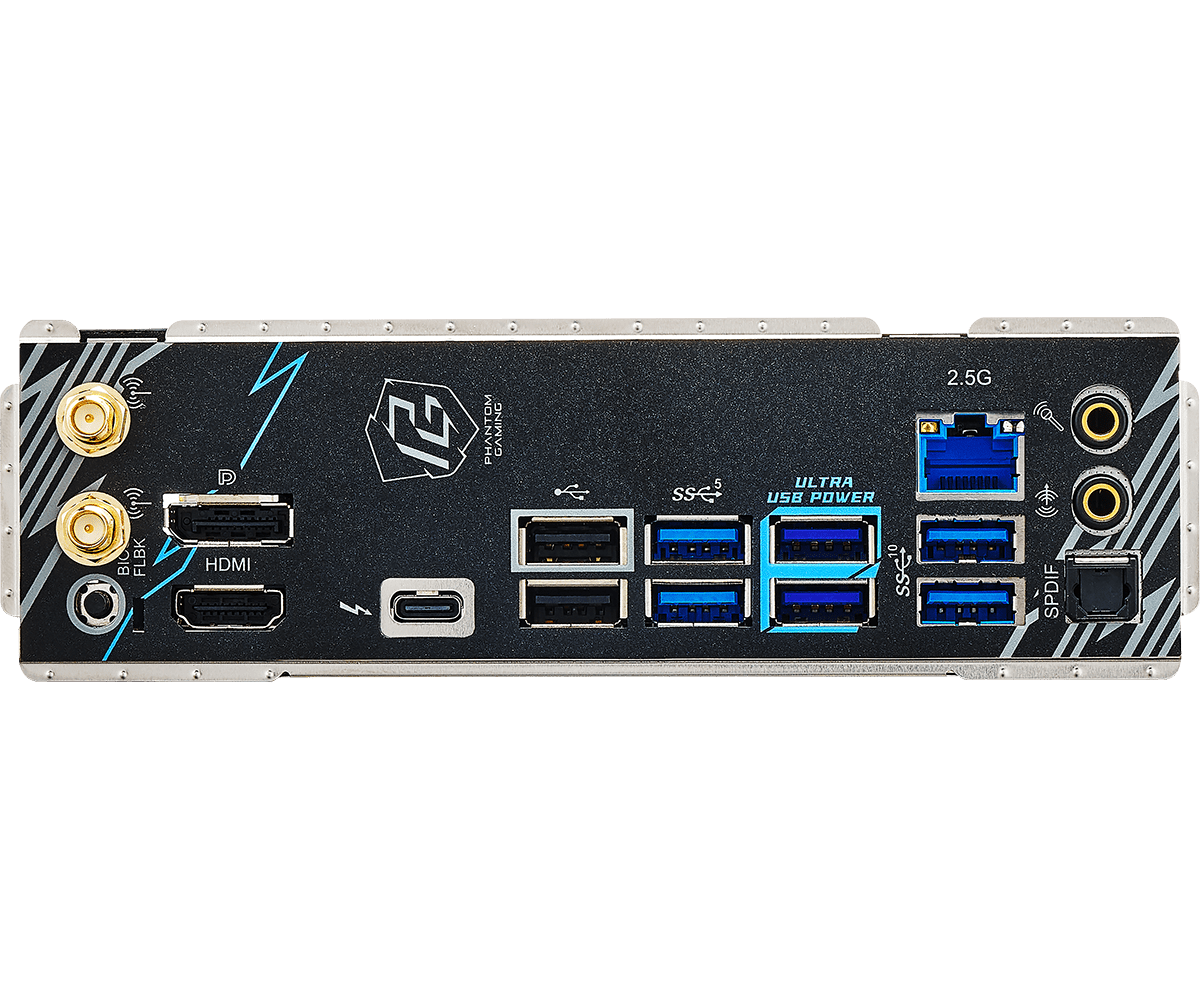

| I/O: | 2 x Antenna Ports, 1 x HDMI Port, 1 x DisplayPort 1.4, 1 x Optical SPDIF Out Port, 1 x Thunderbolt™ 4 Type-C Port (40 Gb/s for USB4 protocol, 40Gb/s for Thunderbolt™ protocol), 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s), 4 x USB 3.2 Gen1 Ports, 2 x USB 2.0 Ports, 1 x RJ-45 LAN Port, 1 x BIOS Flashback Button, 1 x Line Out Jack (Gold Audio Jack), 1 x Microphone Input Jack (Gold Audio Jack) |
| Мрежа: | 2.5 Gigabit LAN 10/100/1000/2500 Mb/s, Killer E3100G, Supports Killer LAN Software, Supports Killer DoubleShot™ Pro |
| Конектори: | 1 x Thermistor Cable Header, 1 x SPI TPM Header, 1 x Power LED and Speaker Header, 1 x RGB LED Header, 3 x Addressable LED Headers, 2 x CPU Fan Connector (4-pin) (Smart Fan Speed Control), 4 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control), 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control), 1 x 24 pin ATX Power Connector, 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector), 1 x Front Panel Audio Connector, 2 x USB 2.0 Headers (Support 4 USB 2.0 ports), 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports), 1 x Front Panel Type C USB 3.2 Gen2 Header (10 Gb/s) |
| Форм фактор: | Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm, 2oz Copper PCB |
| Оперционни с-ми: | Microsoft Windows® 11 64-bit, Software, - ASRock Motherboard Utility (Phantom Gaming Tuning), - Killer Control Center, - ASRock Polychrome SYNC, UEFI, - ASRock EZ Mode, - ASRock Full HD UEFI, - ASRock My Favorites in UEFI, - ASRock Auto Driver Installer, - ASRock Instant Flash |
| BIOS: | 256Mb AMI UEFI Legal BIOS with GUI support |
| Гаранция: | 36 Months |
| USB: | CPU:, - 1 x Thunderbolt™ 4 Type-C (Rear), Chipset:, - 1 x USB 3.2 Gen2 Type-C (Front), - 2 x USB 3.2 Gen2 Type-A (Rear)- 6 x USB 3.2 Gen1 (4 Rear, 2 Front), - 6 x USB 2.0 (2 Rear, 4 Front) |
| Wireless: | 802.11axe Wi-Fi 6E Module, Supports IEEE 802.11a/b/g/n/ac/ax/axe, Supports Dual-Band 2x2 160MHz with extended 6GHz band* support, 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology, Supports Bluetooth 5.3, Supports MU-MIMO, Supports Killer LAN Software, Supports Killer DoubleShot™ Pro |
| Features: | Superb Productivity, - PCIe Gen5 (Graphics, M.2), - Dual Channel DDR5, - Thunderbolt™ 4 Type-C Port (40 Gb/s), Rock-Solid Durability, - Server-Grade Low-Loss PCB, - 12+1+1+1+1 Power Phase, 80A SPS for VCore+GT+SA with Enlarged Heatsink Armor, - Memory OC Shield, - Flexible Integrated I/O Shield, - 20K Long-lasting Black Caps (high quality and conductive polymer capacitors), Ultrafast Gaming, - Killer 2.5G LAN, 802.11axe Wi-Fi 6E Module, - Killer DoubleShot™ ProEZ Update, - BIOS Flashback Button, - ASRock Auto Driver Installer, EZ Troubleshooter, - ASRock Post Status Checker |
