ASROCK Main Board Desktop H510 chipset (S1200, 2x DDR4, 1x PCIe 4.0 x16, 1x PCIe 3.0 x1, 4x SATA3, 4x USB 2.0, 2x USB 3.2, GLAN, 1x VGA, 1x HDMI)mATX, Retail - H510M-HVS R2.0
Парт.№: H510M-HVS R2.0
Кат.№: 148838
Кат.№: 148838
Цена с ДДС:
143 лв.
Цена с ДДС:
73.11€
с поръчка
БЪРЗА ПОРЪЧКА (без регистрация)
Въведете Вашите данни, натиснете бутон "ПОРЪЧАЙ" и ние ще Ви се обадим!
Гаранция: 36 месеца
| Main Board Desktop - Processor | |
| Chipset: | Intel H510 |
| Supports Central Processor Unit: | Intel 10th Gen Processors Intel 11th Gen Processors |
| CPU Socket Standard: | Socket 1200 |
| Architecture Features: | Intel® Rapid Storage Technology enterprise Intel Turbo Boost Max Technology 3.0 |
| CPU Maximum Quantity Supports: | 1 |
| Main Board Desktop - Memory | |
| Memory Type: | DDR4 SDRAM |
| Memory Form Factor: | DIMM 288-pin |
| Memory Speed: | 2133MHz(PC3-17066) 2400MHz(PC4-19200) 2666MHz(PC4-21300) 2800MHz(PC4-22400) 2933MHz(PC4-23400) 3200MHz(PC4-25600) |
| Maximum Installable System Memory Storage Capacity: | 64 GB |
| Memory Slot Total Quantity: | 2 |
| Provides Error Checking Method: | non-ECC |
| Memory Features: | Two DDR Channels Unbuffered XMP 2.0 |
| Controller | |
| Integrated: | Storage Controller: SATA III-600 (4) |
| Main Board Desktop - Audio Output | |
| Audio Integrated: | yes |
| Device Location: | Integrated |
| Audio Chipset: | Realtek ALC887/ALC897 |
| Audio Output Mode: | 7.1 Channel Surround |
| Compliant Audio Standards: | High Definition Audio |
| Main Board Desktop - Networking Specifications | |
| LAN Integrated: | yes |
| LAN Chipset: | Realtek RTL8111H |
| Data Link Protocol Supports: | Gigabit Ethernet/Fast Ethernet/Ethernet |
| Slot Provided | |
| PCI Express 4.0 x16: | 1 |
| PCI Express 3.0 x1: | 1 |

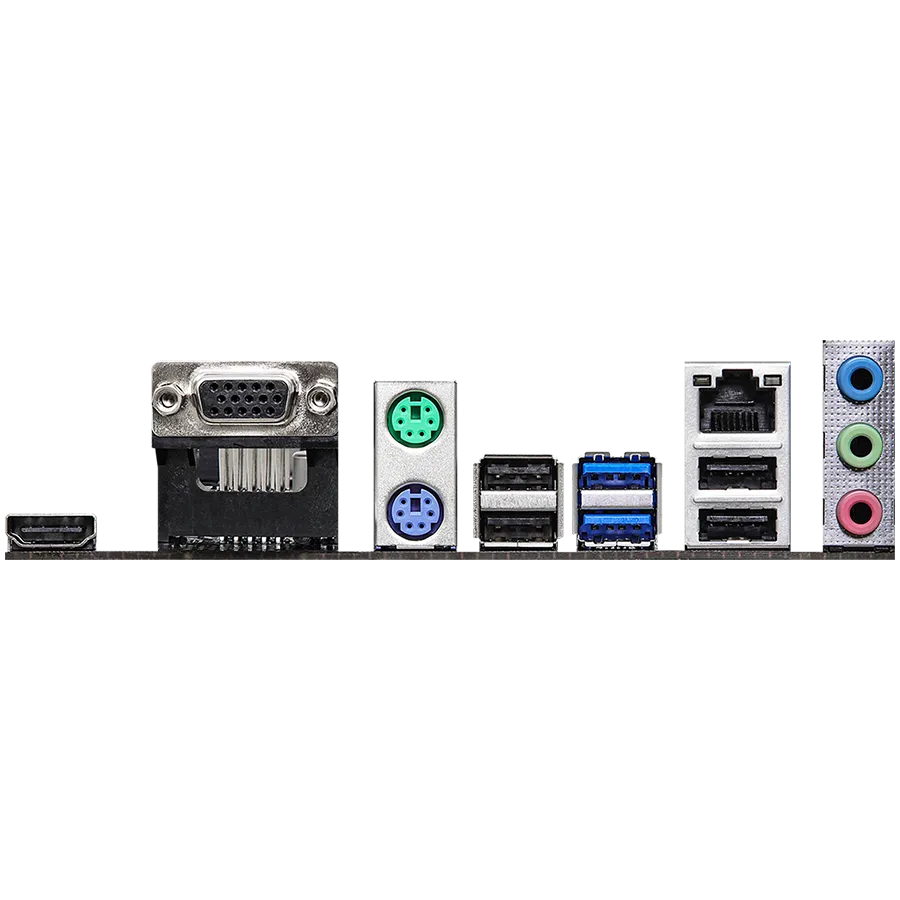

| Interface Provided | |
| PS/2: | 2 |
| HDMI: | 1 (HDMI (Type A)) |
| VGA: | 1 (15-pin D-sub) |
| USB 3.2 Gen 1: | 2 (USB 3.2 (type A)) |
| USB 2.0: | 4 (USB 2.0 (type A)) |
| LAN: | 1 (RJ-45) |
| Audio Interface: | 3 (3.5-mm minijack) |
| Main Board Desktop - Mainboard Features | |
| BIOS Type: | AMI |
| BIOS Features: | Multi-language BIOS SMBIOS 2.7 Support PXE boot 128Mb AMI UEFI Legal BIOS with GUI Support ACPI 6.0 Support |
| Wake up/Sleep: | Wake on LAN |
| Hardware Monitoring: | Chassis Fan Tachometer CPU Fan Tachometer System Voltage |
| Power Connectors Type: | 24+8 pin |
| Mainboard Features: | NVMe Support |
| Main Board Desktop - Software | |
| Supported Operating System: | Microsoft Windows 10 64-bit Microsoft Windows 11 64-bit |
| Miscellaneous | |
| Cable Included: | 2 x SATA Data Cables |
| Included Accessories: | I/O Shield CD, Software Quick Start Guide |
| Main Board Desktop - Dimensions&Weight | |
| Form Factor: | Micro ATX |
| Height (mm): | 188 mm |
| Width (mm): | 197 mm |
| Warranty | |
| Warranty Products Returnable: | Yes |
| Warranty Term (month): | 36 month(s) |
| Warranty Validation Criteria: | Serial Number |
| Logistic | |
| Pack Weight Brutto (kg): | 0.6 kg |
| Pack Weight Netto (kg): | 0.1 kg |
| Pieces in pack: | 1 |
| Box Weight Brutto (kg): | 0.15 kg |
| Retail Packaging Net Weight Carton: | 0.1 kg |
| Retail Packaging Net Weight Plastic: | 0.1 kg |
| Packs in Box: | 1 |
| Package Type: | Retail |
