Парт.№: H610M_TSM
Кат.№: 146674
Кат.№: 146674
Цена с ДДС:
196 лв.
Цена с ДДС:
100.21 €
на склад
БЪРЗА ПОРЪЧКА (без регистрация)
Въведете Вашите данни, натиснете бутон "ПОРЪЧАЙ" и ние ще Ви се обадим!
Вземи от магазина на Дейтаком >>> Виж адреса
| Подд. процесори: | LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors, (Go to GIGABYTE's website for the latest CPU support list.), L3 cache varies with CPU |
| Чипсет: | Intel® H610 Express Chipset |
| Памет/тип/: | Support for DDR4 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules, 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity), of system memory, Dual channel memory architecture, Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode), Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules, Support for Extreme Memory Profile (XMP) memory modules |
| Разш. слотове: | CPU: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 Chipset: - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 |
| Сторидж: | Chipset:, - 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support) (M2P SB), - 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x2 SSD support), (M2Q SB), - 4 x SATA 6Gb/s connectors |
| Графична карта: | Integrated Graphics Processor-Intel® HD Graphics support:, - 2 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz, * Support for DisplayPort 1.2 version and HDCP 2.3, - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz, * Support for HDMI 2.1 version and HDCP 2.3., ** Support for native HDMI 2.1 TMDS compatible ports., (Graphics specifications may vary depending on CPU support.), Support for up to triple-display at the same time |
| Звук: | Realtek® Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel, * You can change the functionality of an audio jack using the audio software. To configure, 7.1-channel audio, access the audio software for audio settings. |
| I/O: | iTE® I/O Controller Chip |
| Мрежа: | Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) |

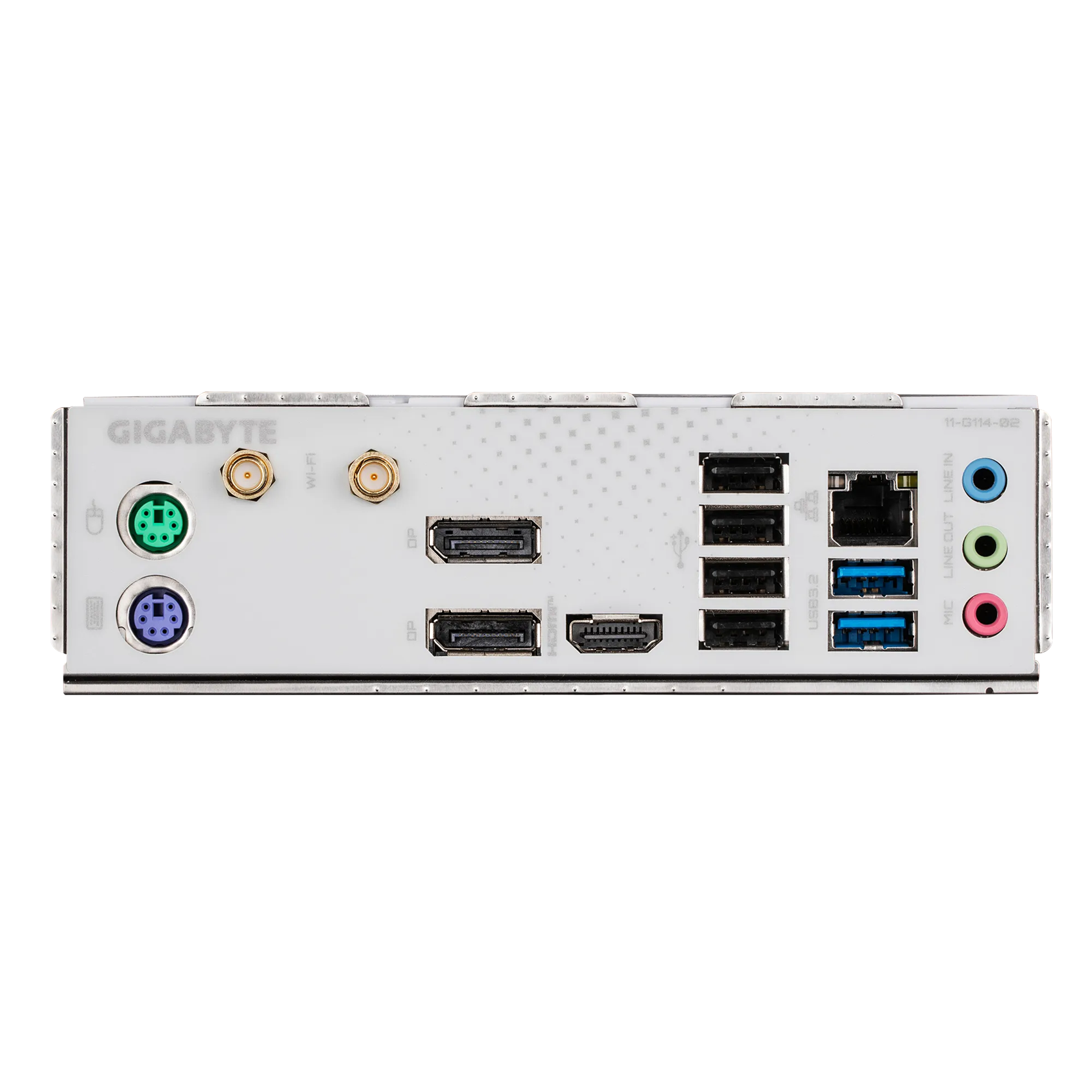

| Конектори: | Internal I/O Connectors, 1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 1 x CPU fan header, 2 x system fan headers, 2 x M.2 Socket 3 connectors, 4 x SATA 6Gb/s connectors, 2 x addressable RGB Gen2 LED strip headers, 1 x front panel header, 1 x front panel audio header, 1 x USB 3.2 Gen 1 header, 2 x USB 2.0/1.1 headers, 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI, 2.0/GC-TPM2.0 SPI V2 module only), 1 x serial port header, 1 x Clear CMOS jumper, Back Panel Connectors, 1 x PS/2 keyboard port, 1 x PS/2 mouse port, 2 x SMA antenna connectors (2T2R), 2 x DisplayPorts, 1 x HDMI port, 2 x USB 3.2 Gen 1 ports, 4 x USB 2.0/1.1 ports, 1 x RJ-45 port, 3 x audio jacks |
| Форм фактор: | Micro ATX Form Factor, 24.4cm x 22.0cm |
| Оперционни с-ми: | Support for Windows 11 64-bit, Support for Windows 10 64-bit |
| BIOS: | 1 x 128 Mbit flash, Use of licensed AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| USB: | Chipset:, - 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header), - 2 x USB 2.0/1.1 ports available through the internal USB header, Chipset+2 USB 2.0 Hubs:, - 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header) |
| Wireless: | Intel® Wireless- AC 9560 (PCB rev. 1.0), - WIFI 802.11 a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band, - BLUETOOTH 5.1, - Support 11ac 160MHz wireless standard |
| Features: | Support for GIGABYTE Control Center (GCC), * Available applications in GCC may vary by motherboard model. Supported, functions of each application may also vary depending on motherboard specifications., Support for Q-Flash |
| Bluetooth: | 5.1 |
