Парт.№: X870-CHALLENGER
Кат.№: 160421
Кат.№: 160421
Цена с ДДС:
235.00 €
на склад
БЪРЗА ПОРЪЧКА (без регистрация)
Въведете Вашите данни, натиснете бутон "ПОРЪЧАЙ" и ние ще Ви се обадим!
| Производител: | ASRock |

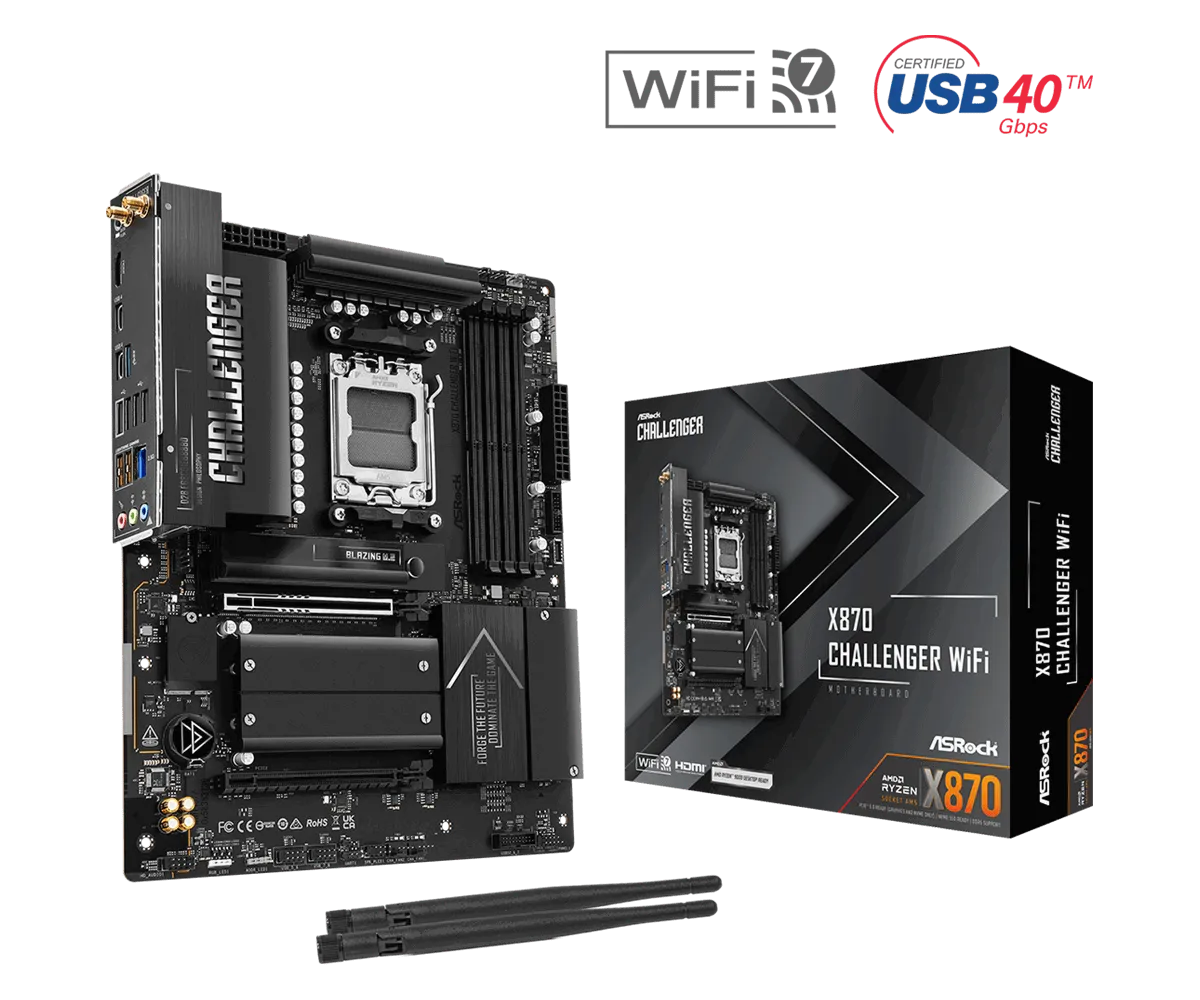

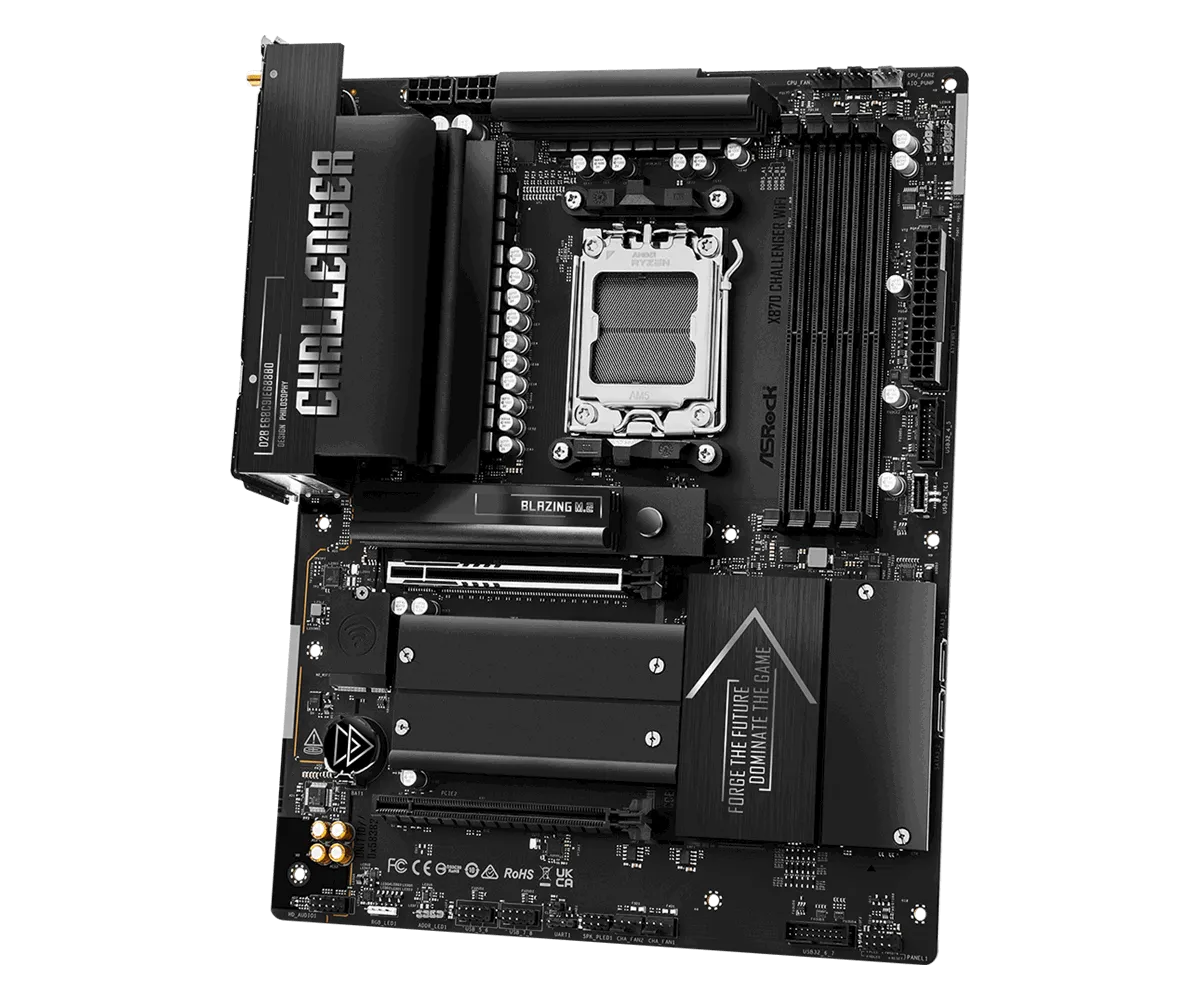

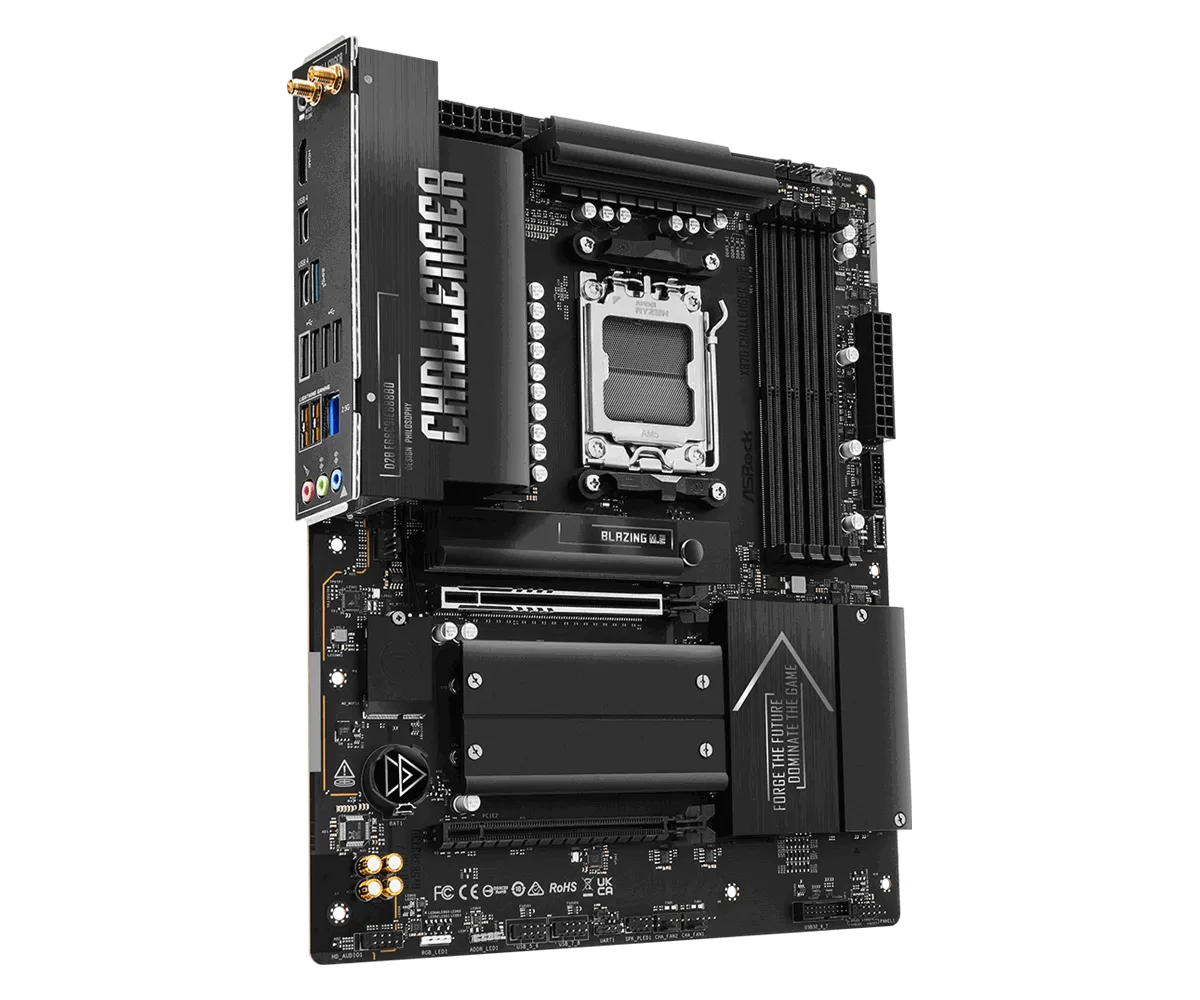

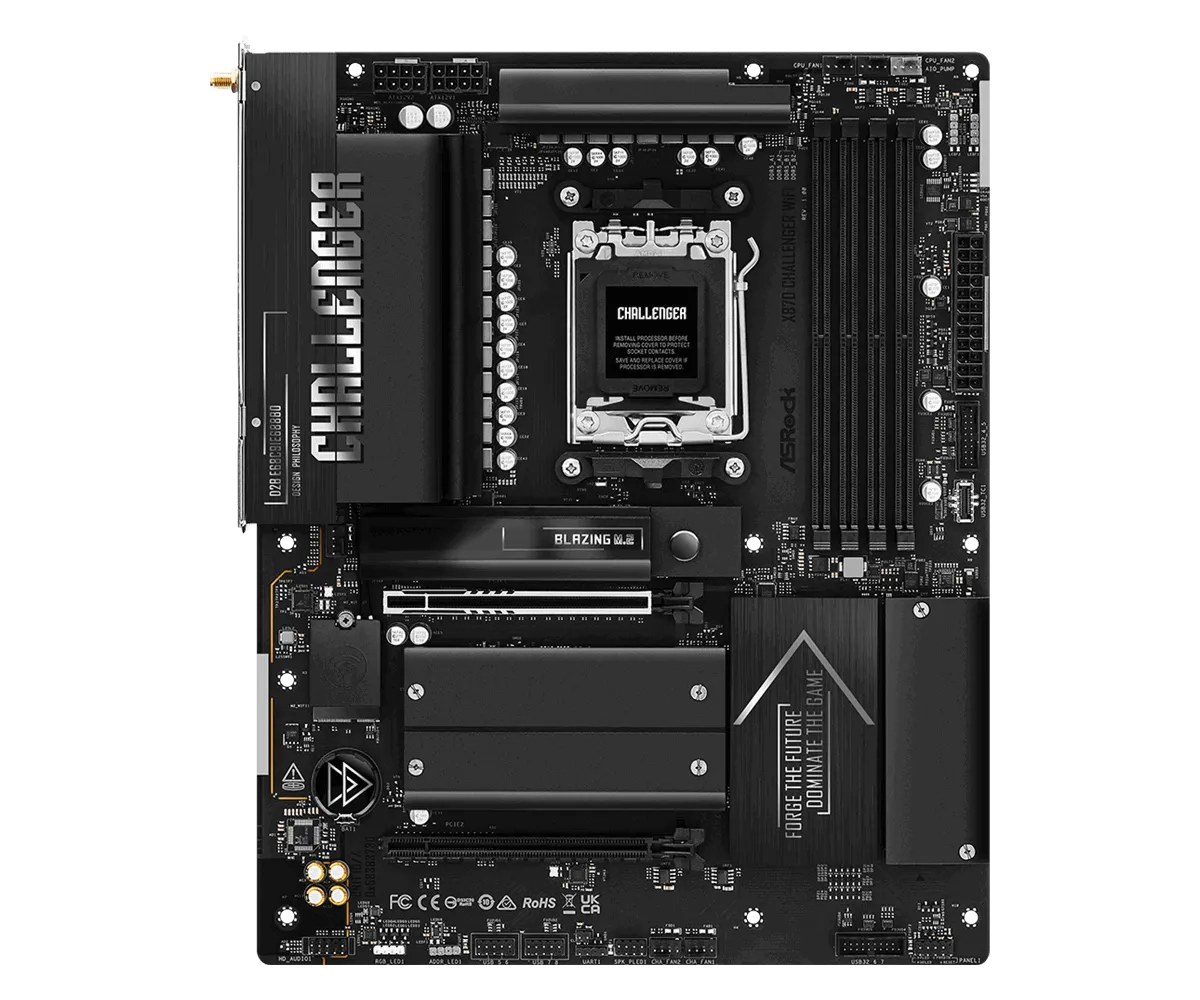

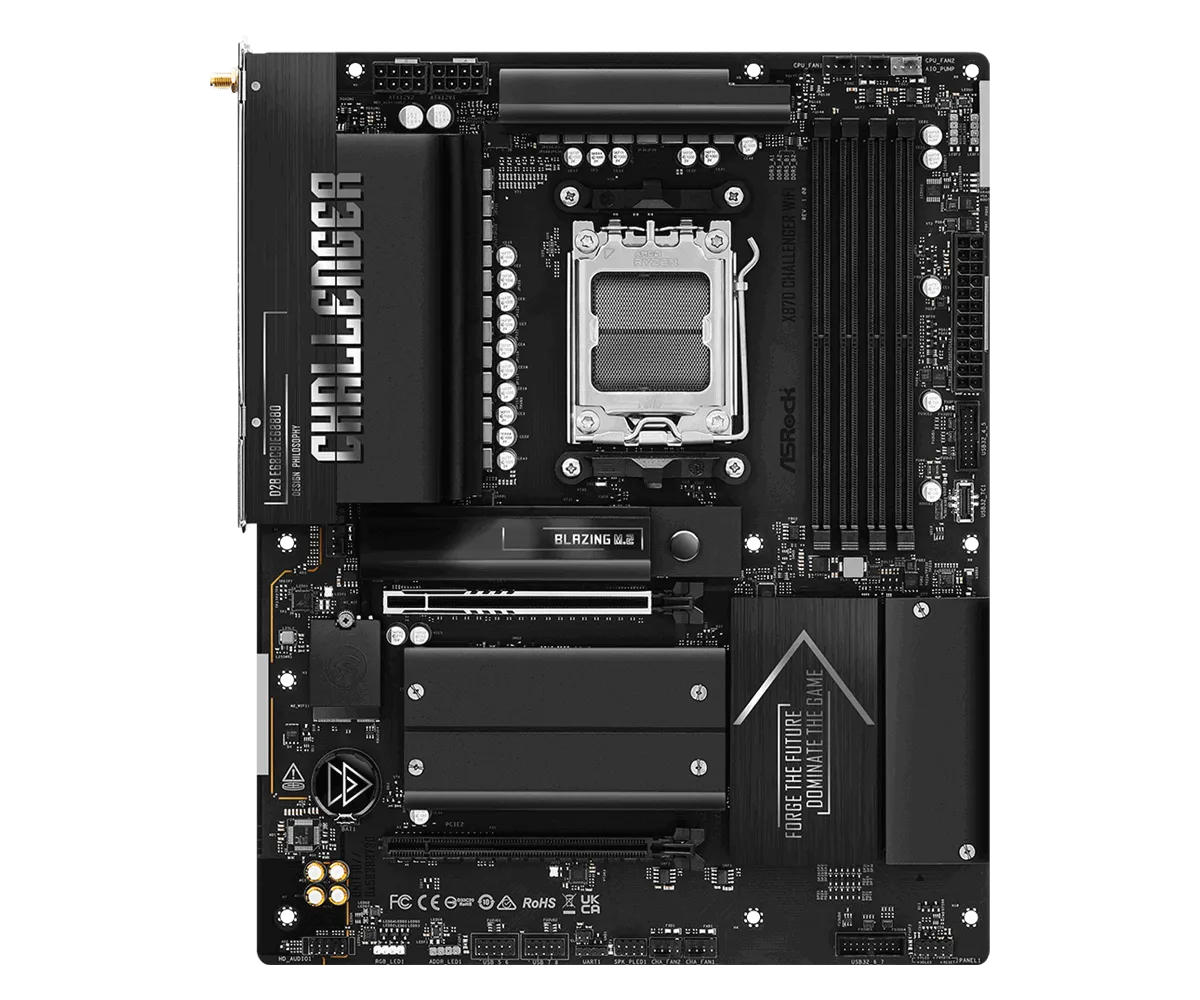

| Модел: | X870 Challenger WiFi |
| Цокъл: | AMD AM5 |
| Подд. процесори: | Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors |
| Чипсет: | AMD X870 |
| Памет/тип/: | Dual Channel DDR5 Memory Technology 4 x DDR5 DIMM Slots Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC) Max. capacity of system memory: 256GB Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules |
| Разш. слотове: | CPU: - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode Chipset: - 1 x PCIe 3.0 x16 Slot (PCIE2), supports x2 mode - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module |
| Сторидж: | CPU: - 1 x Blazing M.2 Socket (M2 1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode - 1 x Hyper M.2 Socket (M2 2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode Chipset: - 1 x Hyper M.2 Socket (M2 3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode - 1 x M.2 Socket (M2 4, Key M), supports type 2280 PCIe Gen4x2 (32 Gb/s) mode - 2 x SATA3 6.0 Gb/s Connectors |
| Графична карта: | Integrated AMD RDNA™ graphics (Actual support may vary by CPU) - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz - 2 x USB4, support HDCP 2.3 and max. resolution up to 8K 30Hz |
| Звук: | 7.1 CH HD Audio (Realtek ALC897 Audio Codec) Nahimic Audio |

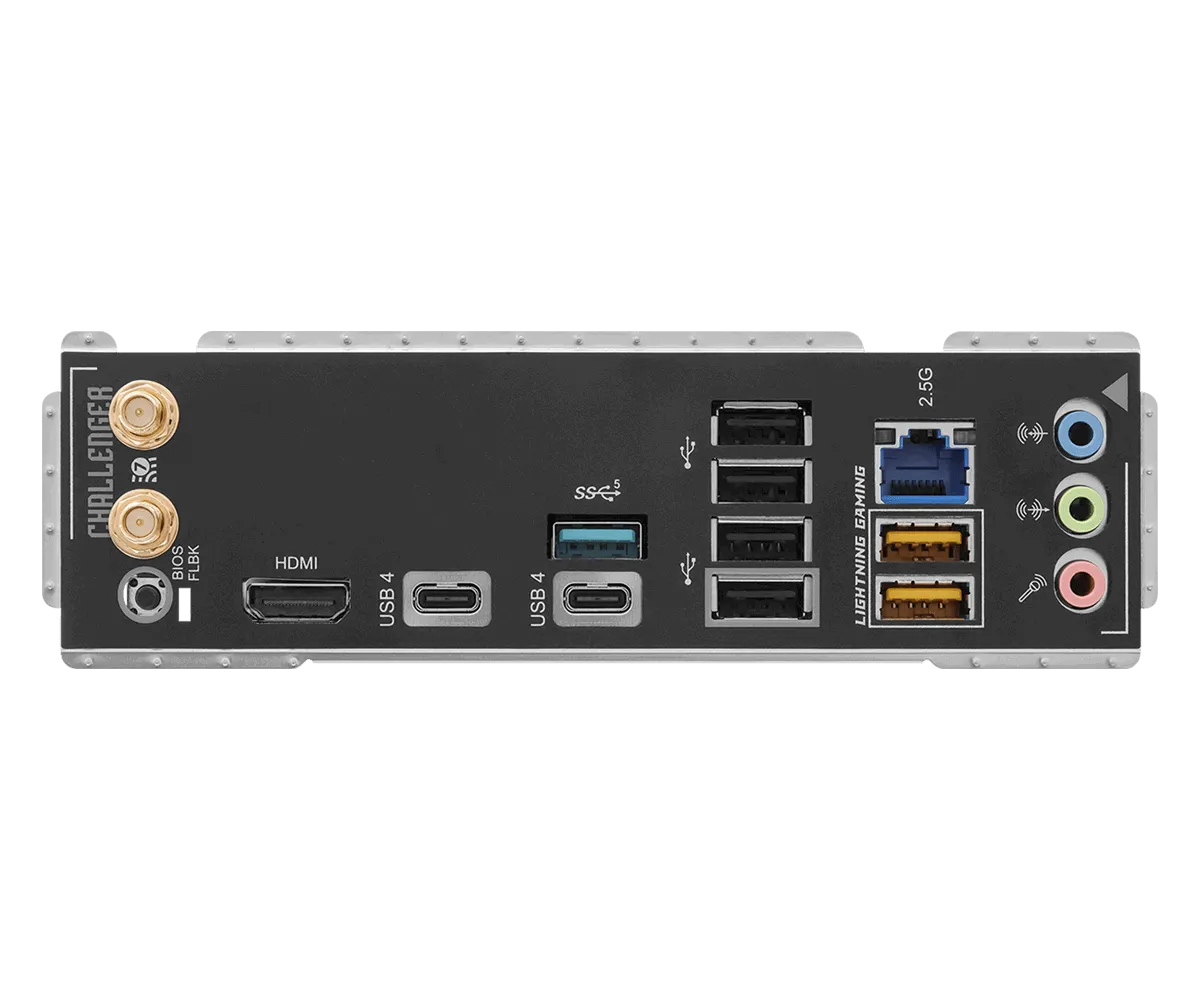

| I/O: | 2 x Antenna Ports 1 x HDMI Port 2 x USB4 Type-C Ports (40 Gb/s) 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (USB32 23 are Lightning Gaming Ports.) 1 x USB 3.2 Gen1 Type-A Port 4 x USB 2.0 Ports 1 x RJ-45 LAN Port 1 x BIOS Flashback Button HD Audio Jacks: Line in / Front Speaker / Microphone |
| Мрежа: | 2.5 Gigabit LAN 10/100/1000/2500 Mb/s Dragon RTL8125BG Supports Dragon 2.5G LAN Software Smart Auto Adjust Bandwidth Control Visual User Friendly UI Visual Network Usage Statistics Optimized Default Setting for Game, Browser, and Streaming Modes User Customized Priority Control |
| Конектори: | 1 x SPI TPM Header 1 x Power LED and Speaker Header 1 x RGB LED Header 3 x Addressable LED Headers 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control) 3 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control) 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control) 1 x 24 pin ATX Power Connector 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) 1 x Front Panel Audio Connector 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) 1 x Front Panel Type C USB 3.2 Gen1 Header |
| Размери: | 30.5 cm x 24.4 cm |
| Форм фактор: | ATX, 8 Layer PCB |
| Оперционни с-ми: | Microsoft Windows® 10 64-bit / 11 64-bit |
| BIOS: | 512Mb AMI UEFI Legal BIOS with GUI support |
| Други: | Superb Productivity - PCIe Gen5 (Graphics, M.2) - Dual Channel DDR5 - USB4 Type-C Ports (40 Gb/s) Rock-Solid Durability - 16+2+1 Power Phase, 80A Dr.MOS for VCore+SOC+MISC with Enlarged Heatsink Armor - Flexible Integrated I/O Shield Ultrafast Connectivity - 2.5G LAN, 802.11be Wi-Fi 7 Module - ASRock Lightning Gaming Ports EZ Update - BIOS Flashback Button - ASRock Auto Driver Installer EZ Troubleshooter - ASRock Post Status Checker |
| RAID: | Supports RAID 0 and RAID 1 for SATA storage devices Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices |
| USB: | CPU: - 2 x USB4 Type-C (Rear) - 1 x USB 3.2 Gen2 Type-A (Rear (USB32 3)) - 1 x USB 3.2 Gen1 Type-A (Rear) Chipset: - 1 x USB 3.2 Gen2 Type-A (Rear (USB32 2)) - 1 x USB 3.2 Gen1 Type-C (Front) - 4 x USB 3.2 Gen1 Type-A (Front) - 8 x USB 2.0 (4 Rear, 4 Front) |
| Wireless: | 802.11be 2x2 Wi-Fi 7 Module Supports IEEE 802.11a/b/g/n/ac/ax/be Supports 2.4GHz/5GHz/6GHz frequency band Supports 160MHz channel bandwidth with 6GHz frequency band 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology Supports Bluetooth 5.4 Supports MU-MIMO |
| Bluetooth: | Supports Bluetooth 5.4 |
| Доп. информация: | Информация от производител |
