Парт.№: X870-LIVEMIXER
Кат.№: 159712
Кат.№: 159712
Цена с ДДС:
232.00 €
на склад
БЪРЗА ПОРЪЧКА (без регистрация)
Въведете Вашите данни, натиснете бутон "ПОРЪЧАЙ" и ние ще Ви се обадим!
| Производител: | Asrock |
| Модел: | X870 LIVEMIXER WIFI |
| Подд. процесори: | Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors* * The availability of expansion slots may vary by CPU. Please refer to PCIe/M.2 Bandwidth Table for details. |
| Чипсет: | AMD X870 |
| Памет/тип/: | Dual Channel DDR5 Memory Technology 4 x DDR5 DIMM Slots Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC)* Max. capacity of system memory: 256GB Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules* *Please refer to Memory Support List on ASRock's website for more information. |
| Разш. слотове: | CPU: - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* Chipset: - 2 x PCIe 3.0 x16 Slots (PCIE2 and PCIE3), support x4 mode* - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module - 15μ Gold Contact in VGA PCIe Slot (PCIE1) * PCIE1 will run at Gen5x16 with 9000 and 7000 series processors, Gen4x8 with 8000 (Phoenix 1) series processors and Gen4x4 with 8000 (Phoenix 2) series processors. If M2 3 is occupied, PCIE2 will downgrade to x2 mode. If M2 4 is occupied, PCIE3 will downgrade to x2 mode. Supports NVMe SSD as boot disks |
| Сторидж: | CPU: - 1 x Blazing M.2 Socket (M2 1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode* - 1 x Blazing M.2 Socket (M2 2, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode* Chipset: - 1 x Hyper M.2 Socket (M2 3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* - 1 x Hyper M.2 Socket (M2 4, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode* - 2 x SATA3 6.0 Gb/s Connectors * Supports NVMe SSD as boot disks M2 1 is the first priority for M.2 installation. M2 1 will run at Gen5x4 with 9000 and 7000 series processors and Gen4x4 with 8000 (Phoenix 1 and Phoenix 2) series processors. M2 2 will run at Gen5x4 with 9000 and 7000 series processors and Gen4x4 with 8000 (Phoenix 1) series processors. M2 2 will be unavailable with 8000 (Phoenix 2) series processors. If M2 2 is occupied, both rear USB4 Type-C Ports and M2 2 will downgrade to x2 mode. You can switch M2 2 to x4 mode in BIOS setting, but doing so will disable USB4 TC1 and USB4 TC2. If M2 3 is occupied, PCIE2 will downgrade to x2 mode. If M2 4 is occupied, PCIE3 will downgrade to x2 mode. |
| Графична карта: | Integrated AMD RDNA™ graphics (Actual support may vary by CPU) - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz - 2 x USB4, support HDCP 2.3 and max. resolution up to 8K 30Hz** Only the CPU's embedded graphics can be displayed through USB4 ports. If you want to display to a Type-C monitor, please use AM5 Ryzen™ 9000, 8000 and 7000 processors with embedded graphics.* USB4 controller(for USB4 TC1 and USB4 TC2) will run at Gen4x2 with with 8000 (Phoenix 2) series processors. |
| Звук: | 7.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec) Individual PCB Layers for R/L Audio Channel Nahimic Audio |

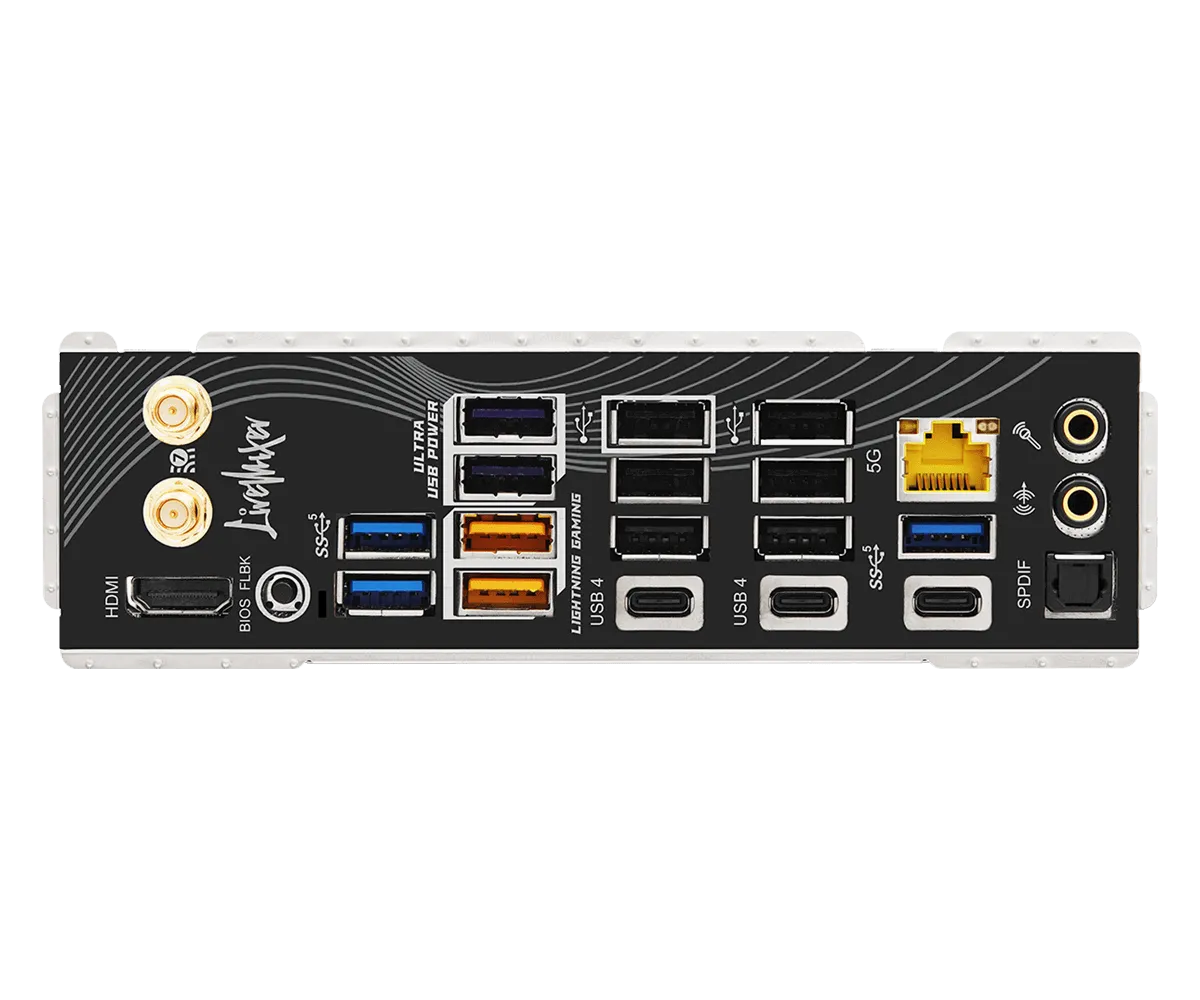

| I/O: | 2 x Antenna Ports 1 x HDMI Port 1 x Optical SPDIF Out Port 2 x USB4 Type-C Ports (40 Gb/s)* 1 x USB 3.2 Gen1 Type-C Port 7 x USB 3.2 Gen1 Type-A Ports (USB32 34 are Lightning Gaming Ports. USB32 56 support Ultra USB Power.)** 6 x USB 2.0 Ports 1 x RJ-45 LAN Port 1 x BIOS Flashback Button 1 x Line Out Jack (Gold Audio Jack) 1 x Microphone Input Jack (Gold Audio Jack) * Supports USB PD 3.0 up to 5V@3A (15W) charging USB4 controller (for USB4 TC1 and USB4 TC2) will run at Gen4x2 with with 8000 (Phoenix 2) series processors. If M2 2 is occupied, both rear USB4 Type-C Ports and M2 2 will downgrade to x2 mode. You can switch M2 2 to x4 mode in BIOS setting, but doing so will disable USB4 TC1 and USB4 TC2. ** Device exceeds USB 3.2 Type-A power rating of 5V@0.9A (4.5W) may trigger over-current protection (OCP), will require system reboot to restore USB power. |
| Мрежа: | 5 Gigabit LAN 10/100/1000/2500/5000 Mb/s Realtek RTL8126 |
| Конектори: | 1 x SPI TPM Header 1 x Thermistor Cable Header 1 x Power LED and Speaker Header 1 x RGB LED Header* 3 x Addressable LED Headers** 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)*** 3 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)*** 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)*** 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) 1 x Front Panel Audio Connector 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) * Supports in total up to 12V/3A, 36W LED Strip ** Support in total up to 5V/3A, 15W LED Strip *** CPU FAN1 supports the fan power up to 1A (12W). CPU FAN2, CHA FAN1~3 and AIO PUMP support the fan power up to 3A (36W). CPU FAN2, CHA FAN1~3 and AIO PUMP can auto detect if 3-pin or 4-pin fan is in use. |
| Форм фактор: | ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm 8 Layer PCB |
| Оперционни с-ми: | Microsoft Windows® 10 64-bit / 11 64-bit |
| BIOS: | 256Mb AMI UEFI Legal BIOS with GUI support |
| RAID: | Supports RAID 0 and RAID 1 for SATA storage devices Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices |
| USB: | CPU: - 2 x USB4 Type-C (Rear) - 2 x USB 3.2 Gen1 Type-A (Rear (USB32 1 and USB32 4)) Chipset: - 1 x USB 3.2 Gen2x2 Type-C (Front) - 9 x USB 3.2 Gen1 Type-A (5 Rear (USB32 2, USB32 356, USB32 7), 4 Front)) - 1 x USB 3.2 Gen1 Type-C (Rear) - 10 x USB 2.0 (6 Rear, 4 Front) |
| Wireless: | 802.11be 2x2 Wi-Fi 7 Module Supports IEEE 802.11a/b/g/n/ac/ax/be Supports 2.4GHz/5GHz/6GHz* frequency band Supports 160MHz channel bandwidth with 6GHz* frequency band 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology Supports Bluetooth 5.4 Supports MU-MIMO * The Wi-Fi 7 module is supported by Microsoft Windows® 11 only. There is no driver available for Windows® 10. The availability of the 6GHz band will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows® Update and software updates once available. |
| Bluetooth: | 5.4 |
| Доп. информация: | Информация от производител |
