Парт.№: X870E_TSM
Кат.№: 151027
Кат.№: 151027
Цена с ДДС:
480.61 €
Цена с ДДС:
940.00лв.
на склад
БЪРЗА ПОРЪЧКА (без регистрация)
Въведете Вашите данни, натиснете бутон "ПОРЪЧАЙ" и ние ще Ви се обадим!
| Подд. процесори: | Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors, Supports ASRock Hyper BCLK Engine |
| Чипсет: | AMD X870E |
| Памет/тип/: | Dual Channel DDR5 Memory Technology, 4 x DDR5 DIMM Slots, Supports DDR5 ECC/non-ECC, un-buffered memory up to 8200+(OC), Max. capacity of system memory: 256GB, Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules |
| Разш. слотове: | CPU:, - 2 x PCIe 5.0 x16 Slots (PCIE1 and PCIE2), support x16 or x8/x8 modes, Chipset:, - 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module, - Supports AMD CrossFire™ |
| Сторидж: | CPU:, - 1 x Blazing M.2 Socket (M2 1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode, Chipset:, - 1 x Hyper M.2 Socket (M2 2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode, - 1 x Hyper M.2 Socket (M2 3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode, - 1 x Hyper M.2 Socket (M2 4, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode, - 6 x SATA3 6.0 Gb/s Connectors, Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices, Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices |
| Графична карта: | Integrated AMD RDNA™ graphics (Actual support may vary by CPU), - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz, - 2 x USB4, support HDCP 2.3 and max. resolution up to 8K 30Hz |
| Звук: | 5.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec), WIMA Audio Capacitors (For Rear Outputs), ESS SABRE9219 DAC for Rear Panel Audio (130dB SNR), Individual PCB Layers for R/L Audio Channel, Direct Drive Technology on Front headphone port (Supports up to 600 Ohm headsets), Nahimic Audio |

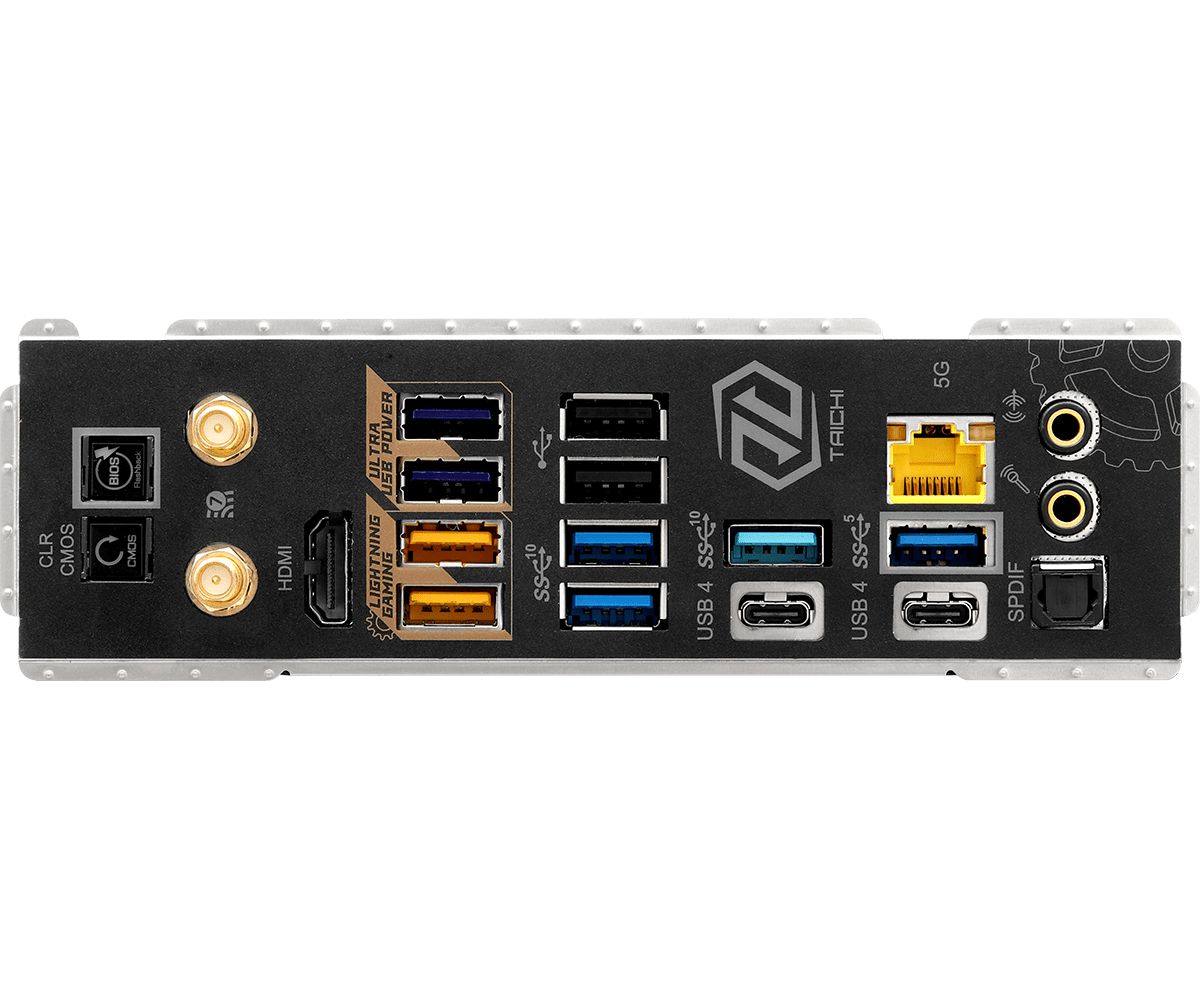

| I/O: | 2 x Antenna Ports, 1 x HDMI Port, 1 x Optical SPDIF Out Port, 2 x USB4 Type-C Ports (40 Gb/s), 5 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (USB32 12 are Lightning Gaming Ports.), 3 x USB 3.2 Gen1 Type-A Ports (USB32 34 supports Ultra USB Power.), 2 x USB 2.0 Ports, 1 x RJ-45 LAN Port, 1 x Clear CMOS Button, 1 x BIOS Flashback Button, 1 x Line Out Jack (Gold Audio Jack), 1 x Microphone Input Jack (Gold Audio Jack) |
| Мрежа: | 5 Gigabit LAN 10/100/1000/2500/5000 Mb/s, Realtek RTL8126 |
| Конектори: | 3 x Thermistor Cable Headers, 1 x Power LED and Speaker Header, 1 x RGB LED Header, 3 x Addressable LED Headers, 2 x CPU Fan Connector (4-pin) (Smart Fan Speed Control), 4 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control), 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control), 1 x Water Pump Fan Connector (4-pin) (Smart Fan Speed Control), 1 x 24 pin ATX Power Connector (Hi-Density Power Connector), 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector), 1 x Front Panel Audio Connector (15 Gold Audio Connector), 2 x USB 2.0 Headers (Support 4 USB 2.0 ports), 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports), 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s), 1 x Dr. Debug with LED, 1 x Power Button with LED, 1 x Reset Button with LED |
| Форм фактор: | EATX Form Factor: 12.0-in x 10.5-in, 30.5 cm x 26.7 cm, 8 Layer PCB, 2oz Copper PCB |
| Оперционни с-ми: | Microsoft Windows® 10 64-bit / 11 64-bit |
| BIOS: | 256Mb AMI UEFI Legal BIOS with GUI support |
| Други: | Software, - ASRock Motherboard Utility (A-Tuning), - ASRock Polychrome SYNC, UEFI, - ASRock EZ Mode, - ASRock Full HD UEFI, - ASRock Auto Driver Installer, - ASRock Instant Flash |
| Гаранция: | 36 Months |
| USB: | CPU:, - 2 x USB4 Type-C (Rear), - 2 x USB 3.2 Gen2 Type-A (Rear), Chipset:, - 1 x USB 3.2 Gen2x2 Type-C (Front), - 3 x USB 3.2 Gen2 Type-A (Rear), - 7 x USB 3.2 Gen1 Type-A (3 Rear, 4 Front), - 6 x USB 2.0 (2 Rear, 4 Front) |
| Wireless: | 802.11be 2x2 Wi-Fi 7 Module, Supports IEEE 802.11a/b/g/n/ac/ax/axe/be, Supports 2.4GHz/5GHz/6GHz* frequency band, Supports 160MHz channel bandwidth with 6GHz* frequency band, 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology, Supports Bluetooth 5.4, Supports MU-MIMO |
| Features: | Superb Productivity, - PCIe Gen5 (Graphics, M.2), - Dual Channel DDR5, - USB4 Type-C Ports (40 Gb/s), Rock-Solid Durability, - Server-Grade Low-Loss PCB, - 24+2+1 Power Phase, 110A SPS for VCore+SOC with Enlarged Heatsink Armor, - Flexible Integrated I/O Shield, - 20K Long-lasting Black Caps (high quality and conductive polymer capacitors), Ultrafast Connectivity, - 5G LAN, 802.11be Wi-Fi 7 Module, - ASRock Lightning Gaming Ports, EZ Update, - BIOS Flashback Button, - ASRock Auto Driver Installer |
