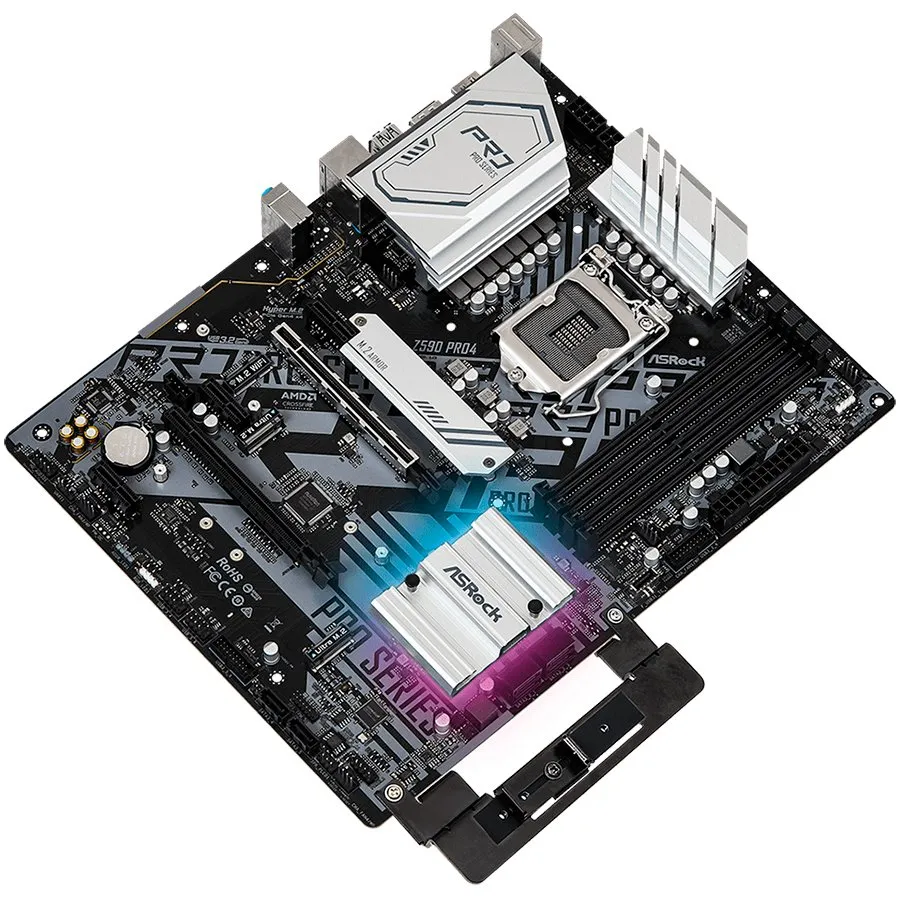

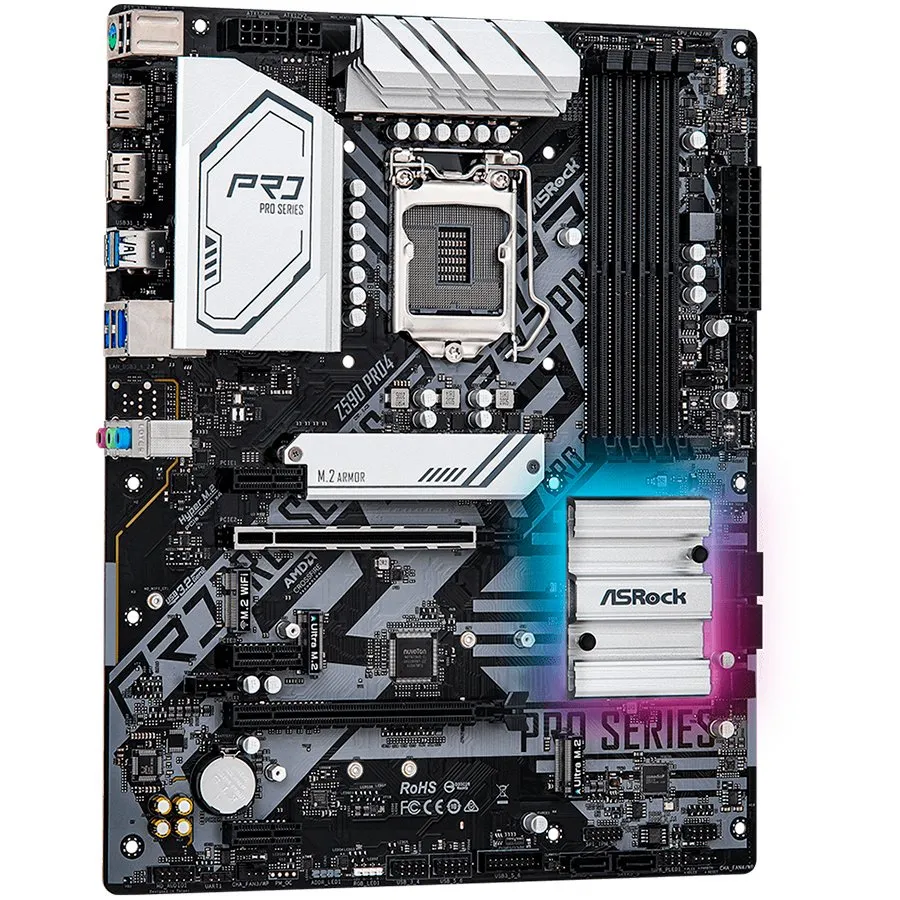

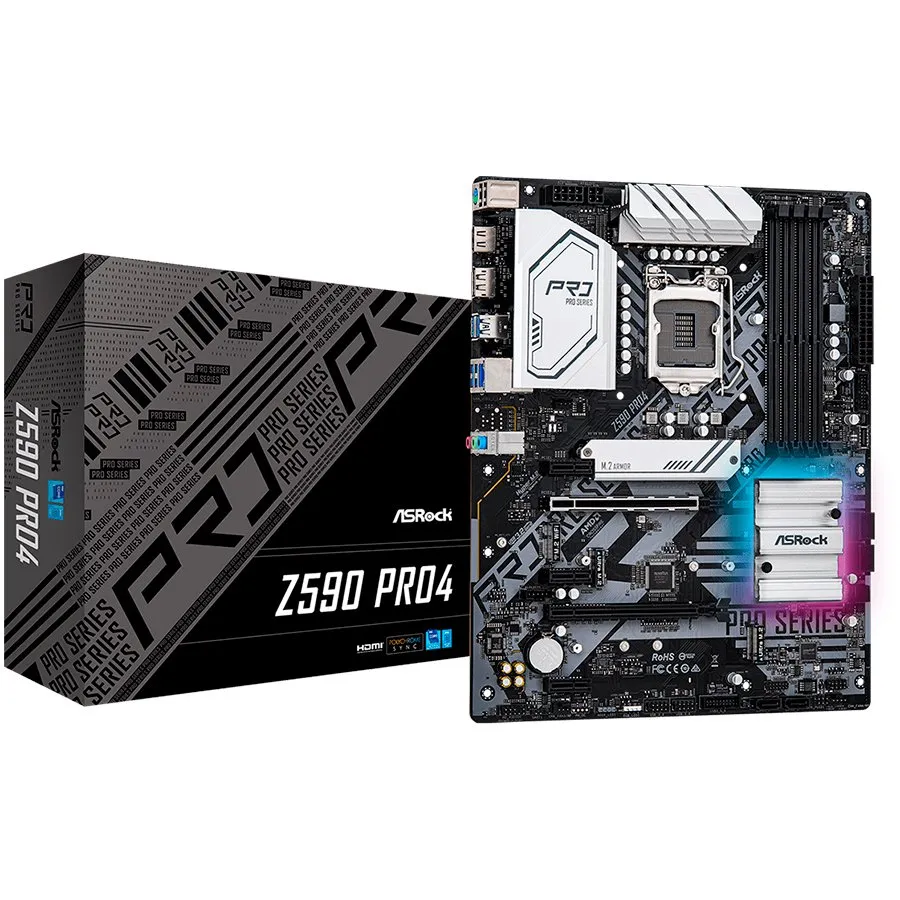

ASROCK Main Board Desktop Z590 chipset (S1200, 4x DDR4, 2x PCIe x16, 3x PCIe x1, 6x SATA3, 2x M.2, 4x USB3.0, 2x USB2.0, GLAN, 1x HDMI, 1x DP) ATX. - Z590 PRO4
Парт.№: Z590 PRO4
Кат.№: 148801
Кат.№: 148801
с поръчка
БЪРЗА ПОРЪЧКА (без регистрация)
Въведете Вашите данни, натиснете бутон "ПОРЪЧАЙ" и ние ще Ви се обадим!
Гаранция: 36 месеца
| Main Board Desktop - Processor | |
| Chipset: | Intel Z590 |
| Supports Central Processor Unit: | Intel 10th Gen Processors Intel 11th Gen Processors |
| CPU Socket Standard: | Socket 1200 |
| Architecture Features: | Intel Turbo Boost Max Technology 3.0 |
| CPU Maximum Quantity Supports: | 1 |
| Main Board Desktop - Memory | |
| Memory Type: | DDR4 SDRAM |
| Memory Form Factor: | DIMM 288-pin |
| Memory Speed: | 2933MHz(PC4-23400) 3200MHz(PC4-25600) |
| Maximum Installable System Memory Storage Capacity: | 128 GB |
| Memory Slot Total Quantity: | 4 |
| Provides Error Checking Method: | ECC/non-ECC |
| Memory Features: | Unbuffered XMP 2.0 |
| Controller | |
| Integrated: | Storage Controller: Supports: Level 0, Level 1, Level 5, Level 10 SATA III-600 (6) Storage Controller: PCIe 3.0 x4/SATA (2 x M.2 (Key M)) Storage Controller: PCI Express 4.0 x4 (1 x M.2 (Key M)) |
| Support: | Wi-Fi Controller: 1 x M.2 (Key E) |
| Main Board Desktop - Audio Output | |
| Audio Integrated: | yes |
| Device Location: | Integrated |
| Audio Chipset: | Realtek ALC897 |
| Audio Output Mode: | 7.1 Channel Surround |
| Compliant Audio Standards: | High Definition Audio |
| Main Board Desktop - Networking Specifications | |
| LAN Integrated: | yes |
| LAN Chipset: | Realtek Dragon RTL8125BG |
| Data Link Protocol Supports: | Gigabit Ethernet/Fast Ethernet/Ethernet 2.5 Gbps |
| Slot Provided | |
| PCI Express 4.0 x16: | 1 |
| PCI Express 3.0 x16: | 1 |
| PCI Express 3.0 x1: | 1 |
| Interface Provided | |
| Antenna: | 3 |
| PS/2: | 1 |
| HDMI: | 1 (HDMI (Type A)) |
| DisplayPort: | 1 |
| USB 3.2 Gen 2: | 2 (USB 3.2 (type A)) |
| USB 3.2 Gen 1: | 2 (USB 3.2 (type A)) |
| USB 2.0: | 2 (USB 2.0 (type A)) |
| LAN: | 1 (RJ-45) |
| Audio Interface: | 3 (3.5-mm minijack) |
| Main Board Desktop - Mainboard Features | |
| BIOS Type: | AMI |
| BIOS Features: | SMBIOS 2.7 Support ACPI 6.0 Compliance Wake Up Events 128Mb AMI UEFI Legal BIOS with GUI Support |
| Wake up/Sleep: | Wake on LAN |
| Hardware Monitoring: | Chassis Fan Tachometer CPU Fan Tachometer CPU Temperature CPU Voltage System Temperature System Voltage |
| Power Connectors Type: | 24+8+4 pin |
| Mainboard Features: | RGB LED |
| Main Board Desktop - Software | |
| Supported Operating System: | Microsoft Windows 10 License |
| Miscellaneous | |
| Cable Included: | 2 x SATA 6Gb/s Cables |
| Included Accessories: | Holder Screws |
| Main Board Desktop - Dimensions&Weight | |
| Form Factor: | ATX |
| Height (mm): | 244 mm |
| Width (mm): | 305 mm |
| Warranty | |
| Warranty Products Returnable: | Yes |
| Warranty Term (month): | 36 month(s) |
| Warranty Validation Criteria: | Serial Number |
| Logistic | |
| Pack Weight Brutto (kg): | 0.35 kg |
| Pack Weight Netto (kg): | 0.25 kg |
| Pieces in pack: | 1 |
| Box Weight Brutto (kg): | 0.35 kg |
| Retail Packaging Net Weight Carton: | 0.25 kg |
| Retail Packaging Net Weight Plastic: | 0.25 kg |
| Packs in Box: | 1 |
| Package Type: | Retail |
