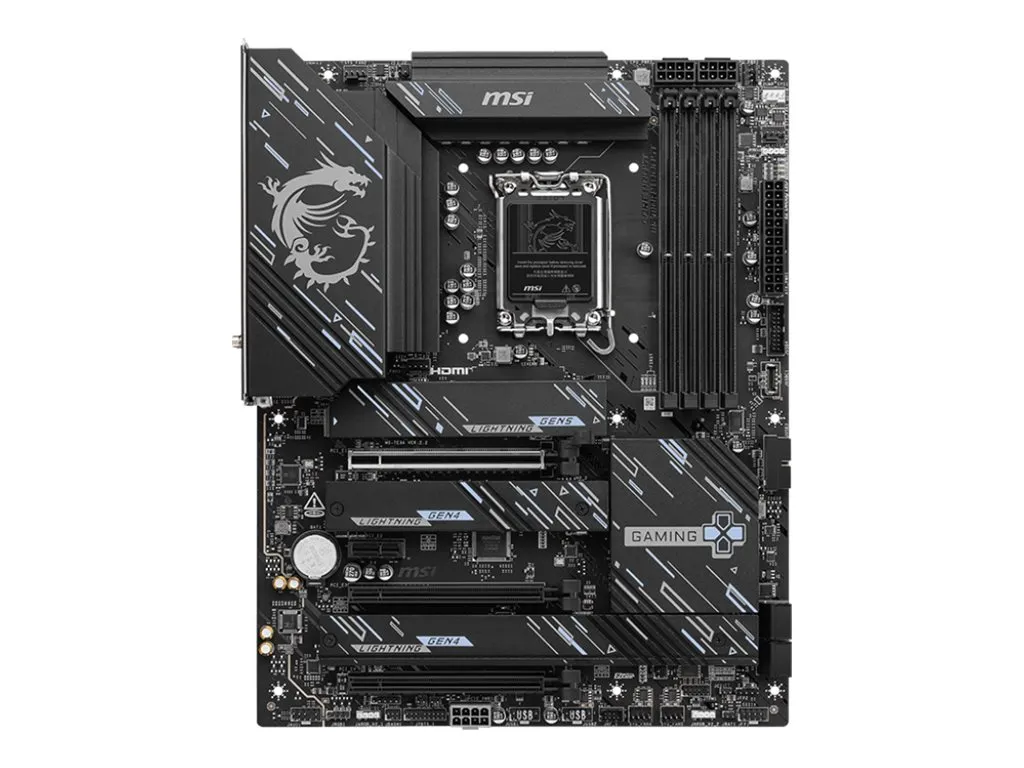

Парт.№: Z890 GAMING PLUS WIFI
Кат.№: 145641
Кат.№: 145641
Цена с ДДС:
565 лв.
Наличност:
на склад
БЪРЗА ПОРЪЧКА (без регистрация)
Въведете Вашите данни, натиснете бутон "ПОРЪЧАЙ" и ние ще Ви се обадим!
Гаранция: 36 месеца
| Manufacturer: | MSI |
| Manufacturer Part No: | Z890 GAMING PLUS WIFI |
| General | |
| Product Type: | Motherboard - ATX |
| Chipset Type: | Intel Z890 |
| Processor Socket: | LGA1851 Socket |
| Max Processors Qty: | 1 |
| Compatible Processors: | (supports Intel Core Ultra processors (Series 2)) |
| Supported RAM | |
| Max Size: | 256 GB |
| Technology: | DDR5 |
| Bus Clock: | 2400 MHz, 3200 MHz, 3200 MHz (O.C.), 3600 MHz (O.C.), 4600 MHz (O.C.) |
| Supported RAM Integrity Check: | Non-ECC |
| Registered or Buffered: | Unbuffered |
| Features: | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) 3.0 |
| Audio | |
| Type: | HD Audio (8-channel) |
| Audio Codec: | Realtek ALC897 |
| Compliant Standards: | High Definition Audio |
| LAN | |
| Network Controller: | Intel Killer BE1750x / Intel Killer E5000 |
| Network Interfaces: | 5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4 |
| Expansion / Connectivity | |
| Expansion Slots: | 1 x CPU 4 x DIMM 288-pin 1 x PCIe 5.0 x16 2 x PCIe 4.0 x16 (x4 mode) 1 x PCIe 4.0 x1 2 x M.2 socket (2242/2260/2280 M.2 Key M slot) 1 x M.2 socket (2260/2280/22110 M.2 Key M slot) 1 x M.2 socket (2260/2280 M.2 Key M slot) |
| Storage Interfaces: | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 4.0 -connectors: 2 x M.2 SATA-600 / PCIe 4.0 -connectors: 1 x M.2 PCIe 5.0 -connectors: 1 x M.2 |
| Interfaces: | 2 x USB 3.2 Gen 1 1 x USB 3.2 Gen 2 1 x USB-C 3.2 Gen 2 4 x USB 2.0 1 x HDMI 1 x LAN (5Gigabit Ethernet) 1 x audio line-out - mini-jack 1 x microphone - mini-jack 1 x audio line-in - mini-jack 2 x aerial 1 x PS/2 keyboard / mouse |
| Internal Interfaces: | 4 x USB 2.0 - header 4 x USB 3.2 Gen 1 - header 1 x USB-C 3.2 Gen 2x2 - header 1 x Thunderbolt - header 1 x audio - header 1 x SPI - header |
| Power Connectors: | 24-pin main power connector, 2 x 8-pin ATX12V connectors, 8-pin PCI Express power connector |
| Features | |
| Hardware Features: | Debug LED, pre-mounted I/O shield, EZ M.2 Sheild FROZR II, MSI Steel Armor II, 14+1+1+1 DRPS (Duet Rail Power System) Power Design, EZ PCie Clip II, EZ Conn-Design, MSI Memory Boost, 6 Layer PCB, 2oz Copper PCB, DIY Friendly Design, EZ M.2 Clip II, flash BIOS button, overvoltage protection, transient voltage suppressors, overcurrent protection, Extended Heatsink Design, M.2 Shield FROZR, VRM heatsink design, Dr.MOS MOSFET, Enlarged Chipset Heatsink, Surface Mount Technology (SMT), MSI Mystic Light, MSI Audio Boost |
| Miscellaneous | |
| Included Accessories: | EZ M.2 clips, EZ M.2 clip 2 remover, EZ Wi-Fi antenna, 1 to 2 EZ Conn-Cable |
| Cables Included: | 2 x SATA Express cable |
| Software Included: | MSI Center, AIDA64 Extreme (60 days trial), Norton 360 Deluxe (60 days trial) |
| Width: | 30.48 cm |
| Depth: | 24.384 cm |
