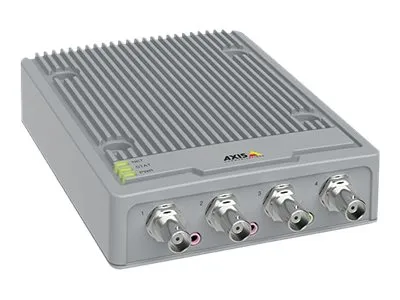

AXIS P7304 Four-channel video encoder - 01680-001

Парт.№: 01680-001
Кат.№: 153169

0Коментара | Напиши коментар

с поръчка

БЪРЗА ПОРЪЧКА (без регистрация)

Въведете Вашите данни, натиснете бутон "ПОРЪЧАЙ" и ние ще Ви се обадим!

Гаранция: 60 месеца

ПЕЧАТ

Manufacturer:	AXIS COMMUNICATIONS
Manufacturer Part No:	01680-001
General
Device Type:	Video server
Video Channels:	4
Audio Channels:	1
TV System:	NTSC/PAL
Image Resolution:	176x120 (NTSC), 176x144 (PAL), 720x480 (NTSC), 720x576 (PAL), 1280x720, 1920x1080
Compression Format:	H.264, H.265, MPEG-4, AVC, HEVC, AAC, G.711, PCM, G.726, ADPCM
Package Content:	Input plug, 6-pin I/O plug, 2 x 2-pin RS485/RS422 plugs
Software Included (Y):	Windows decoder 1-user licence
Compliant Standards:	IEEE 802.1x, IP30, IEEE 802.3af, IEEE 802.3at, EN 55032 Class A, EN 61000-3-2, EN 61000-3-3, EN55024, EN 61000-6-1, EN 61000-6-2, FCC Part 15 B Class A, ICES-003 Class A, VCCI Class A, RCM, AS/NZS CISPR 32 Class A, KC, KN32 Class A, KN35, EN 62368-1, IEC 62368-1, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, NIST, NIST SP500-267
Warranty:	3 years
Video Server
Frame Rate:	30 fps
RAM:	1 GB
Flash Memory:	512 MB
Features:	Zipstream, two-way audio support, microSD/SDHC/SDXC memory card slot
Networking
DDNS Support:	Yes
Web Server:	Yes
Network Interfaces:	Ethernet 10Base-T/100Base-TX/1000Base-T
Supported Protocols:	IPv4, IPv6, USGv6, HTTP, HTTPS, SSL, TLS, QOS, FTP, SFTP, CIFS, SMB, SMTP, Bonjour, UPnP, SNMP 1, SNMP 2c, SNMP 3, DNS, DDNS, NTP, RTSP, RTP, SRTP, TCP/IP, UDP/IP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH
Features:	DiffServ support

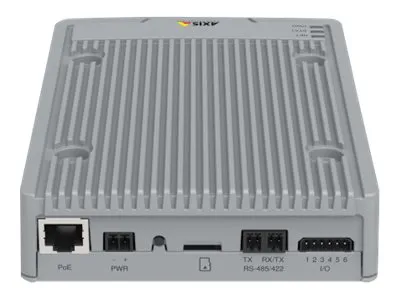

Connections
Video Input Ports:	BNC x 4
Audio Input Ports:	Mini-phone 3.5mm x 2
Audio Output Ports:	Mini-phone 3.5 mm x 1
Camera Control Interface (PTZ):	RS-422/485
Network Port:	10/100/1000Base-T (PoE+)
Power
Voltage:	8 - 28 V
Power Consumption:	8.2 Watt
Dimensions & Weight
Width:	18.7 cm
Depth:	3.7 cm
Weight:	650 g
Environmental Parameters
Min Operating Temperature:	0 °C
Max Operating Temperature:	50 °C
Humidity Range Operating:	10 - 85% (non-condensing)
