Specifications
ModelCS-EB8 (3MP,4GA)
Camera
Image Sensor1/2.8” 3-Megapixel Progressive Scan CMOS Sensor
Minimum Illumination0.01 Lux @(F1.6, AGC ON), 0 Lux with IR
Shutter SpeedSelf-adaptive shutter
LensViewing angle: 100° (Diagonal), 83° (Horizontal), 44° (Vertical)
PT AnglePan: 340, Tilt: 65°
Day & NightIR-cut filter with auto switch
DNR3D DNR
Night Vision DistanceIR 15 m，Color Night Vision 15 m
Video & Audio
Max Resolution2304 x 1296
Frame RateMax. 15fps; Self-Adaptive during network transmission
Video CompressionH.265 / H.264
Video Bit RateQuad-HD;Full- HD; Hi-Def. Adaptive bit rate.
Audio Bit RateSelf-Adaptive
Max. Bitrate1.5 Mbps
Network
Frequency Bands
EU:
LTE FDD: B1/B3/B7/B8/B20/B28
LTE TDD: B38/B40
LA：
LTE FDD: B1/B2/B3/B4/B5/B7/B8/B12/B17/B20/B28/B66
LTE TDD: B38/B40
Function
Smart AlarmSmart human motion detection
GPSSupports
Two-way TalkSupports
General FunctionAnti-Flicker, Heart Beat, Password Protection, Watermark
Storage
Local StorageSupports microSD Card (Up to 512G)
Cloud StorageEZVIZ cloud storage
General
Operating Conditions-20 °C to 50 °C (-4 °F to 122 °F ), humidity 95% or less (Non-condensing)
IP GradeIP65
Power SupplyDC 5V/2A (Adapter needs to be purchased separately)
Battery Capacity10400 mAh
Power ConsumptionMax. 10W
Product Dimensions183 × 116 × 166 mm (7.20 × 4.57 × 6.52 inch)
Packaging Dimensions216 × 145 × 203 mm (8.50 × 5.71 × 7.99 inch)
WeightNet weight: 835 g (26.8 Oz) With package: 1072 g (34.4 Oz)
In the box

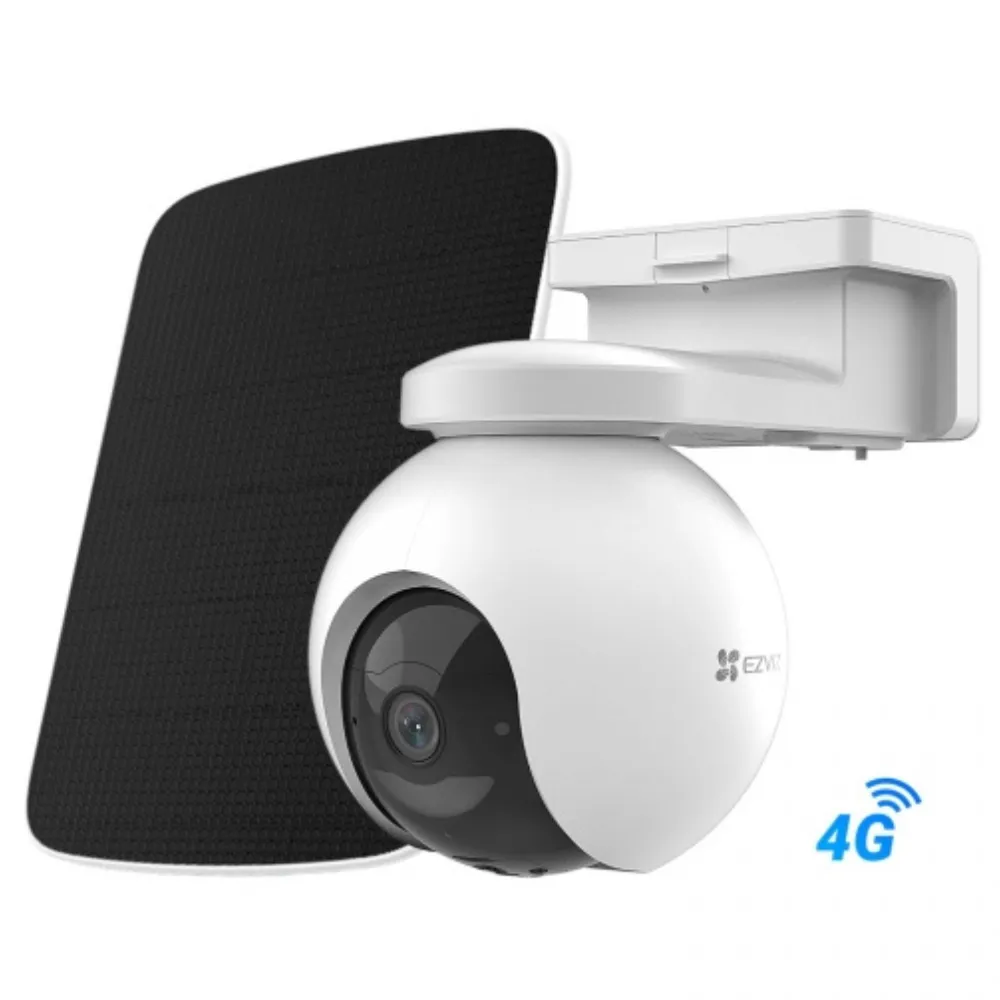

- EB8 4G Camera
- Solar panel
- Drilling Template
- Type C Cable
- SIM Card Adapter
- Screw Kit
- Quick Installation Guide
- Regulatory Information
- Quick Start Guide
