Specifications

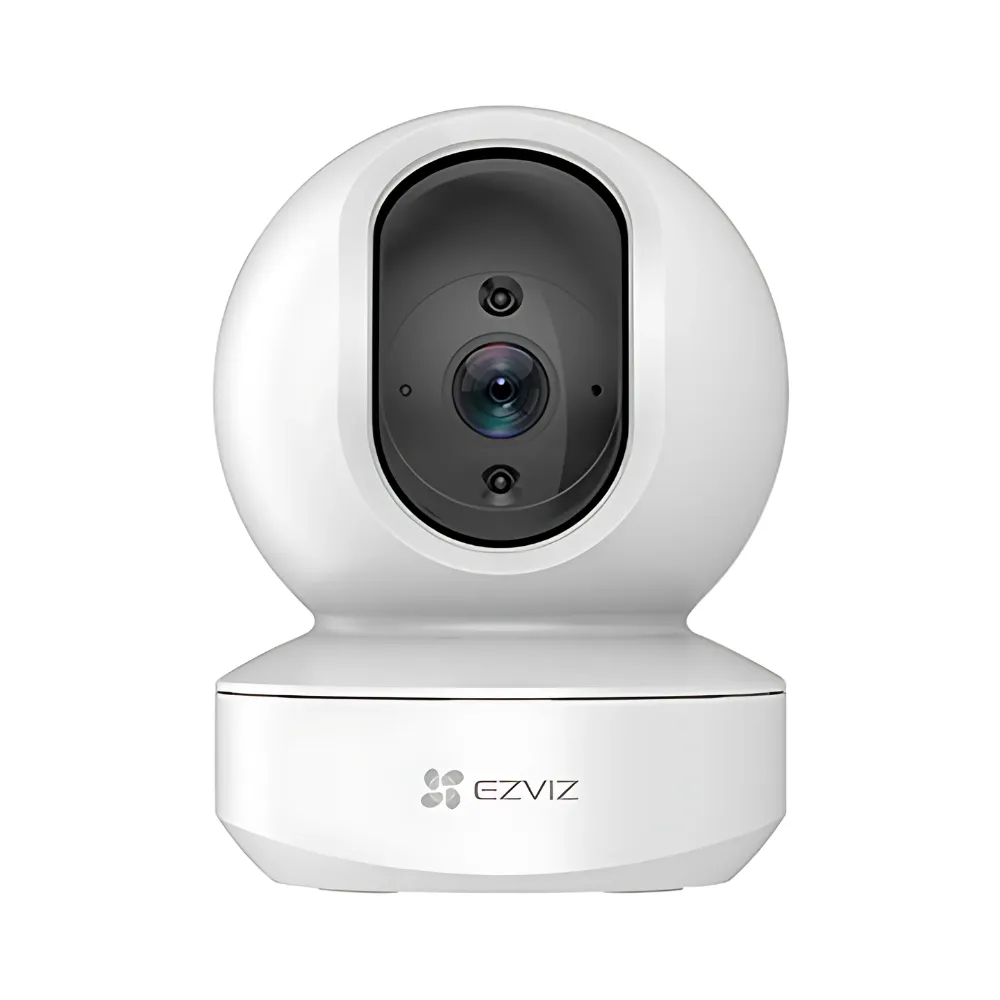

ModelCS-TY1-C0-8B4WF
Camera
Image sensorF2.2@1/3" Progressive Scan CMOS
Shutter SpeedSelf-adaptive shutter
Lens4mm, view angle: 124°(Diagonal), 85° (Horizontal), 55°(Vertical)
Lens MountM12
Day & NightIR-cut filter with auto-switching
DNR3D DNR
WDRDigital WDR
Compression
Video CompressionH.265 / H.264
Video Bit RateQuad HD, Full HD, HD, Standard.Adaptive bit rate.
Max. Resolution2560 × 1440
Frame RateMax. 20 fps; Self-Adaptive during network transmission
Network
Smart AlarmHuman Motion detection
Wi-Fi PairingAP pairing
ProtocolEZVIZ cloud proprietary protocol
Interface ProtocolEZVIZ cloud proprietary protocol
Interface
StorageMicro SD card slot (Max. 256G)
PowerMicro USB
Wired NetworkRJ45 × 1 (10M/100M self-adaptive Ethernet port)
Wi-Fi
StandardIEEE802.11b, 802.11g, 802.11n
Frequency Range2.4 GHz ~ 2.4835 GHz
Channel BandwidthSupports 20MHz
Security64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
Transmission Rate11b: 11Mbps, 11g :54Mbps, 11n :72Mbps
Output Power(EIRP)19 dBm
Antenna Gain1.9 dBi
General
Operating Conditions-10°C to 45°C (14°F to 113 °F ), Humidity 95% or less (non-condensing)
Power SupplyDC 5V/2A
Power ConsumptionMax. 5W
IR RangeMax. 10 m (32.81 ft)
Dimensions88 × 88 × 119 mm (3.46 × 3.46 × 4.67 inch)
Packaging Dimensions103 × 103 × 186 mm (4.06 × 4.06 × 7.32 inch)
Bare Weight259g (9.14oz)
In the box:
- TY1 4MP Camera
- Base
- Screw Kit
- Power Cable 3m (9.8 ft.)
- Drill Template
- Power Adapter
- Quick Start Guide
- Regulatory Information
