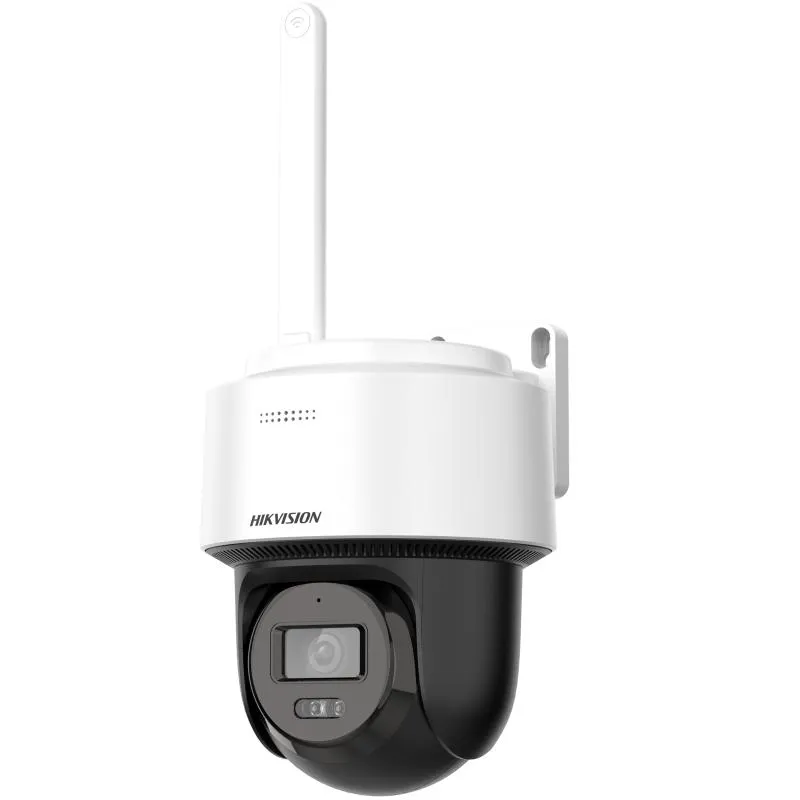

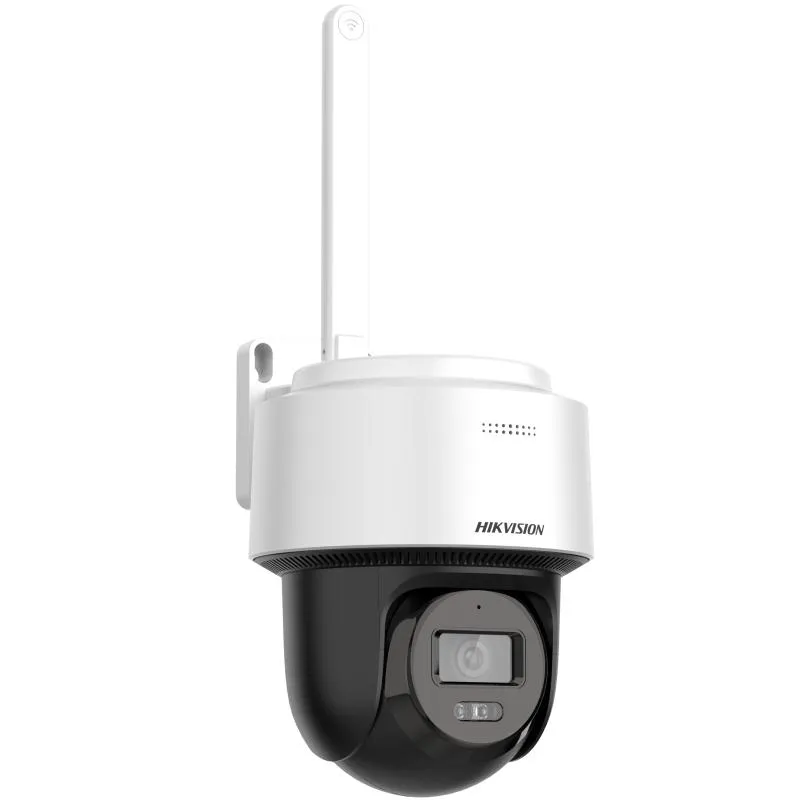

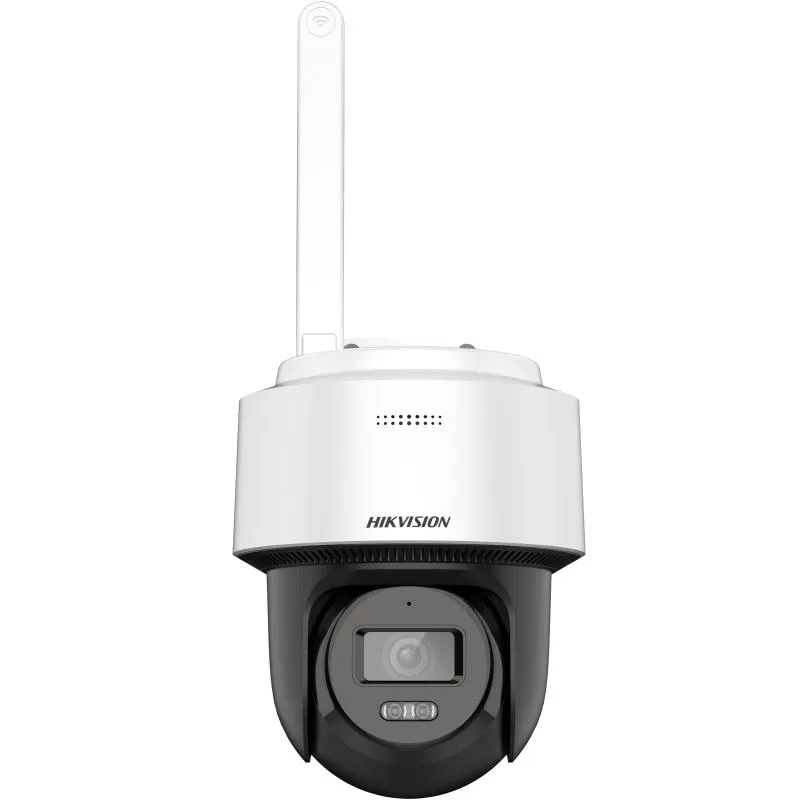

IP Камера HikVision DS-2DE2C400IWG/W PT Wifi 4MP 2.8 mm IR-30 SD микрофон+говорител

Парт.№: DS-2DE2C400IWG/W
Кат.№: 147642
0 от 5 звезди! 0Коментара | Напиши коментар
  • Camera
  • Lens
  • 2.8 mm,horizontal FOV 91°, vertical FOV 49°, diagonal FOV 108°
  • 4 mm, horizontal FOV 74°, vertical FOV 40°, diagonal FOV 87°
  • Illuminator
  • PTZ
  • Video
  • 50 Hz: 20 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
  • 60 Hz: 20 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
  • 50 Hz: 25 fps (1280 × 720, 768 × 432, 512 × 288)
  • 60 Hz: 30 fps (1280 × 720, 768 × 432, 512 × 288)
  • Main stream: H.265/H.264,
  • Sub-stream: H.265/H.264
  • Audio
  • Network
  • Wireless (Wi-Fi)
  • 802.11b: CCK, QPSK, BPSK,
  • 802.11g: OFDM ,
  • 802.11n: OFDM
  • Up to 50 m
  • (The performance varies based on actual environment)
  • Image
  • Interface
  • Event
  • Deep Learning Function
  • Line crossing, intrusion, region entrance, region exiting
  • Support alarm triggered by specified target types (human and vehicle)
  • General
  • Approval
  • Цена с ДДС:  203 лв.BGN
    Цена с ДДС:  103.79EUR
    на склад
    БЪРЗА ПОРЪЧКА   (без регистрация)
    Въведете Вашите данни, натиснете бутон "ПОРЪЧАЙ" и ние ще Ви се обадим!
      Съгласен съм с общите условия и начина на обработка на личните ми данни!
    Гаранция:   24 месеца
    Вземи от магазина на Дейтаком   >>> Виж адреса


    • Camera
    • Image Sensor1/2.9" Progressive Scan CMOS
    • Max. Resolution2560 × 1440
    • Min. IlluminationColor: 0.01 Lux @ (F1.6, AGC ON),B/W: 0.005 Lux @ (F1.6, AGC ON),0 Lux with IR
    • Lens
    • Focal Length2.8 mm, 4 mm
    • FOV

      2.8 mm,horizontal FOV 91°, vertical FOV 49°, diagonal FOV 108°

      4 mm, horizontal FOV 74°, vertical FOV 40°, diagonal FOV 87°

    • ApertureF1.6
    • Illuminator
    • Supplement Light TypeIR
    • Supplement Light RangeIR distance: up to 30 m
    • IR Wavelength850 nm
    • PTZ
    • Movement Range (Pan)0° to 345°
    • Movement Range (Tilt)0° to 80°
    • Pan SpeedUp to 25°/s
    • Tilt SpeedUp to 20°/s
    • Video
    • Main Stream

      50 Hz: 20 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

      60 Hz: 20 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

    • Sub-Stream

      50 Hz: 25 fps (1280 × 720, 768 × 432, 512 × 288)

      60 Hz: 30 fps (1280 × 720, 768 × 432, 512 × 288)

    • Video Compression

      Main stream: H.265/H.264,

      Sub-stream: H.265/H.264

    • Video Bit Rate256 Kbps to 2 Mbps
    • H.264 TypeBaseline profile,Main profile,High profile
    • H.265 TypeMain profile
    • Audio
    • Audio CompressionG.711,AAC-LC
    • Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw), 16 to 64 Kbps (AAC-LC)
    • Audio Sampling Rate8 kHz,16 kHz
    • Environment Noise FilteringYes
    • Network
    • ProtocolsTCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,RTP,RTSP,RTCP,NTP,UPnP,IGMP,QoS,IPv4,IPv6,UDP,Bonjour,SSL/TLS
    • APIONVIF, SDK
    • SecurityPassword protection,HTTPS encryption,security audit log,basic and digest authentication for HTTP/HTTPS,TLS 1.1/1.2, WSSE for Open Network Video Interface
    • Wireless (Wi-Fi)
    • Encryption ModeWPA-PSK/WPA2-PSK
    • Wi-Fi ProtocolsIEEE802.11b,IEEE802.11g,IEEE802.11n
    • Frequency Range2.412 GHz to 2.472 GHz
    • Channel Bandwidth20 MHz
    • Modulation

      802.11b: CCK, QPSK, BPSK,

      802.11g: OFDM ,

      802.11n: OFDM

    • Transfer Rate11b: up to 54 Mbps,11g: up to 54 Mbps,11n: up to 150 Mbps
    • Wireless Range

      Up to 50 m

      (The performance varies based on actual environment)

    • Image
    • Image SettingsSaturation, brightness, contrast, and sharpness adjustable by client software
    • Wide Dynamic Range (WDR)Digital WDR
    • Interface
    • Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
    • Built-in Microphone1 built-in microphone
    • On-board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
    • Built-in Speaker1 built-in speaker
    • Event
    • Basic EventMotion detection (support alarm triggering by specified target type (human and vehicle)), exception
    • LinkageUpload to memory card, notify surveillance center, trigger capture, audible warning, auto-tracking lite
    • Deep Learning Function
    • Perimeter Protection

      Line crossing, intrusion, region entrance, region exiting

      Support alarm triggered by specified target types (human and vehicle)

    • General
    • Power12 VDC ± 10%, 1 A, max. 10 W, Ø2 mm coaxial power plug, reverse polarity protection
    • Dimension163.9 mm × 185.8 mm × 131.9 mm (6.45" × 7.31" × 5.19")
    • WeightCamera weight: 565 g (1.25 lb.) With package weight: 1020 g (2.25 lb.)
    • MaterialPlastic
    • Operating Condition-30 °C to 50 °C (-22 °F to 122 °F). Humidity 95% or less (non-condensing)
    • General Functionheartbeat,mirror
    • Approval
    • EMCCE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013 + A1: 2019, EN 50130-4: 2011 + A1: 2014)
    • SafetyCB (IEC 62368-1: 2014 + A11),CE-LVD (EN 62368-1: 2014/A11: 2017)
    • EnvironmentCE-RoHS (2011/65/EU),WEEE (2012/19/EU)
    • Protection    IP66 (IEC 60529-2013)&
