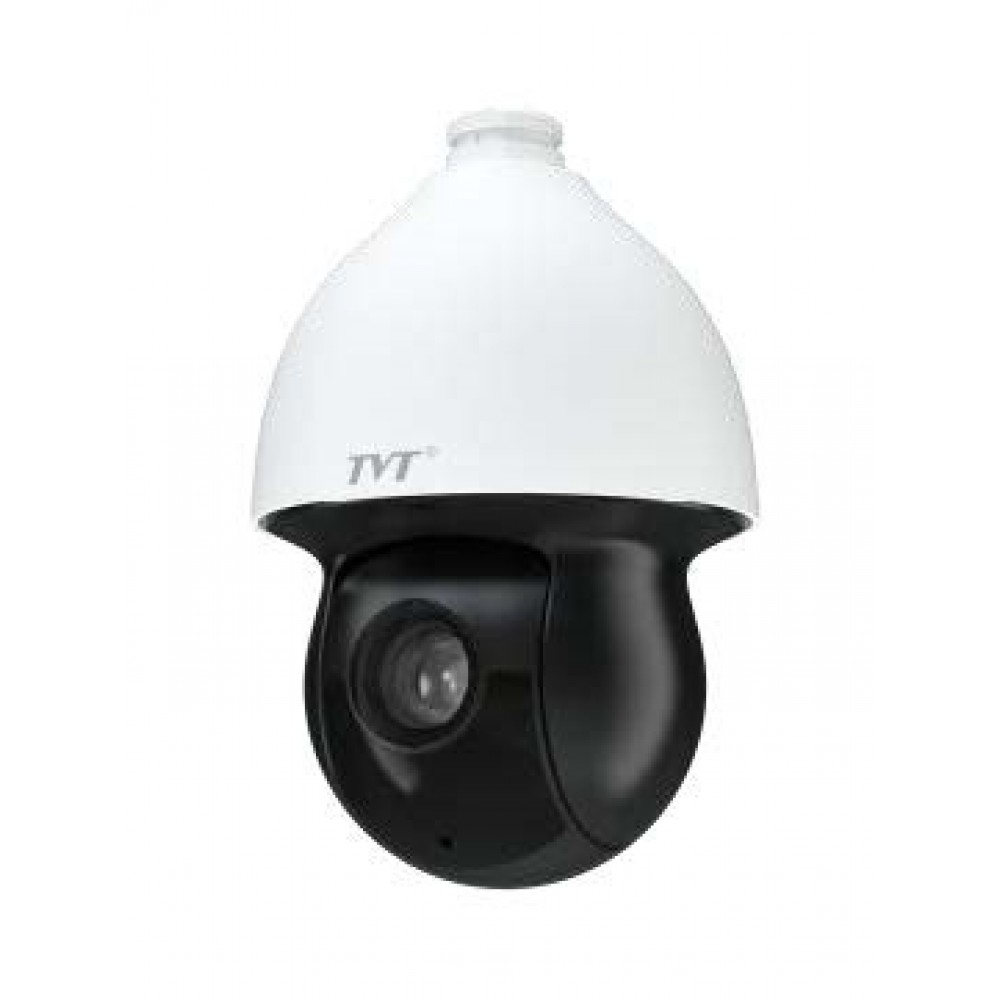

Парт.№: TD-8543IE3N
Кат.№: 154760
Кат.№: 154760
Цена с ДДС:
647.00 €
Цена с ДДС:
1265.42лв.
на склад
БЪРЗА ПОРЪЧКА (без регистрация)
Въведете Вашите данни, натиснете бутон "ПОРЪЧАЙ" и ние ще Ви се обадим!
Ultra fast rotation and tracking speed, dual belts for longer life.
Excellent low light performance
Super long IR supplement light distance
Deep-learning engine, support human/vehicles detection, auto-tracking
IP66/IK10/6KV Strong protection,7x24 Hours outdoor harsh weather
Stable supply-chain, long product life circle
Confirms to data protection regulations of major countries.
Ultra fast rotation and tracking speed, dual belts for longer life.
Excellent low light performance
Super long IR supplement light distance
Deep-learning engine, support human/vehicles detection, auto-tracking
IP66/IK10/6KV Strong protection,7x24 Hours outdoor harsh weather
Stable supply-chain, long product life circle
Confirms to data protection regulations of major countries.
| Camera Module | |||||
| Image sensor | 1/2.8" progressive scan CMOS image sensor, with BSI and NIR++,Dual Gain | ||||
| Max resolution | 2560x1440 | ||||
| Mini. Illumination | Color：0.005 Lux @ (F1.2，AGC ON)；B/W：0.001 Lux @(F1.2，AGC ON);0Lux with IR | ||||
| Image setting | Flip, Mirror, Saturation, Brightness, Contrast, Sharpness, AGC, etc. adjusted by client | ||||
| Shutter Speed | 60Hz: 1/30s – 1/30,000s@30fps;50Hz:1/25s~1/25,000s@25fps | ||||
| White Balance | Auto/Manual/Indoor/Outdoor | ||||
| Gain control | Auto/Manual | ||||
| Day & Night control | Auto/Manual ,time schedule. | ||||
| Iris control | Auto/Manual | ||||
| SNR | ≥52dB | ||||
| 3D DNR | Auto/Manual | ||||
| AE Enhancement | BLC, HLC, DWDR | ||||
| Digital Zoom | 16X | ||||
| Electronical Stabilizer | N/A for this version | ||||
| Privacy Mask | 4 areas, up to 8 mask per request. | ||||
| Picture overlay | Logo picture could be overlaid on video with 128x128pixels,24bits format | ||||
| OSD overlay | Max 15 characters/line, 8 lines, white or red font color | ||||
| Lens | |||||
| Focus length | f=4.5-180mm lens,40x optical zoom | ||||
| Zoom Speed | Approx. 5.2s (optical zoom, wide-tele) | ||||
| Field of View | H: 59.1° ~1.8°; V: 38.4° ~ 1.1° ; D: 68.9° ~ 2.1° (wide-tele) ±5% | ||||
| Image distance | Wide: 1.0m ~ INF; tele: 1.5m ~ INF | ||||
| Aperture Range | Max F1.2 | ||||
| Iris Type | DC_IRIS | ||||
| IRCut type | Removable IRCut filter | ||||
| DORI distance | Focus length | Detect | Observe | Recognize | Identify |
| f=4.5mm | 99.6m(326.8 f.t.) | 39.5m(129.7 f.t.) | 19.9m(65.4 f.t.) | 10m(32.7 f.t.) | |
| f=180mm | 3600m(8126.6f.t.) | 1429m(3250.7 f.t.) | 720m(1625.3f.t.) | 360m(812.7 f.t.) | |
| PTZ | |||||
| Pan Range | 360°endless | ||||
| Pan speed | Configurable, from 0.1~390°/s; Preset speed: 420°/s | ||||
| Tilt Range | From -25° to 155°,auto flip at 90° | ||||
| Tilt Speed | Configurable, from 0.1°~270°/s, Preset speed: 300°/s | ||||
| Proportional Zoom | Yes | ||||
| Preset | 360 | ||||
| Cruise | 8 cruises, up to 16 presets for each cruises | ||||
| Trace | 4 traces, record time over 3 minutes for each trace | ||||
| Power off memory | Support | ||||
| Action mode | Preset/Cruise/Trace/Auto Scan/Random Scan | ||||
| 3D Positioning | Support | ||||
| PTZ Position Display | Support | ||||
| Schedule Task | Preset/Cruise/Trace/Random Scan/Boundary Scanning /Dome reboot/ De-frost/Water Removal | ||||
| IR | |||||
| IR Distance | 350m (1148 f.t.) ,850nm IR | ||||
| Smart IR | Yes | ||||
| Network | |||||
| Main stream | 50Hz: 25fps: 2560x1440,1920×1080,1280×960,1280×720; 60Hz: 30fps: 2560x1440,1920×1080,1280×960,1280×720 | ||||
| Sub stream | 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288); 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240) | ||||
| Third Stream | 50Hz:25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) | ||||
| 60Hz:30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) | |||||
| Video compression | H.265+/H.265/H.264+/H.264/MJPEG | ||||
| H.264 Standard | H.264/AVC codec BP/MP/HP, Level 5.1 | ||||
| H.265 Standard | H.265/HEVC codec MP, level 5.0 | ||||
| Video Bit Rate | 64 Kbps to 16Mbps | ||||
| Audio compression | G.711 A/U | ||||
| Audio Bit Rate | 64K bps | ||||
| Protocols | HTTP, HTTPS, IPv4/IPv6, 802.1x, QoS, FTP, SMTP, UPnP, SNMP,DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, DHCP, PPPoE,P2P | ||||
| User / Host | Up to 16 users, 3 levels: Administrator, Advanced User and Normal User | ||||
| Security Measures | User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption, | ||||
| IEEE802.1x port-based network access control; IP address filtering | |||||
| API | ONVIF A/G/Q/S/T, support TVT SDK and third-party management platform | ||||
| Client | TVT N9000 1.4.7, TVT NVMS 2.0; and the third-party client, free iOS and Android App | ||||
| Web Browser | IE8-11 with plug-in; Edge, Chrome, Firefox with plugin free | ||||
| Smart Features | |||||
| Basic event | Motion detection, Video tampering alarm, Exception(Network disconnected, IP address conflict, SD full, SD error) | ||||
| Face recognize | Face detection & capturing, Max 17faces per scene. | ||||
| Road traffic | Vehicle detecting and tracking | ||||
| Smart Detection | Tripwire, Bi-directional tripwire, Illegal intrusion detection, Region entrance detection, Region exiting detection, etc. More VCA per request. | ||||
| Smart Tracking | support smart tracking of human or vehicle, manual/auto | ||||
| System Integration | |||||
| Alarm Interface | 1 Alarm input(Dry contact); 1 Alarm output | ||||
