Кат.№: 154731
Софтуер за обновяване на фърмуера

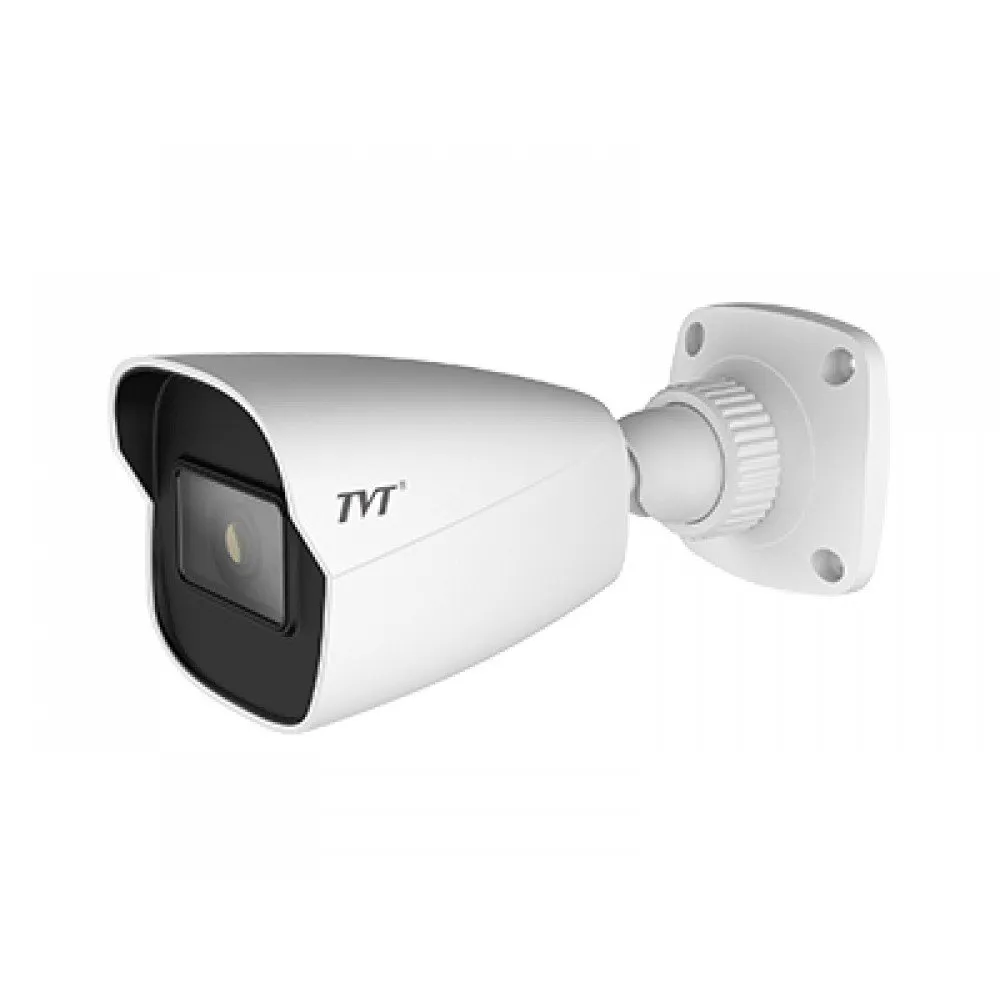

TD-9441E3(D/PE/AR2) Fixed Lens 2.8mm, 3.6mm
4MP ( 2592 × 1520 ) H.265 full real time coding
Max. resolution: 2592 × 1520
ICR auto switch, true day / night
20 ~ 30m IR night view distance
3D DNR, true WDR, HLC, BLC, Defog, Smart IR and ROI coding
Hardware reset
Built-in micro SD card slot, up to 128GB
1CH audio input
DC12V/PoE power supply
IP67ingress protection
Support three streams
P2P function optional
Support remote monitoring by smart phones & tablet PCs with iOS and Android OS
Intelligent analytics:Object abandoned/missing detection, region entrance/exiting/intrusion detection(human/vehicle classification), line crossing detection(human/vehicle classification), video tampering detection, scene change detection,face detection, face capture, rowd density detection, heat map,human/vehicle counting, human tracking
Dimension
| Model | TD-9441E3 |
| Camera | |
| Image Sensor | 1 / 3 "CMOS |
| Image Size | 2592 × 1520 |
| Electronic Shutter | 1 / 30 s ~ 1 / 100000 s |
| Iris Type | Fixed Iris |
| Min. Illumination | 0.005 lux@F1.6,AGC ON; 0 lux with IR#br#0.0028 lux@F1.2,AGC ON; 0 lux with IR |
| Lens | 2.8 mm @F1.6, horizontal field of view: 100.4°#br#3.6 mm @F1.6, horizontal field of view: 80.6° |
| Lens Mount | M12 |
| Wide Dynamic Range | 120dB |
| BLC | Yes |
| HLC | Yes |
| Defog | Yes |
| Digital NR | 3D DNR |
| Angle Adjustment | Pan: 0°~360°; Tilt:0°~80°; Rotation: 0°~360° |
| Image | |
| Video Compression | Smart H.265 / H.265+ / H.265 / Smart H.264 / H.264+ / H.264 / MJPEG |
| H.264 Compression Standard | Baseline Profile/Main Profile/High Profile |
| Resolution | 4MP ( 2592 × 1520 ), 2K ( 2560 × 1440 ), 3MP ( 2304 × 1296 ), 1080P ( 1920 × 1080 ), 720P ( 1280 × 720 ), D1, CIF, 480 × 240 |
| Main Stream | 4MP/2K/3MP/1080P / 720P( 60Hz : 1 ~ 30fps; 50Hz: 1~25fps )#br#HFR mode: 1080P / 720P( 60Hz : 1 ~ 60fps; 50Hz: 1~50fps ) |
| Sub Stream | 720P/D1/CIF ( 60Hz : 1 ~ 30fps; 50Hz: 1~25fps ) |
| Third Stream | D1/CIF/480x240 ( 60Hz : 1 ~ 30fps; 50Hz: 1~25fps ) |
| Bit Rate | |
