Кат.№: 154728
Софтуер за обновяване на фърмуера

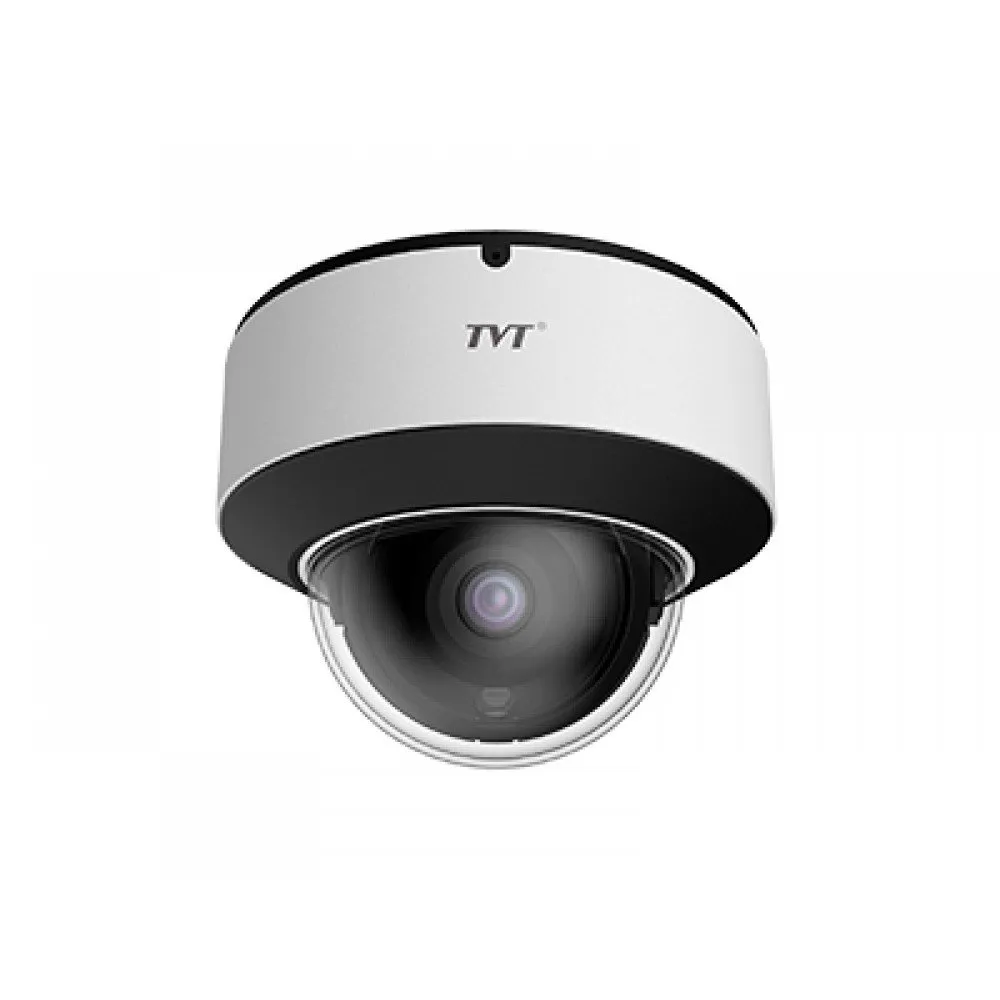

TD-9521E3(D/PE/AR2) Fixed Lens 2.8mm, 3.6mm
Starlight
2MP ( 1920 × 1080 ) @30fps
Support smart H.265/H.264 coding
ICR auto switch, true day / night
20 ~ 30m IR night view distance
3D DNR, true WDR, HLC, BLC, Defog, Smart IR and ROI coding
Support corridor mode
Support image distortion correction
1CH alarm input and 1CH alarm output
1CH audio input and 1CH built-in MIC
Built-in micro SD card slot, up to 128GB
DC12V/PoE power supply
IP67 & IK10
Support three streams
P2P function optional
Support mobile surveillance by smart phones & tablet PCs with iOS and Android OS
Intelligent analytics: Object abandoned/missing detection, region entrance/exiting/intrusion detection(human/vehicle classification), line crossing detection(human/vehicle classification), video tampering detection, scene change detection,face detection, face capture, crowd density detection, heat map,human/vehicle counting, human tracking
Dimension
| Model | TD-9521E3 |
| Camera | |
| Image Sensor | 1 / 2.8 "CMOS |
| Image Size | 1920 × 1080 |
| Electronic Shutter | 1 / 25 s ~ 1 / 100000 s |
| Iris Type | Fixed Iris |
| Min. Illumination | 0.005 lux@F1.6,AGC ON; 0 lux with IR#br#0.0028 lux@F1.2,AGC ON; 0 lux with IR |
| Lens | 2.8 mm @F1.6, horizontal field of view: 108°#br#3.6 mm @F1.6, horizontal field of view: 89° |
| Lens Mount | M12 |
| Wide Dynamic Range | 120dB |
| BLC | Yes |
| HLC | Yes |
| Defogging | Yes |
| Digital NR | 3D DNR |
| Angle Adjustment | Pan : 0°~355°, Tilt : 0°~67°, Rotation : 0°~355° |
| Image | |
| Video Compression | Smart H.265 / H.265+ / H.265 / Smart H.264 / H.264+ / H.264 / MJPEG |
| H.264 Compression Standard | Baseline Profile/Main Profile/High Profile |
| Resolution | 1080P ( 1920 × 1080 ), 720P ( 1280 × 720 ), D1, CIF, 480 × 240 |
| Main Stream | 60Hz : 1080P / 720P( 1 ~ 30fps ); 50Hz : 1080P / 720P( 1 ~ 25fps ) |
| Sub Stream | 60Hz : 720P/D1/CIF (1~30fps); 50HZ: 720P/D1/CIF (1~25fps) |
