Кат.№: 154730
Софтуер за обновяване на фърмуера

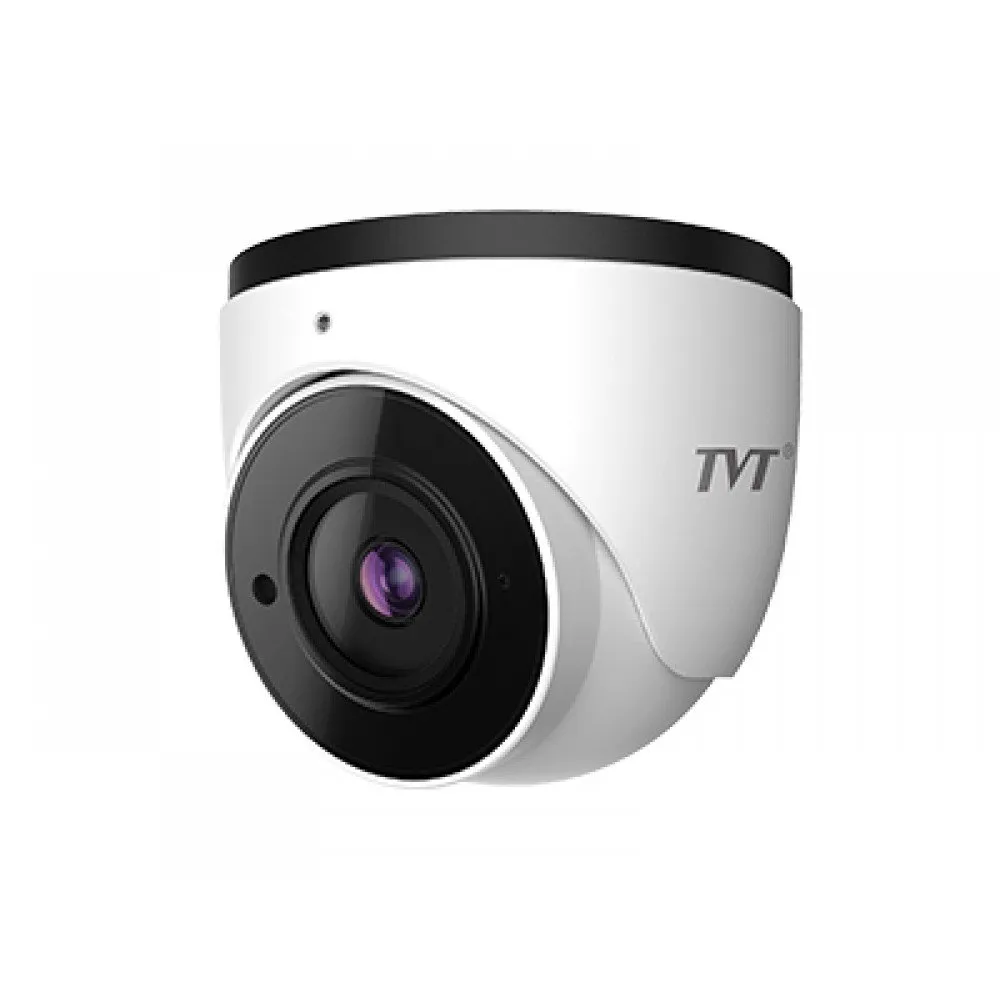

TD-9524E3(D/PE/AR2) Fixed Lens 2.8mm,3.6mm
Starlight
2MP ( 1920 × 1080 ) H.265 full real time coding
Max. resolution: 1920 × 1080
ICR auto switch, true day / night
20 ~ 30m IR night view distance
3D DNR, true WDR, HLC, BLC, Defog, Smart IR and ROI coding
Support corridor mode
Support image distortion correction
1CH audio input; 1CH built-in MIC
Hardware reset
Built-in micro SD card slot, up to 128GB
DC12V/PoE power supply
IP67 ingress protection
Support three streams
P2P function optional
Support remote monitoring by smart phones & tablet PCs with iOS and Android OS
Intelligent analytics: Object abandoned/missing detection, region entrance/exiting/intrusion detection(human/vehicle classification), line crossing detection(human/vehicle classification), video tampering detection, scene change detection,face detection, face capture, crowd density detection, heat map,human/vehicle counting, human tracking
Dimension
| Model | TD-9524E3 |
| Camera | |
| Image Sensor | 1 / 2.8 "CMOS |
| Image Size | 1920 × 1080 |
| Electronic Shutter | 1 / 25 s ~ 1 / 100000 s |
| Iris Type | Fixed Iris |
| Min. Illumination | 0.005 lux@F1.6,AGC ON; 0 lux with IR 0.0028 lux@F1.2,AGC ON; 0 lux with IR |
| Lens | 2.8 mm @F1.6, horizontal field of view: 108°#br#3.6 mm @F1.6, horizontal field of view: 89° |
| Lens Mount | M12 |
| Wide Dynamic Range | 120dB |
| BLC | Yes |
| HLC | Yes |
| Defog | Yes |
| Digital NR | 3D DNR |
| Angle Adjustment | Pan: 0°~360°; Tilt:0°~75°; Rotation: 0°~360° |
| Image | |
| Video Compression | Smart H.265 / H.265+ / H.265 / Smart H.264 / H.264+ / H.264 / MJPEG |
| H.264 Compression Standard | Baseline Profile/Main Profile/High Profile |
| Resolution | 1080P ( 1920 × 1080 ), 720P ( 1280 × 720 ), D1, CIF, 480 × 240 |
| Main Stream | 60Hz : 1080P / 720P( 1 ~ 30fps ); 50Hz : 1080P/ 720P( 1 ~ 25fps ) |
| Sub Stream | 60Hz : 720P/D1/CIF (1~30fps); 50HZ: 720P/D1/CIF (1~25fps) |
