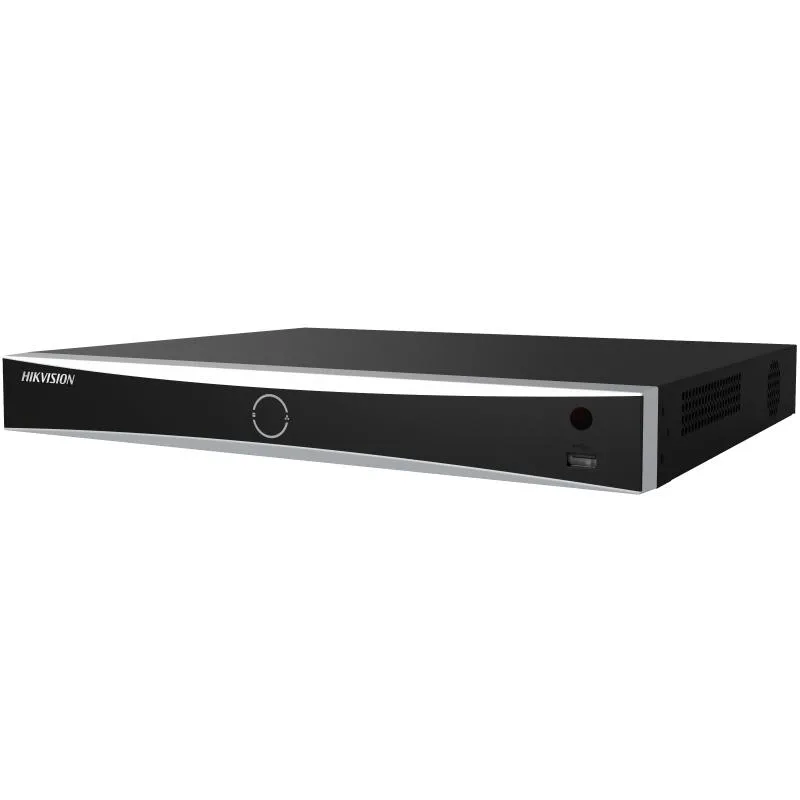

NVR HikVision DS-7616NXI-K2(D) 16-ch 1U 4K, 2xHDD AcuSense - DS-7616NXI-K2(D)

Парт.№: DS-7616NXI-K2(D)
Кат.№: 147490

0Коментара | Напиши коментар

Up to 16-ch IP camera inputs

H.265+/H.265/H.264+/H.264 video formats

AI off:Up to 2-ch@12 MP or 4-ch@8 MP or 8-ch@4 MP or 16-ch@1080p decoding capacity

Up to 160 Mbps incoming bandwidth

Adopt Hikvision Acusense technology to minimize manual effort and security costs

изчерпан

Гаранция: 24 месеца

16-ch 1U K Series AcuSense 4K NVR

Up to 16-ch IP camera inputs
H.265+/H.265/H.264+/H.264 video formats
Up to 2-ch@12 MP or 3-ch@8 MP or 6-ch@4 MP or 12-ch@1080p decoding capacity
Up to 160 Mbps incoming bandwidth
Adopt Hikvision Acusense technology to minimize manual effort and security costs

Intelligent Analytics
AI by DeviceFacial recognition, perimeter protection, motion detection 2.0
AI by CameraFacial recognition, perimeter protection, throwing objects from building, motion detection2.0, ANPR, VCA

Facial Recognition
Facial Detection and AnalyticsFace picture comparison, human face capture, face picture search
Face Picture LibraryUp to 16 face picture libraries, with up to 20,000 face pictures in total each picture ≤ 4 MB, total capacity ≤ 1 GB
Facial Detection and Analytics Performance1-ch, 8 MP
Face Picture Comparison4-ch

Perimeter Protection
By Device2-ch, 4 MP HD network camera, H.264/H.265 video analysis for human and vehicle recognition to reduce false alarm
By CameraAll channels

Video and Audio
IP Video Input16-ch
Incoming Bandwidth160 Mbps
Outgoing Bandwidth160 Mbps
HDMI Output1-ch, 4K 3840 × 2160/30 Hz, 2K 2560 × 1440/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
VGA Output1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
Video Output ModeHDMI/VGA independent output
CVBS OutputN/A
Audio Output1-ch, RCA 2.0 Vp-p, 1 KΩ, using the audio input
Two-Way Audio1-ch, RCA Linear, 1 KΩ

Decoding
Decoding FormatH.265/H.265+/H.264+/H.264
Recording Resolution12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous playback16-ch
Decoding Capability
AI on: 2-ch@12 MP 30 fps/3-ch@8 MP 30 fps/6-ch@4 MP 30 fps/12-ch@1080p 30 fps
AI off: 2-ch@12 MP 30 fps/4-ch@8 MP 30 fps/8-ch@4 MP 30 fps/16-ch@1080p 30 fps
Stream TypeVideo, Video & Audio
Audio CompressionG.711ulaw/G.711alaw/G.722/G.726/AAC

Network
Remote Connection128
APIONVIF profile S/G; SDK; ISAPI
Compatible BrowserIE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version
Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
Network Interface1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

General
GUI LanguageEnglish, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish Language, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian, Kyrgyz , Brazilian Portuguese, Indonesian
Power Supply12 VDC, 3.3 A
Consumption≤ 15 W without HDD
Working Temperature-10 °C to 55 °C 14 °F to 131 °F
Working Humidity10% to 90%
Dimension W × D × H385 mm × 315 mm × 52 mm 15.2"× 12.4" × 2.0"
Weight≤ 1 kg without HDD, 2.2 lb.

Certification
CEEN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
Obtained CertificationCE, FCC, IC, CB, KC, UL, Rohs, Reach, WEEE, RCM, UKCA, LOA, BIS
