Парт.№: C9200CX-8P-2XGH-E
Кат.№: 148272
Кат.№: 148272
Информация от производителБЪРЗА ПОРЪЧКА (без регистрация)
Въведете Вашите данни, натиснете бутон "ПОРЪЧАЙ" и ние ще Ви се обадим!
Гаранция: 99 месеца
| Manufacturer: | CISCO |
| Manufacturer Part No: | C9200CX-8P-2XGH-E |
| General | |

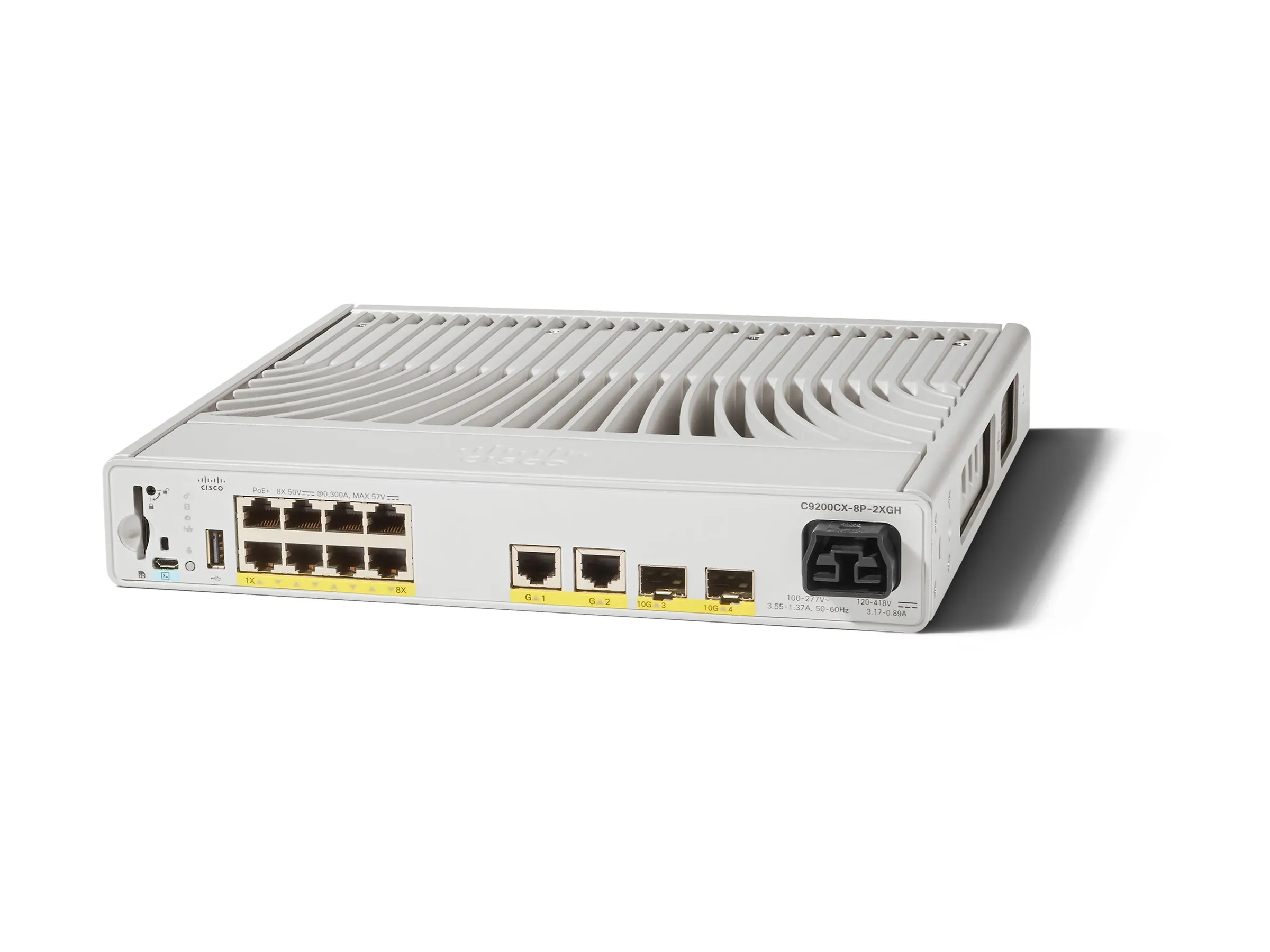

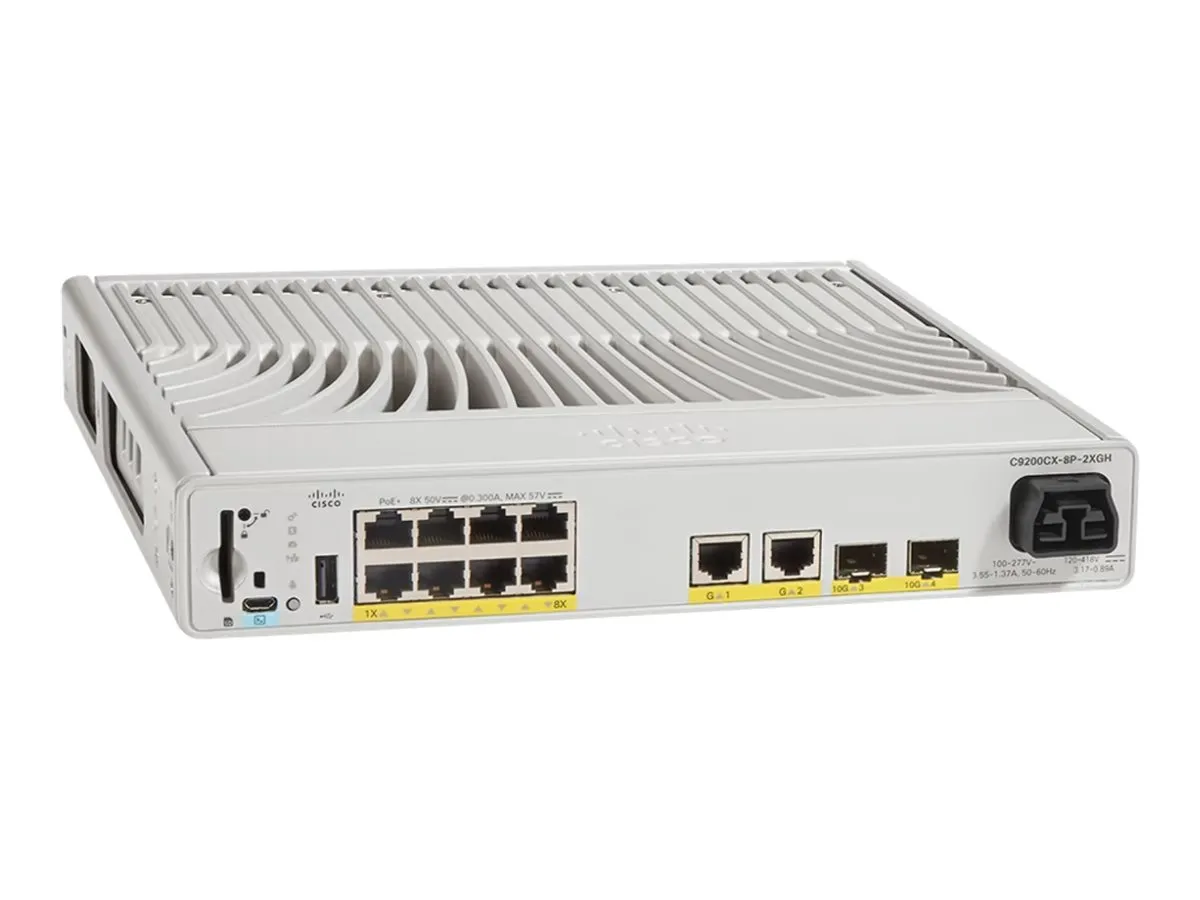

| Device Type: | Switch - 8 ports - L3 - Managed |
| Enclosure Type: | Rack-mountable 1U |
| Subtype: | Gigabit Ethernet |
| Ports: | 8 x 10/100/1000 (PoE+) + 2 x 1000Base-T + 2 x 10 Gigabit SFP+ (uplink) |
| Power Over Ethernet (PoE): | PoE+ |
| PoE Budget: | 240 W |
| Performance: | Switching capacity: 60 Gbps Forwarding rate: 44.64 Mpps |
| Capacity: | Virtual networks: 16 IPv4 routes: 14000 Direct IPv4 routes: 10000 Indirect IPv4 routes: 4000 IPv4 routing entries: 4000 IPv6 routing entries: 2000 Multicast scale: 1000 QoS scale entries: 1000 ACL scale entries: 1600 Flexible NetFlow entries: 16000 VLAN IDs: 4096 PVST instances: 128 STP Virtual Ports for PVST: 13000 STP Virtual Ports for MST: 13000 Switched virtual interfaces (SVIs): 1000 IP SGT binding scale: 8000 IPv4 bindings: 8000 SGT/DGT policies: 2000 SXP Sessions: 200 FNF entries: 16000 Buffer capacity (MB): 6 |
| MAC Address Table Size: | 32000 entries |
| Jumbo Frame Support: | 9198 bytes |
| Routing Protocol: | OSPF, RIP, RIP-1, RIP-2, EIGRP, VRRP, PIM-SM, OSPFv3, EIGRP for IPv6, PIM-SSM, policy-based routing (PBR), RIPng, MSTP |
| Remote Management Protocol: | SNMP 1, SNMP 2c, SNMP 3, RMON 1, RMON 2, CLI, NETCONF, RESTCONF, YANG |
| Encryption Algorithm: | 256-bit AES |
| Features: | Fanless, QoS, Rapid PVST+, SRR, PXE support, RSPAN, Energy Efficient Ethernet, MIB, CoS, FNF, 802.1x authentication, DSCP support, MACsec support, SPAN, EEM, PIM, FHS, PVLAN support, CIR, ACL support, Cisco UADP 2.0, built-in ASIC, NetFlow, EEE, Preboot Execution Environment, Cisco StackWise Technology, ZTP, CoPP, MACsec |
| Compliant Standards: | IEEE 802.3, IEEE 802.1s, IEEE 802.1w, IEEE 802.1p, IEEE 802.1x, IEEE 802.3ad (LACP), IEEE 802.3x, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.1ae, IEEE 802.3at, IEEE 802.3af, IEEE 802.3bt |
| RAM: | 4 GB |
| Flash Memory: | 8 GB |
| Built-in Devices: | RFID tag |
| Status Indicators: | Beaconing, status |
| Expansion / Connectivity | |
| Interfaces: | 8 x 1000Base-T RJ-45 PoE+ - 30 W 2 x 1000Base-T RJ-45 2 x 10GBase-X SFP+ uplink 1 x USB 2.0 Type A 1 x console (micro-USB) Type B |
| Expansion Slots: | 1 (total) / 1 (free) x SD Memory Card |
| Power | |
| Power Device: | Internal power supply |
| Power Provided: | 315 Watt |
| Voltage Required: | AC 100-277/ DC 120-418 V (50/60 Hz) |
| Features: | High Voltage DC (HVDC) |
| Miscellaneous | |
| Compliant Standards: | Plug and Play, EN 61000-3-2, EN 61000-3-3, AS/NZS 60950-1, CCC, ICES-003 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, AS/NZS 3548 Class A, BSMI Class A, VCCI Class A, CNS 13438, FCC CFR47 Part 15 B Class A, EN 300 386, KN32, KN35, EN 55032 Class A, CISPR 32 Class A, CAN/CSA-C22.2 No. 60950-1, TCVN 7189 Class A, V-3 Class A, TCVN 7317, CISPR 35, EN 55035, EN 62368-1, IEC 62368-1, UL 62368-1 |
| Software / System Requirements | |
| Software Included: | Cisco IOS XE 17.9 Universal |
| Dimensions & Weight | |
| Width: | 26.9 cm |
| Depth: | 24.4 cm |
| Height: | 4.4 cm |
| Weight: | 2.99 kg |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - replacement - lifetime - response time: next business day Technical support - consulting - 90 days |
| Environmental Parameters | |
| Min Operating Temperature: | -5 °C |
| Max Operating Temperature: | 40 °C |
| Humidity Range Operating: | 5 - 90% (non-condensing) |
| Min Storage Temperature: | -40 °C |
| Max Storage Temperature: | 70 °C |
| Humidity Range Storage: | 5 - 90% (non-condensing) |
