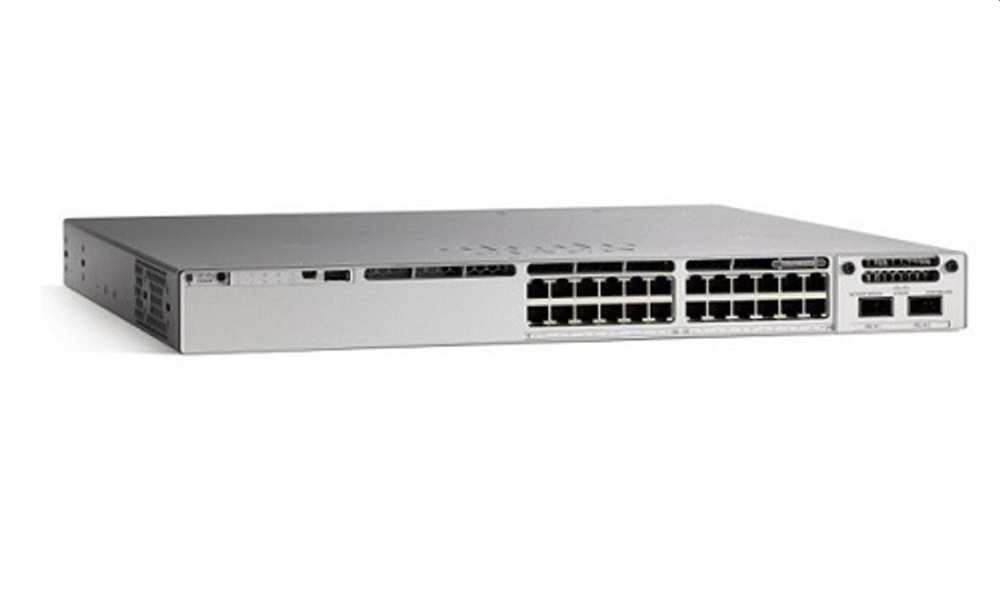

Парт.№: C9200L-24PXG-2Y-E
Кат.№: 141209
Кат.№: 141209
Цена с ДДС:
11825 лв.
Наличност:
с поръчка
Информация от производителБЪРЗА ПОРЪЧКА (без регистрация)
Въведете Вашите данни, натиснете бутон "ПОРЪЧАЙ" и ние ще Ви се обадим!
Гаранция: 99 месеца
| Суич, тип: | Fixed Port |
| Общ брой портове: | 26 |
| Основни портове, тип: | 24 ports full PoE+ (8 mGig ports up to 10G, 16 ports up to 1G) |
| Power Over Ethernet (PoE): | IEEE 802.3at PoE+ (up to 30W per port); Available PoE power with single primary power supply (PWR-C5-600WAC): 370W |
| Uplinkпортове: | 2x 1/10/25G fixed uplinks |
| Свободни (10GB) слотове: | - |
| Управление: | WebUI is an embedded GUI-based device-management tool that provides the ability to provision the device, to simplify device deployment and manageability, and to enhance the user experience |
| Stackable: | Stacking bandwidth: 160 Gbps |
| Fans: | Fixed redundant |
| Захранване: | PWR-C5-600WAC |
| Routing: | Advanced |
| Памет (Flash, RAM): | Flash: 4 GB; DRAM: 4 GB; Packet buffer: 12MB |
| Капацитет за маршрутизиране/превключване, Gbps: | 292 Gbps; Switch capacity with Stacking: 372 Gbps |
| Пропускателна способност, Mpps: | 229.16 Mpps; Forwarding rate with Stacking: 277 Mpps |
| MACадреси: | 32 000 |
| VLAN (брой, стандарти): | 4; VLAN IDs: 4096; CISCO-PRIVATE-VLAN-MIB, CISCO-VLAN-IFTABLE-RELATIONSHIP- MIB, IEEE 802.1Q VLAN |
| QoS: | Superior QoS includes granular wireless bandwidth management and fair sharing, 802.1p Class of Service (CoS) and Differentiated Services Code Point (DSCP) field classification, SRR scheduling, Committed Information Rate (CIR), eight egress queues per port |
| L2мрежови стандарти: | IEEE 802.1Q, IEEE 802.1D (STP); RSTP, IEEE 802.1w; MSTP, IEEE 802.1s; PVLAN; IEEE 802.3ad (LACP); LLDP; VTP; BPDU Guard |
| L3мрежови стандарти: | IP Routing (Static, RIP, OSPF, EIGRP), VLAN Routing (SVI, Routing Between VLANs); Multicast Routing (PIM, IGMP); BGP; IPv6; HSRP; VRRP; GLBP; ACLs; PBR |
| IPv6 functionality: | IPv6 routing entries: 2000; Ipv6 routing (using OSPFv3 and EIGRPv6); IPv6 addressing |
| Сигурност: | AES-128 MACsec encryption; Secure Segmentation with Software-Defined Access; Cloud Security - Umbrella Integration |
| Размери (Ш, Д, В), mm: | 445 x 350 x 44 mm |
| Опция за монтаж: | Rackmount |
| Други: | Network Essentials licensing |
| размери с опаковката (Ш, Д, В), cm: | 50 x 40 x 10 |
| Тегло: | 6 kg |
| Гаранция: | 99месеца |
