Парт.№: C9200L-48PXG-4X-E
Кат.№: 140183
Кат.№: 140183
Цена с ДДС:
16482 лв.
Цена с ДДС:
8427.11 €
с поръчка
БЪРЗА ПОРЪЧКА (без регистрация)
Въведете Вашите данни, натиснете бутон "ПОРЪЧАЙ" и ние ще Ви се обадим!
Гаранция: 99 месеца
| Manufacturer: | CISCO |
| Manufacturer Part No: | C9200L-48PXG-4X-E |
| General | |

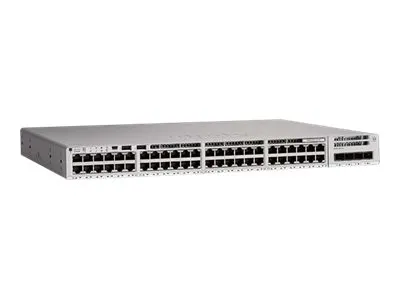

| Device Type: | Switch - 48 ports - L3 - Managed - stackable |
| Enclosure Type: | Rack-mountable |
| Subtype: | Gigabit Ethernet |
| Ports: | 12 x 100/1000/2.5G/5G/10GBase-T + 36 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+ (uplink) |
| Power Over Ethernet (PoE): | PoE+ |
| PoE Budget: | 1440 W |
| Performance: | Stacking bandwidth: 80 Gbps Switching capacity: 392 Gbps Forwarding rate: 291.66 Mpps |
| Capacity: | Virtual networks: 1 IPv4 routes: 11000 IPv4 routing table entries: 3000 IPv6 routing table entries: 1500 Multicast scale: 1000 ACL scale entries: 1500 FNF entries: 16000 VLANs supported: 1024 Switched virtual interfaces (SVIs): 512 QoS hardware queues per port: 8 |
| MAC Address Table Size: | 16000 entries |
| Jumbo Frame Support: | 9198 bytes |
| Routing Protocol: | OSPF, RIP, RIP-1, RIP-2, EIGRP, VRRP, PIM-SM, EIGRP for IPv6, OSPFv3, PIM-SSM, policy-based routing (PBR), RIPng, MSTP |
| Remote Management Protocol: | SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF |
| Encryption Algorithm: | 128-bit AES |
| Features: | QoS, Cisco StackWise Technology, Rapid PVST+, SRR, PXE support, RSPAN, NetFlow, Energy Efficient Ethernet, MIB, CoS, FNF, 802.1x authentication, DSCP support, MACsec support, 6MB packet buffer, CoPP, SPAN, EEM, PIM, FHS, PVLAN support, CIR |
| Compliant Standards: | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3bz |
| RAM: | 2 GB |
| Flash Memory: | 4 GB |
| Expansion / Connectivity | |
| Interfaces: | 12 x 100/1000/2.5G/5G/10GBase-T RJ-45 36 x 1000Base-T RJ-45 PoE+ 4 x 10GBase-X SFP+ uplink 1 x network stack device 1 x management (LAN) RJ-45 1 x console RJ-45 |
| Power | |
| Power Device: | Internal power supply - hot-plug |
| Max Supported Qty: | 2 |
| Power Redundancy: | Optional |
| Voltage Required: | AC 100-240 V (50 - 60 Hz) |
| Miscellaneous | |
| MTBF: | 337,360 hours |
| Compliant Standards: | CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN 61000-6-1, AS/NZS 60950-1, CCC, ICES-003 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, AS/NZS 3548 Class A, BSMI Class A, VCCI Class A, CNS 13438, EN 55022 Class A, FCC CFR47 Part 15 B Class A, EN 300 386, KN32, KN35, EN 55032 Class A, CISPR 32 Class A, CAN/CSA-C22.2 No. 60950-1, TCVN 7189 Class A, V-3 Class A, TCVN 7317, CISPR 35 |
| Dimensions & Weight | |
| Width: | 44.5 cm |
| Depth: | 35 cm |
| Height: | 4.4 cm |
| Weight: | 5.71 kg |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - advance parts replacement - lifetime - response time: next business day |
| Environmental Parameters | |
| Min Operating Temperature: | -5 °C |
| Max Operating Temperature: | 45 °C |
| Humidity Range Operating: | 5 - 90% (non-condensing) |
| Min Storage Temperature: | -40 °C |
| Max Storage Temperature: | 70 °C |
| Humidity Range Storage: | 5 - 90% (non-condensing) |
