Парт.№: C9300L-24P-4X-E
Кат.№: 151788
Кат.№: 151788
Информация от производителБЪРЗА ПОРЪЧКА (без регистрация)
Въведете Вашите данни, натиснете бутон "ПОРЪЧАЙ" и ние ще Ви се обадим!
Гаранция: 60 месеца
| Manufacturer: | CISCO |
| Manufacturer Part No: | C9300L-24P-4X-E |
| General | |

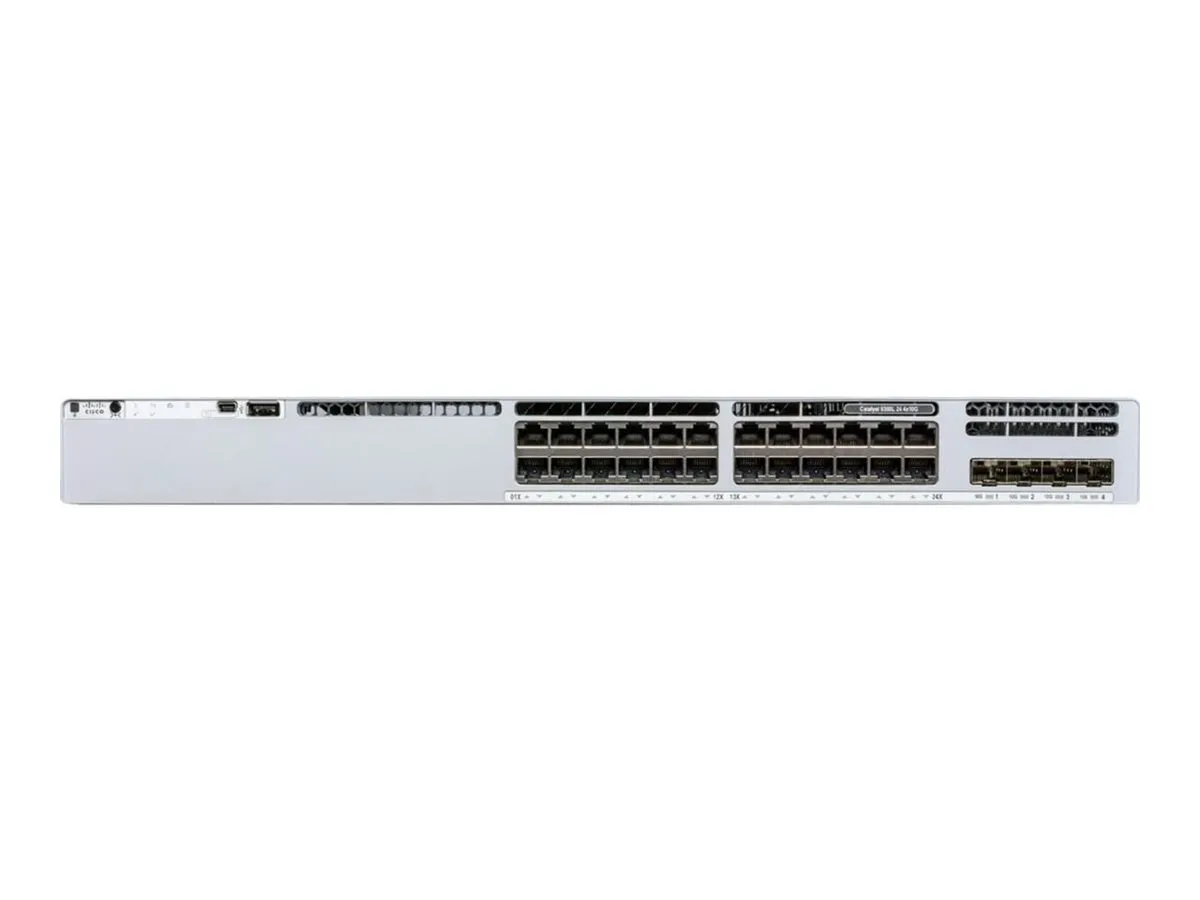

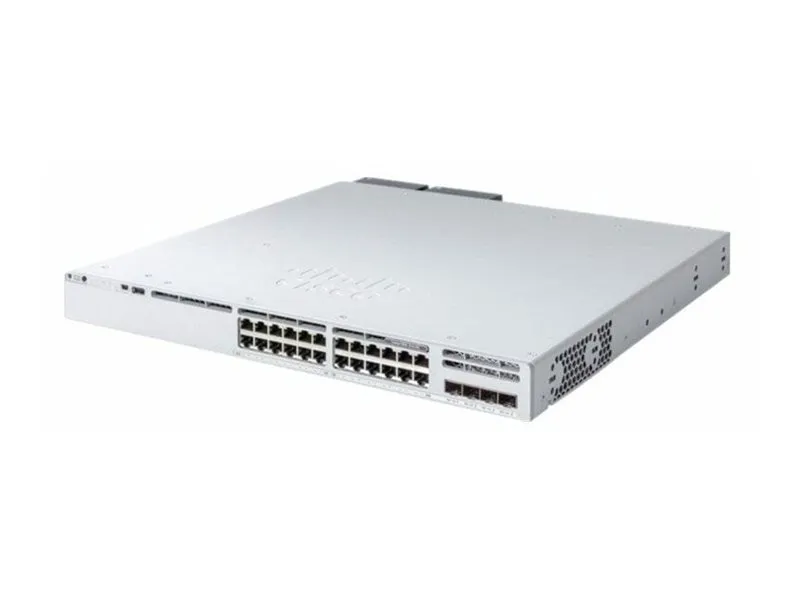

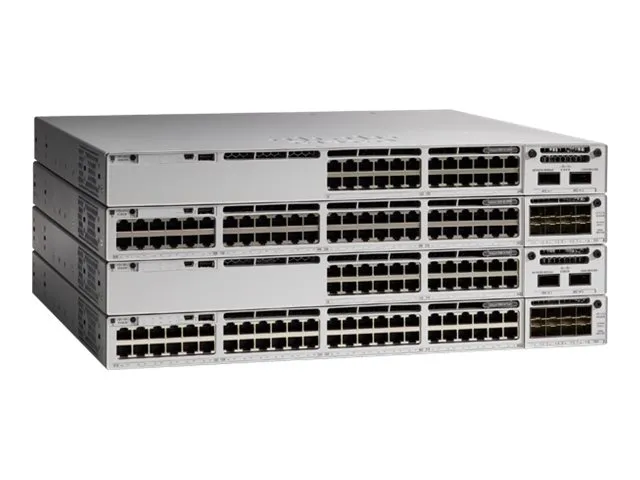

| Device Type: | Switch - 24 ports - L3 - Managed - stackable |
| Enclosure Type: | Rack-mountable |
| Subtype: | Gigabit Ethernet |
| Ports: | 24 x 10/100/1000 (PoE+) + 4 x Gigabit SFP (uplink) |
| Power Over Ethernet (PoE): | PoE+ |
| PoE Budget: | 505 W |
| Performance: | Switching capacity: 128 Gbps Switching capacity with stacking: 448 Gbps Forwarding rate: 95.23 Mpps Forwarding rate with stacking: 333.33 Mpps |
| Capacity: | IPv4 routes: 32000 IPv6 routes: 16000 Multicast scale: 8000 QoS scale entries: 5120 ACL scale entries: 5120 VLANs supported: 4094 Switched virtual interfaces (SVIs): 1000 |
| MAC Address Table Size: | 32000 entries |
| Jumbo Frame Support: | 9198 bytes |
| Routing Protocol: | OSPF, RIP-1, RIP-2, EIGRP, VRRP, PIM-SM, EIGRP for IPv6, OSPFv3, PIM-SSM, policy-based routing (PBR), RIPng, MSTP |
| Remote Management Protocol: | SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF, gRPC, IPv4, IPv6, YANG |
| Encryption Algorithm: | 128-bit AES, 256-bit AES |
| Features: | ACL support, QoS, Rapid PVST+, SRR, PXE support, Energy Efficient Ethernet, CoS, FNF, 802.1x authentication, DSCP support, MACsec support, CoPP, Blue Beacon LED, ZTP, secure boot, PIM, FHS, PVLAN support, CIR, Cisco Trust Anchor module, Cisco UADP 2.0, Cisco StackWise-320 technology |
| Compliant Standards: | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ae, IEEE 1588v2, IEEE 802.1BA, Wi-Fi CERTIFIED 6 |
| RAM: | 8 GB |
| Flash Memory: | 16 GB |
| Status Indicators: | Status |
| Expansion / Connectivity | |
| Interfaces: | 24 x 1000Base-T RJ-45 505 W 4 x 10GBase-X SFP+ uplink 1 x network stack device 1 x management (LAN) RJ-45 1 x console 1 x USB 2.0 |
| Power | |
| Power Device: | Internal power supply - hot-plug |
| Installed Qty: | 1 |
| Max Supported Qty: | 2 |
| Power Redundancy: | Optional |
| Power Provided: | 715 Watt |
| Voltage Required: | AC 120/230 V (50 - 60 Hz) |
| Miscellaneous | |
| MTBF: | 340,710 hours |
| Compliant Standards: | CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN 61000-6-1, AS/NZS 60950-1, CCC, ICES-003 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, AS/NZS 3548 Class A, BSMI Class A, VCCI Class A, CNS 13438, EN 55022 Class A, FCC CFR47 Part 15 B Class A, EN 300 386, KN32, KN35, EN 55032 Class A, CISPR 32 Class A, CAN/CSA-C22.2 No. 60950-1, TCVN 7189 Class A, V-3 Class A, TCVN 7317, CISPR 35 |
| Dimensions & Weight | |
| Width: | 44.5 cm |
| Depth: | 4.4 cm |
| Height: | 48.8 cm |
| Weight: | 6.81 kg |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - replacement - lifetime - response time: next business day Technical support - consulting - 90 days |
| Environmental Parameters | |
| Min Operating Temperature: | -5 °C |
| Max Operating Temperature: | 45 °C |
| Humidity Range Operating: | 5 - 90% (non-condensing) |
| Min Storage Temperature: | -40 °C |
| Max Storage Temperature: | 70 °C |
| Humidity Range Storage: | 5 - 90% (non-condensing) |
