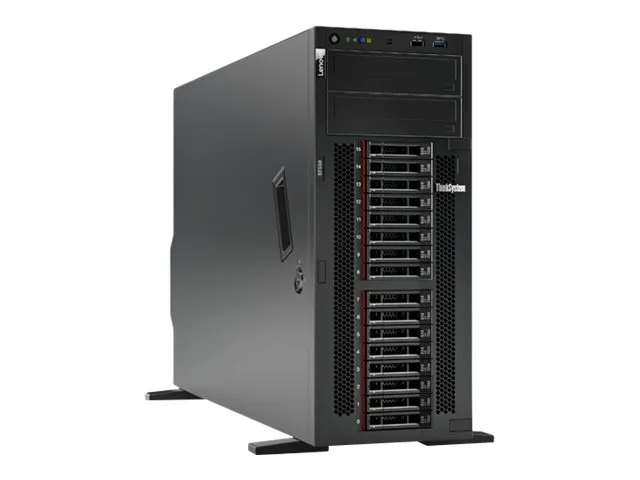

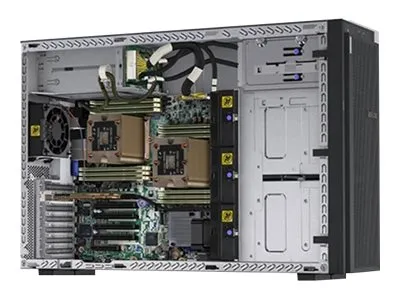

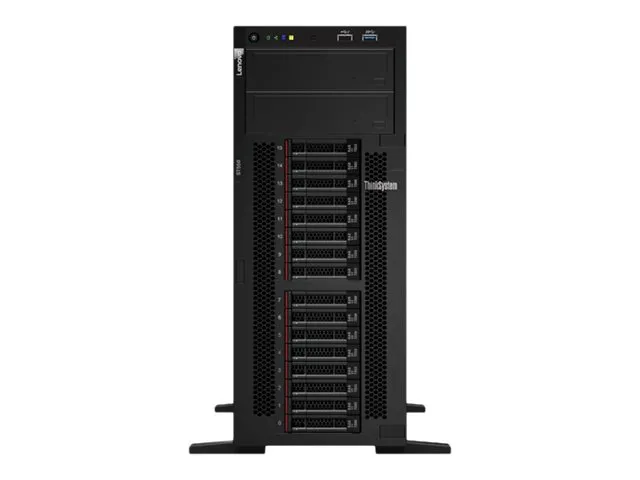

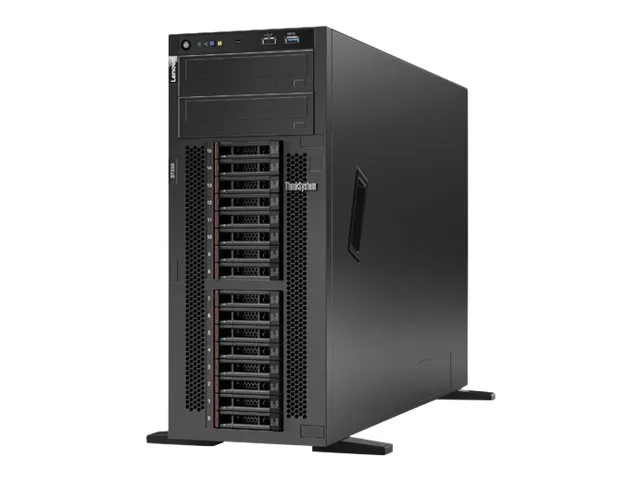

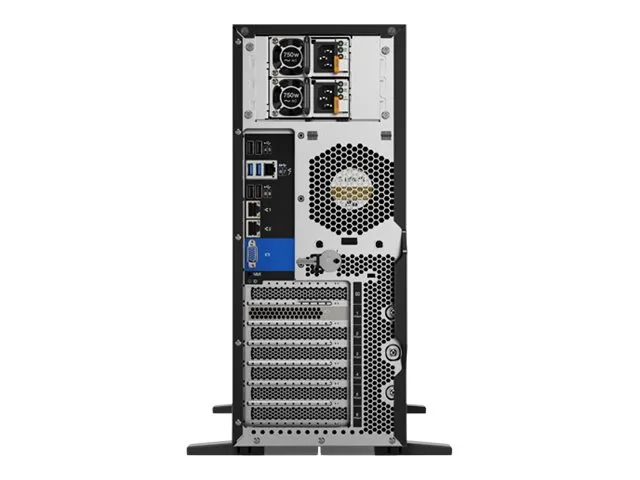

LENOVO ThinkSystem ST550 Xeon Silver 4210R 10C 2.4GHz 13.75MB Cache 32GB 2933MHz RDIMM 8x2.5in 930-8i 2GB 2x1GbE 1x750W XCC Ent - 7X10A0F3EA
Парт.№: 7X10A0F3EA
Кат.№: 145792
Кат.№: 145792
Информация от производителБЪРЗА ПОРЪЧКА (без регистрация)
Въведете Вашите данни, натиснете бутон "ПОРЪЧАЙ" и ние ще Ви се обадим!
Гаранция: 36 месеца
| Manufacturer: | LENOVO |
| Manufacturer Part No: | 7X10A0F3EA |
| General | |
| Type: | Server |
| Product Form Factor: | Tower - 4U |
| Embedded Security: | Trusted Platform Module (TPM 1.2 and TPM 2.0) |
| Server Scalability: | 2-way |
| Front Accessible Bays Qty: | 2 |
| Hot-Swap Bays Qty: | 8 |
| Localisation: | Region: EMEA |
| Processor / Chipset | |
| CPU: | Intel Xeon Silver 4210R |
| Clock Speed: | 2.4 GHz |
| Max Turbo Speed: | 3.2 GHz |
| Number of Cores: | 10-core |
| CPU Qty: | 1 |
| Max CPU Qty: | 2 |
| Chipset Type: | Intel C621 |
| Cache Memory | |
| Installed Size: | L3 Cache - 13.75 MB |
| Cache Per Processor: | 13.75 MB |
| RAM | |
| Installed Size: | 32 GB (installed) / 768 GB (max) |
| Technology: | DDR4 SDRAM - ECC |
| Effective Memory Speed: | 2400 MHz |
| Rated Memory Speed: | 1200 MHz |
| Form Factor: | DIMM 288-pin |
| Slots: | 12 (Total) / 11 (empty) |
| Features: | Registered, Memory Mirroring, Memory Sparing, low-voltage, mixing of different types of memory modules is not supported, slots 7 - 12 are available in two-processor configuration only, TruDDR4, 6-channel memory architecture, Single Device Data Correction (SDDC) |
| Configuration Features: | 1 x 32 GB |
| Hard Drive | |
| Type: | No HDD |
| Storage Controller | |
| Type: | 1 x RAID - PCIe 3.0 x8 |
| Controller Interface Type: | SATA 6Gb/s / SAS 12Gb/s |
| Storage Controller Name: | ThinkSystem RAID 930-8i |
| Channel Qty: | 8 |
| RAID Level: | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, JBOD, RAID 60 |
| Buffer Size: | 2 GB |
| Optical Storage | |
| Type: | No optical drive |
| Monitor | |
| Monitor Type: | None. |
| Graphics Controller | |
| Graphics Processor: | Matrox G200 |
| Video Memory: | 16 MB |
| Video Interfaces: | VGA |
| Networking | |
| Ethernet Ports: | 2 x Gigabit Ethernet |
| Ethernet Controller: | Intel X722 |
| Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Remote Management Protocol: | SNMP 3, CIM, IPMI 2.0 |
| Remote Management Controller: | XClarity Controller (XCC) Enterprise |
| Features: | Wake on LAN (WoL) |
| Expansion / Connectivity | |
| Bays: | 2 (total) / 2 (free) x external 5.25" x 1/2H 8 (total) / 8 (free) x hot-swap 2.5" |
| Slots: | 1 PCIe 3.0 x8 - half-length, full-height 1 (total) / 1 (free) x PCIe 3.0 x16 - half-length, full-height 1 (total) / 1 (free) x PCIe 3.0 x16 - full-length, full-height, double-width 1 (total) / 1 (free) x PCIe 3.0 x16 - full-length, full-height (x8 mode, 2 processors must be installed) 1 (total) / 1 (free) x PCIe 3.0 x16 - full-length, full-height, double-width (2 processors must be installed) 1 PCIe 3.0 x8 - full-length, full-height |
| Interfaces: | 4 x USB 3.0 (1 front, 2 rear, 1 internal) 5 x USB 2.0 (1 front, 4 rear) 1 x VGA 1 x management - RJ-45 2 x LAN (Gigabit Ethernet) - RJ-45 |
| Miscellaneous | |
| Theft/Intrusion Protection: | Security lock slot (cable lock sold separately) |
| Security Slot Type: | Kensington security slot |
| Compliant Standards: | TUV GS, BSMI CNS 13438 Class A, EN 61000-3-2, EN 61000-3-3, EN55024, CB, AS/NZS 60950-1, CCC, RoHS, UL 60950-1, IEC 60950-1, EN 60950-1, FCC Part 15 A, CSA C22.2 No. 60950-1, GB 17625.1, GB 9254 Class A, VCCI Class A, GB 4943.1, BSMI CNS 14336-1, NOM-019, EK1-ITB2000, Energy-Related Products (ErP) Lot 3, KN35, ICES-003 issue 6 Class A, AS/NZS CISPR 32 Class A, KN32 Class A, EN 55032 Class A, CISPR 32 Class A, EN 62368-1:2014, BSMI CNS 15663, TR CU 020/2011, TR CU 004/2011, JESL |
| Power | |
| Device Type: | Power supply - hot-plug |
| Power Redundancy: | Optional |
| Power Redundancy Scheme: | 1+1 (with optional power supply) |
| Installed Qty: | 1 |
| Max Supported Qty: | 2 |
| Voltage Required: | AC 100-240 V (50/60 Hz) |
| Power Provided: | 750 Watt |
| 80 PLUS Certification: | 80 PLUS Titanium |
| Operating System / Software | |
| OS Provided: | No operating system |
| Sustainability Information | |
| ENERGY STAR Certified: | Yes |
| ENERGY STAR Version: | 3.0 |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 3 years - on-site - response time: next business day |
| Dimensions & Weight | |
| Width: | 17.6 cm |
| Depth: | 66 cm |
| Height: | 43.8 cm |
| Weight: | 36 kg |
| Dimensions & Weight (Shipping) | |
| Shipping Width: | 57.4 cm |
| Shipping Depth: | 98.2 cm |
| Shipping Height: | 37.2 cm |
