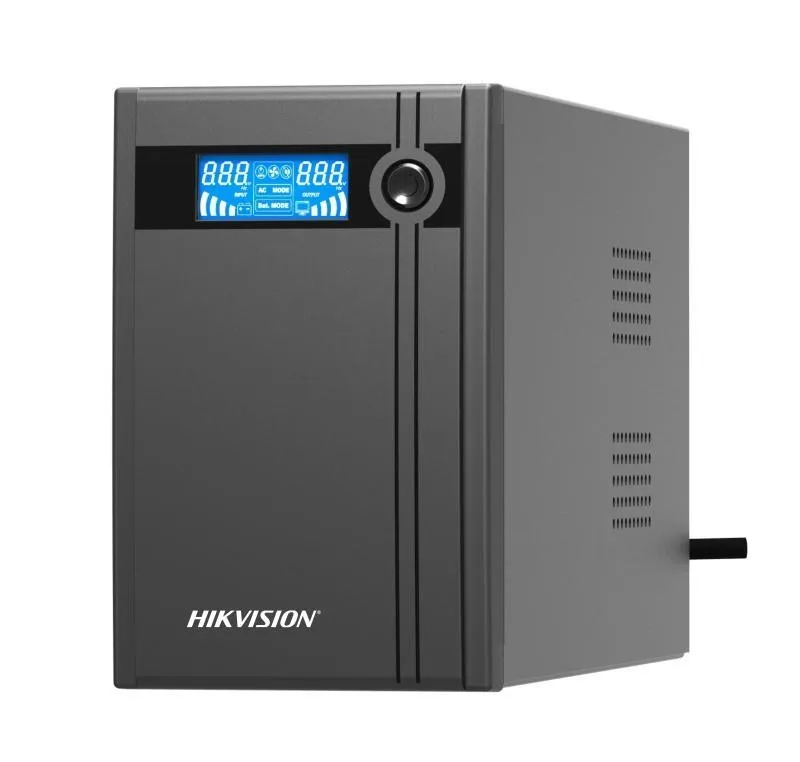

UPS HikVision DS-UPS2000 DS-2000, 2KVA

Wide input voltage range

Built-in AVR

Super fast charging

Overload and short circuit protection

LCD display

Compact design

USB port for remote control

• Power
• UPS Capacity2000 VA / 1200 W

• Input
• Input Voltage Range140 VAC to 290 VAC
• Input Frequency50/60 Hz

• Output
• Output Voltage Range210 VAC to 235 VAC
• Output Frequency50 Hz ± 0.5 Hz
• Transfer Time≤ 10 ms
• WaveformPWM

• Battery
• Battery Type12 V/9 Ah,2pcs
• Recharge Time6-8 hours recover to 90% capacity

• Interface
• Communicate PortsUSB

• Protection
• Full ProtectionSurge protection,Overload protection,Overcharge protection

• General
• Operating Temperature0 °C to 40 °C (32 °F to 104 °F）
• Operating Humidity30% to 90% (non-condensing)
• Dimension345 mm × 122 mm × 192 mm (13.58" × 4.80" × 7.56")
• WeightApprox. 11 kg (24.3 lb)

• Indicator
• Display

  LCD Screen

  Input Voltage, Output Voltage, Battery capacity, load level

• Alarm

  Charging Mode (DC mode): Sounding every 8 seconds

  Low Battery: Sounding every second

  Overloading Mode: Sounding every 0.5 seconds

  Fault: Continuously sounding
