Парт.№: CGR-SC-500
Кат.№: 146466
Кат.№: 146466
Цена с ДДС:
74 лв.
Наличност:
на склад
БЪРЗА ПОРЪЧКА (без регистрация)
Въведете Вашите данни, натиснете бутон "ПОРЪЧАЙ" и ние ще Ви се обадим!
| Design&Features | |
| Power Device Type: | Power Supply |
| Power Device Location: | Plug-in-module |
| Form Factor: | ATX |
| Input Voltage: | AC 200-240 V |
| Input Frequency: | 50 Hz |
| Rated Input Current: | 4 A |
| Maximum Output Power: | 500 W |
| Circuit Protection: | Over Voltage Undervoltage Over Current Short Circuit Protection Over Power |
| Power Adapter and Power Supply Features: | Active PFC |
| 80 Plus Certification: | Yes |
| Efficiency: | 86% |
| Currents | |
| +3.3V: | 16 A (55 W) |
| +5V: | 18 A (55 W) |
| +12V: | 38 A (456 W) |
| -12V: | 0.3 A |
| +5VSB: | 2.5 A |
| Output Connectors | |
| 20+4-pin Main Connector: | 1 |
| 4/8-pin +12V Power Connector: | 1 |
| 4-pin Peripheral Power Connector: | 2 |
| S-ATA Connector: | 5 |
| 6/8-pin PCI Express Connector: | 2 |
| System Fans | |
| Fans Installed Quantity: | 1 |

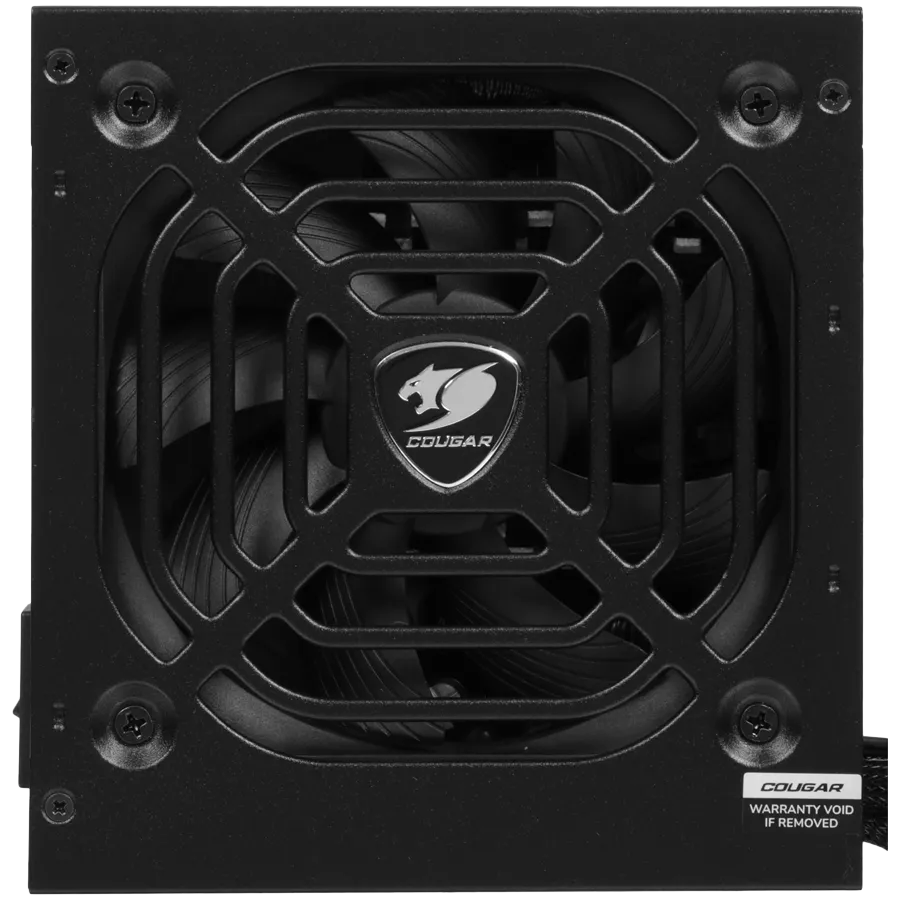

| Fan Diameter: | 120 mm |
| Environment | |
| Maximum Operating Ambient Temperature: | 40 °C |
| Minimum Operating Ambient Temperature: | 10 °C |
| Maximum Non-Operating Ambient Temperature: | 70 °C |
| Minimum Non-Operating Ambient Temperature: | -40 °C |
| Maximum Operating Humidity: | 85 % |
| Minimum Operating Humidity: | 20 % |
| Maximum Non-Operating Humidity: | 95 % |
| Minimum Non-Operating Humidity: | 5 % |
| Miscellaneous | |
| External Color: | Black |
| Warranty | |
| Warranty Products Returnable: | Yes |
| Warranty Term (month): | 24 month(s) |
| Warranty Validation Criteria: | Serial Number |
| Logistic | |
| Pack Length (mm): | 200 mm |
| Pack Width (mm): | 200 mm |
| Pack Height (mm): | 200 mm |
| Pack Weight Brutto (kg): | 1.5 kg |
| Pack Weight Netto (kg): | 1 kg |
| Pieces in pack: | 1 |
| Box Weight Brutto (kg): | 1.5 kg |
| Packs in Box: | 1 |
| Package Type: | Retail |
| EAN Code: | 2143658790 |
