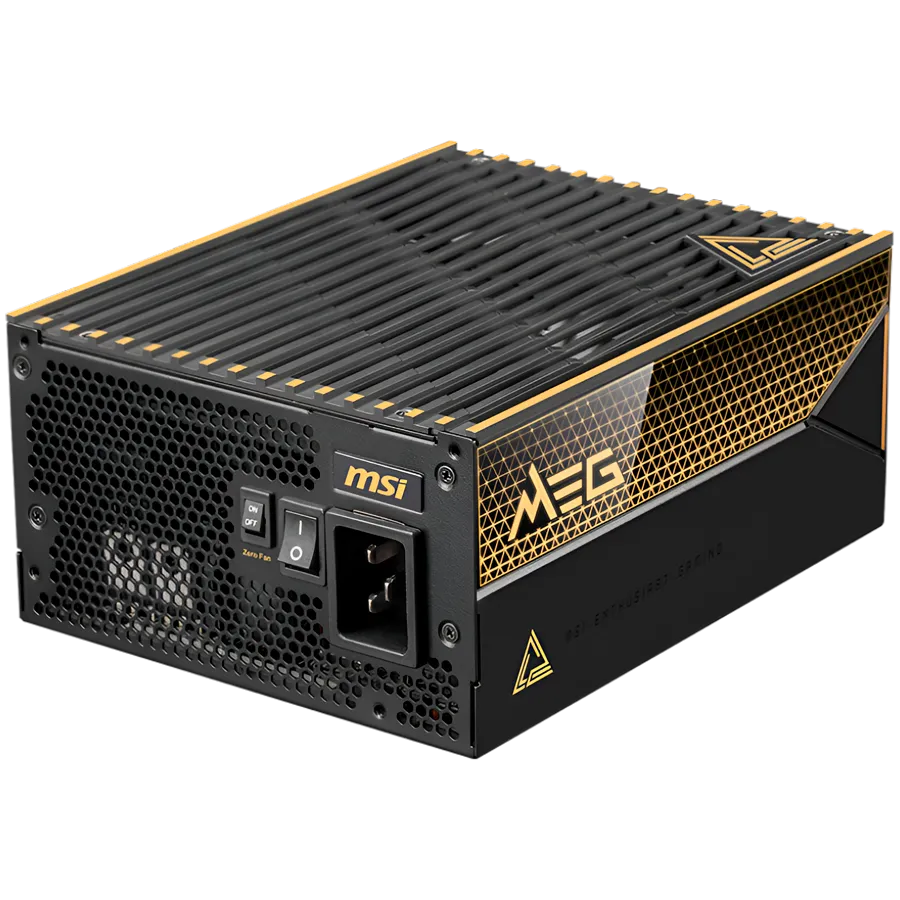

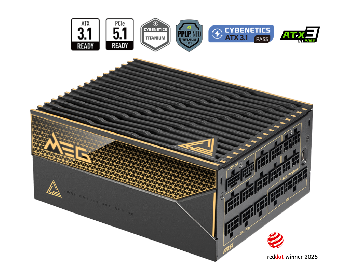

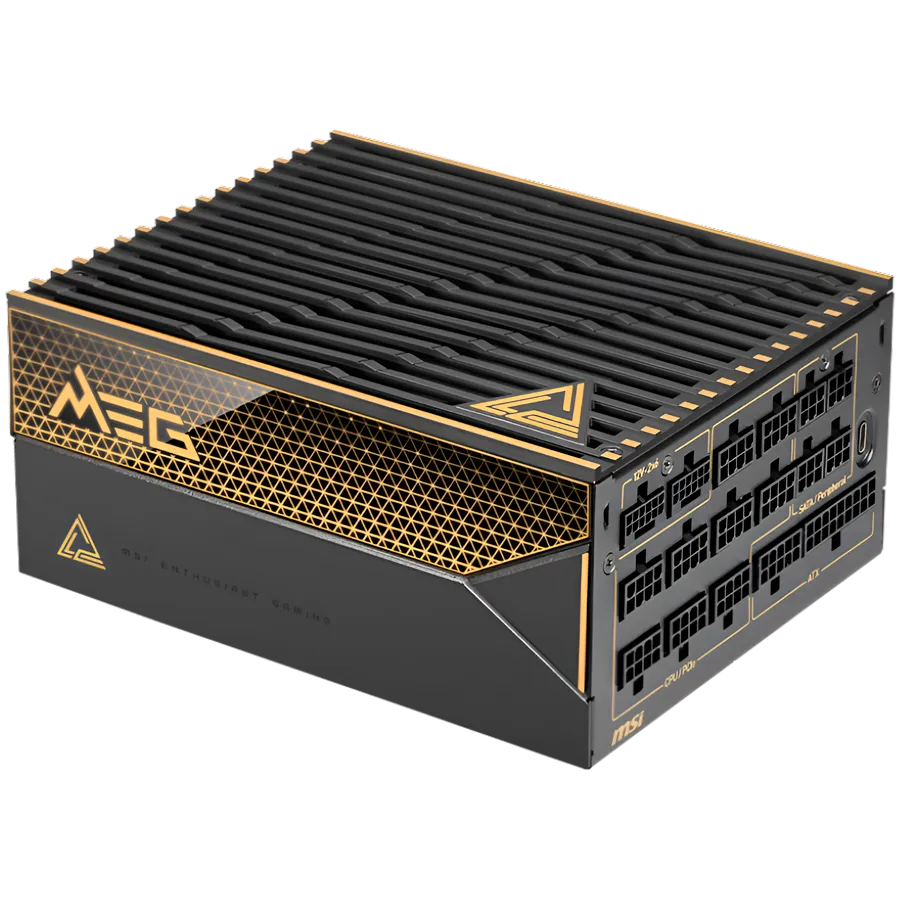

MSI MEG Ai1600T PCIE5 Power Supply 1600W, 80 PLUS Titanium, Dual PCIe 5.1 Cables, ATX 3.1, Software Sync, Mystic Light, 135mm Fan, Fan Stop, OCP/OTP/OPP/SCP/OVP/UVP/SIP/NLO, Interleaved PFC, Braided Cables, Dimensions: 190mmx150mmx86mm, 12Y Warranty - MEG_AI1600T_PCIE5
Парт.№: MEG_AI1600T_PCIE5
Кат.№: 146183
Кат.№: 146183
Цена с ДДС:
1282 лв.
Наличност:
на склад
БЪРЗА ПОРЪЧКА (без регистрация)
Въведете Вашите данни, натиснете бутон "ПОРЪЧАЙ" и ние ще Ви се обадим!
| Design&Features | |
| Power Device Type: | Power Supply |
| Power Device Location: | Internal |
| Input Voltage: | AC 100-240 V |
| Input Frequency: | 50/60 Hz |
| Rated Input Current: | 15 A |
| Maximum Output Power: | 1600 W |
| Circuit Protection: | Over Voltage Undervoltage Over Temperature Over Current Short Circuit Protection Over Power Surge & Inrush No-load Operation |
| Modular Power Supply: | Yes |
| Power Adapter and Power Supply Features: | Active PFC |
| 80 Plus Certification: | 80 Plus Titanium |
| Efficiency: | 94% |
| Currents | |
| +5V: | 22 A (60 W) |
| +3.3V: | 22 A (60 W) |
| +12V: | 133.3 A (1599.96 W) |
| -12V: | 0.3 A (3.6 W) |
| +5VSB: | 3 A (15 W) |

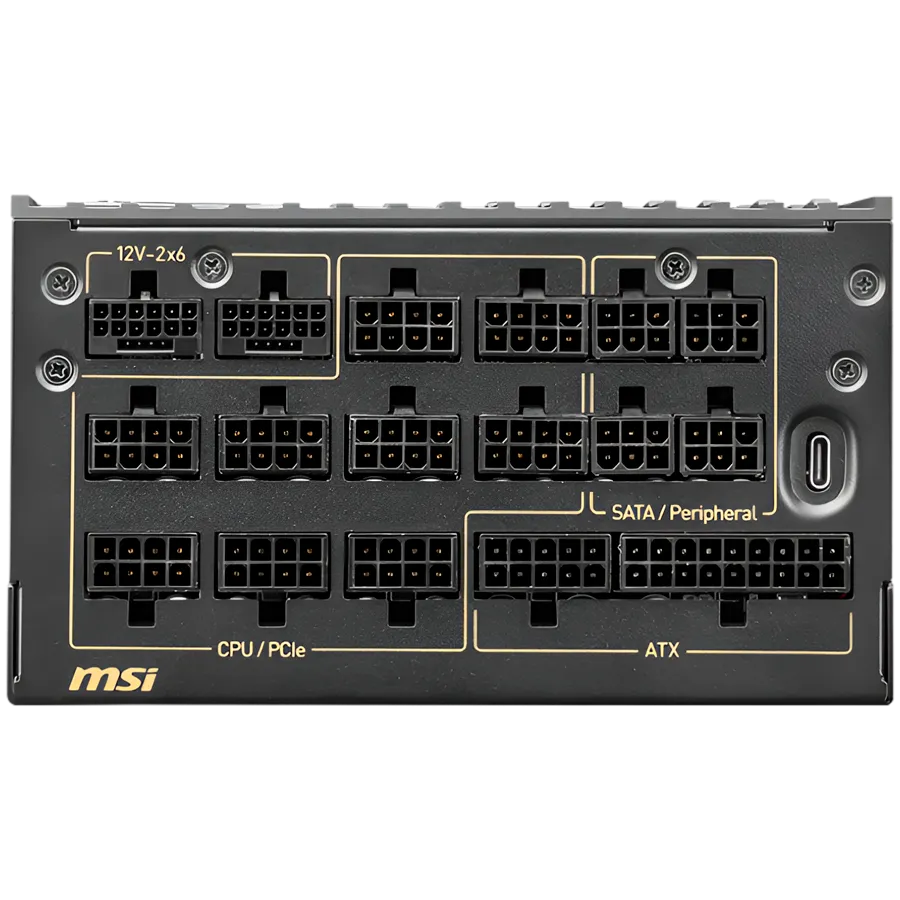

| Output Connectors | |
| 24-pin Main Connector: | 1 |
| 4/8-pin +12V Power Connector: | 2 |
| 4-pin Peripheral Power Connector: | 8 |
| S-ATA Connector: | 8 |
| 6/8-pin PCI Express Connector: | 9 |
| 16-pin PCI Express 5.0 Connector: | 2 |
| System Fans | |
| Fans Installed Quantity: | 1 |

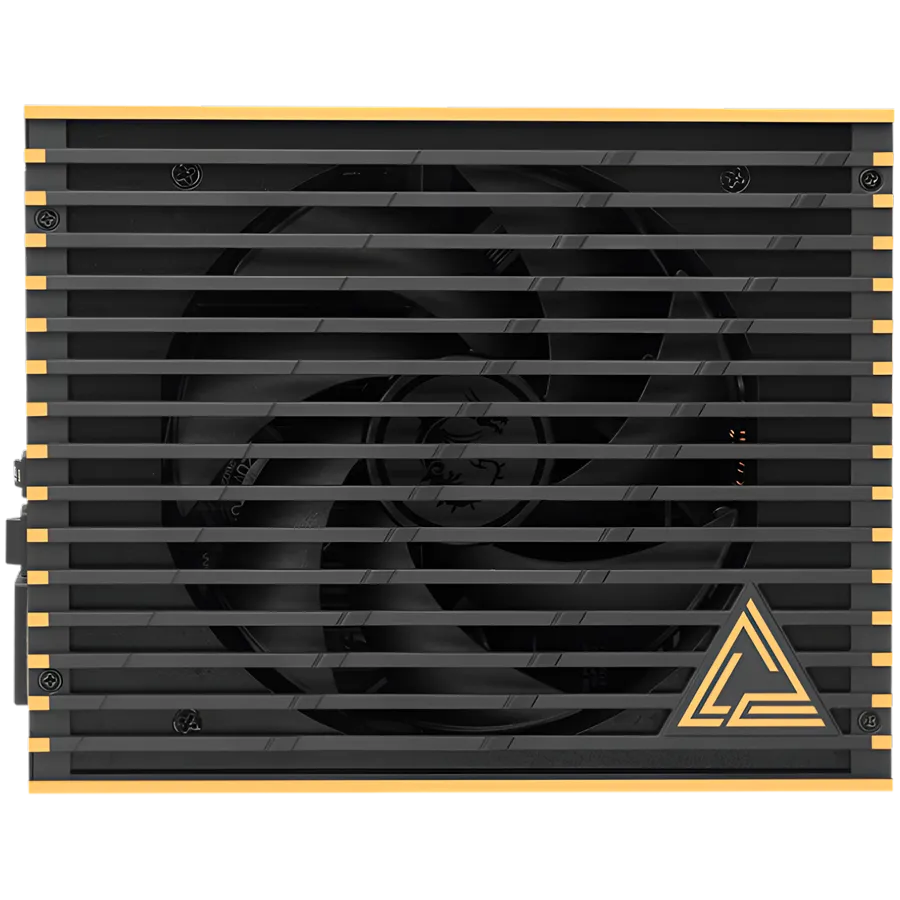

| Fan Diameter: | 135 mm |
| Miscellaneous | |
| External Color: | Black |
| Cable Included: | Modular Cables |
| Included Accessories: | Quick Start Guide |
| Dimensions & Weight Device | |
| Depth (mm): | 190 mm |
| Height (mm): | 86 mm |
| Width (mm): | 150 mm |
| Warranty | |
| Warranty Products Returnable: | Yes |
| Warranty Term (month): | 144 month(s) |
| Warranty Validation Criteria: | Serial Number |
| Logistic | |
| Pack Length (mm): | 1 mm |
| Pack Width (mm): | 1 mm |
| Pack Height (mm): | 1 mm |
| Pack Weight Brutto (kg): | 3 kg |
| Pack Weight Netto (kg): | 2 kg |
| Pieces in pack: | 1 |
| Box Weight Brutto (kg): | 3 kg |
| Packs in Box: | 1 |
| Package Type: | Box |
| EAN Code: | 4711377238830 |
