Парт.№: 90MB19P0-M0EAY0
Кат.№: 146828
Кат.№: 146828
Цена с ДДС:
170 лв.
Цена с ДДС:
86.92 €
изчерпан
| Подд. процесори: | Intel® Socket LGA1700 for Intel® Core™ 14th&13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors, Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 |
| Чипсет: | Intel® H610 Chipset |
| Памет/тип/: | 2 x DIMM, Max. 64GB, DDR4 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 Non-ECC, Un-buffered Memory, Dual Channel Memory Architecture, Supports Intel® Extreme Memory Profile (XMP) |
| Разш. слотове: | Intel® Core™ Processors (14th&13th&12th Gen), 1 x PCIe 4.0 x16 slot, Intel® H610 Chipset, 1 x PCIe 3.0 x1 slot |
| Сторидж: | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports, Intel® H610 Chipset, M.2 1 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode), M.2 2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x2 mode), 4 x SATA 6Gb/s ports |
| Графична карта: | 1 x DisplayPort, 1 x D-Sub port, 1 x HDMI® port |
| Звук: | Realtek 7.1 Surround Sound High Definition Audio CODEC*, - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking, - Supports up to 24-Bit/192 kHz playback, Audio Features, - Audio Shielding, - Premium audio capacitors, - Dedicated audio PCB layers, * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |

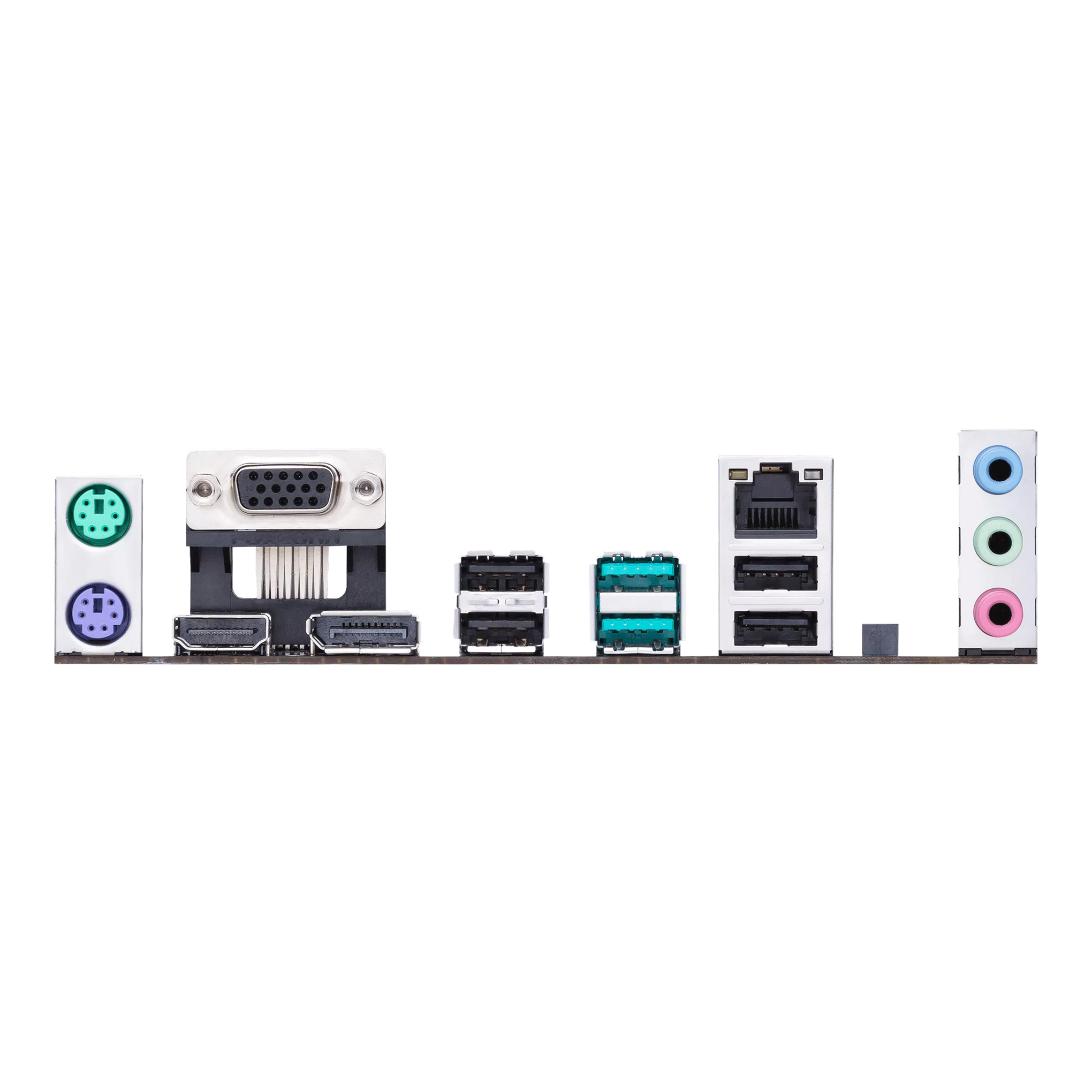

| I/O: | 2 x USB 3.2 Gen 2 ports (2 x Type-A), 4 x USB 2.0 ports (4 x Type-A), 1 x DisplayPort, 1 x HDMI® port, 1 x D-Sub port, 1 x V-M.2 slot (Key E), 1 x Intel® 1Gb Ethernet port, 3 x Audio jacks, 1 x PS/2 Keyboard (purple) port, 1 x PS/2 Mouse (green) port |
| Мрежа: | 1 x Intel® 1Gb Ethernet |
| Конектори: | Fan and Cooling related, 1 x 4-pin CPU Fan header, 2 x 4-pin Chassis Fan headers, Power related, 1 x 24-pin Main Power connector, 1 x 8-pin +12V Power connector, Storage related, 2 x M.2 slots (Key M), 4 x SATA 6Gb/s ports, USB, 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports, 2 x USB 2.0 headers support additional 3 USB 2.0 ports, Miscellaneous, 3 x Addressable Gen 2 headers, 2 x AURA RGB headers, 1 x Clear CMOS header, 1 x Front Panel Audio header (AAFP), 1 x COM Port header, 1 x S/PDIF Out header, 1 x Speaker header, 1 x SPI TPM header (14-1pin), 1 x 10-1 pin System Panel header |
| Форм фактор: | mATX Form Factor, 24.4 cm x 21.1 cm |
| Оперционни с-ми: | Windows® 11 64-bit, Windows® 10 64-bit |
| BIOS: | 128 Mb Flash ROM, UEFI AMI BIOS |
| USB: | Rear USB (Total 6 ports), 2 x USB 3.2 Gen 2 ports (2 x Type-A), 4 x USB 2.0 ports (4 x Type-A), Front USB (Total 5 ports), 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports, 2 x USB 2.0 headers support additional 3 USB 2.0 ports |
| Wireless: | V-M.2 slot only (Key E, CNVi&PCIe) |
| Features: | ASUS 5X PROTECTION III, - DIGI+ VRM, - LANGuard, - Overvoltage Protection, - SafeSlot Core, - Stainless-Steel Back I/O, ASUS Q-Design, - Q-DIMM, - Q-Slot, ASUS Thermal Solution, - VRM heatsink design, AURA Sync, - AURA RGB headers, - Addressable Gen 2 headers |
