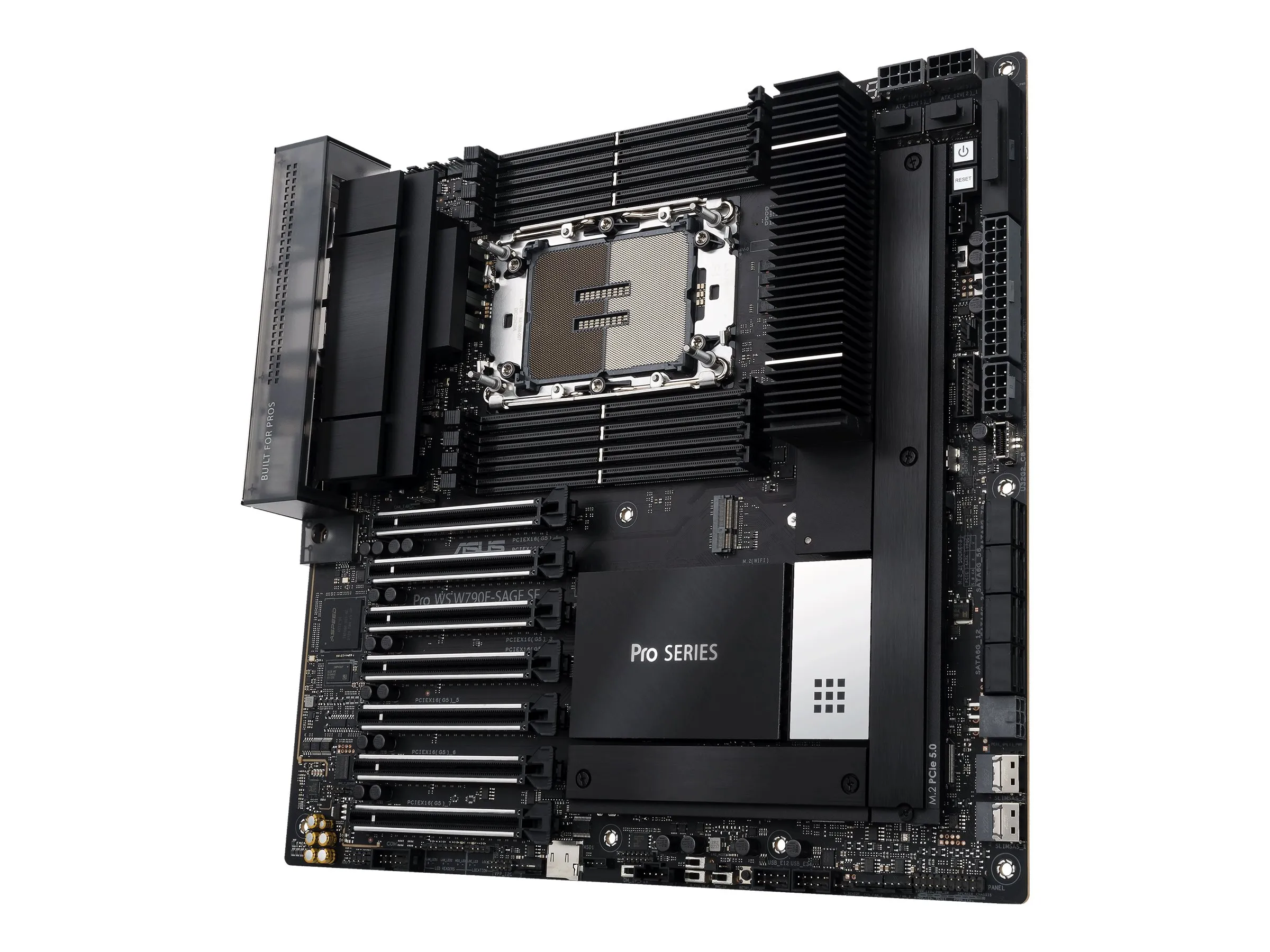

ASUS PRO WS W790E-SAGE SE LGA4677 ATX 8xDDR4
Гаранция: 36 месеца
Цена с ДДС:
2721 лв.
Наличност:
на склад
БЪРЗА ПОРЪЧКА (без регистрация)
Въведете Вашите данни, натиснете бутон "ПОРЪЧАЙ" и ние ще Ви се обадим!
| Manufacturer: | ASUS |
| Manufacturer Part No: | 90MB1C20-M0EAY0 |
| General | |
| Product Type: | Motherboard - SSI EEB |
| Chipset Type: | Intel W790 |
| Processor Socket: | LGA4677 Socket-E |
| Max Processors Qty: | 1 |
| Compatible Processors: | Xeon W |
| Supported RAM | |
| Max Size: | 2048 GB |
| Technology: | DDR5 |
| Bus Clock: | 4800 MHz, 5200 MHz (O.C.), 5400 MHz (O.C.), 5600 MHz (O.C.), 5800 MHz (O.C.), 6000 MHz (O.C.), 6200 MHz (O.C.), 6400 MHz (O.C.), 6600 MHz (O.C.), 6800 MHz (O.C.) |
| Supported RAM Integrity Check: | ECC |
| Registered or Buffered: | Registered |
| Features: | 8-channel memory architecture, Intel Extreme Memory Profiles (XMP) |
| Audio | |
| Type: | HD Audio (8-channel) |
| Audio Codec: | Realtek ALCS1220A |
| Compliant Standards: | High Definition Audio |
| LAN | |
| Network Interfaces: | 10 Gigabit Ethernet, Gigabit Ethernet |
| Expansion / Connectivity | |
| Expansion Slots: | 1 x CPU 8 x DIMM 288-pin 6 x PCIe 5.0 x16 1 x PCIe 5.0 x16 (x8 mode) 4 x PCIe 5.0 x16 2 x PCIe 4.0 x4 (SlimSAS) 3 x M.2 socket (2242/2260/2280/22110 M.2 Key M slot) |
| Storage Interfaces: | SATA-600 -connectors: 8 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 4.0 -connectors: 2 x SlimSAS PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 5.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 |
| Interfaces: | 1 x USB-C 3.2 Gen2x2 4 x USB 3.2 Gen 2 1 x USB-C 3.2 Gen 2 2 x USB 2.0 1 x microphone - mini-jack 1 x audio line-out (center/subwoofer) - mini-jack 1 x audio line-out (rear) - mini-jack 1 x audio line-in - mini-jack 1 x audio line-out - mini-jack 1 x SPDIF out 1 x VGA 1 x LAN (Gigabit Ethernet) 2 x LAN (10Gigabit Ethernet) |
| Internal Interfaces: | 1 x USB-C 3.2 Gen 2 - header 2 x USB 3.2 Gen 1 - header 4 x USB 2.0 - header 1 x serial - header 1 x audio - header 1 x SPI - header |
| Power Connectors: | 2 x 24-pin main power connectors, 4 x 8-pin ATX12V connectors, 8-pin PCI Express power connector, 6-pin PCI Express power connector |
| Features | |
| BIOS Type: | AMI |
| BIOS Features: | UEFI BIOS, ASUS EZ Flash |
| Sleep / Wake Up: | Wake on LAN (WOL), wake on PME |
| Hardware Features: | Intel Turbo Boost Max Technology 3.0, Preboot eXecution Environment (PXE), CrashFree BIOS 3, ASUS EZ DIY, ASUS DIGI+ VRM, ESD Guards, ASUS Extreme Engine Digi+, FlexKey button, ReTry button, Safe boot button, Start button, 10K Black Metallic Capacitors, MicroFine Alloy Chokes, ASUS 5X Protection III, LANGuard, overvoltage protection, ASUS SafeSlot, ASUS Stainless Steel Back I/O, ASUS Q-Design, M.2 Q-Latch, Q-Code, ASUS Q-Connector, Q-DIMM, Q-LED, Q-Slot, M.2 heatsink backplate, M.2 heatsink, steel backplate, VRM heatsink design, BIOS FlashBack button, BIOS FlashBack LED, ASUS ProCool II, pre-mounted I/O shield, ASUS SafeDIMM, overcurrent protection, Intel VROC support, Intel Volume Management Device (VMD), 14+1+1 Phase Power Design, BMC remote management, Enlarged Chipset Heatsink |
| Miscellaneous | |
| Included Accessories: | CPU guard for LGA 4677 E1A, CPU guard for LGA 4677 E1B, 1 x M.2 rubber package, Q-Connector, ACC Express Activation Key Card, M.2 Key E screw package, M.2 backplate rubber package, VRM fan holder, thermistor cable |
| Cables Included: | 4 x Serial ATA cable |
| Software Included: | ASUS Control Center Express, Armoury Crate, ASUS Fan Xpert 4, ASUS AI Suite III, ASUS Turbo App, PC Cleaner, ASUS CPU-Z, Adobe Creative Cloud (free trial), Norton 360 Deluxe (60 days trial), WinRAR |
| Width: | 30.5 cm |
| Depth: | 33 cm |
