Парт.№: B550-ROCK
Кат.№: 160419
Кат.№: 160419
Цена с ДДС:
131.00 €
на склад
БЪРЗА ПОРЪЧКА (без регистрация)
Въведете Вашите данни, натиснете бутон "ПОРЪЧАЙ" и ние ще Ви се обадим!
| Производител: | ASRock |
| Модел: | B550 Rock WiFi |
| Цокъл: | AMD AM4 |
| Подд. процесори: | Supports AMD AM4 Socket Ryzen™ 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors |
| Чипсет: | AMD B550 |
| Памет/тип/: | - Dual Channel DDR4 Memory Technology - 4 x DDR4 DIMM Slots - AMD Ryzen series CPUs (Vermeer) support DDR4 4533+(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory - AMD Ryzen series CPUs (Matisse) support DDR4 4533+(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory - AMD Ryzen series APUs (Cezanne) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory - AMD Ryzen series APUs (Renoir) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory - AMD Ryzen series APUs (Picasso) support DDR4 3333+(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory - Max. capacity of system memory: 128GB - Supports Extreme Memory Profile (XMP) memory modules - 15μ Gold Contact in DIMM Slots |
| Разш. слотове: | AMD Ryzen series CPUs (Vermeer and Matisse) - 2 x PCIe x16 Slots (PCIE1: Gen4x16 mode PCIE2: Gen3 x2 mode) AMD Ryzen series APUs (Cezanne and Renoir) - 2 x PCIe x16 Slots (PCIE1: Gen3x16 mode PCIE2: Gen3 x2 mode) AMD Ryzen series APUs (Picasso) - 2 x PCIe x16 Slots (PCIE1: Gen3x8 mode PCIE2: Gen3 x2 mode) - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module |
| Сторидж: | CPU: - 1 x Hyper M.2 Socket (M2 1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode (with Vermeer, Matisse) or Gen3x4 (32 Gb/s) mode (with Cezanne, Renoir and Picasso) Chipset: - 1 x Ultra M.2 Socket (M2 2, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes - 1 x M.2 Socket (M2 3, Key M), supports type 2280 PCIe Gen3x2 (16 Gb/s) mode - 4 x SATA3 6.0 Gb/s Connectors |
| Графична карта: | Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU* (Actual support may vary by CPU) - 1 x HDMI 2.1, supports HDR, HDCP 2.3, 4K Ultra HD (UHD) playback and max. resolution up to 4K 60Hz |
| Звук: | 7.1 CH HD Audio (Realtek ALC897 Audio Codec) |

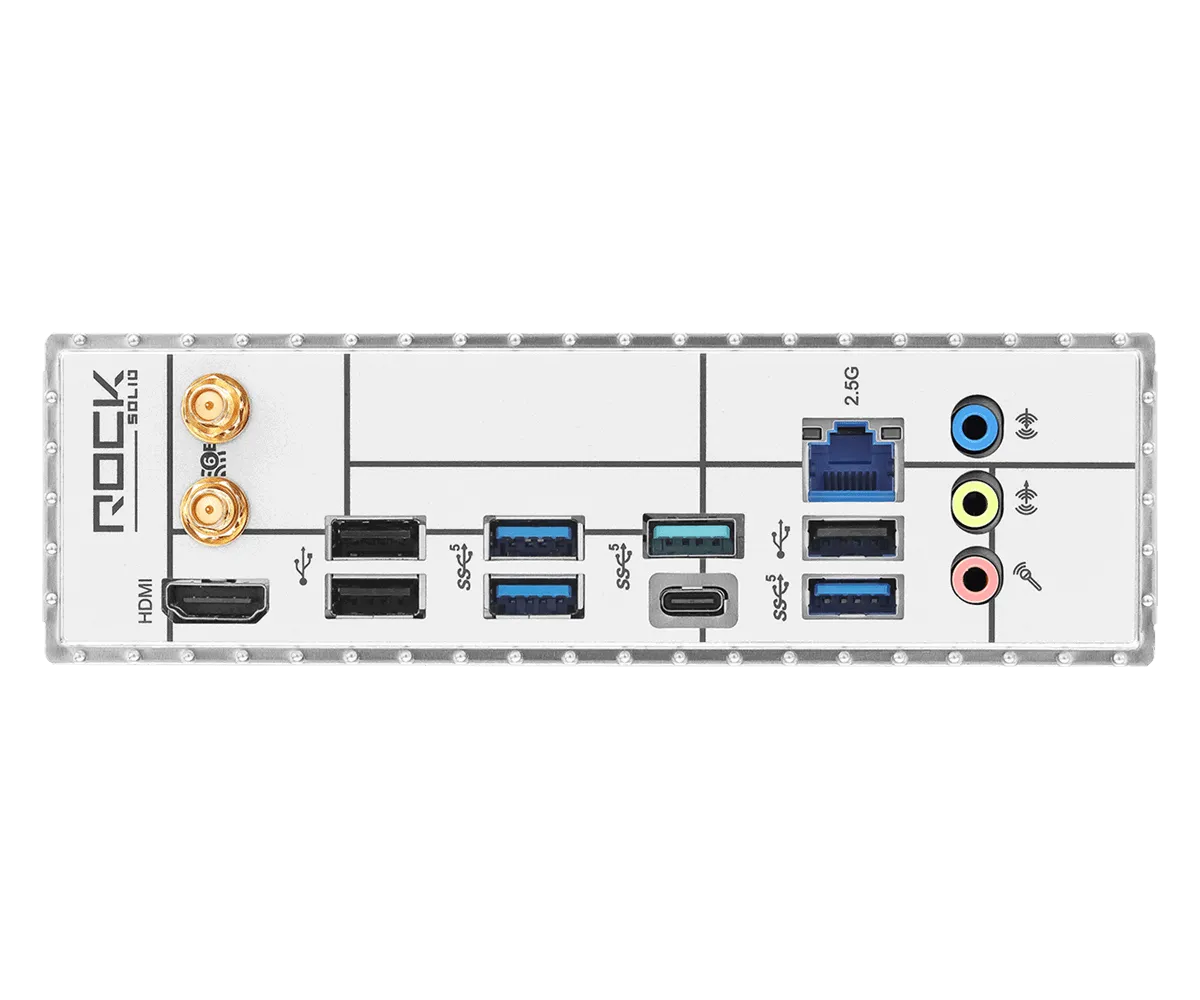

| I/O: | - 2 x Antenna Ports - 1 x HDMI Port - 1 x USB 3.2 Gen1 Type-C Port - 4 x USB 3.2 Gen1 Type-A Ports - 3 x USB 2.0 Ports - 1 x RJ-45 LAN Port - HD Audio Jacks: Line in / Front Speaker / Microphone |
| Мрежа: | - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - Dragon RTL8125BG - Supports Dragon 2.5G LAN Software - Smart Auto Adjust Bandwidth Control - Visual User Friendly UI - Visual Network Usage Statistics - Optimized Default Setting for Game, Browser, and Streaming Modes - User Customized Priority Control |
| Конектори: | - 1 x SPI TPM Header - 1 x Power LED and Speaker Header - 1 x RGB LED Header - 3 x Addressable LED Headers - 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control) - 4 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control) - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) - 1 x Front Panel Audio Connector - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) - 1 x USB 3.2 Gen1 Header (Support 2 USB 3.2 Gen1 ports) - 1 x Front Panel Type C USB 3.2 Gen1 Header |
| Размери: | 30.5 cm x 24.4 cm |
| Форм фактор: | ATX 2oz Copper PCB |
| Оперционни с-ми: | Microsoft Windows® 10 64-bit / 11 64-bit |
| BIOS: | 256Mb AMI UEFI Legal BIOS with GUI support |
| Други: | Rock-Solid Durability - 8+2 Power Phase - Pre-Installed I/O Shield Ultrafast Connectivity - 2.5G LAN, 802.11axe Wi-Fi 6E Module EZ Troubleshooter - ASRock Post Status Checker |
| RAID: | Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices |
| USB: | CPU: - 1 x USB 3.2 Gen1 Type-C (Rear) - 3 x USB 3.2 Gen1 Type-A (3 Rear (USB32 12 and USB32 3)) Chipset: - 1 x USB 3.2 Gen1 Type-C (Front) - 3 x USB 3.2 Gen1 Type-A (1 Rear (USB32 4), 2 Front) - 7 x USB 2.0 (3 Rear, 4 Front) |
| Wireless: | - 802.11axe Wi-Fi 6E Module - Supports IEEE 802.11a/b/g/n/ac/ax/axe - Supports Dual-Band 2x2 with extended 6GHz band support* - 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology - Supports Bluetooth 5.3 - Supports MU-MIMO |
| Bluetooth: | Supports Bluetooth 5.3 |
| Доп. информация: | Информация от производител |
