Парт.№: B860I WIFI
Кат.№: 149460
Кат.№: 149460
Цена с ДДС:
499 лв.
Цена с ДДС:
255.13 €
с поръчка
БЪРЗА ПОРЪЧКА (без регистрация)
Въведете Вашите данни, натиснете бутон "ПОРЪЧАЙ" и ние ще Ви се обадим!
Гаранция: 36 месеца

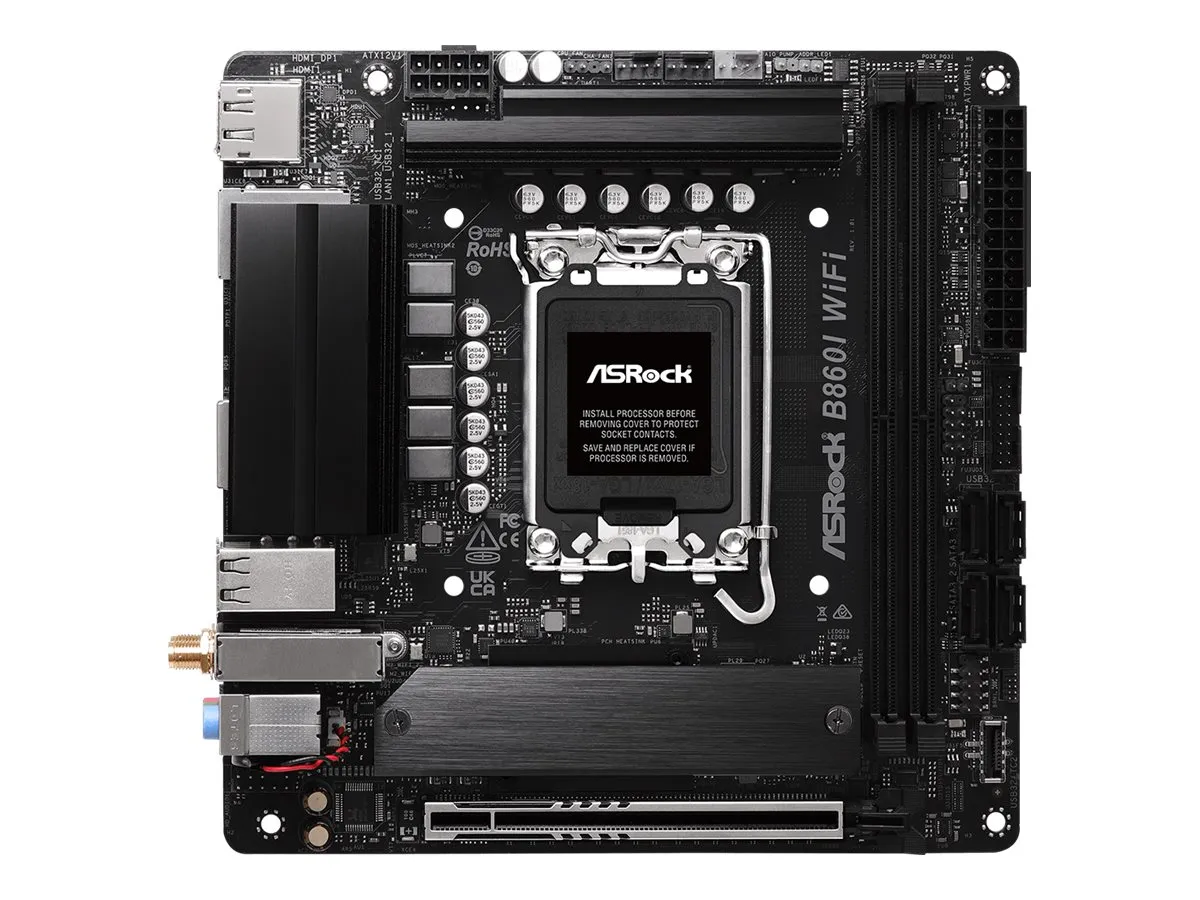

| Manufacturer: | ASROCK |
| Manufacturer Part No: | B860I WIFI |
| General | |
| Product Type: | Motherboard - mini ITX |
| Chipset Type: | Intel B860 |
| Processor Socket: | LGA1851 Socket |
| Max Processors Qty: | 1 |
| Compatible Processors: | (supports Intel Core Ultra processors (Series 2)) |
| Supported RAM | |
| Max Size: | 128 GB |
| Technology: | DDR5 |
| Bus Clock: | 4466 MHz (O.C.) |
| Supported RAM Integrity Check: | Non-ECC |
| Registered or Buffered: | Clocked unbuffered, unbuffered |
| Features: | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) 3.0 |
| Audio | |
| Type: | HD Audio (8-channel) |
| Audio Codec: | Realtek ALC897 |
| Compliant Standards: | High Definition Audio |
| LAN | |
| Network Controller: | Dragon RTL8125BG |
| Network Interfaces: | 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth 5.3 |
| Expansion / Connectivity | |
| Expansion Slots: | 1 x CPU 2 x DIMM 288-pin 1 x PCIe 5.0 x16 1 x M.2 socket (Key E, for wireless module) 2 x M.2 socket (2280 M.2 Key M slot) |
| Storage Interfaces: | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 4.0 -connectors: 1 x Hyper M.2 PCIe 5.0 -connectors: 1 x Blazing M.2 |
| Interfaces: | 1 x HDMI 2 x aerial 1 x DisplayPort 4 x USB 2.0 2 x LAN (2.5Gigabit Ethernet) 1 x audio line-out 1 x microphone 1 x audio line-in 2 x USB 3.2 Gen 1 1 x USB 3.2 Gen 2 1 x USB-C 3.2 Gen2x2 |
| Internal Interfaces: | 1 x USB-C 3.2 Gen 2 - header 2 x USB 3.2 Gen 1 - header 2 x USB 2.0 - header 1 x audio - header |
| Power Connectors: | 24-pin main power connector, 8-pin ATX12V connector |
| Features | |
| BIOS Type: | AMI |
| BIOS Features: | UEFI BIOS |
| Hardware Features: | 8+1+1+1+1 Phase Power Design, ASRock Auto Driver Installer, Intel Hybrid Technology, Intel Turbo Boost Max Technology 3.0, Intel Thermal Velocity Boost (TVB), Intel Adaptive Boost Technology (ABT), Dr.MOS MOSFET, Hi-Density Power Connectors, 8 Layer PCB, aluminium heatsink design, Nahimic Audio Enhacer, ASRock Polychrome RGB, DIY Friendly Design, ASRock EZ Mode, ASRock Full HD UEFI, ASRock My Favorites in UEFI, ASRock Instant Flash |
| Miscellaneous | |
| Included Accessories: | IO shield, 2 x ASRock WiFi 2.4/5/6 GHz Antennas, 2 x M.2 screws |
| Cables Included: | 2 x Serial ATA cable |
| Software Included: | ASRock A-Tuning, ASRock Dragon 2.5G LAN Software, ASRock Polychrome SYNC |
| Compliant Standards: | FCC, ErP Ready, EuP Ready |
| Width: | 17 cm |
| Depth: | 17 cm |
